DIN 7603 Copper sealing washers Copper washers

Product Overview

Description

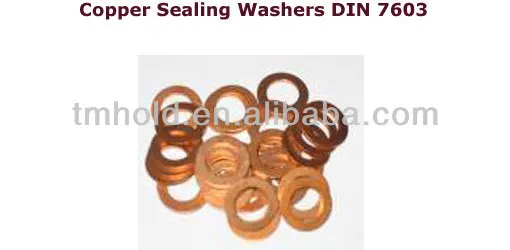

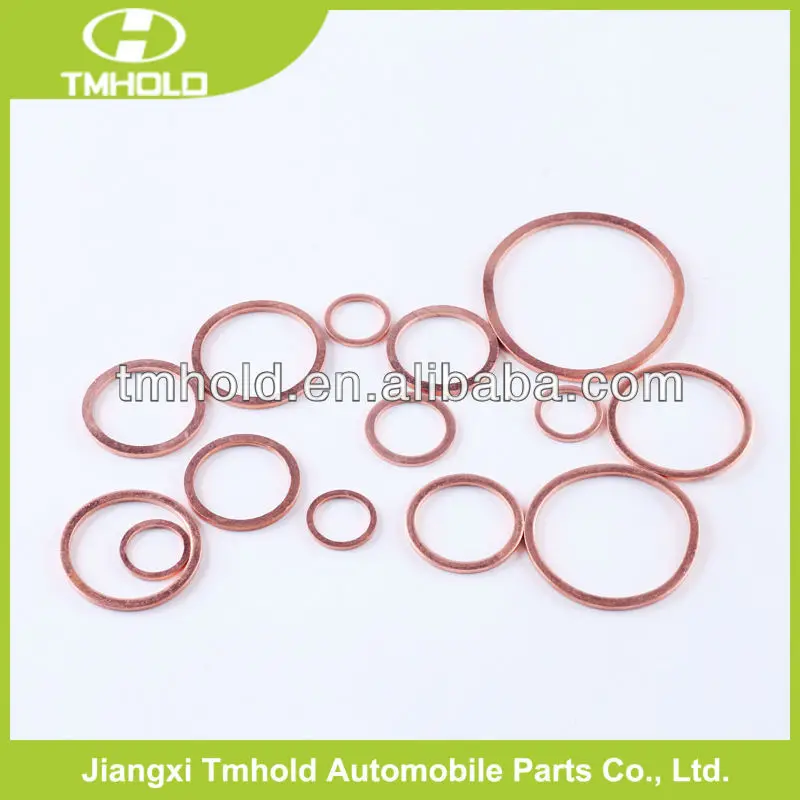

 DIN 7603 Copper sealing washers Copper washers



We offer Copper Sealing washers to DIN 7603 and Copper flat washers Copper pressed washers to DIN 7603.  These are used for diesel engine and various mechanical uses.



Features

1)thickness:1.0--2.5mm


2)weight:0.4--1.7g/pc


3)type:DIN7603



4)material:T2 Cu. or T3 Cu.







Specifications



Item No.	Size(mm)	Net weight(g)
THCU101210	DIN7603-CU-A-10X12X1	0.308
THCU101410	DIN7603-CU-A-10X14X1	0.588
THCU101420	DIN7603-CU-A-10X14X2	1.176
THCU101610	DIN7603CU-A-10X16X1	1
THCU101620	DIN7603CU-A-10X16X2	2
THCU101810	DIN7603-CU-A-10X18X1	1.568
THCU101820	DIN7603-CU-A-10X18X2	3.136
THCU121615	DIN7603-CU-A-12X16X1,5	1.174
THCU121620	DIN7603-CU-A-12X16X2	1.566
THCU121715	DIN7603-CU-A-12X17X1,5	1.52
THCU121815	DIN7603-CU-A-12X18X1,5	1.74
THCU121820	DIN7603-CU-A-12X18X2	2.32
THCU131815	DIN7603-CU-A-13X18X1,5	1.628
THCU131820	DIN7603-CU-A-13X18X2	2.17
THCU141815	DIN7603-CU-A-14X18X1,5	1.17
THCU141820	DIN7603-CU-A-14X18X2	1.56
THCU142015	DIN7603-CU-A-14X20X1,5	1.96
THCU142020	DIN7603-CU-A-14X20X2	2.61
THCU142215	DIN7603-CU-A-14X22X1,5	3.02
THCU142420	DIN7603-CU-A-14X24X2	5.32
THCU152015	DIN7603-CU-A-15X20X1,5	1.84
THCU162015	DIN7603-CU-A-16X20X1,5	1.512
THCU162215	DIN7603-CU-A-16X22X1,5	2.2
THCU162220	DIN7603-CU-A-16X22X2	2.94
THCU162415	DIN7603-CU-A-16X24X1,5	3.35
THCU172115	DIN7603-CU-A-17X21X1,5	1.43
THCU172315	DIN7603-CU-A-17X23X1,5	2.32
THCU182215	DIN7603-CU-A-18X22X1,5	1.46
THCU182415	DIN7603-CU-A-18X24X1,5	2.42
THCU202415	DIN7603-CU-A-20X24X1,5	2.42
THCU202615	DIN7603-CU-A-20X26X1,5	1.86
THCU212615	DIN7603-CU-A-21X26X1,5	2.66
THCU212815	DIN7603-CU-A-21X28X1,5	2.22
THCU222715	DIN7603-CU-A-22X27X1,5	3.6
THCU222915	DIN7603-CU-A-22X29X1,5	2.32
THCU242920	DIN7603-CU-A-24X29X2	3.46
THCU243020	DIN7603-CU-A-24X30X2	3.26
THCU243220	DIN7603-CU-A-24X32X2	5.83
THCU263220	DIN7603-CU-A-26X32X2	4.4
THCU263420	DIN7603-CU-A-26X34X2	6.22
THCU273220	DIN7603-CU-A-27X32X2	3.64
THCU283420	DIN7603-CU-A-28X34X2	5.198
THCU303620	DIN7603-CU-A-30X36X2	5
THCU303830	DIN7603-CU-A-30X38X2	7.6
THCU323820	DIN7603-CU-A-32X38X2	5.27
THCU333920	DIN7603-CU-A-33X39X2	5.44
THCU334120	DIN7603-CU-A-33X41X2	8.29
THCU364220	DIN7603-CU-A-36X42X2	5.73
THCU384420	DIN7603-CU-A-38X44X2	5.88
THCU040810	DIN7603-CU-A-4X8X1	6.15
THCU404720	DIN7603-CU-A-40X47X2	0.294
THCU424920	DIN7603-CU-A-42X49X2	7.8
THCU455220	DIN7603-CU-A-45X52X2	8.15
THCU485520	DIN7603-CU-A-48X55X2	8.68
THCU050920	DIN7603-CU-A-5X9X1	9.23
THCU061010	DIN7603-CU-A-6X10X1	0.354
THCU061210	DIN7603-CU-A-6X12X1	0.393
THCU081110	DIN7603-CU-A-8X11,5X1	0.75
THCU081210	DIN7603-CU-A-8X12X1	0.488
THCU081220	DIN7603-CU-A-8X12X2	0.976
THCU081410	DIN7603-CU-A-8X14X1	0.845
THCU081420	DIN7603-CU-A-8X14X2	1.69
