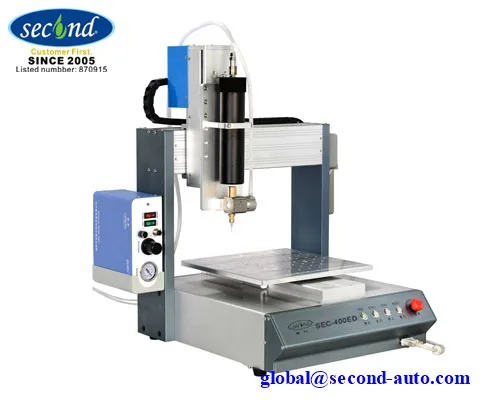

Automated Desktop LED Liquid Glue Epoxy Doming Dispensing Robot Machine For Microwave Panel And LED
- Category: >>>
- Supplier: Shenzhen Second Intelligent Equipment Co. Ltd.
Share on (1459749817):
Product Overview
Description
Specifications
Automated Desktop LED Liquid Glue Epoxy Doming Dispensing Robot Machine For Microwave Panel And LED
1.CE approved
2.Humanoid robot
3.Time-saving
4.High effective and professional
Applicable fluid
Silica gel, EMI conductive adhesive, UV glue, AB glue, fast dry glue,
epoxy adhesive, sealant, hot glue, grease, silver glue, red glue, solder
paste, cooling paste, prevent solder paste,transparent lacquer,screw fixation agent, etc.
Main use
1) Processing with bonding, infusion, coating, sealing, filling,
drop,linear/ arc/ round gluing etc.
2) Dispense in point, line, surface, arc, circle and irregular curve,
and triaxial linkage function is available.

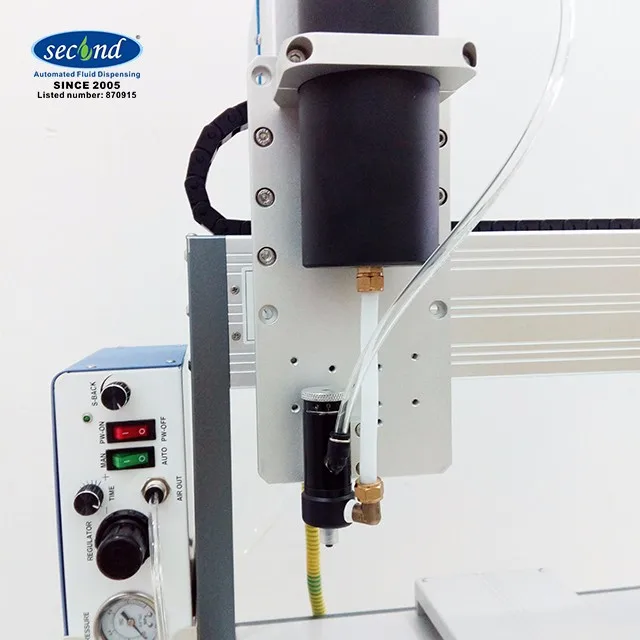

330ml Cartridge
It fits for glue of 300~330g tubular package (such as red rubber,Silicone,Epoxy,etc.).It’s light durable and easy to operate because its’ body is made of aluminum alloy and processed by anode blacking.Ir can match dispensing robot for quantitative dispensing.

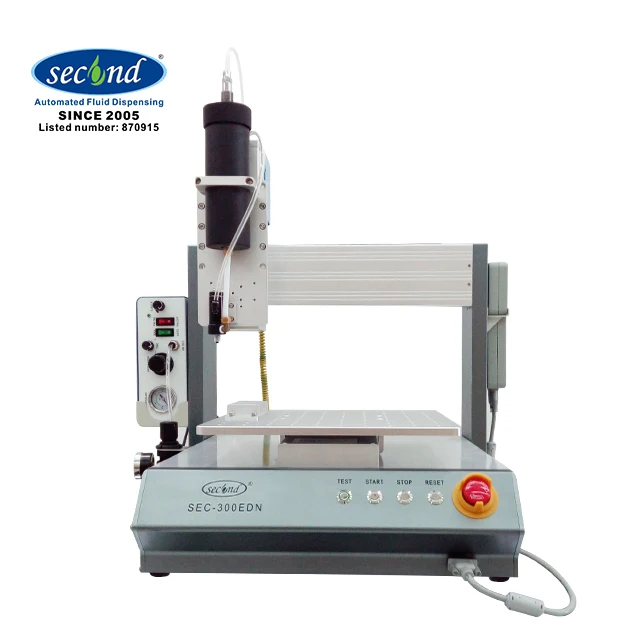

Model | SEC-300EDN |
Work Area | 300(X)*300(Y)*100(Z)mm |
Size | 490(L)*528(W)*679(H)mm |
Max load | 7kg/3kg |
Travel speed | 400mm/sec(XY)/200mm/sec(Z) |
Drive mode | Stepping motor+belt+precise linear guide rail |
Repeatability | ±0.03mm |
Program capacity | 999 parameter files(65535 points per file) |

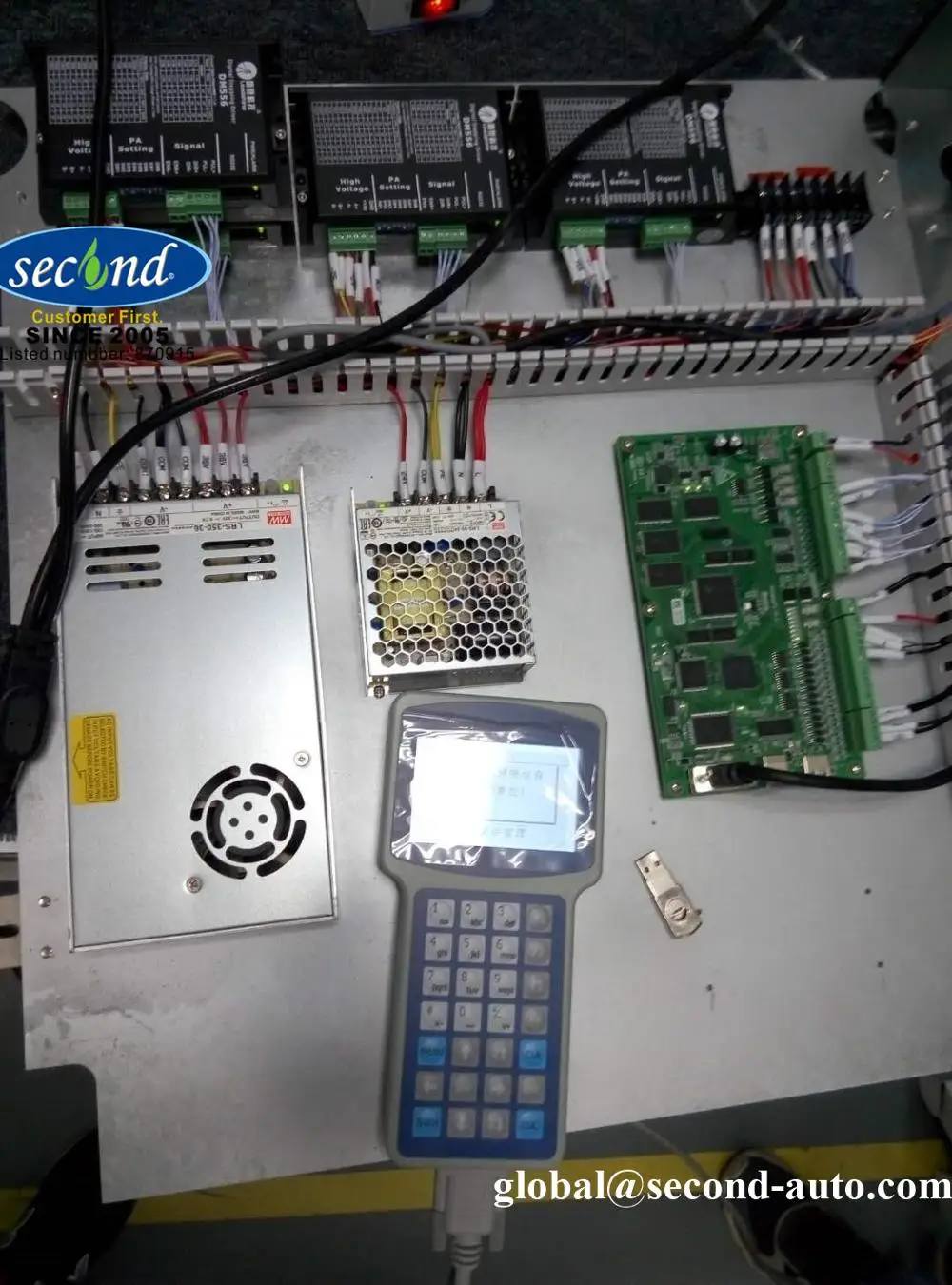

Operation system | LCD panel /Teach pendant |
Motor | Japan micro stepping motor |
Movement pattern | 3 axis point to point,continuous line, arc |
I/O signal ports | 4 inputs/4 outputs |
Power supply | AC220V 50/60Hz 0.5kw |
Work condition | Temperature 0-40°C;humidity 20-90% |
Weight | About 35KG |
Packaging & Shipping
Package : wooden box
Shipping mode: FOB Shenzhen
Delivery time: Within 15 working days after receiving the advance payment.
Our Services
1.We can make part design and mould design by software CAD,UG,PRO/E,Solidworks and Catia ect
2.Available for OEM/ODM service and very super precision reachs to 0.001mm..
3.Standard mould base.
4.Send sample with test video to customers for check product quality and mould working condition.
5.During the period of making the mould,we'll report the process of the mould with pictures every Monday.
6.Customer's design are welcomed..
7.Competive price with on-time delivery.
8.One year warranty
Company Information
Shenzhen Second Intelligent Equipment Co., Ltd., it was founded in 2005. It is awarded and certified as a national high-tech enterprise. The company provides integrated fluid dispensing, potting, and coating solutions from research, development, production, pre-sales, and after sales services. The products includes various types of precise automatic fluid dispensing, potting, two components potting, and coating machines in the form of desktop, freestanding, inline, or cobot combined systems. Also the company is capable of producing custom design machines for customers.
Second Intelligent Factory View, our factory located in Songgang Shenzhen, we are welcoming your visit from all the around world!

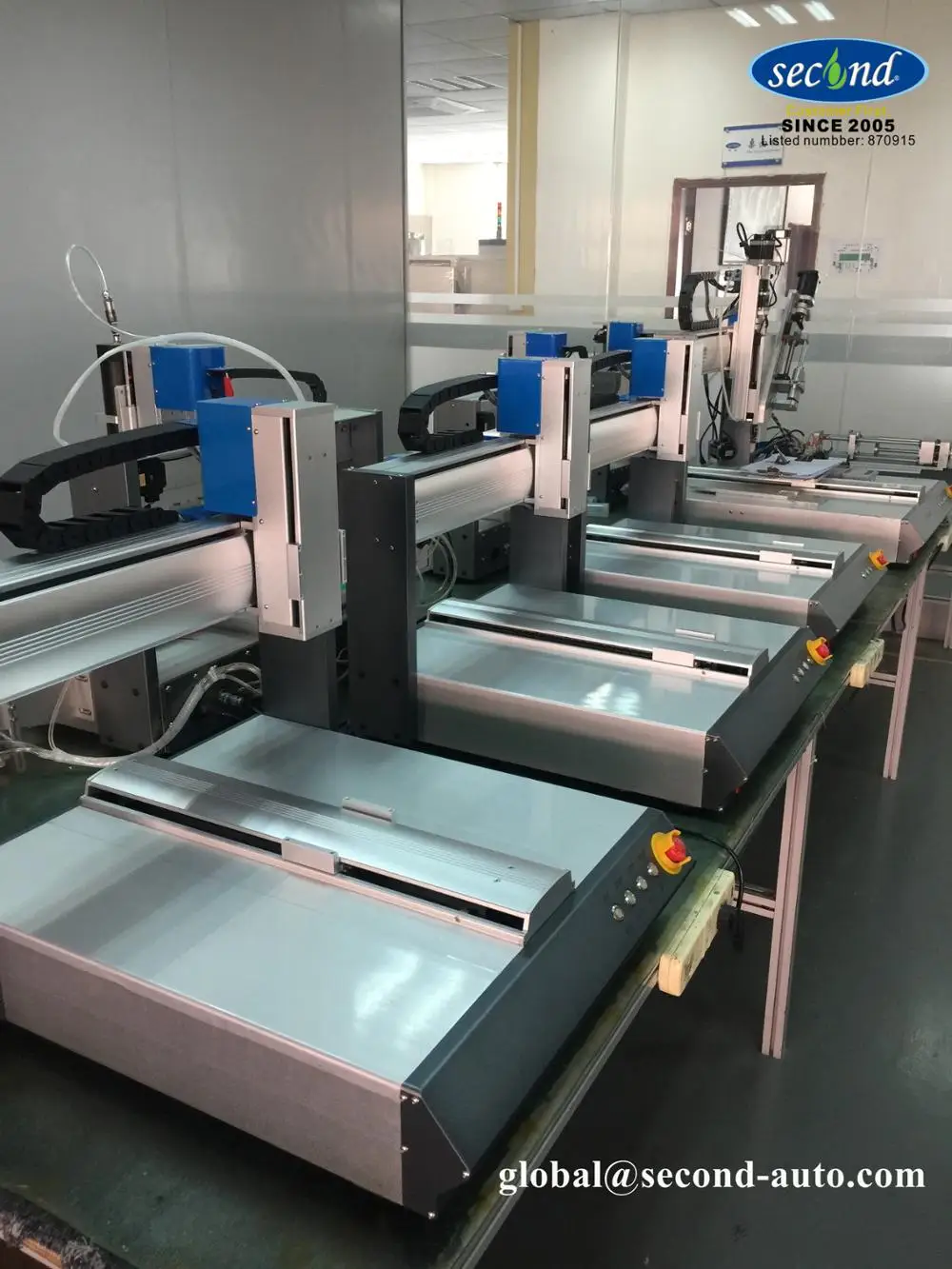

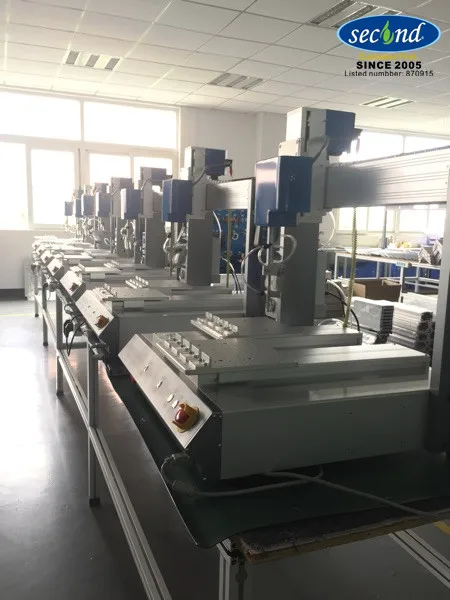

Second Intelligent Production Line, we are the first hand manufacturer automatic fluid dispensing machine, including AB glue mixer, desktop glue dispensers and Reverse Osmosis machines.
Second Intelligent Clients
Second Intelligent Global Exhibitions, this year we achevied fuel cell production line projects and will exhibit the FC EXPO 2019 in Tokyo to seek more worldwide opportunities, let us meet there, our booth No. D402B.
FAQ
Dear Customer,
Greetings from Second Intelligent!
As below Q&A to let you know more about Second Intelligent:
1 Are you factory or trade company?
We are manufacturer of fluid dispensing equipment since 2005, from desktop to freestanding big equipment, and RO roller machine.
2 How long is your machine warranty?
12 months
3 What is your lead time?
For standard specification machine, we have inventory and could prepare the machine within 7 working days. For custom request, desktop machine 7-10 days, freestanding machine 10-15 days, RO roller machine 12-20 days.
4 Do you provide free training for using and installing the machine?
Yes, our technical person can provide online training as request, customers could contact us at any time for any tech issues, our engineer team could support at any time if you need.
In order to recommend more suitable machine, please let us know the following information:
1 Glue type: please give us the data sheet if you have
2 Glue is easy caking? A Yes, need vacuum tank B No, no special request
3 Glue package please send us picture A Cartridge B Barrel C Pour into our machine tank directly
4 Glue package amount
5 Need vacuum system when pouring glue into our tank A Yes B No
We could provide vacuum system for 300ML,3600ML and 25KG barrel glue package
