Product Overview
Description

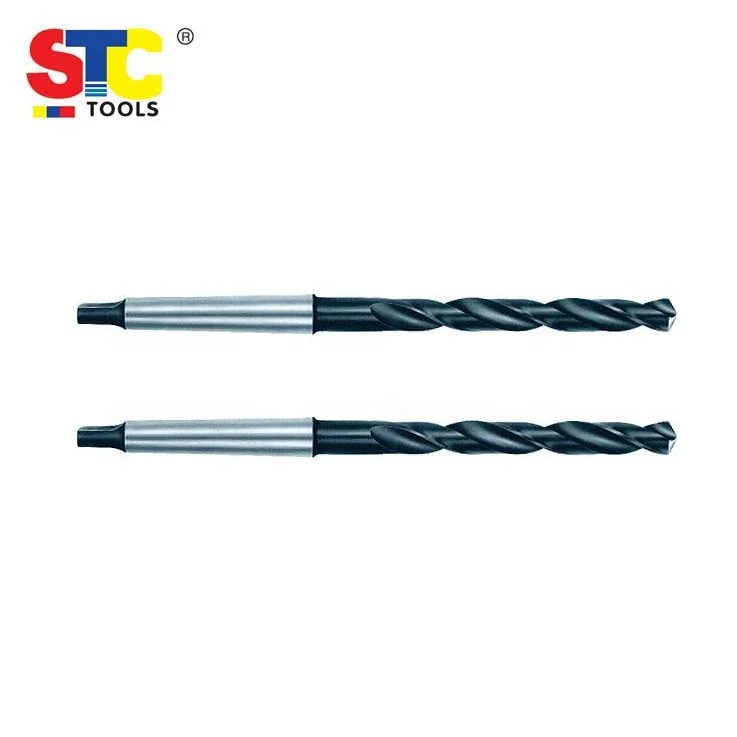

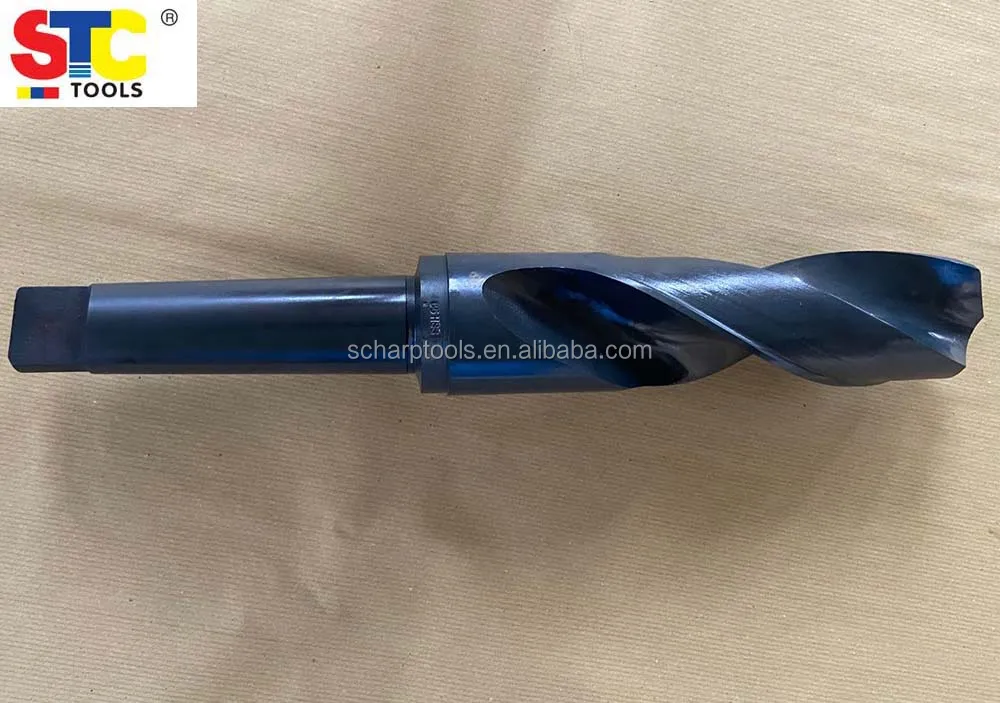

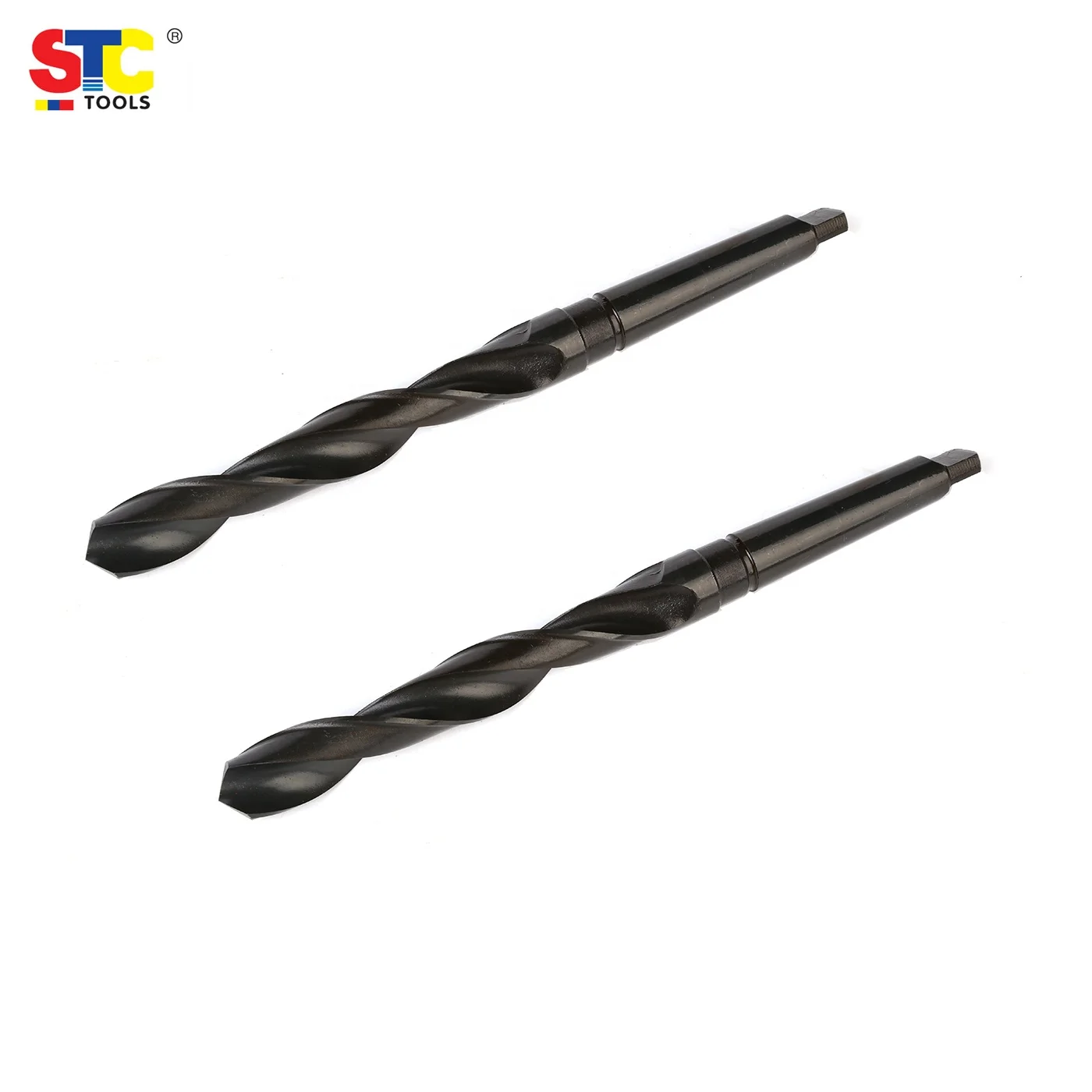

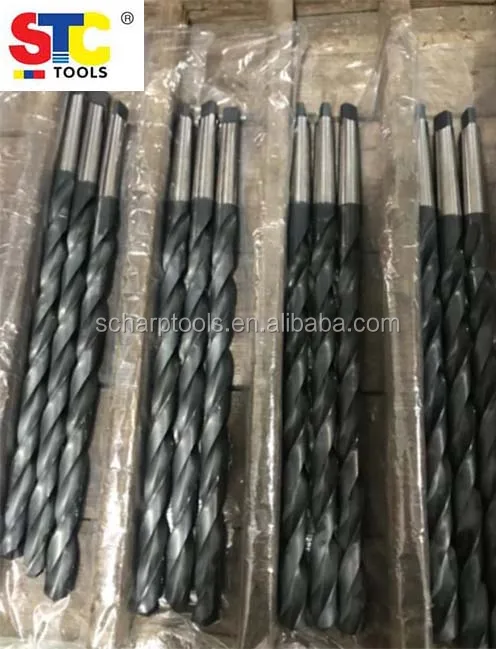

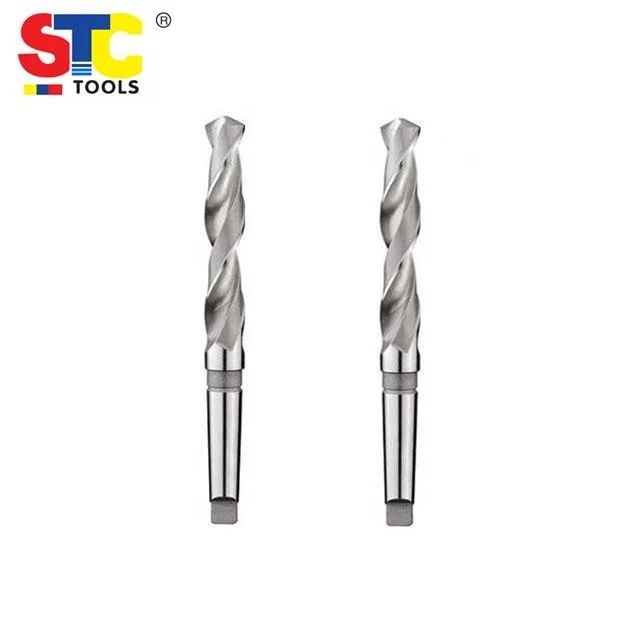

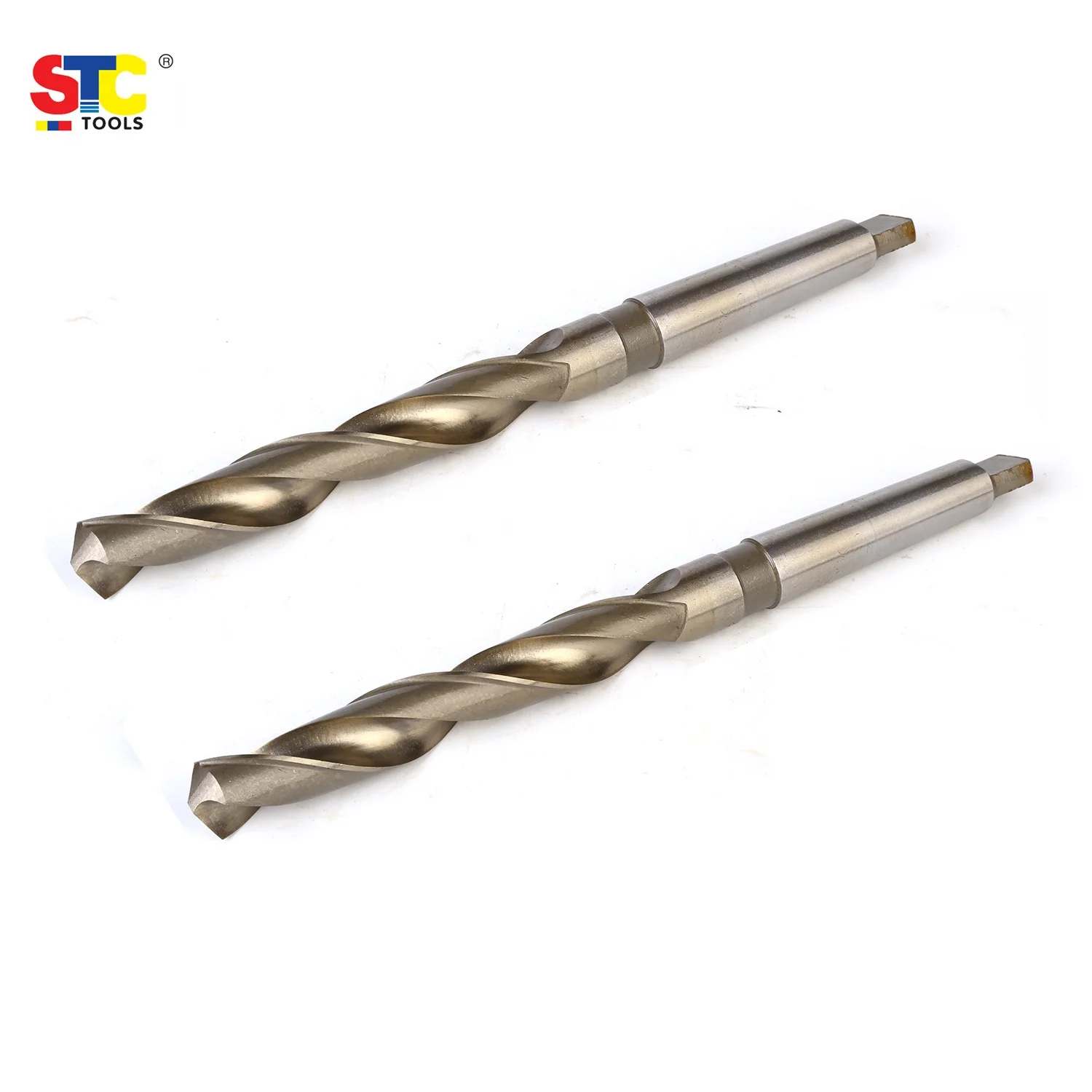

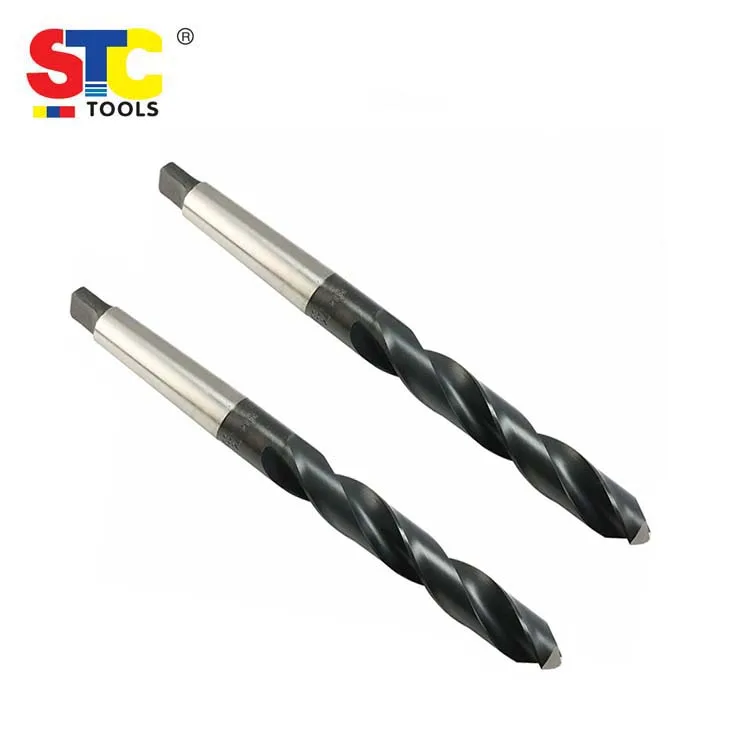

Morse taper shank drill bit
- High speed steel, HSSCO
- As per Din345.
- Size: 6mm-40mm.
- morse taper, general purpose drills for steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium, alloy and graphite. Point angle 118°, helix angle: normal, web thickness: standard, relief angle 8°
Nominal diameter | Overall length | Flute length | Morse |
6.00 | 138 | 57 | 1 |
8.00 | 156 | 75 | 1 |
10.00 | 168 | 87 | 1 |
12.00 | 182 | 101 | 1 |
13.00 | 182 | 101 | 1 |
13.50 | 189 | 108 | 1 |
14.00 | 189 | 108 | 1 |
14.50 | 212 | 114 | 2 |
15.00 | 212 | 114 | 2 |
15.50 | 218 | 120 | 2 |
16.00 | 218 | 120 | 2 |
16.50 | 223 | 125 | 2 |
17.00 | 223 | 125 | 2 |
17.50 | 228 | 130 | 2 |
18.00 | 228 | 130 | 2 |
18.50 | 233 | 135 | 2 |
19.00 | 233 | 135 | 2 |
19.50 | 238 | 140 | 2 |
20.00 | 238 | 140 | 2 |
20.50 | 243 | 145 | 2 |
21.00 | 243 | 145 | 2 |
21.50 | 248 | 150 | 2 |
22.00 | 245 | 150 | 2 |
22.50 | 253 | 155 | 2 |
23.00 | 253 | 155 | 2 |
23.50 | 276 | 155 | 3 |
24.00 | 281 | 160 | 3 |
25.00 | 281 | 160 | 3 |
25.50 | 286 | 165 | 3 |
26.50 | 286 | 165 | 3 |
27.00 | 291 | 170 | 3 |
28.00 | 291 | 170 | 3 |
28.50 | 296 | 175 | 3 |
30.00 | 296 | 175 | 3 |
30.50 | 301 | 180 | 3 |
31.50 | 301 | 180 | 3 |
32.00 | 334 | 185 | 4 |
33.50 | 334 | 185 | 4 |
34.50 | 339 | 190 | 4 |
35.50 | 339 | 190 | 4 |
36.00 | 344 | 195 | 4 |
37.50 | 344 | 192 | 4 |
38.00 | 349 | 200 | 4 |
40.00 | 349 | 200 | 4 |
