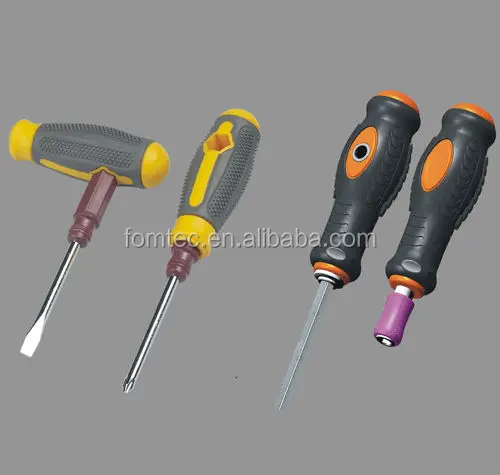

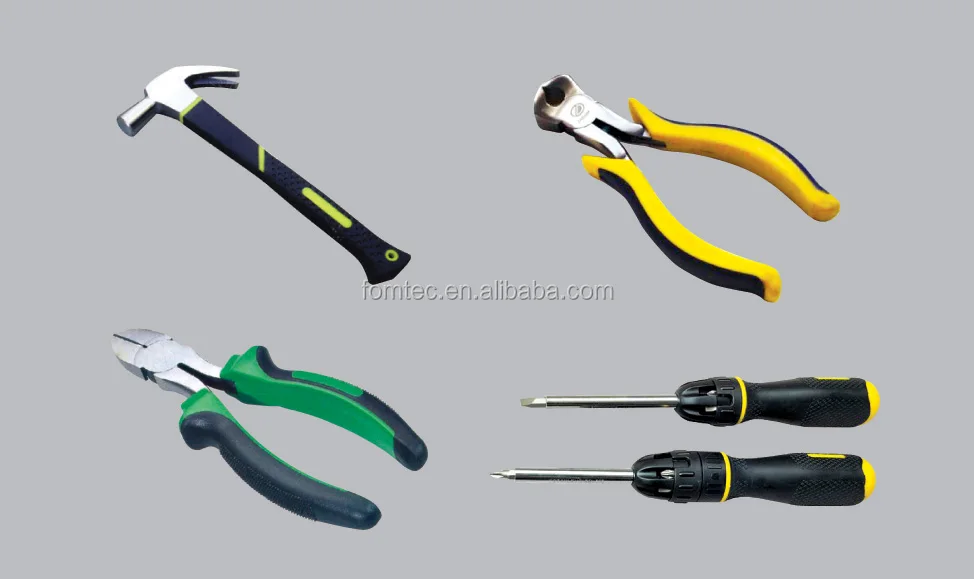

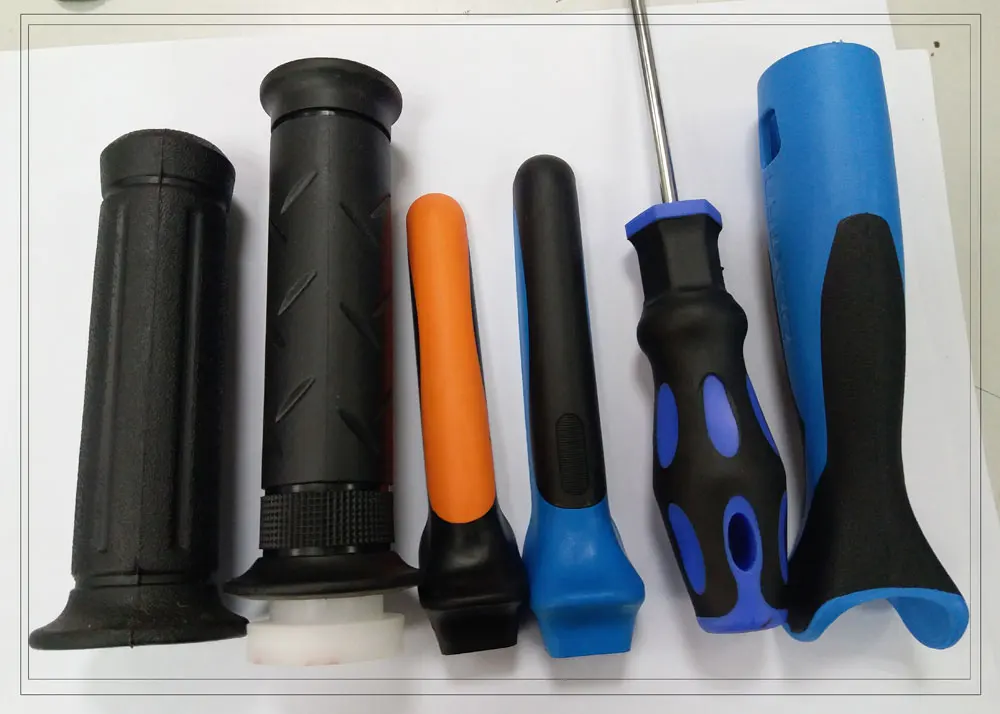

Two Color Vertical Plastic Injection Molding Machine for produce TOOLS HANDLE production

Product Overview

Description

FEATURES:

l  Vertical clamping and injection design, especially suitable for the insert molding production



l  User-friendly LCD display shows various functions with 66 sets of mold memory



l  Injection and clamping controlled by multiple pressures and speeds ensure easy setting

and accurate processing



l  The P.I.D temperature control is accurate for every section

l  Dual injection and carriage design provides smooth movement and precision molding



l  Professional designed screw and barrel, suitable for various plasticizing demands



l  High torque screw motor ensures superior plasticizing ability



l  Oil-less bushings used on all moving units for better cleanness and easy maintenance



l  High-rigid frame structure assures stable and smooth sliding movement



 HYDRAULIC CLAMP MOLDING MACHINE

VERTICAL INJECTION MOLDING MACHINE

SPECIFICATION :



	DESCRIPTION	UNIT	C(400K)			D(600K)
Injection Unit	Screw Diameter	mm	φ28	φ32	φ36	φ32	φ36	φ42
	Maximum Injection Pressure	kg/cm2	2000	1531	1210	2051	1620	1190
	Theoretical Shot Volume	cm3	74	97	122	113	143	194
	Maximum Shot Weight (PS)	g/oz	68/2.4	89/3.1	113/4.0	104/3.7	132/4.6	179/6.3
	Injection Rate	cm3/sec	42	55	70	63	80	109
	Barrel Heating Power	kW	3.6			5.55
	Motor Drive Power	hp(kW)	7.5(5.5)			10(7.5)

Model		Unit	FT-1200K2RC
	Injection Unit Option	Project	Ⅰ		Ⅱ
		No.	C+D		D+D
Clamping Unit	Clamping Force	ton	120
	Top Platen Size	mm	650×1060
	Rotary Table Diameter	mm	φ900
	Minimum Mold Thickness	mm	200/300
	Opening Stroke	mm	250
	Open Daylight	mm	450/550
	Ejector Force	ton	2
	Ejector Stroke	mm	45
Others	Hydraulic System Pressure	kg/cm2	140
	Oil Tank Volume	L	600
	Electric Power	hp(kW)	20(15)
	Machine Dimensions (approx.)	m	2.5×1.7×3.0
	Machine Weight (approx.)	ton	5.0 OVER MOLDING INJECTION MOLDINGMULTI-COLOR VERTIAL MACHINE
