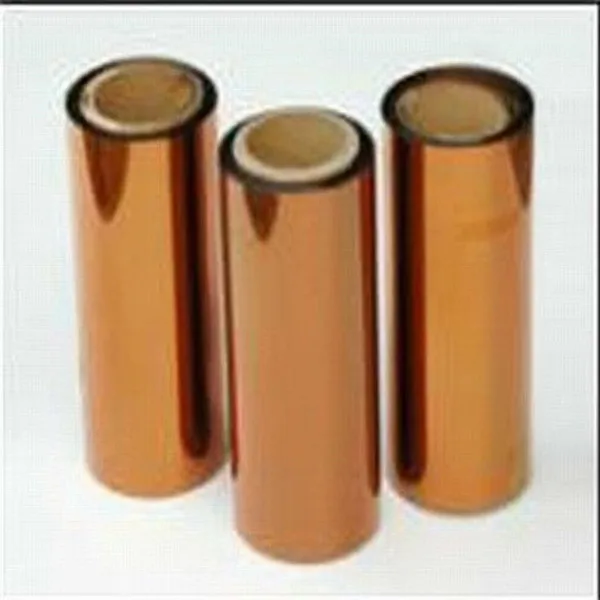

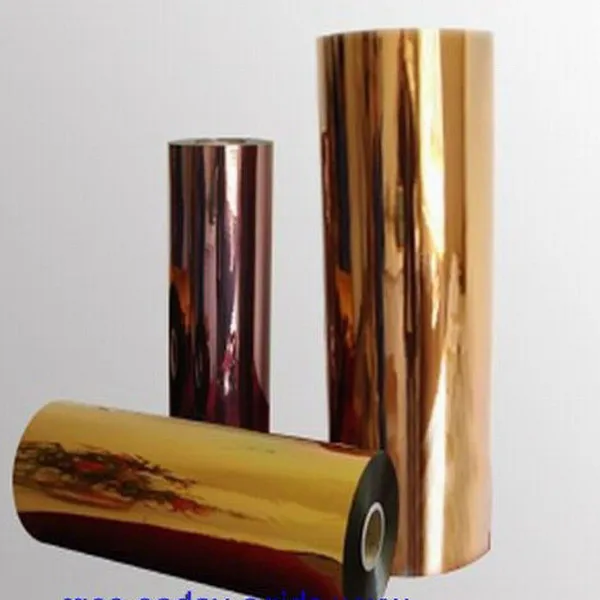

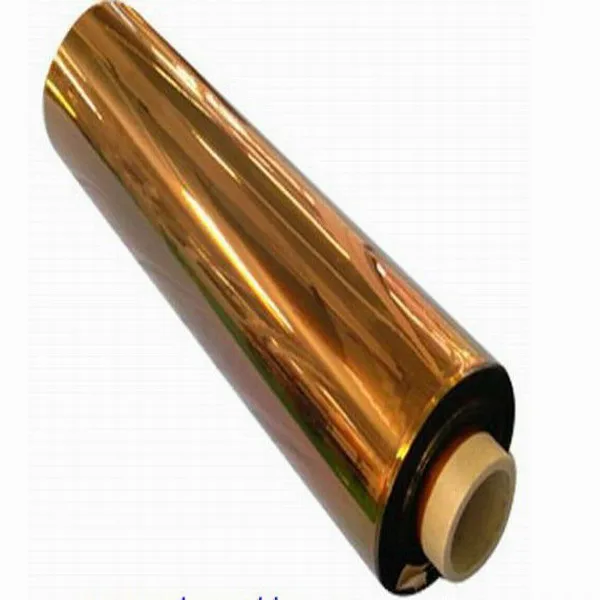

High temperature Polyimide FEP film

F46-PI film ,Polyimide high temperature film

Polyimide film , High temperature anticrossive membrane

FH. FHF  (Polyimide-FEP ) Composite  Film

1.Character

 The FH,FHF of our products are made by the method of dipping and coating FR463 emulsified solution on Polyimide casting film, then sintered with high temperature. It has the excellent characters of Polyimide  in Electric insulation ,resistance to high temperature ,radiation and corrosion as well as seal under high temperature etc.

Excellent properties:

     1.great corona-resistant;

    2. electric and mechanical properties;

    3. heat-resistance, radiation-resistance;

    4.chemical stability and non-flammability;

    5.high oil-proof, water-proof and high-temperature self-adhesive seal.

Application:

1 the insulation layer of the flat coil wire of the deep well submersible motor;

2 cable copper winding and electromagnetic wire;

3 the lapped wire insulation of the electrical equipment motor.

4 wind power generator, variable frequency motor, traction motor and electrical rotating machines;

5 High-voltage transformer;

6 .Magnetic wire wrap;

7 .Super high-voltage cable insulation.

Technical data

 FH film : Single-side .     FHF   film: Double-side

Thickness :0.035--0.075mm

F layers: 0.005--0.0125mm

The Whole thickness :≤10%

Width : 10--550mm.

  Width can be done as buyer’s need.

Packing:

Internal core Dia:  40mm   50mm   76mm

Carton for export

The Shelf Life is 1 year counted from the date of delivery.

FEP  has very good charactor of  heat resistance ,electric resistance,chemical resistance. It is widely used in Aviation spaceflight,instrument,Medical treatment Pharmacy,Electric instrument,Post &ccommunication,Petrochemical,Metallurgy &electric power,home electri products,illmination &illume.

Properties:

1:non-stick ,
2:corrosion resistant
3:high/low temperature resistance
4:High diaphaneity

Usage:

• Agglutinant


• electric iron board producing


• F4 wax cloth belt, transmission belt combining adhibiting


• F4 copper board inner adhibiting


• Window


• Electroanalysis


• High temperature tape raw material


• Capacitance raw material


• Biology temperature protecting material


• Non-metal compensator in thermo-eletric plant


• Flameproof electric machinery


• Surface protecting material

Characteristic:

Good adherence .

Good adherence to mental.

High and low temperature preservation

-200~200°C high temperature intensity better than F4

No-begriming ,and no-stagnant in tube

Touching point θ=114°C

Security and insulation

Under 60HZ—60MHZ high and low temperature , permittivity is 2.1.

If firing, and will still insulate .

Volume resistance more than10¹⁸Ωm

Surfce resistance more than 2 X 10¹³Ω

Voltaic Arc more than 165 seconds insulation

High diaphaneity

Good penetrability in ultraviolet radiation,and lowest refraction coefficient

  High diaphaneity

  FEP Main Properties

Specification

MOQ:  width :50-300mm        20kgs

                  width:300-1000mm    100kgs

Color can be customiszed .  Surface treated can be done (chemical or plasma treated)

Package :

Plastic bag &carton  .  Customized is acceptable

We also can offer you the following products :

PFA film ,PFA transparent tube, PFA capillary tube,PFA heat shrinkable tube,PFA rod, PFA welding rod,PFA rectangle tube, PFA Lab things, PFA processed parts etc

FEP film ,FEP sheet, FEP transparent tube, FEP capillary tube, FEP heat shrinkable tube, FEP rod, FEP welding rod, FEP rectangle tube, FEP Lab things,FEP gas sample bag, FEP processed parts etc.

PCTFE sheet, PCTFE rod,  PCTFE tube, PCTFE processed parts etc

PVDF film ,PVDF tube, PVDF rod, PVDF welding rod, PVDF PIEZO film ,PVDF processed parts etc.

Perfluorinated ion-exchanging  film ,ETFE film , PVF film

For quotation, please kindly contact us with below detail information to speed up our service:

1.Thickness

2.Width

3.colorful or transparent

4.Quantity

Once we get your detail inquiry,we will reply you in 10 hours.

Wish you good business.
