PTFE coated open mesh belt
- Category: >>>
- Supplier: Jiangsu Zhongbang Conveyor Belt Co. Ltd.
Share on (1460743828):
Product Overview
Description

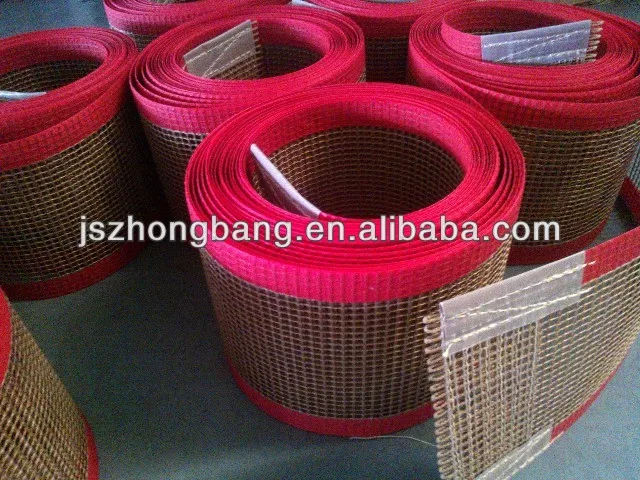

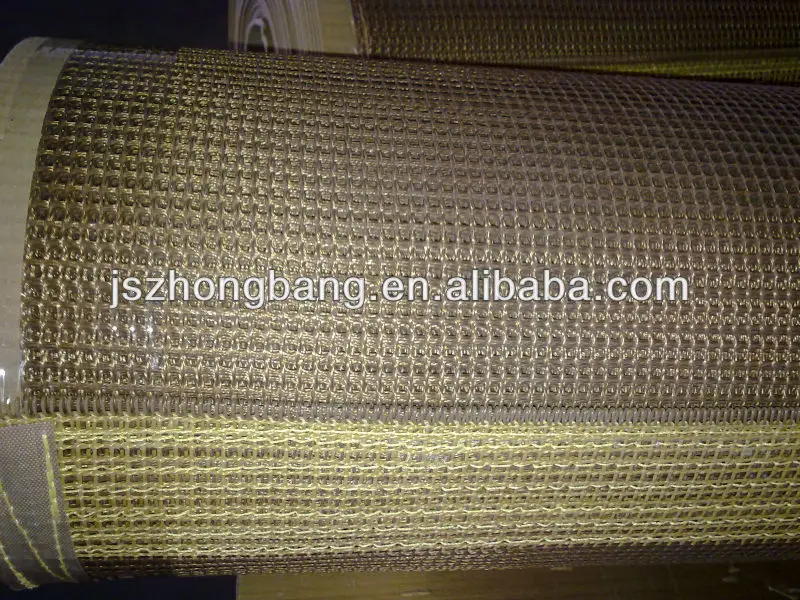

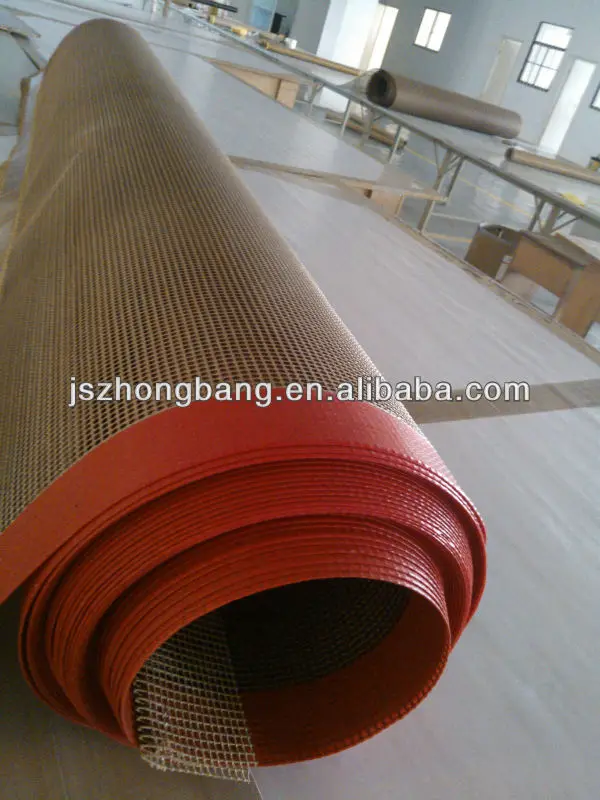

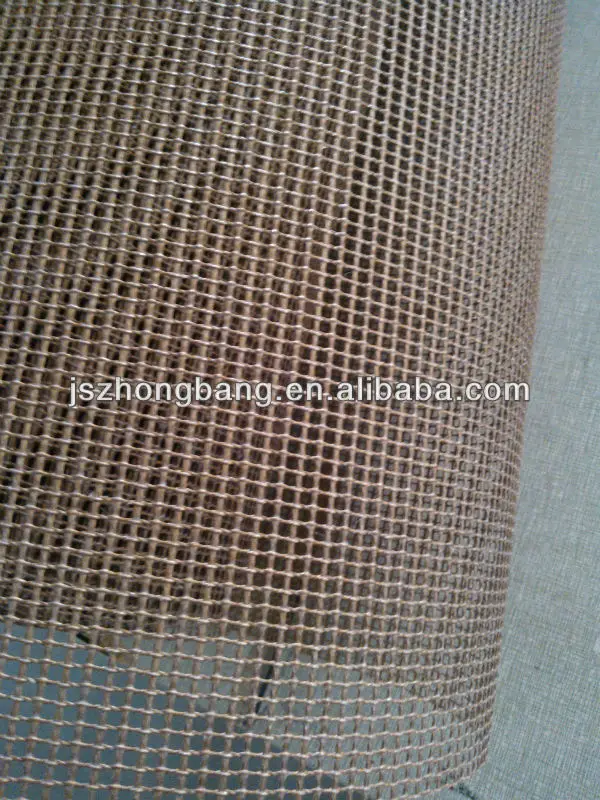

4*4mm PTFE fiberglass mesh conveyor belt
super width to 4.0m
brown & black color
single & double weft
suitable for printing,UV dryer,baking...
Features:
1) High temperature resistance - it can continuously work under -70 to 260 centigrade
2) Permeability - it can avoid wasting heat and improve drying efficiency for it's permeability
3) Chemical resistance - it can resist all most of chemical medicines
4) Adherence resistance - it can easily remove all kinds of adhesives such as resin, paint and chemical medicine
5) Good flex fatigue resistance - it has high tensile strength and excellent flex fatigue resistance, It's better for small wheels
Applications:
1) Drying machine for non-woven textile, textile printing, silk- printing and dyeing machine
2) Shrinking machine for garment fabric, high-frequency and UV dryer
3) Conveyer belt for hot-air dryer, various of food baking, quick-frozen machinery
4) Oiling machine for paper glazing and waxing, plant engineering
5) Separating sheet for hardboard production
ISO 9001 certificate
.
Including pin seam, bulnose seam, etc.
It is widly used on FOOD INDUSTRY, PACKING INDUSTRY, GARMENT INDUSTRY AND PRINT INDUSTRY.
| Item No | Mesh Size | Material | Thickness | Weight | Resistance | Max Width | Tensile Strength |
| 6001 | 1x1mm | fiberglass | 0.5mm | 390g/m² | -70-260° C | 4000mm | 1600/1500N/5cm |
| 6002 | 2x2mm | fiberglass | 0.7mm | 450g/m² | -70-260° C | 4000mm | 2200/1500N/5cm |
| 6003 | 4x4mm | fiberglass | 1.0mm | 500g/m² | -70-260° C | 4000mm | 2100/1500N/5cm |
| 6004 | 4x4mm | fiberglass | 1.0mm | 480g/m² | -70-260° C | 4000mm | 2100/1500N/5cm |
| 6007 | 4x4mm | fiberglass+kevlar | 1.2mm | 560g/m² | -70-260° C | 4000mm | 3300/2800N/5cm |
| 6008 | 4x4mm | fiberglass | 1.0mm | 570g/m² | -70-260° C | 4000mm | 2800/1580N/5cm |
| 6010 | 4x4mm | kevlar | 1.0mm | 460g/m² | -70-260° C | 4000mm | 3500/3300N/5cm |
| 6012 | 4x4mm | fiberglass | 1.0mm | 580g/m² | -70-260° C | 4000mm | 2800/1500N/5cm |
| 6013 | 10x10mm | fiberglass | 1.0mm | 450g/m² | -70-260° C | 4000mm | 1100/1000N/5cm |
| 6014 | 0.5x1mm | fiberglass | 0.5mm | 420g/m² | -70-260° C | 4000mm | 2200/1500N/5cm |
| 6015 | 2x2.5mm | fiberglass | 0.9mm | 470g/m² | -70-260° C | 3000mm | 2200/1500N/5cm |
