High Quality High Temperature Pressure Transmitter

Product Overview

Description

  High Quality High Temperature Pressure Transmitter



 I.Description

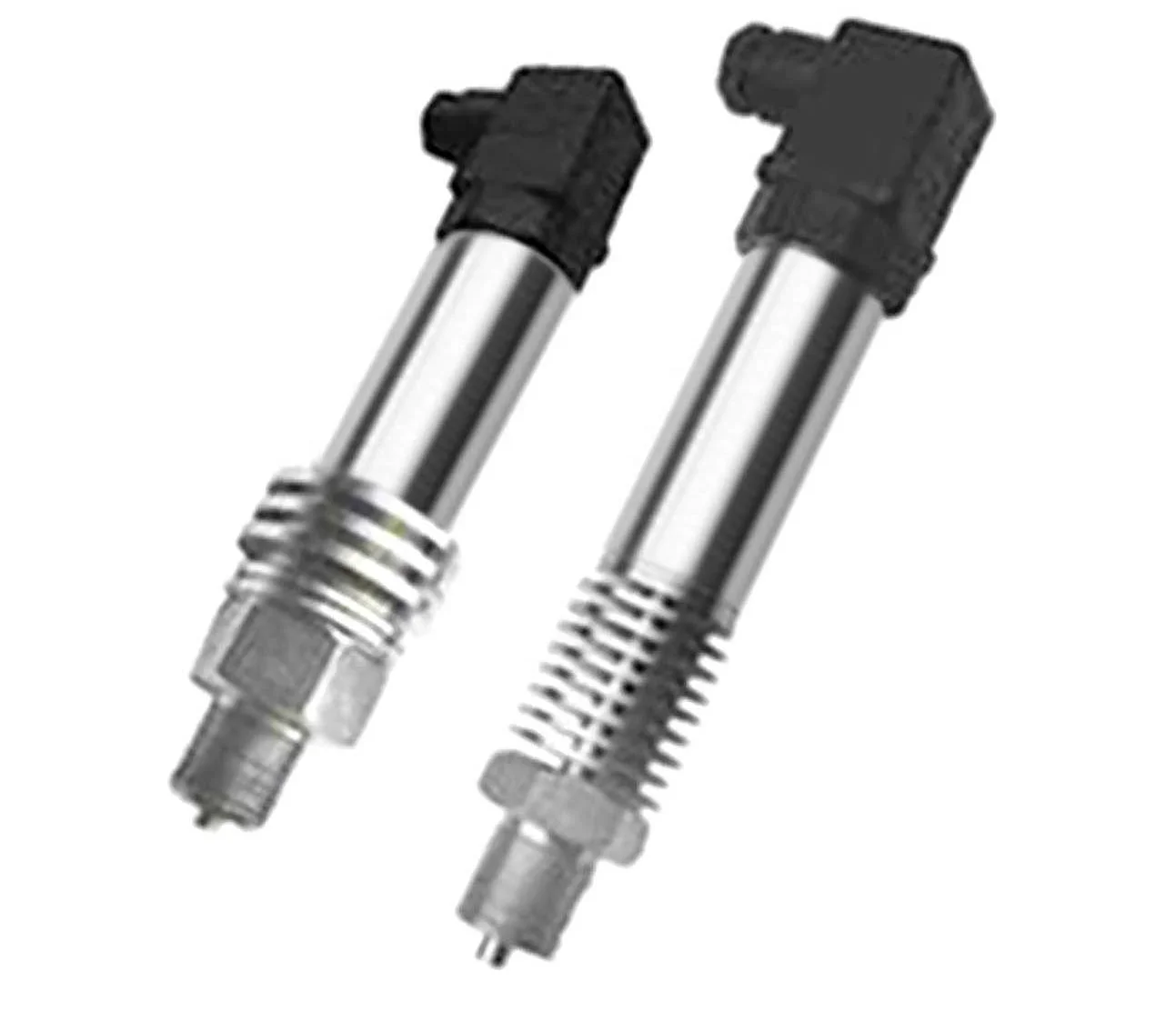

BP93420IC is a high temperature pressure transmitter, it adopts HT serie piezoresistive isolated membrane silicon oil-filled sensing element as the signal measuring element, the measured medium pressure is transferred to the sensing element through the heat dissipation structure which is on the transmitter, the signal processing circuit is located in the stainless steel shell transfer sensor signal to standard output signal. After strict testing and aging screening on components, semi-manufactured products and end products, the performance is ensured to be stable and reliable.



 II.Features



² Measurement range: -0.1~0~100MPa

² Multiple  Connection

² Full 316LSS material, protection level: IP65

² CE certificated

² Multiple output signals, adjustable at scene

²Intrinsic safety explosion-proof type

² Conform to the state explosion protection standards

² Explosion-proof certificated, explosion-proof sign: ExiaIICT6





III.Application
² Liquid, gas which is compatible with 316L stainless steel
²Petroleum, chemical industry, metallurgy, electricity, hydrology process at the scene

²Marine, aviation industry

²Hydraulic and pneumatic control system





IV.Performance Specification



Measurement Range	-0.1…0~0.01…100MPa
Permitted Overload	≤1.5X Rated range or 110MPa, which is less
Pressure Type	gauge, absolute, sealed gauge
Accuracy	±0.25%(typical) ±0.5%(max)
Long-term Stability	±0.1%F.S/year(typical)     ±0.2%F.S/year(max)
Zero Temperature Error	±0.03%F.S/°C(≤100KPa)     ±0.02%F.S/°C(>100KPa)
Span Temperature Error	±0.03%F.S/°C(≤100KPa)     ±0.02%F.S/°C(>100KPa)
Operating Temperature Range	-20°C~125°C
Storage Temperature Range	-40°C~120°C
Power Supply	15~30VDC(intrinsic safety type, safety barrier power supply)
Output Signal	4~20mA
Pressure Connection	M20×1.5 G1/4 (customized)
Housing Material	Stainless steel 1Cr18Ni9Ti
Diaphragm Material	316L
O-ring Seal Ring	Fluororubber
Cable	Polyethylene
Insulation Resistance	100MΩ 100VDC
Housing Protection Level	IP65
