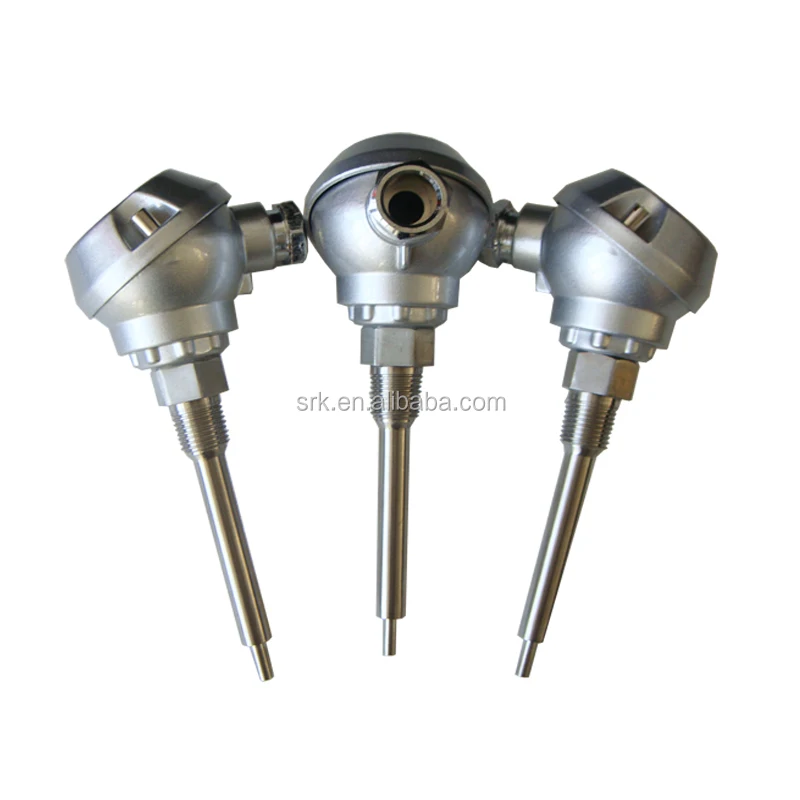

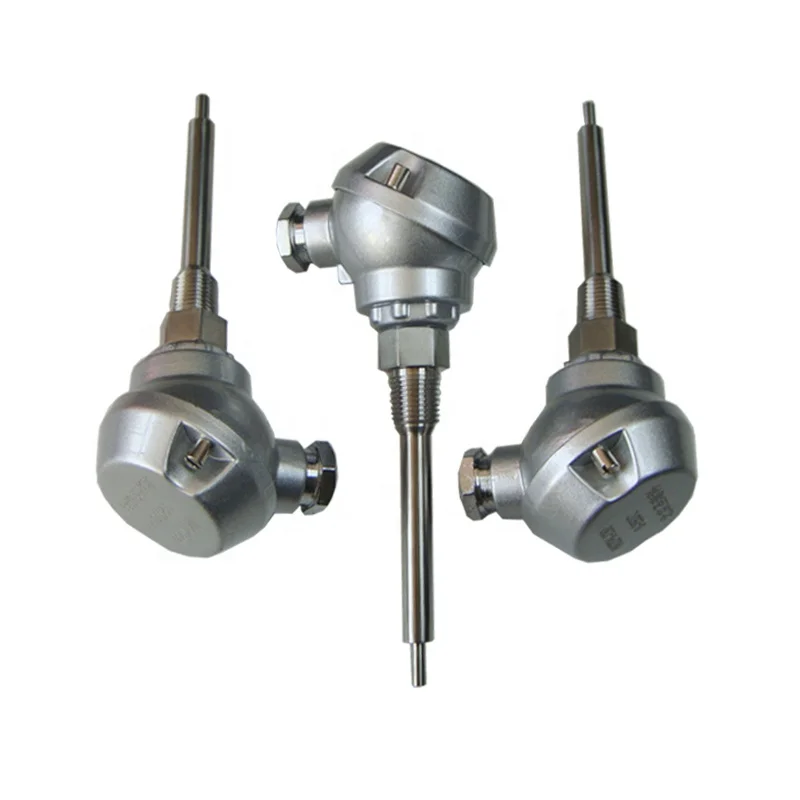

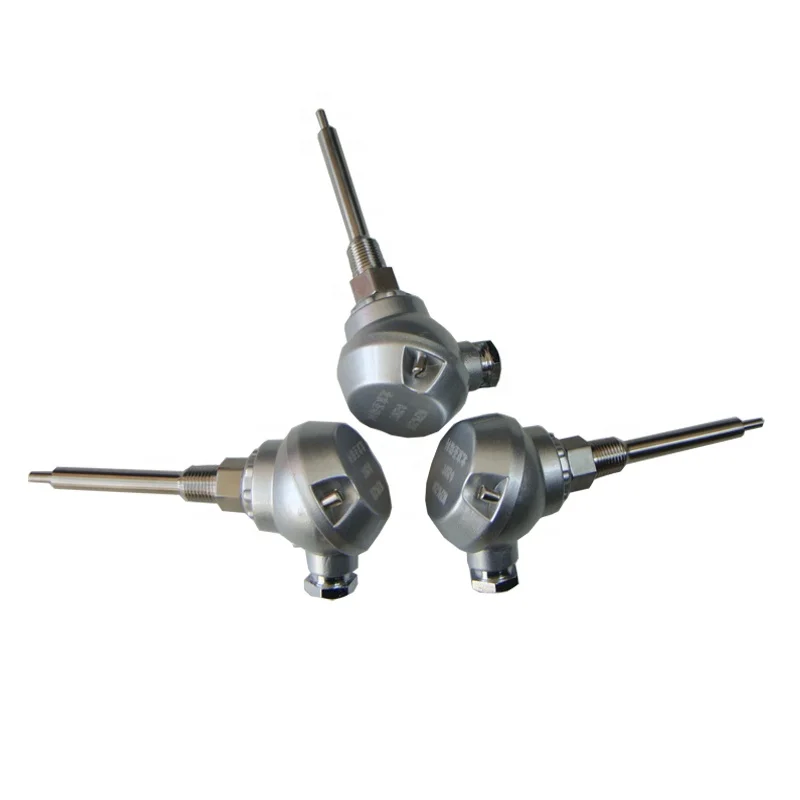

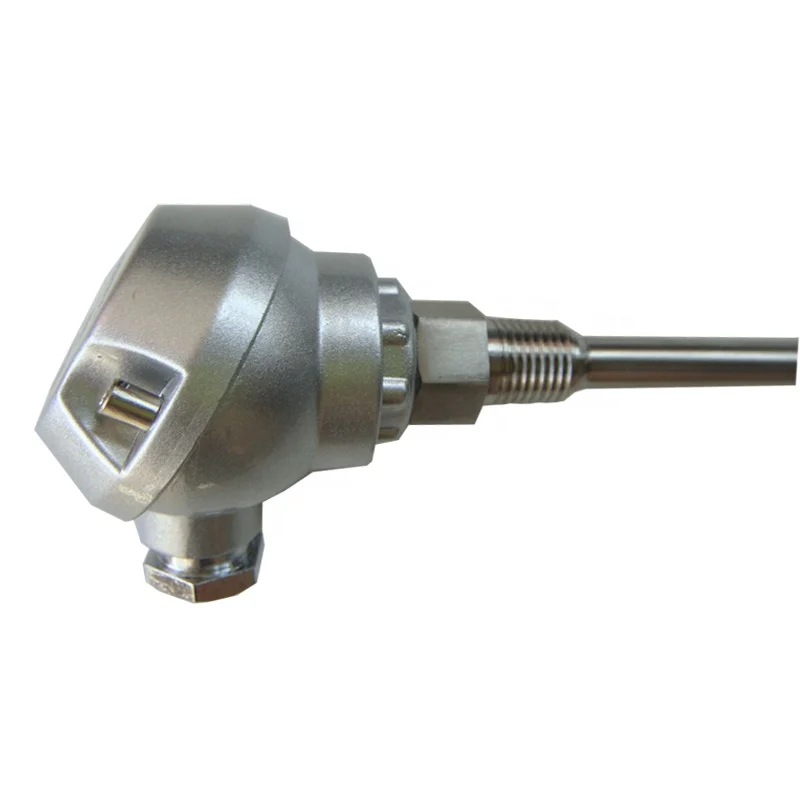

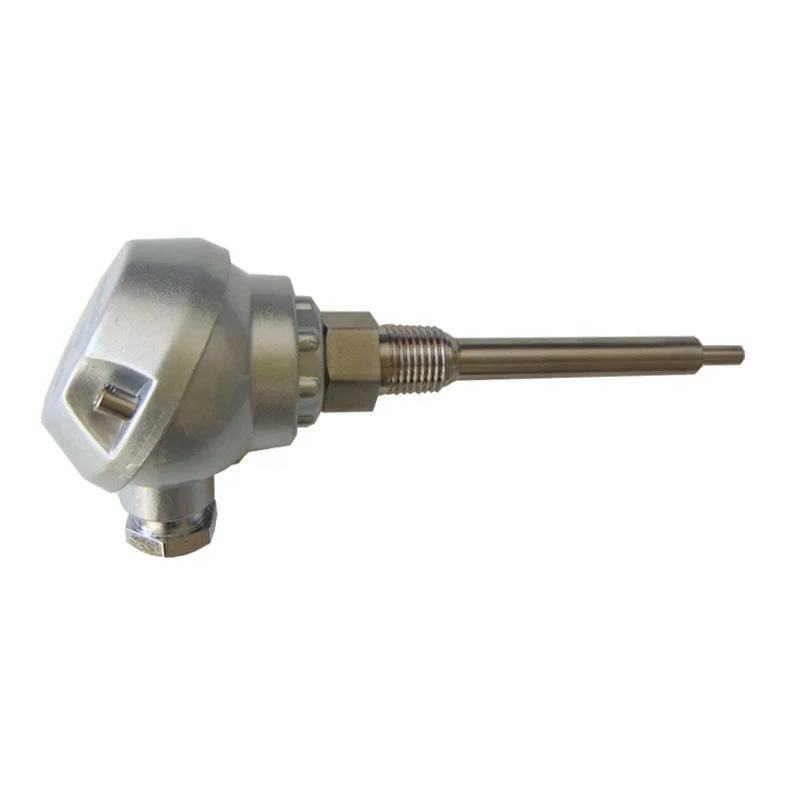

Class A Pt100 temperature meter

Product Overview

Description

I.Class A Pt100 temperature Meter



II . Pt100 temperature Meter Specifications:



1.Length 50mm



2.Ungrounded probe,



3.Type pt100 ,



4.Sheath 304 SS



5.Sheath diameter 6mm



6.Class A & B



7.Thin film Element Pt100



III.Measuring Range & Tolerance



Type	Graduation	Measuring Range °C	Accuracy	Tolerance
WZPK	Pt100	-200~+500	Class A	±(0.15+0.002|t|)
			Class B	±(0.30+0.005|t|)

Remarks: t is absolute temperature value actually tested with thermal sensor.



Thermal Response Time

Sleeve Tube Diameter(mm)	Thermal Response Time
3	≤3
4	≤5
5	≤8
6	≤12
8	≤15

 We are the manufacture of armored thermocouple, assemble thermocouple, high temperature thermocouple, screw thermocouple, Pt100 Sensor, thermometer, thermocouple cable and so on.If you are interested in them, please feel free to mail me
