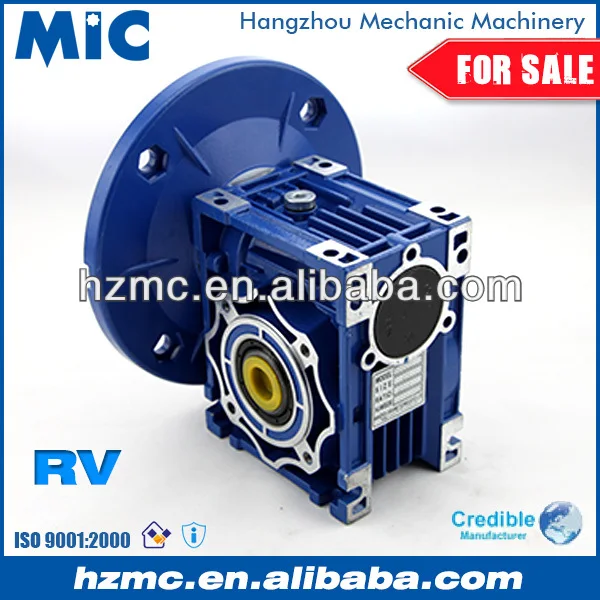

Aluminium Alloy NMRV040 for Conveyoy, Type of Gear Box

Product Overview

Description

Aluminium Alloy NMRV040 for Conveyoy, Type of Gear Box







Specification



Type:	Gear Boxes
Model:	NMRV040
Ratio:	1:5,7.5,10,15,20,25,30,40,50,60,80,100
Color:	Blue/Silver or on customer request
Housing:	Aluminium Alloy
Packing:	Carton
Bearing:	C&U Bearing
Seal:	NAK,SKF
Warranty:	1 Year
Input power:	0.09-0.37kw
Usages:	Industrial Machine:Food Stuff,Ceramics,Chemical,Packing,Dyeing,Wooding working,Glass
IEC Flange:	71B5,71B14,63B5,63B14,56B5
Lubricant:	Synthetic





Predisposition

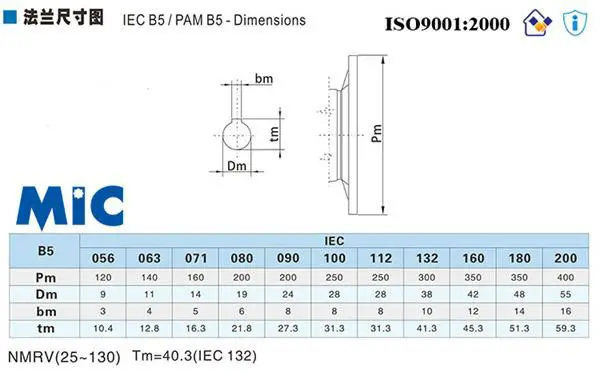

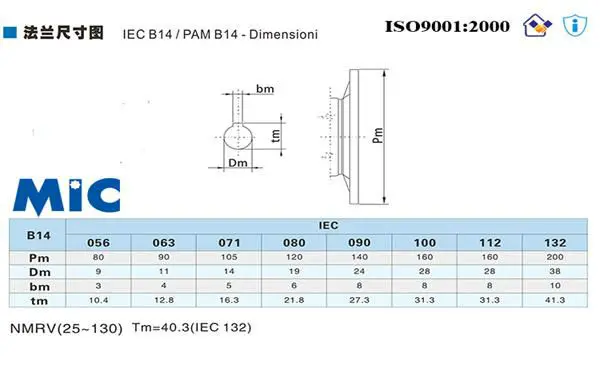

IEC Dimensions





Low Speed Shaft's size









Output Flange Mounting











Installation Pattern

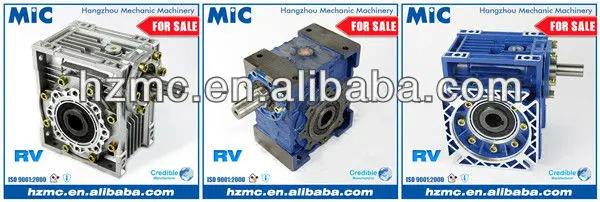

Our Other Related Products







Our Delivery









Our Factory









Order Tips







1.Please confirm which model NMRV you needed.



2.Standard packing is wooden case.



3.Delivery:By sea, by air or others.



















Our Strength:





1. Delivery On Time.



2.Professional Service: Customer needs is our first priority.



3. Good Quality:  ISO 2001:2008 Certificated.



4. Fast and Low Cost Deliver:  Long-term cooperated shipping forwarders.























 Welcome To Visit Our Factory - Located in the tourism city - Hangzhou -West Lake.







                                                Any question can contact us.
