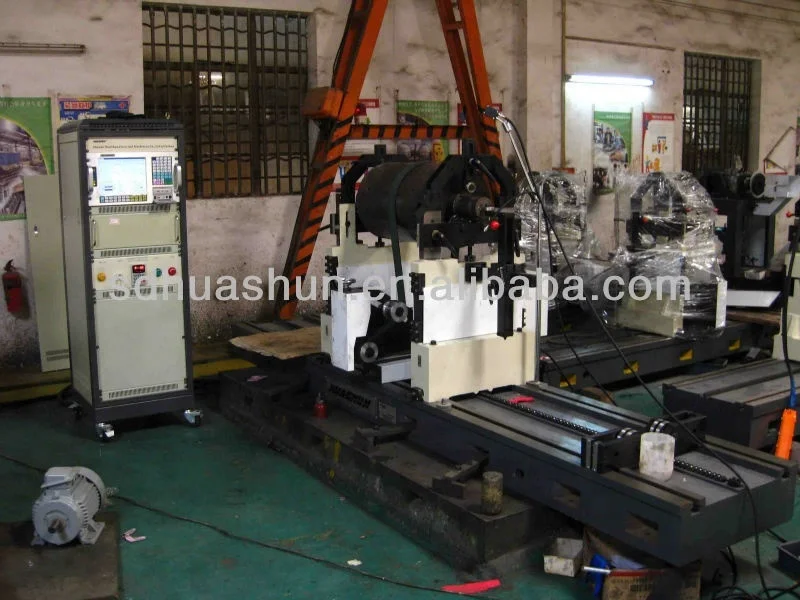

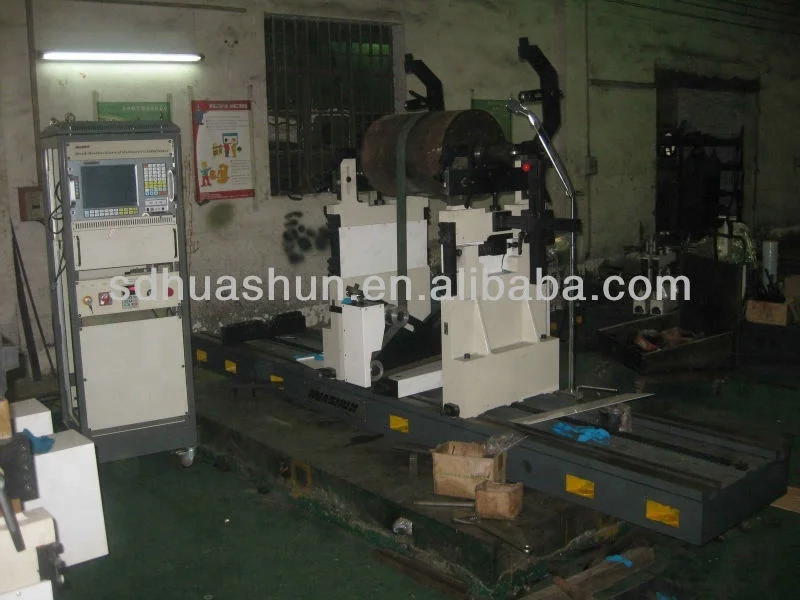

HUASHUN HB2000 PI balancing machine for motor, roller and blower
- Category: >>>
- Supplier: Guangdong Huashun Motor Technology Co. Ltd.
Share on (1461985629):
Product Overview
Description
Product Description
Technical Parameters
Type of balancing machine | Universal hard bearing balancing machine |
Specifications/type | HB2000-PI |
Max. mass of works(kg) | 2000 |
Max. dia. of works (mm) | 1600 |
Min. Dis between supports(mm) | 400-3600 |
Journal dia. of supports (mm) | 15-290 |
Balancing speed (r/min) | 250-1450 Frequency control |
Motor power(kw) | 7.5 |
Min. achievable residual unbalance amount emar(g.mm/kg) | ≤1 |
Journal dia. of belt drive(mm) | 900 |
Unbalance reduction ratio (%) | ≥85 |
Strucrure:
Belt drive, the distance between supports can be enlarged to 4.6m/6.6m/10.1m
With piezoelectric transducers, good stability

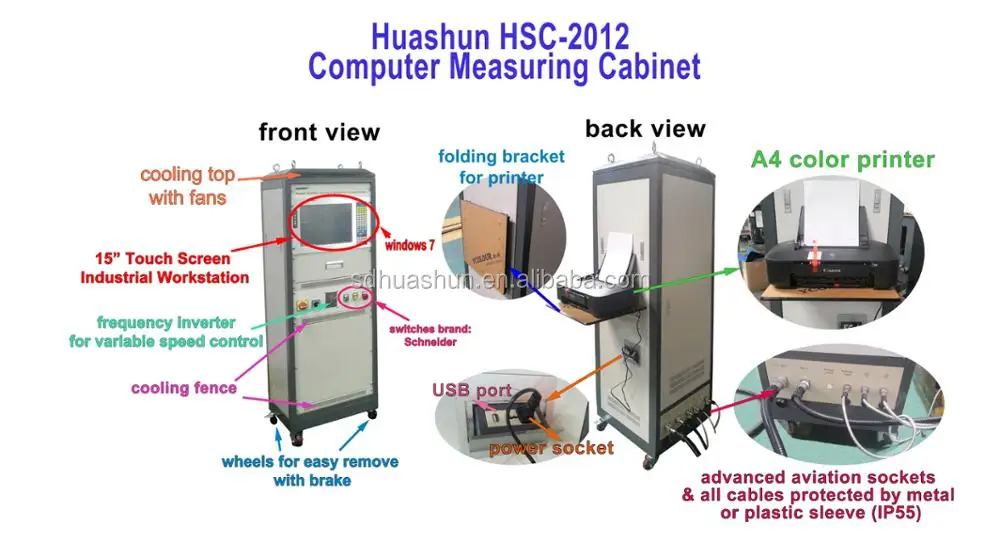

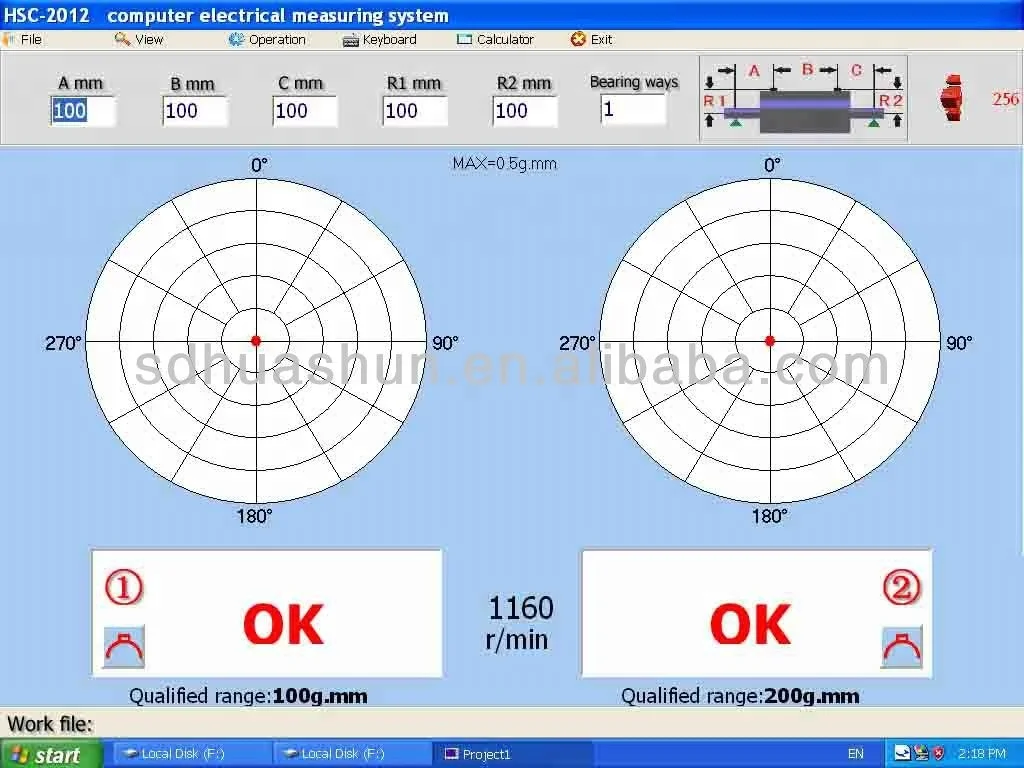

Computer measuring system with mega data storage capacity
Advantages:
Great output volume,high sensitivity, excellent stability
6 kinds of bearing modes to select, direct display
With memory and print functions
Application Areas

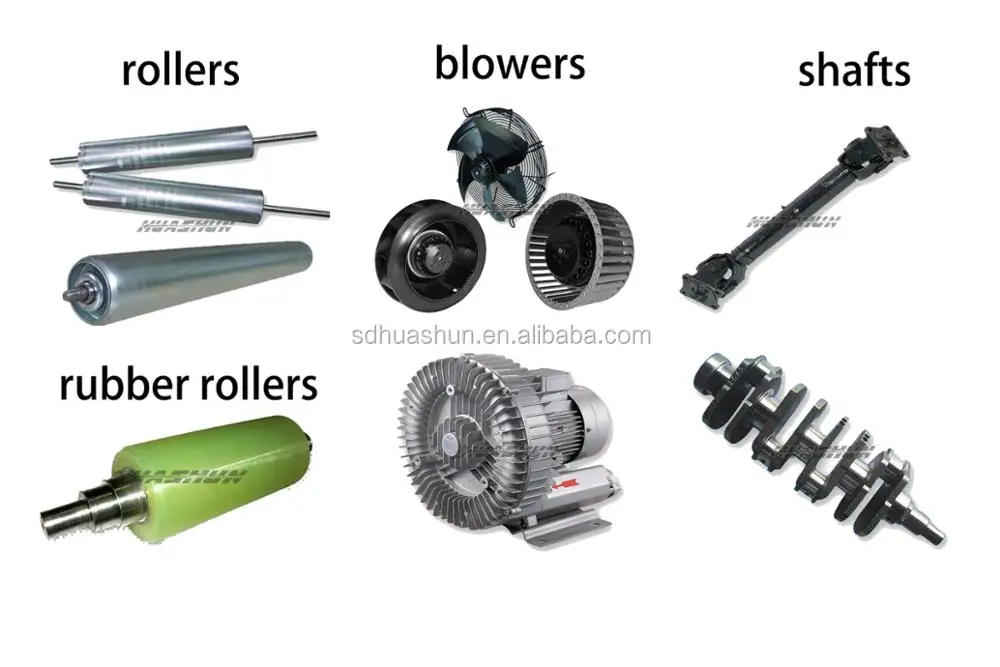

For balancing measurement of rotational bodies, such as mid and small size motors, ceramics machinery, rollers, rubber rollers, blowers, wood-working machinery, shafts, etc.
