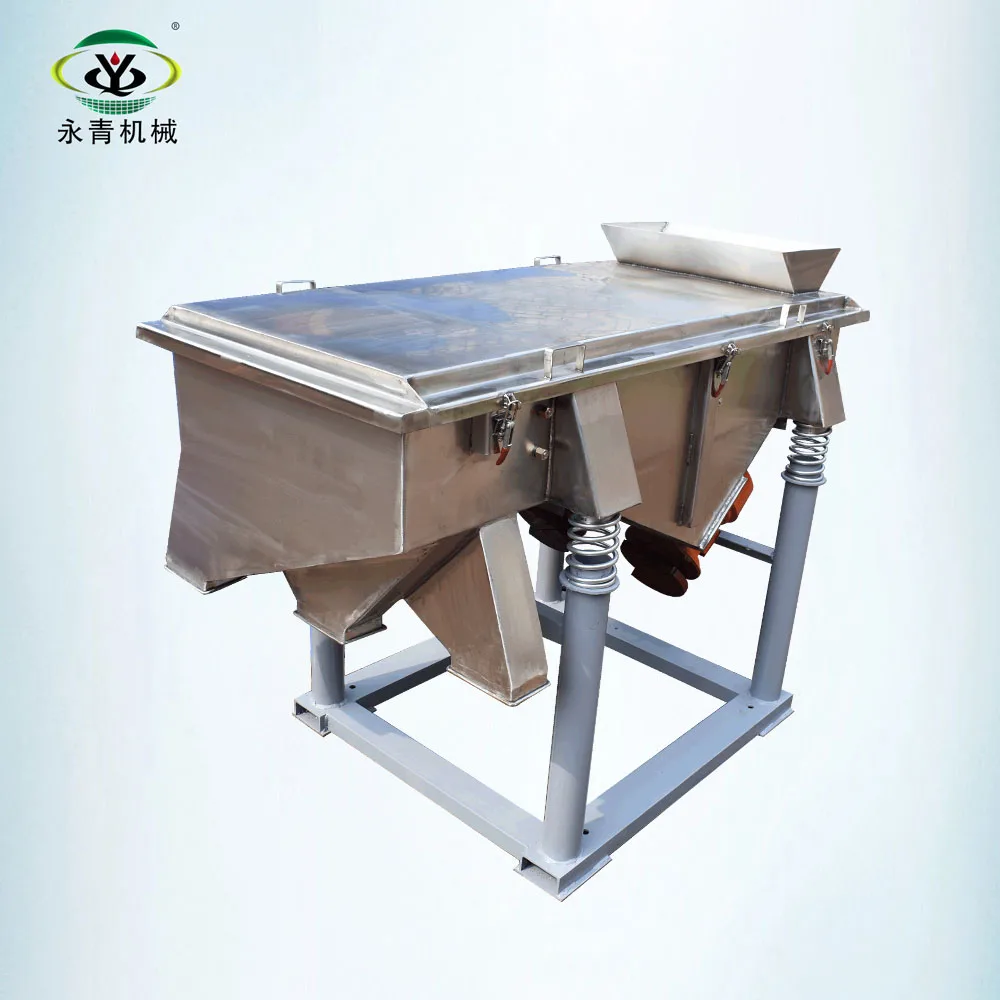

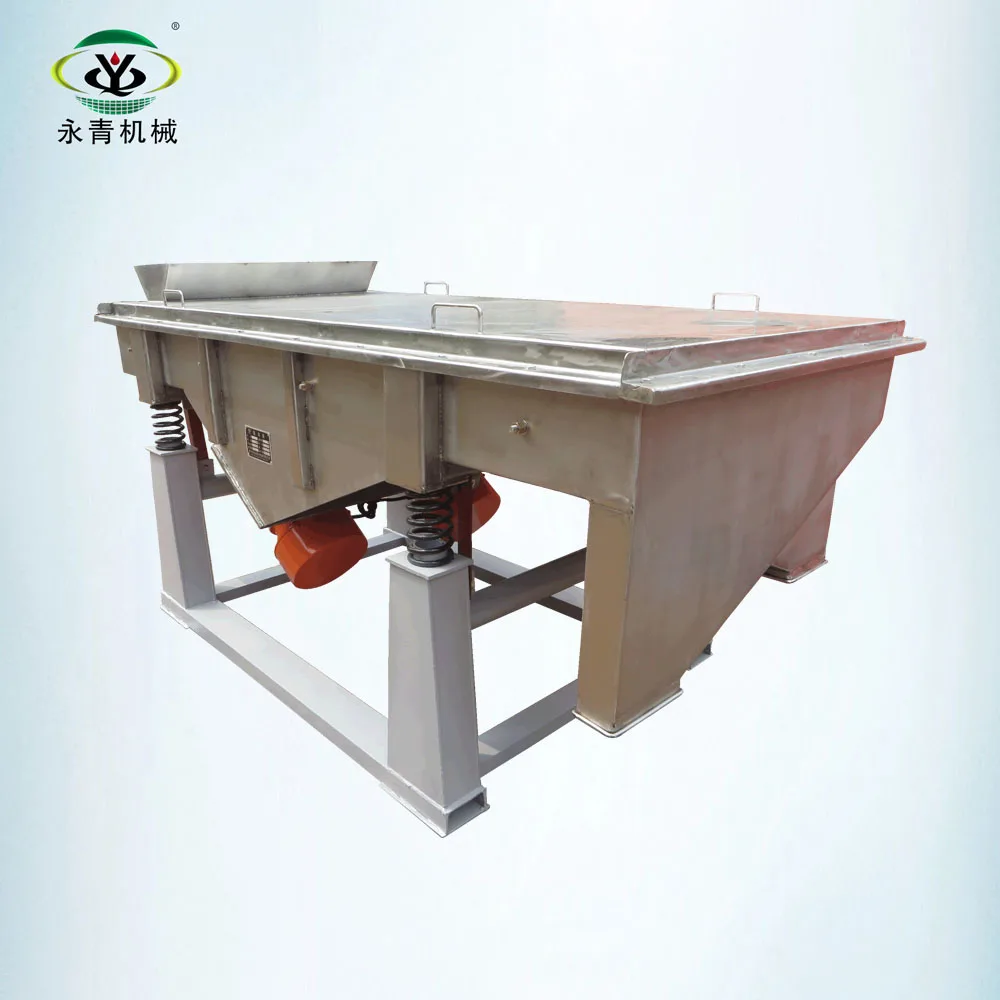

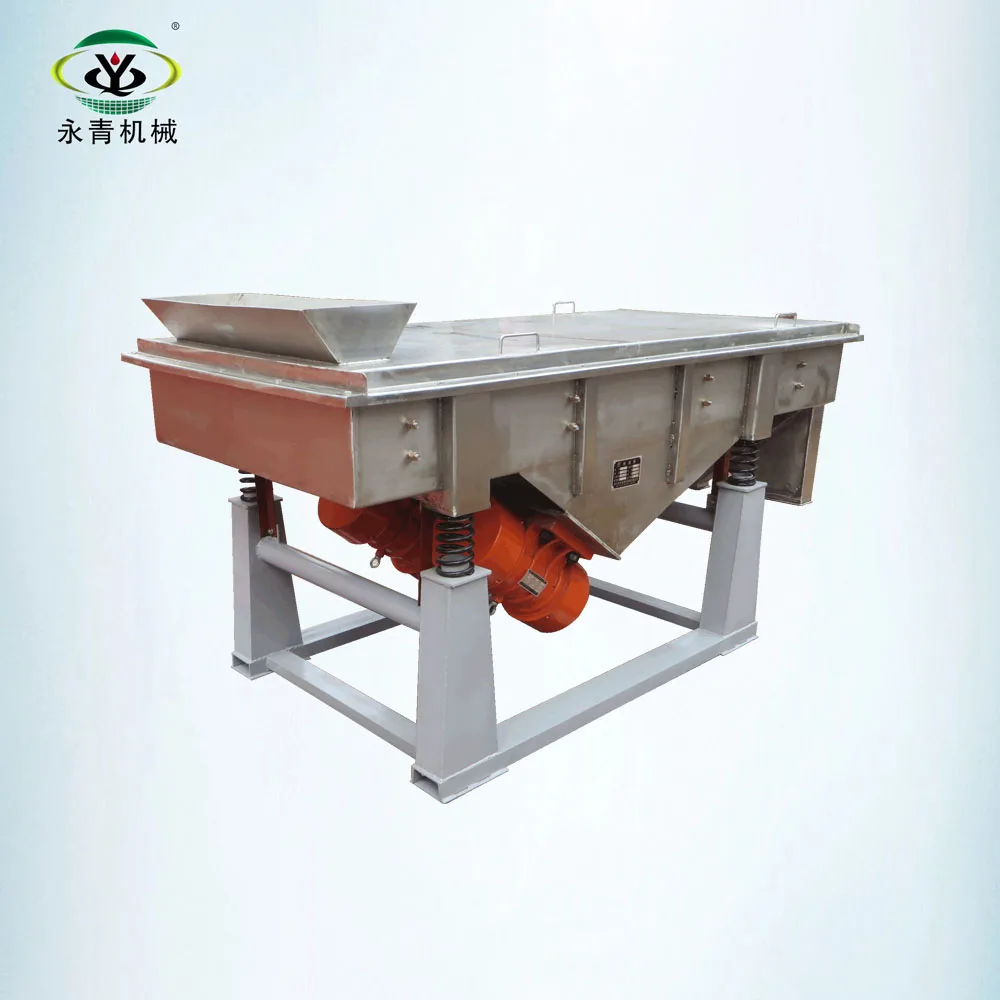

High efficiency rectangle vibrating screen machine for cashew, coffee beans
- Category: >>>
- Supplier: Xinxiang Yongqing Screen Machine Co. Ltd.
Share on (1462645506):
Product Overview
Description
High efficiency rectangle vibrating screen machine for cashew, coffee beans
Introduction
1. DZSF series linear vibrating screen are very useful in plastic, rubber, ceramic, food, pharmaceutical, chemical, fertilizer, glass industries.
2. Linear vibration screen can be provided with dust proof cover as required.
3. DZSF series linear vibration screen can be supplied of different sizes depending upon capacity required. They can also handle slightly wet material.Inlets,outlets and legs can be custom fit to your installation requirements.
Parameters
Model | Layer | Screening Area(mm) | Mesh (mm) | Particle Size(mm) | Capacity (t/h) | Power (kw) | Dual Amplitude |
DZSF-612 | 1-5 | 600*1200 | 0.074 -20 | ≤20 | ≤3 | 0.25×2 | 6-8 mm |
DZSF-520 | 500*2000 | ≤5 | 0.37×2 | ||||
DZSF-525 | 500*2500 | ≤8 | 0.37×2 | ||||
DZSF-1020 | 1000*2000 | ≤12 | 0.75×2 | ||||
DZSF-1025 | 1000*2500 | ≤16 | 0.75×2 | ||||
DZSF-1030 | 1000*3000 | ≤20 | 1.1×2 | ||||
DZSF-1224 | 1200*2400 | ≤23 | 1.5×2 | ||||
DZSF-1525 | 1500*2500 | ≤28 | 1.5×2 | ||||
DZSF-1530 | 1500*3000 | ≤32 | 2.2×2 |
Note: the above data refers to bulk density 1.5t/m3, 1 layer and mesh size 5mm.
Model Reference

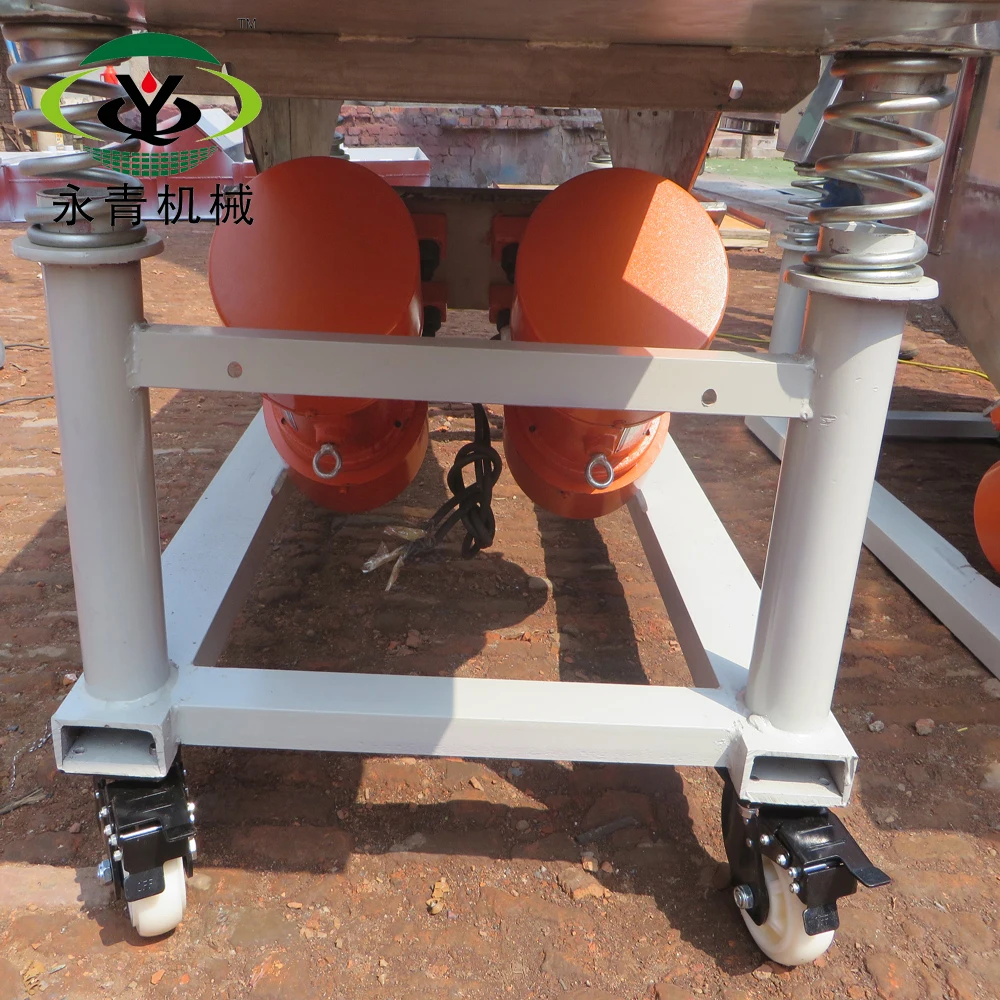

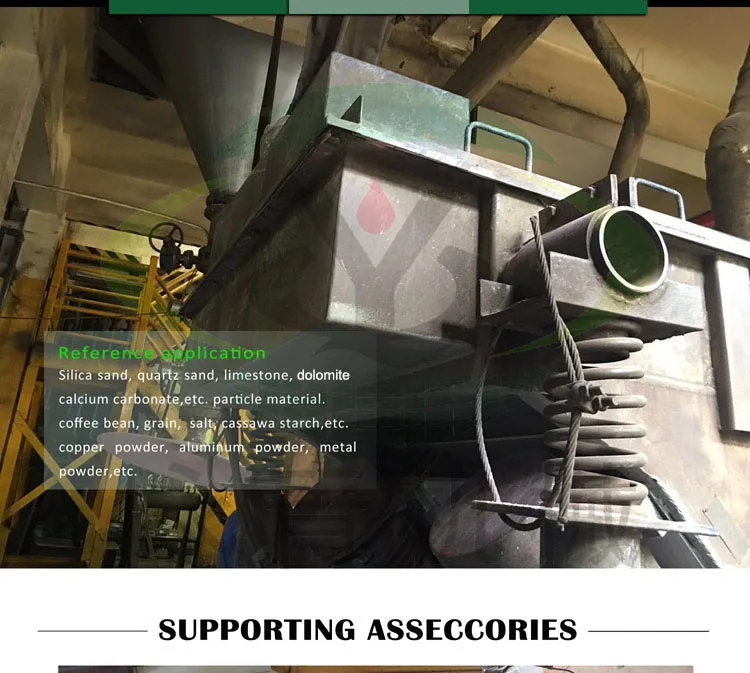

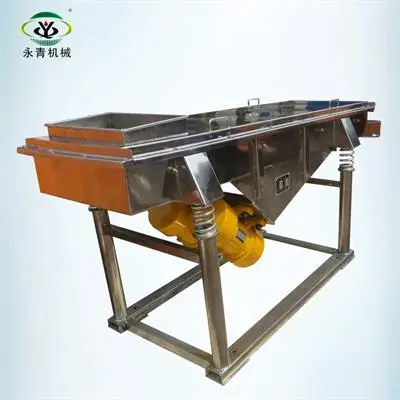

 | Product name: linear screening machine Application: food, sand, ore, coal, quartz sand, limestone, chemicals, etc. Model: DZSF-612 Sieve dimension: 600mm*1200mm Mesh size: 0.075-20mm Material: all stainless steel 304 Motor: 0.25kw*2 (two vibrator motors) Voltage: 380V, 50Hz, 3 phase, 960rpm Package: 1550*800*1150mm Gross weight: 250KG Delivery time: 10 days after deposit |
Specifications

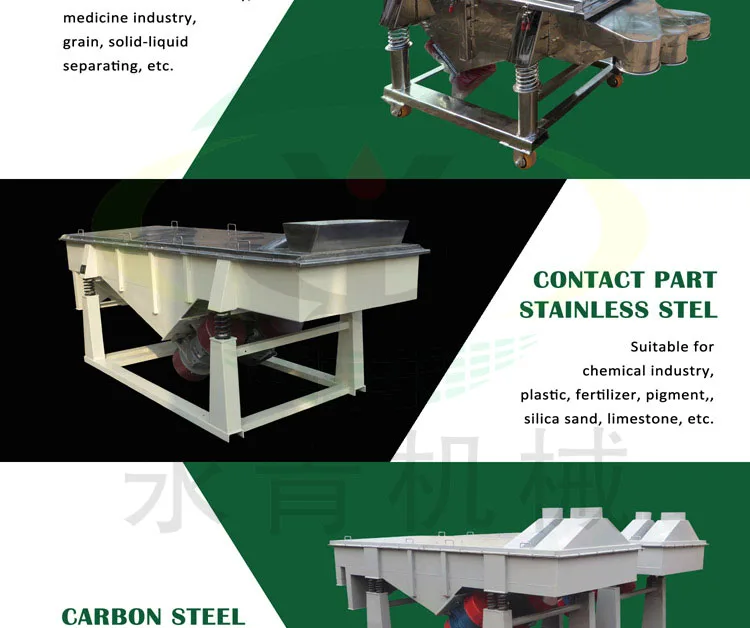

Applications

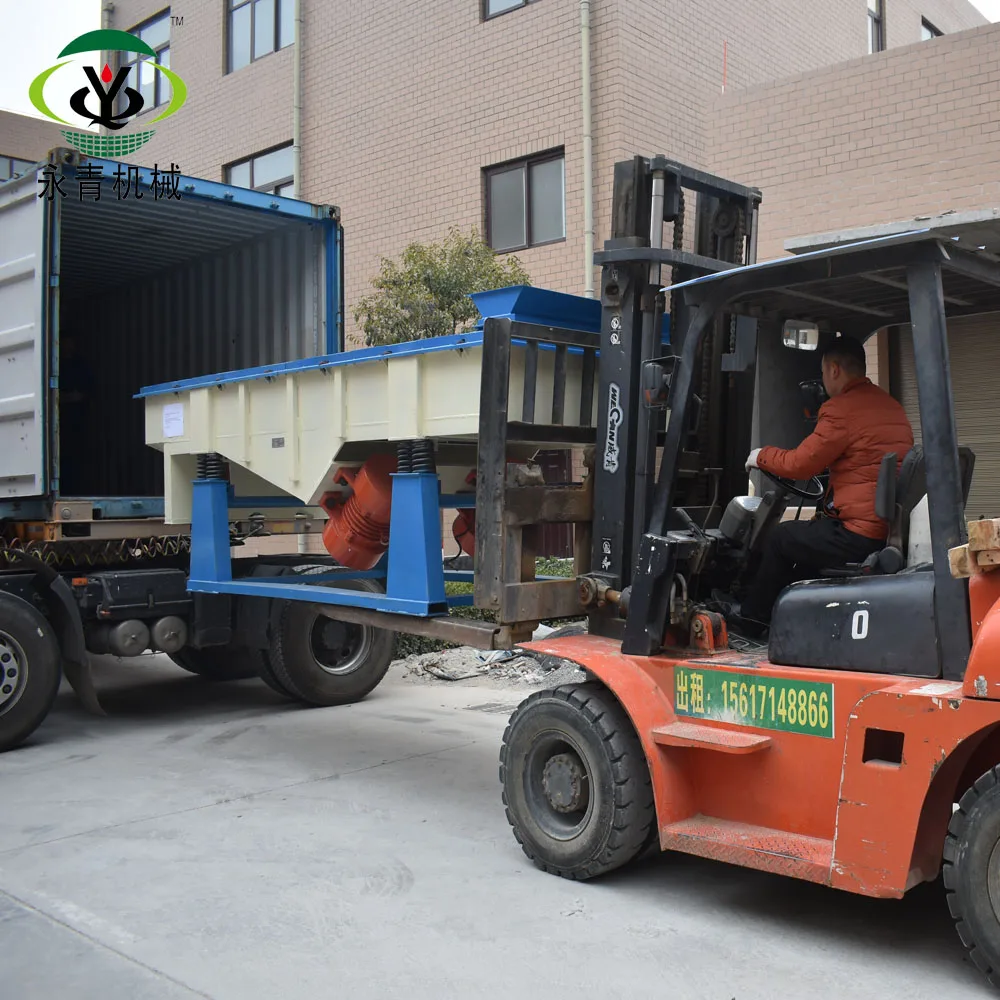

Package
Company Information
Establishing time | 2006 |
Company nature | China 0EM, factory. |
Quality certificate | CCC, ISO9001-2008, CE 32-year industry experience 12-year china manufacturer 9-year Alibaba golden supplier 4 field patents |
Main products | Vibration screen, Conveyor system, Vibration motor, Vibration feeder, lab test sieve, Vibration table, etc. |
Exporting countries | More than 80 countries |
Any needs, please feel free to contact us.
