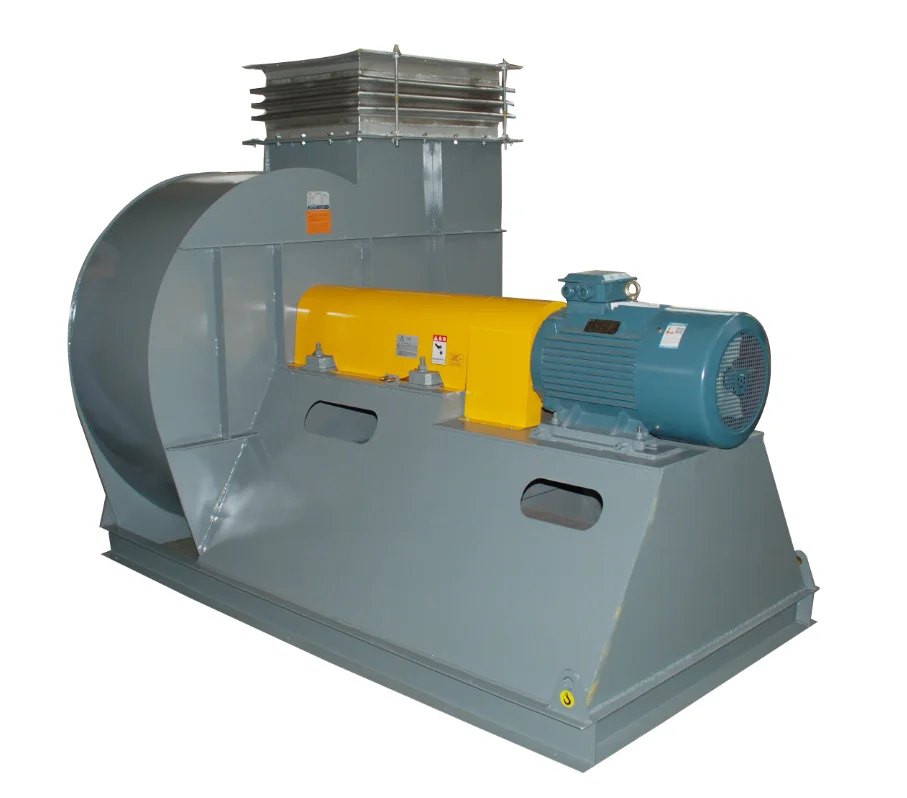

Centrifugal types stainless steel air extractor boiler ventilating transport fan for industrial
- Category: >>>
- Supplier: Wuxi Luoshe Jiangnan Fan Factory
Share on (1462844072):
Product Overview
Description
Details Images
Model (No.) | power（Kw） | Rotation Speed （r/min） | Volume Flow (m³/h) | Total Pressure (Pa) | Noise dB (A) | Weight (Kg) | ||
3-phase | 1-phase | |||||||
DF-1 | 0.04 | 2800 | 160 | 250 | ＜60 | 2.7 | 3.4 | |
DF-2 | 0.25 | 2800 | 504 | 869 | ＜74 | 6.8 | 8.5 | |
DF-3 | 0.18 | 2800 | 405 | 458 | ＜72 | 5.2 | 6.4 | |
DF-4 | 0.06 | 2800 | 246 | 412 | ＜74 | 3.5 | 3.6 | |
DF-5 | 0.55 | 2800 | 850 | 1020 | ＜76 | 10.6 | 11.8 | |
DF-6 | 0.37 | 2800 | 660 | 853 | ＜76 | 7.8 | 9.5 | |
DF-7 | 0.75 | 2800 | 1200 | 1250 | ＜80 | 12 | 13.2 | |
DF-8 | 1.1 | 2840 | 1600 | 1300 | ＜82 | 22 | 23 | |
DF-9 | 1.5 | 2840 | 2000 | 1400 | ＜85 | 30 | 32.2 | |
DF-10 | 2.2 | 2840 | 2300 | 1450 | ＜85 | 34.6 | 37.4 | |

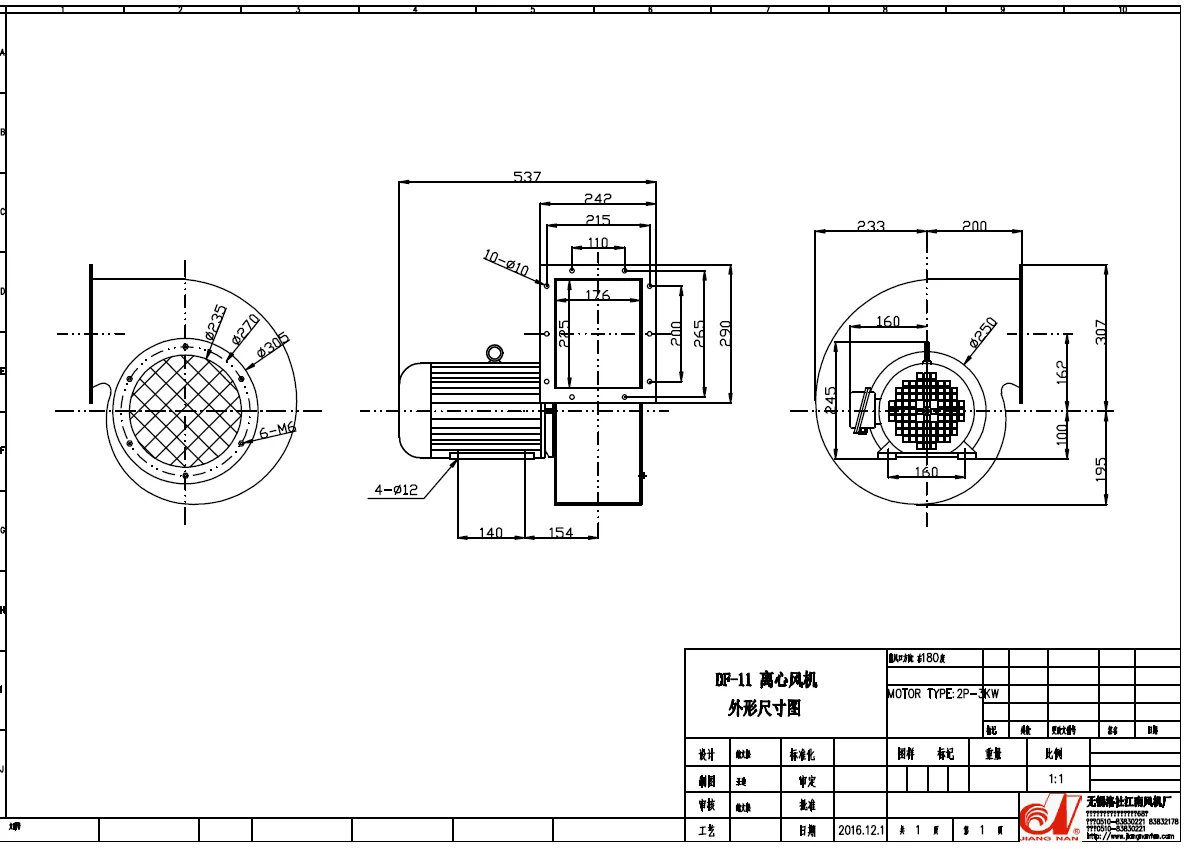

DF-11 | 3 | 2860 | 3010 | 1710 | ＜87 | 48 | / | |
DF-12 | 4 | 2880 | 4000 | 1960 | ＜87 | 61 | / | |
DF-13 | 5.5 | 2900 | 5200 | 2150 | ＜87 | 79 | / | |
DF-14 | 7.5 | 2900 | 6821 | 2105 | ＜89 | 97 | / | |
DF-15 | 11 | 2930 | 7450 | 3624 | ＜89 | 137 | / | |
DF-16 | 15 | 2930 | 10250 | 3420 | ＜89 | 151 | / | |

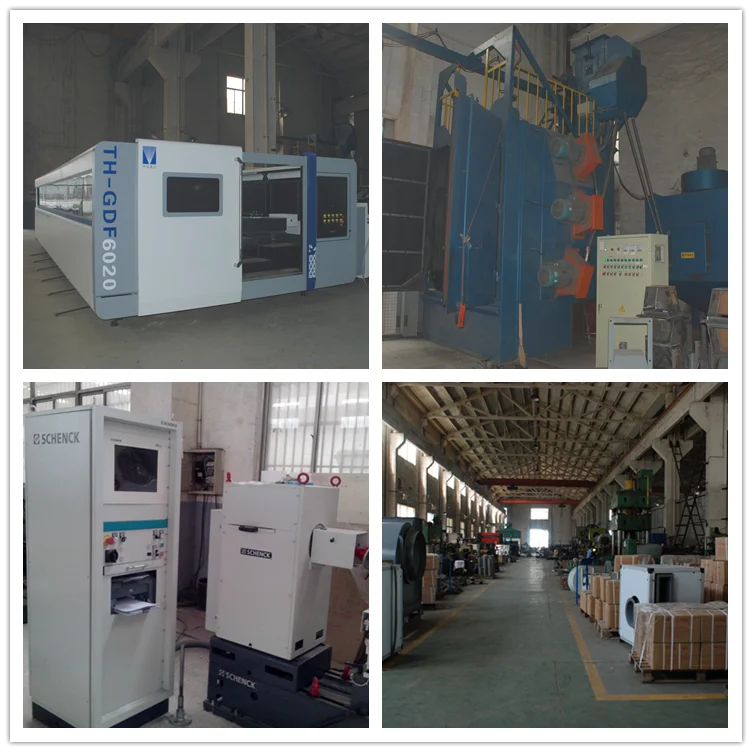

Manufacturing Technique
Our Services
1.Provide the technical design and solutions
2.Designing and manufacturing of non-standard equipment
2.Designing and manufacturing of non-standard equipment
3.Supply accessories at any time
4.Tele-technical consulting and services
5.Other special technical service according to client’s requirements
6.Close follow-up of all orders and keep customers informed timely
7.Product quality and delivery time is strictly controlled
4.Tele-technical consulting and services
5.Other special technical service according to client’s requirements
6.Close follow-up of all orders and keep customers informed timely
7.Product quality and delivery time is strictly controlled
Certifications
FAQ
Q1:What information do you need to select the suitable fan model?
A:air flow, total pressure or static pressure,voltage,working condition.
Q2:How long is the warranty time?
A:air flow, total pressure or static pressure,voltage,working condition.
Q2:How long is the warranty time?
A:one year in the condition of normal use.
Q3:Can you produce the OEM orders?
A:Yes,we have R&D dept which can provide professional solutions for you.
Q4:What kind of certificates can you provide?
A:Our factory have ISO9001 and CE certificates.
Q5:How do you control the product's quality?
A:All the products have quality testing and dynamic balance before delivery.
Q3:Can you produce the OEM orders?
A:Yes,we have R&D dept which can provide professional solutions for you.
Q4:What kind of certificates can you provide?
A:Our factory have ISO9001 and CE certificates.
Q5:How do you control the product's quality?
A:All the products have quality testing and dynamic balance before delivery.
