buzzer alarm front 4 sensor system,car parking sensor(KB01 4 TM3)

Product Overview

Description



Advantage:

1. Professional parking sensor manufacturer with CE, FCC, RoHS and naq certification

2. Strict product quality control from IQC to PQC and FQC

3. Automatically engages as soon as you place your car into reverse.

4. 1-3 years aftersales warranty for different series parking systems

5. Replaceable sensor design optional

6. Sample is available

7. Fast delivery

 Product Parameter:

Description	Min	Type	Max	Unit
Power voltage for S series	10	24	35	V  DC
Power voltage for H&E series	9.6	12	15	V  DC
Operating current			150	mA
Operating temperature	-20		80	°C
Operating frequency	39.3	40	40.7	KHz

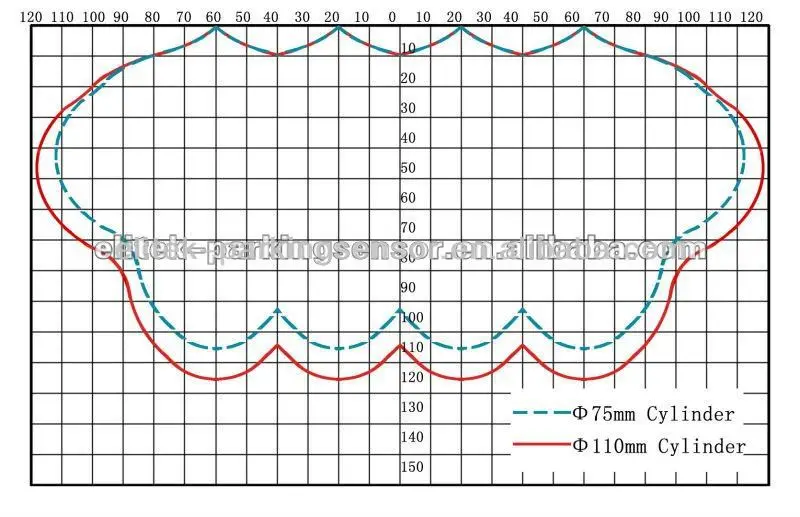

Horizontal detection angle		120		°
Vertical detection angle		60		°
Distance detection accuracy		1		cm
Detection range	0.05	0.9	2.5	m
Buzzer sound volume	75		105	dB
RF Frequency		433		MHz

 Technical Specification:



 Model No.:   KB01-4-TM3

1) Car Premium Rear 4 Parking Sensor System, fit for all passenger cars;
2) Sensor detection range: 0cm~2.5m;
3) Display range: 40cm~2.5m;
4) Advanced self-diagnosis with error indication;
5) All weather design, plastic housing;

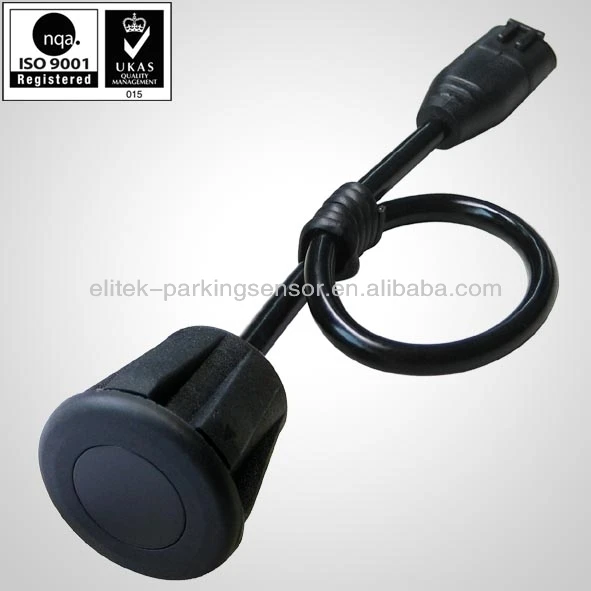

6) 4*TM3 double angle sensor, 18.5mm plastic flat, 15cm+2.5m cable;

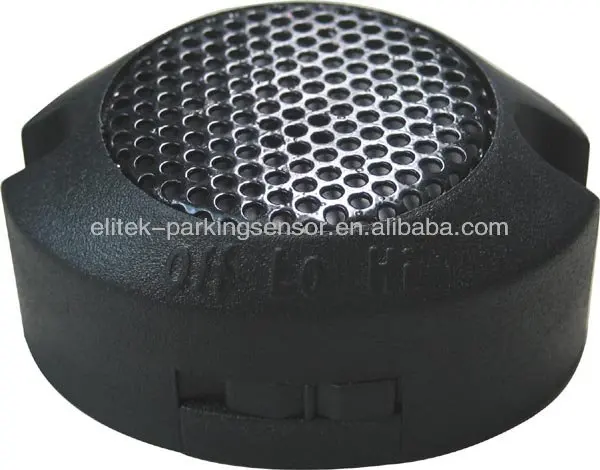

7) BUZ01, standalone "hi-low-off" option buzzer;
8) Power Input: 9.6~15V DC;
9) Industrial cables and connectors, Microchip MCU.

10) Front  parking mode available

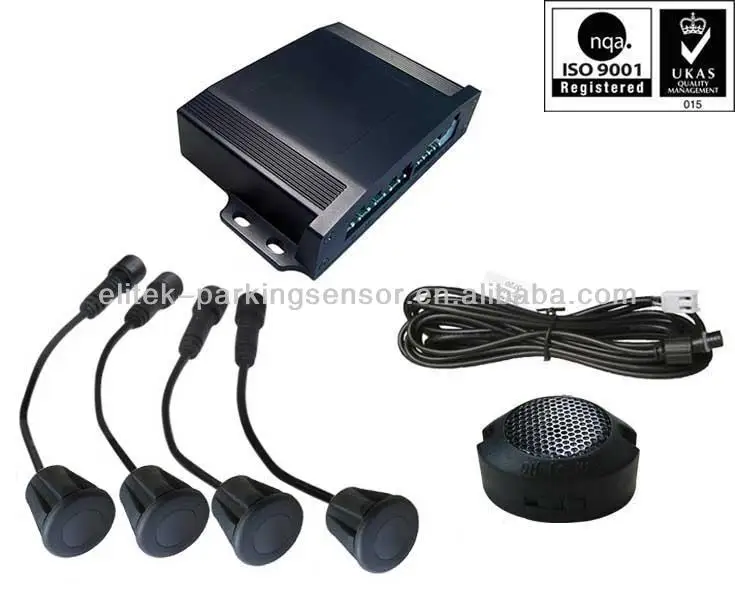

Whole set
OE Style Control box,socket with lock	1PCS
Waterproof twist connector sensors	4PCS
15cm with twist connector sensor cables 2.5m	4PCS
Buzzer 2.5m cable	1PCS
LED display 5m  cable	1PCS
Power harness with Fuse  1.5 m length	1PCS
Owner’s manual	1PCS
Hole saw (18.5/21.5/22mm optional)	1PCS
Accessory pack	1PCS
