two wires mesh fastener clamps without nut for automobile

Product Overview

Description

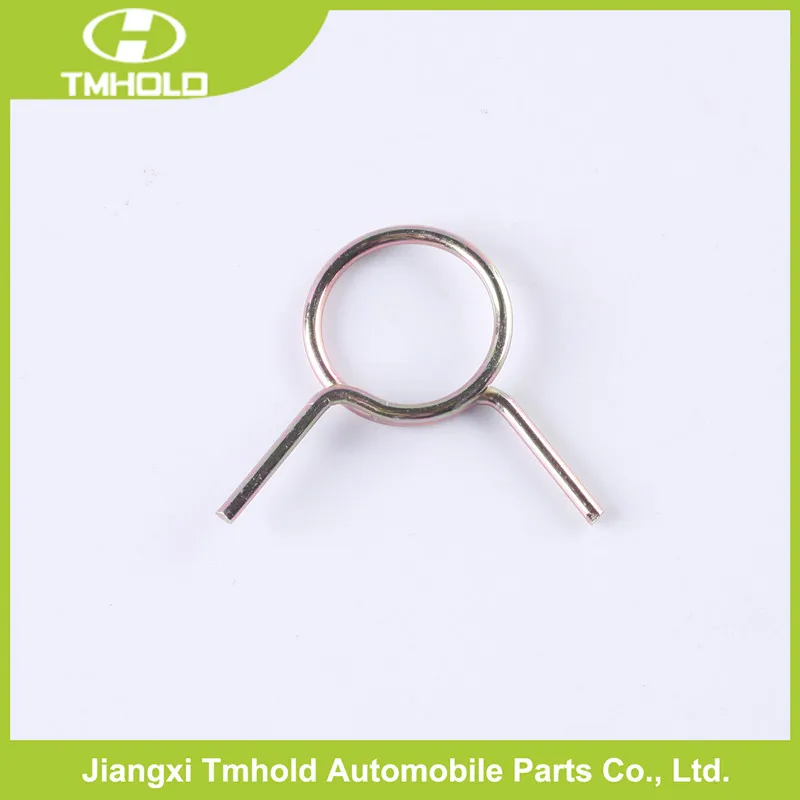

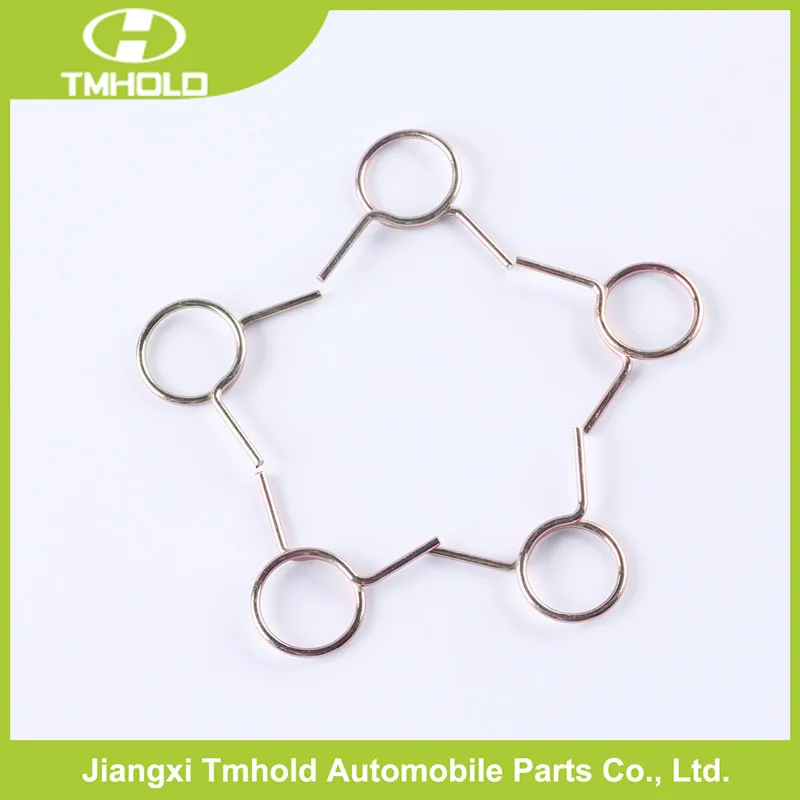

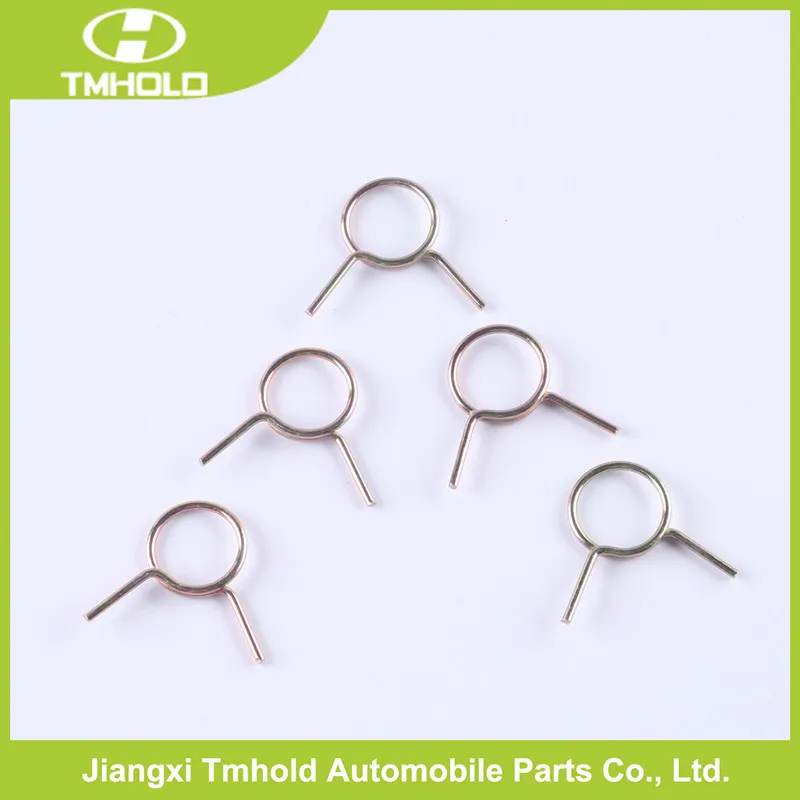

This single wire hose clip are made of  strand steel wire with high resistance; they are coated with a preservative zinc plating, which ensures a practically unlimited durability.In comparison with other clips and clamps.





1)Material: 65Mn spring steel& stainless steel


2)Finish;Dichromate Plated& Deoxidation & zinc plated steel



3)size:7mm-68mm



4)type:single wire or double wire without screw or as your requestment



5)features:

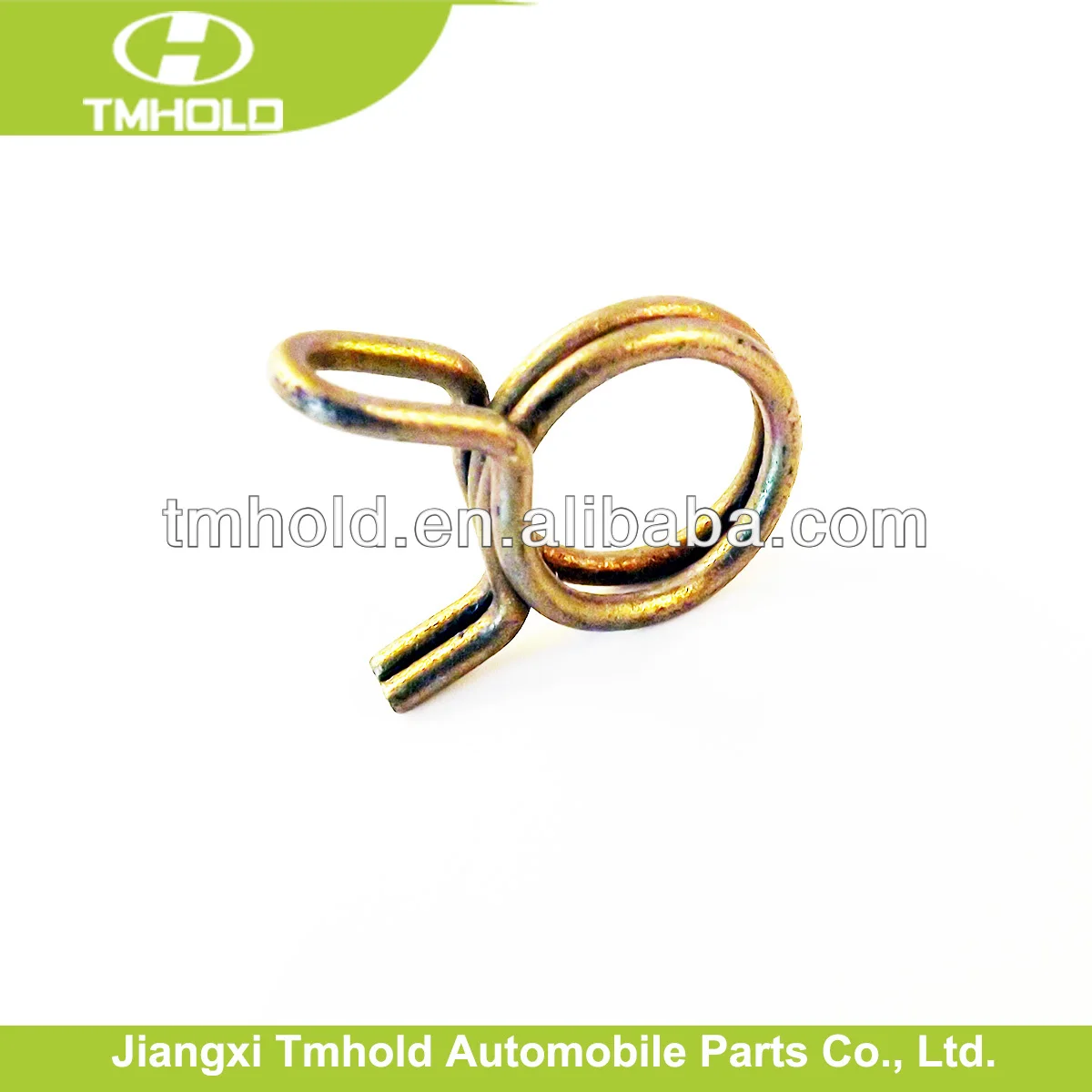

The stress on the plastic or rubber hose caused by the double strand clamps is obviously lower - through the clamping action is the same - than the one caused by the single wire clamps; in fact the radial load is distributed over a wider surface of the hose (see pictures A and B).



Furthermore, the roundness of wire of which the wire clamps are made allows the cutting action, when compared with the one produced by the regular boot clamps (see pictures A and C), to be much lower, it ensures a longer durability of the flexible hoses and a higher resistance of blow-off.













size	Item No.	Clamping ranges(mm)	wire diameter(mm)	Length of ear
6.5	THQ671B65	7.3-7.6	0.8	12
7.0	THQ671B70	7.8-8.1
8.5	THQ671B85	9.5-9.9	1.2
9.5	THQ671B95	10.6-11.1
10.0	THQ671B100	11.2-11.7	1.6
11.2	THQ671B112	12.3-12.8
11.5	THQ671B115	12.9-13.4		15
12.0	THQ671B120	13.4-14.0
13.0	THQ671B130	14.6-15.2
13.5	THQ671B135	15.1-15.7
14.0	THQ671B140	15,7-16.3
14.5	THQ671B145	16.2-16.9
15.0	THQ671B150	16.8-17.5
15.5	THQ671B155	17.4-18.0
16.0	THQ671B160	17.9-18.7
16.5	THQ671B165	18.5-19.2
17.0	THQ671B170	19.0-19.8	2.0
18.0	THQ671B180	20.2-21.0
19.0	THQ671B190	21.3-22.3
20.0	THQ671B200	22.4-23.3
21.0	THQ671B210	23.5-24.5
23.0	THQ671B230	25.8-26.8
25.0	THQ671B250	28.0-29.1
27.0	THQ671B270	30.2-31.5
29.0	THQ671B290	32.5-33.8
32.0	THQ671B320	35.8-37.3
34.0	THQ671B340	38.1-39.7
36.0	THQ671B360	40.3-42.0	2.5	18
38.0	THQ671B380	42.6-44.3
40.0	THQ671B400	44.8-46.7
49.0	THQ671B490	54.9-57.2	3.0
54.0	THQ671B540	60.5-63.0
59.0	THQ671B590	64.8-68.8



Remarks: All sizes are available as requested, we can also make them according to the drawings which customer provided.
