Inverted Tissue Culture fluorescent Microscope model RTC 7A Brightfield fluorescence phase contrast Radical Manufacturer
- Category: >>>
- Supplier: RADICAL SCIENTIFIC EQUIPMENTS PRIVATE LIMITED
Share on (146431694):
Product Overview
Description
Product Description

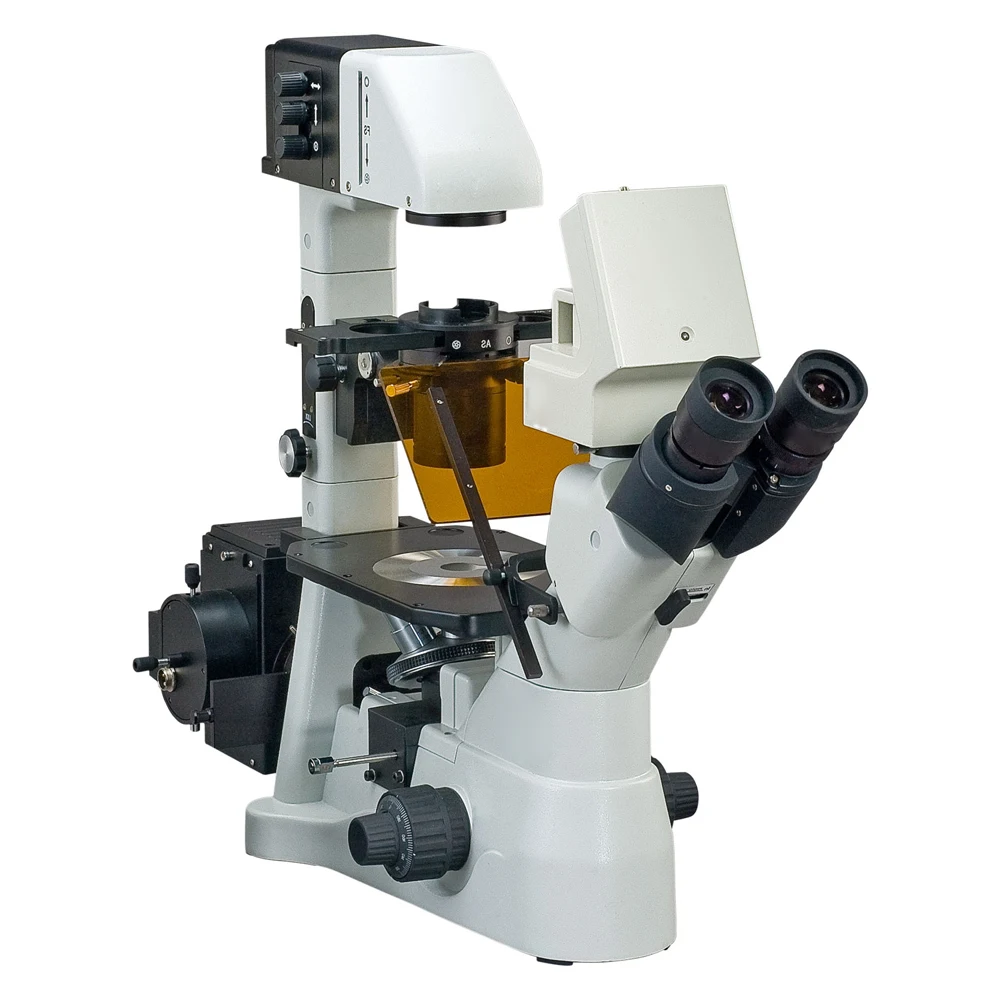

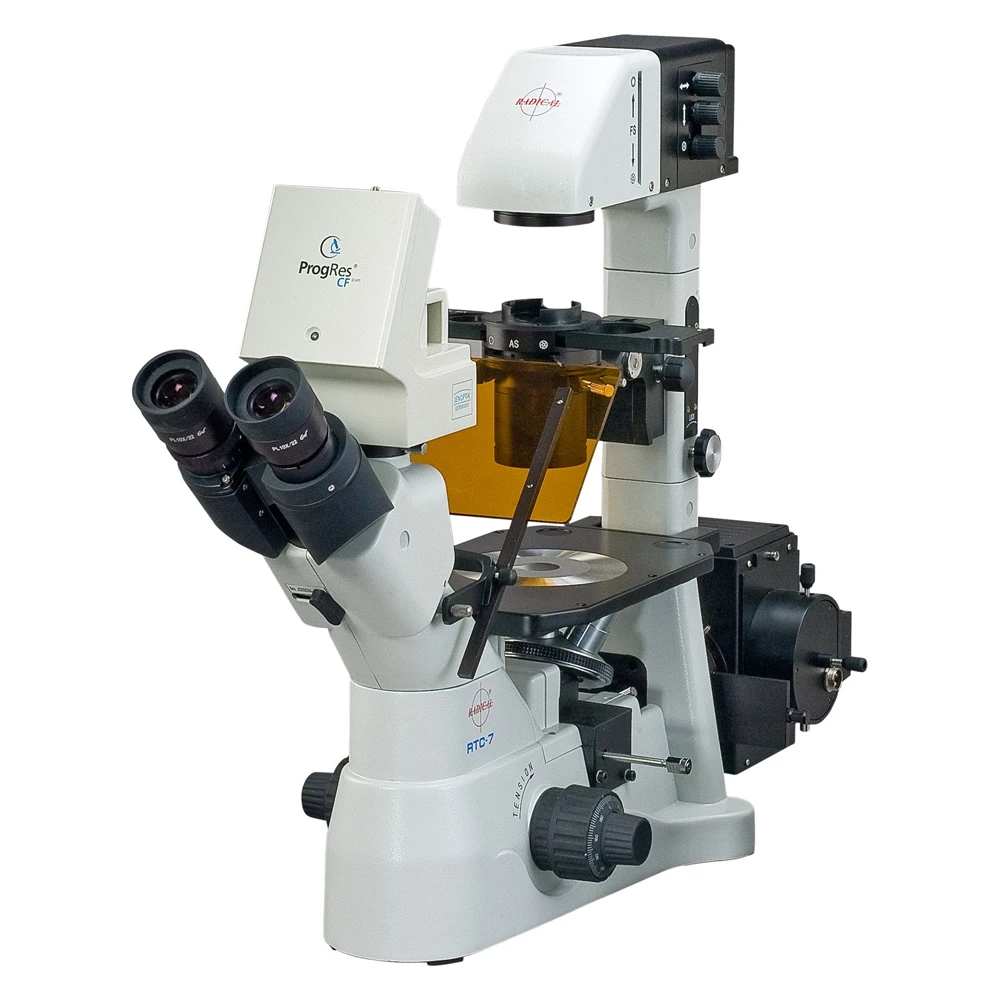

Advanced Inverted Tissue Culture Microscope RTC-7A
Advanced Inverted Tissue Culture Microscope is designed for the examination of tissue cultures and liquid residues in special laboratory vessels. The microscope allows studying the specimen in transmitted light under bright field and phase contrast. It finds vast application in Cancer Research, Serology, Urology, Histology, Sexology, Virology, Parasitology, Microbiology, and also in areas of Air and Water pollution. This advanced designed instrument is having all the features required by modern biological scientist. It can also be used for phase contrast microscopy to impart normally colorless transparent specimen with enough contrast to permit clear examination of living bacteria, cells, tissues, etc. The microscope is having a robust, rigid vibration resistant design that greatly reduces vibrations and improves operation. Trinocular Head is intended for microscopic imaging through video cameras & film cameras. Microscope illumination system incorporates a long working distance condenser for observation of specimens in culture vessels of upto 70mm. long. With the condenser in swing out position the stage can accommodate extra-long vessels upto 150mm. Moving of vessels located on the stage can be done manually or using the attachment substage with co-axial X-Y controls. To accommodate a variety of vessels, including extra-long flasks and high-profile bottles, the stage can be extended by means of an extension plate.
Magnification - 100X-640X
Eyepieces - Wide-field eyepieces: WF10X WF16X
Reticule eyepiece: 10X (0.1mm/division)
Objectives - LWD plan achromatic objectives
LPL 10/0.25 LPL25/0.40 LPL 40/0.60
Phase Contrast - LWD plan phase contrast attachment LPL Ph 25/0.40
Illumination - 6V 20W halogen lamp with adjustable brightness
35mm photo unit with S5X photo eyepiece
Optional accessories:
1) Plan achromatic objective PL 4/0.10
2) LPL Ph40/0.60 and annular diaphragm slide
3) Micrometer (0.01mm/division)
4) S6.3X, S0.65X photo eyepiece is optional.
5) Super LWD condenser NA0.3 Working distance: 55mm
Magnification - 100X-640X
Eyepieces - Wide-field eyepieces: WF10X WF16X
Reticule eyepiece: 10X (0.1mm/division)
Objectives - LWD plan achromatic objectives
LPL 10/0.25 LPL25/0.40 LPL 40/0.60
Phase Contrast - LWD plan phase contrast attachment LPL Ph 25/0.40
Illumination - 6V 20W halogen lamp with adjustable brightness
35mm photo unit with S5X photo eyepiece
Optional accessories:
1) Plan achromatic objective PL 4/0.10
2) LPL Ph40/0.60 and annular diaphragm slide
3) Micrometer (0.01mm/division)
4) S6.3X, S0.65X photo eyepiece is optional.
5) Super LWD condenser NA0.3 Working distance: 55mm
Specification
item | value |
Warranty | 1 years |
Customized support | OEM |
Place of Origin | India |
Haryana | |
Brand Name | RADICAL |
Model Number | RTC-7A |
Theory | Fluorescence Microscope |
Drawtube | Trinocular |
Product name | Inverted Tissue Culture fluorescent Microscope |
Warranty | 1 Year |
Magnification | 100X-640X |
Application | Industrial |
Objective | LWD plan achromatic objectives |
Eyepiece | WF10X WF16X |
Illumination | 6V 20W halogen lamp |
Material | Aluminium Alloy |
Light source | Halogen Lamp |
Brand | RADICAL |
