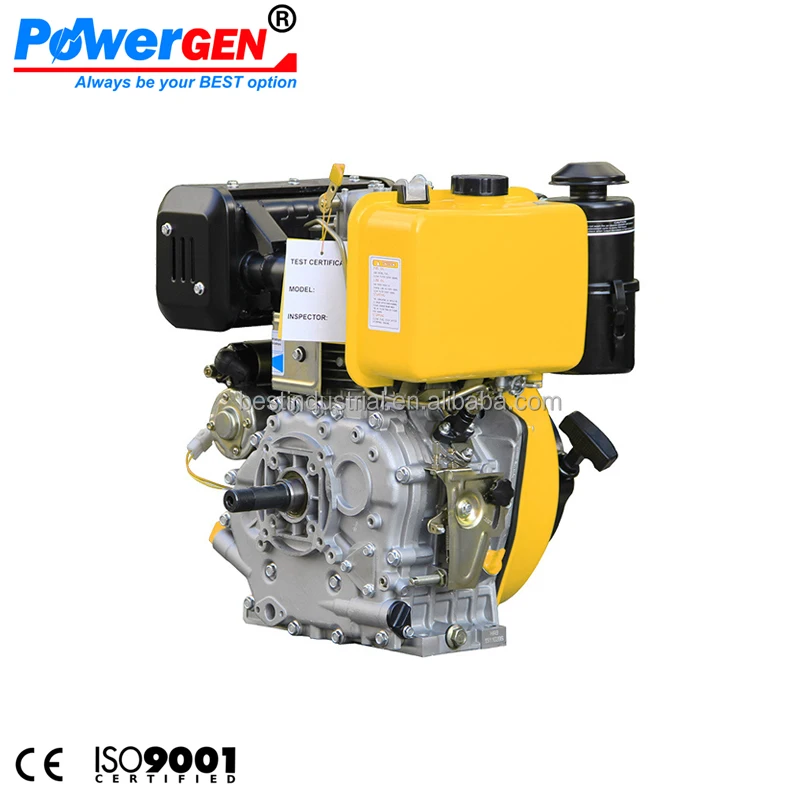

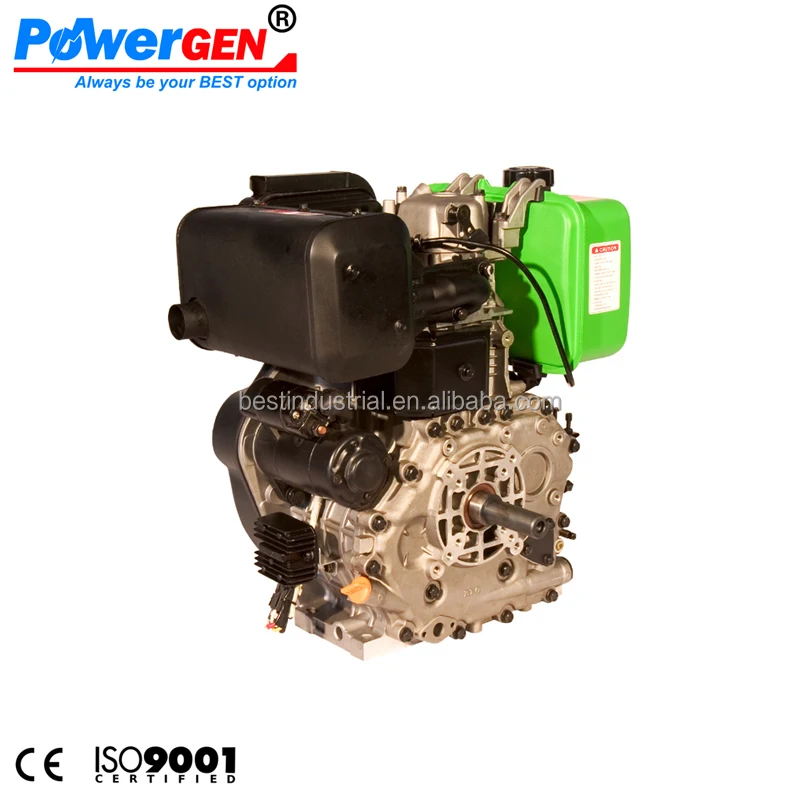

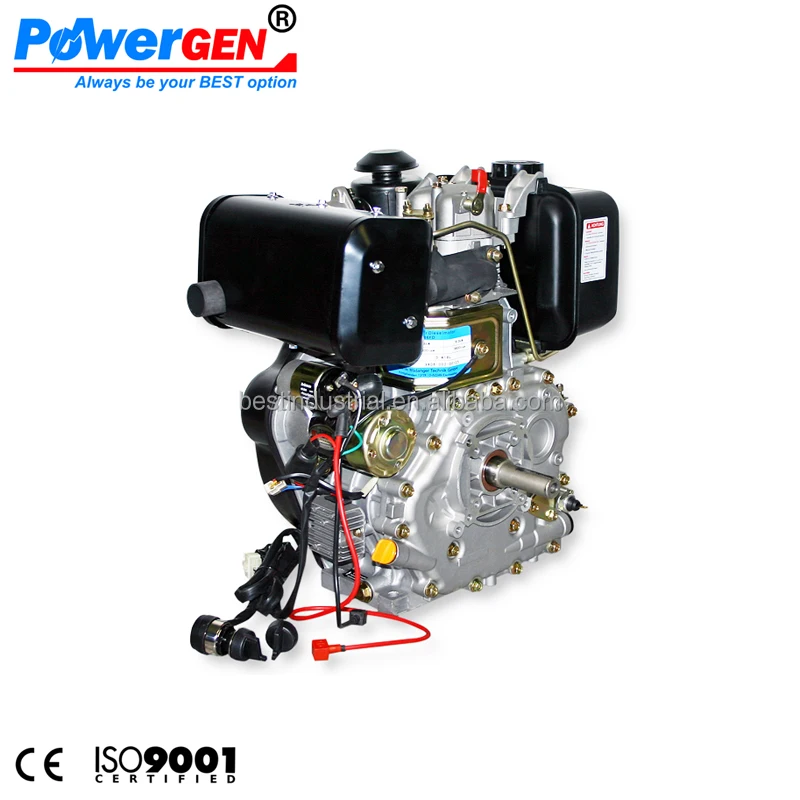

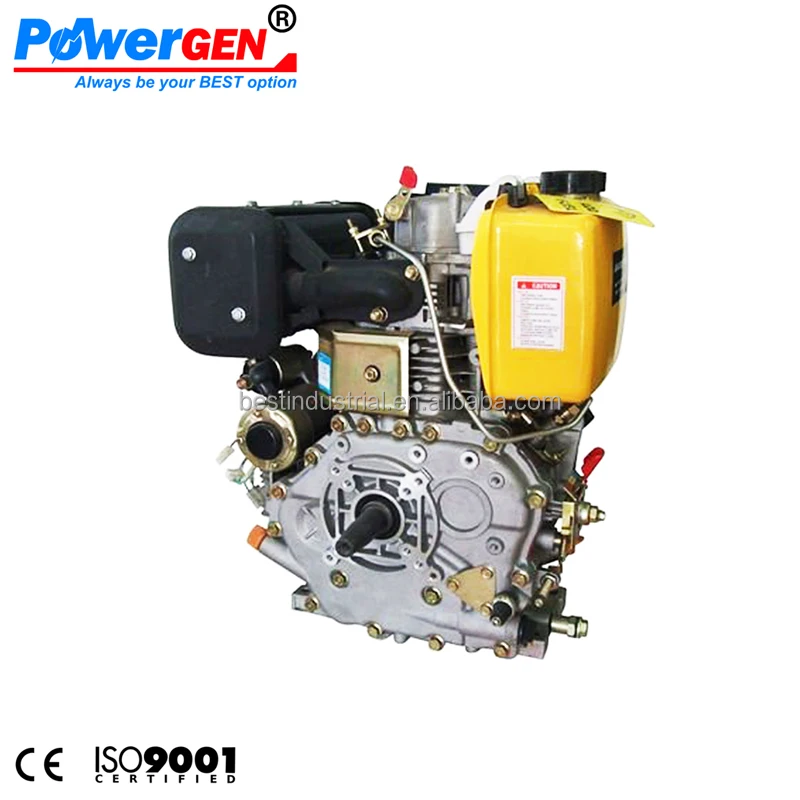

Hot Sale!!! POWERGEN 186F EPA Approved Diesel Engine 10 HP
Hot Sale!!! POWERGEN 186F EPA Approved Diesel Engine 10 HP
Hot Sale!!! POWERGEN 186F EPA Approved Diesel Engine 10 HP
Hot Sale!!! POWERGEN 186F EPA Approved Diesel Engine 10 HP
Hot Sale!!! POWERGEN 186F EPA Approved Diesel Engine 10 HP
Hot Sale!!! POWERGEN 186F EPA Approved Diesel Engine 10 HP
Hot Sale!!! POWERGEN 186F EPA Approved Diesel Engine 10 HP

Hot Sale!!! POWERGEN 186F EPA Approved Diesel Engine 10 HP

Share on (1464611732):


Price:

Quantity:


Product Overview

Description


Product Description

Product Application

The Single Cylinder Diesel Engine 10HP can work as engine for Generators, Water Pumps and Construction equipments.


NOTE: Our diesel engine 186FAE is EPA 2016 approved!

\t
Specifications of Diesel Engine 10HP
\t
Model No.
\t
BD186FA(E)
\t
Engine Type
\t
Air-cooled, 4-stroke, Single Cylinder, Direct Injection
\t
Bore x Stroke (mm)
\t
86x72
\t
Displacement (cc)
\t
418
\t
Compression Ratio
\t
19:1
\t
Peak Power (HP/RPM)
\t
10/3600
\t

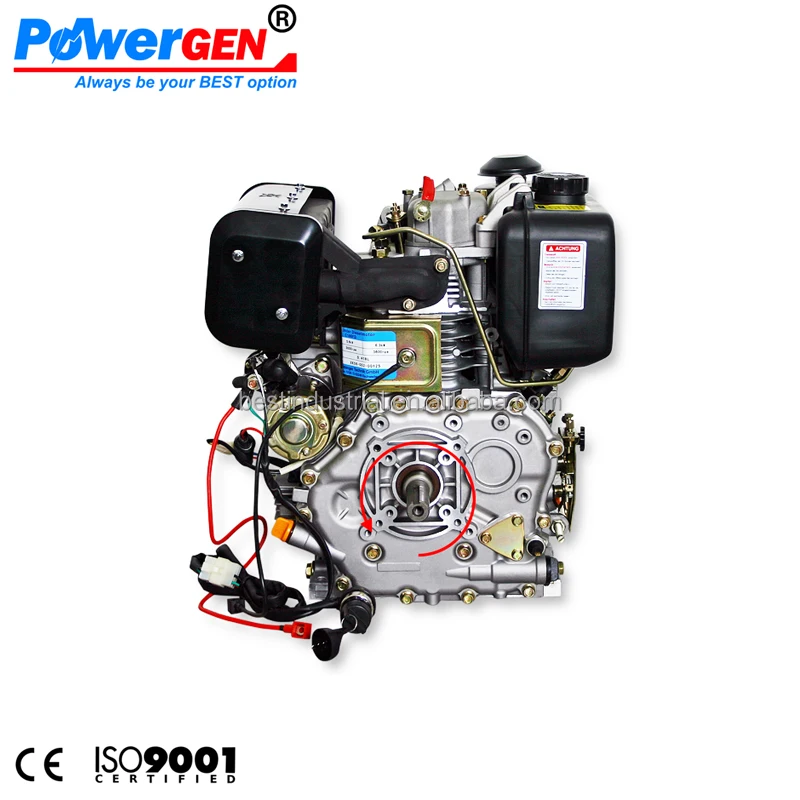

Rotation (View from Flywheel)
\t
Clockwise
\t
Fuel Type
\t
0#, -10# diesel
\t
Fuel Tank Capacity (Liter)
\t
5.5
\t
Fuel Consumption (g/kW.H)
\t
320
\t
Lub. oil Type
\t
SAE10W30(Above CD grade)
\t
Lub Oil Capacity (Liter)
\t
1.65
\t
Starting System
\t
Recoil Start, Electric Start
\t
Dimensions (LxWxH)mm
\t
417 x 441 x 494
\t
Net weight (Kgs)
\t
Recoil start: 48Kg ; With electric starter: 53Kg
Diagram & Shaft

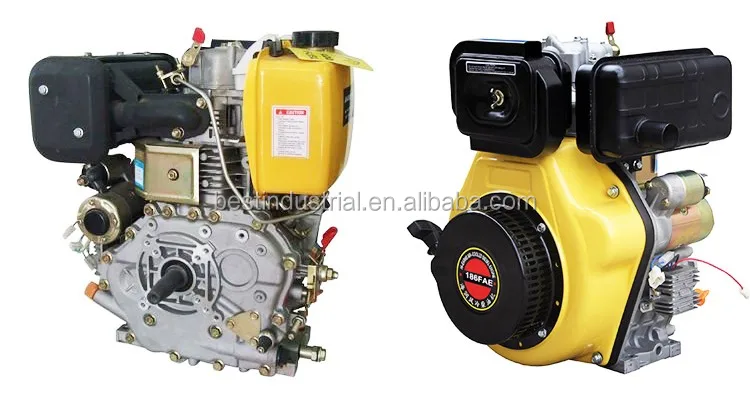

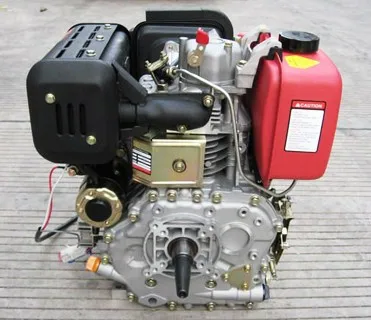

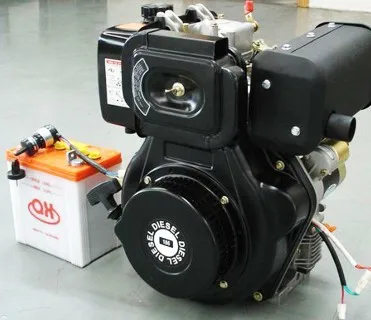

Complete Engine

* Internal 8 Amp alternator with regulator               * Internal counterbalance shaft

* Equipped with muffler and fuel tank                       * Solonoid type electric starter (battery not included)

* Pull-recoil starter included                                        * Compression release lever
* Glow plug for cold weather starting                        * One year factory warranty on parts

Applications

Diesel Generator 5KW

The diesel engine 10HP is an ideal engine for diesel generator 5KW.

Water Pump 3 inch or 4 inch

The diesel engine 10HP is powerful

enough to power the water pump

3 inch or 4inch.

Construction Equipments

The diesel engine 186FAE is ideal for the construction equipments such as

plate compactors and concrete mixers.

Packing
\t
Packaging
\t
Size (mm)
\t
530 (L) * 480 (W) * 560 (H)
\t
Gross Weight
\t
55Kg (with Electric Start)
\t



Packaging
Details
\t


1) Inner Packaging: Polybag & Foam
2) Outer Packaging: Carton
3) Wrapping tape
Assembly Line
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
