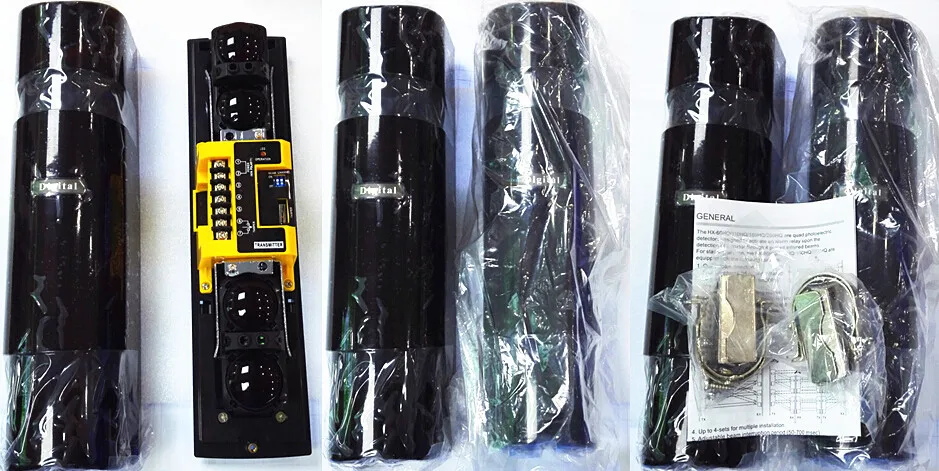

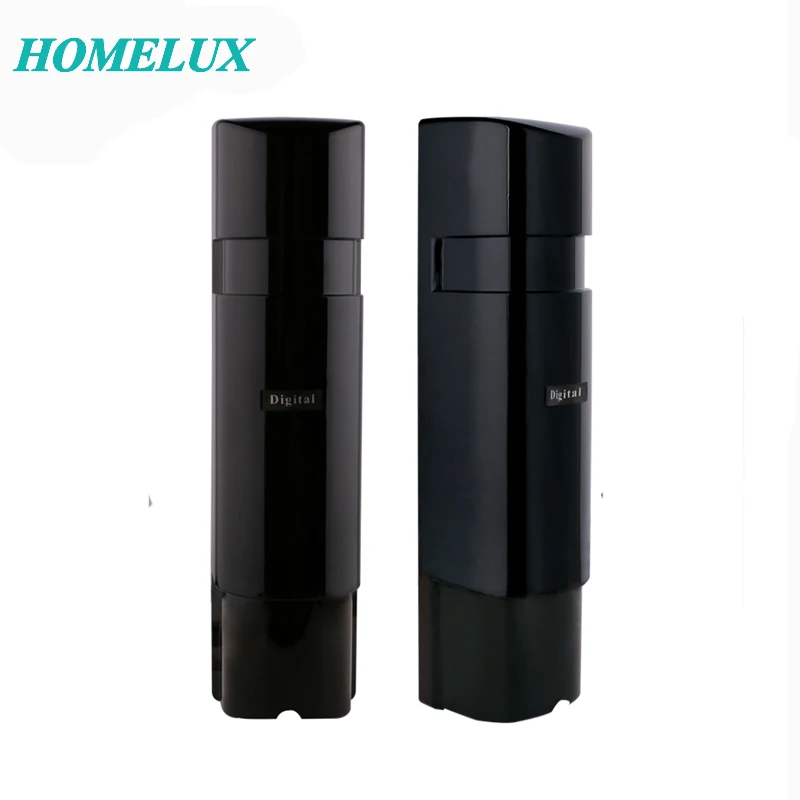

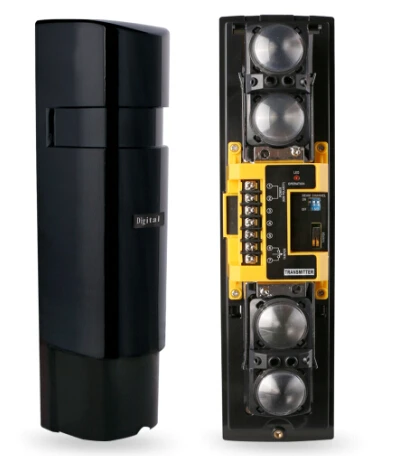

4 Beams Digital Infrared Photo Beam Sensor For Home Security Alarm System Active Barrier Alarm
- Category: >>>
- Supplier: Shenzhen Homelux Intelligent Technology Co. Ltd.
Share on (1464736009):
Product Overview
Description
Digital Infrared Photo Beam Sensor In Gsm Security Alarm System
Product Description
Feature
1, Quad Beam detection, four synchronized pulsed infrared bearn sensure ultimate stability inany applications, False alarms due to falling leavesand small animals are virtuallv,eliminated.
2, Easy opticall alignment with LED indication 10-Level LED indicator we can check beam strength easily, highly accurate lignment, no need to use voltmeter,no need for using beam blocking plate.
3, selectable 8- channel beam frequencies. Selectable beam frequencies for beam stacking andlong distance appliations without crosstalk.
4, Up to 8-sets for multiple installation.

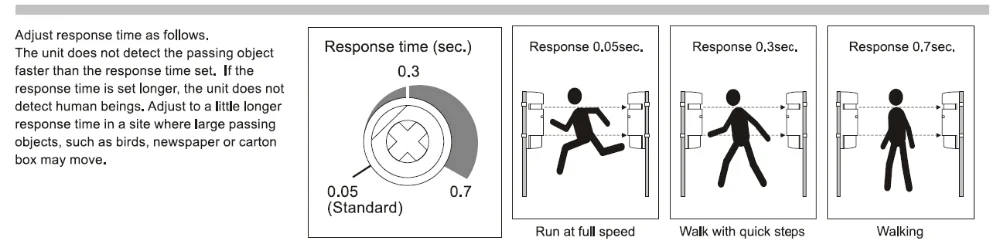

5, adjustable beam interruption perod (50-700msec).
6,Lighting & surge protection, Automantic gain control circuit.
7. Form C relay providing more applications.
8. Anti-Forest design.
9, Target color, structure colors, is tunedto peak wavelengths of human vision to be easily trageted in thebeam alignment prcess
Specification
| Model | HX-100HQF | HX-150HQF |
| outdoor use range | 100m | 150m |
| Selectable beam frequency | CH1~CH8, totally 8 chennels | |
| Interruption period | 50~700 msec(variable) | |
| Power input | 11~30VDC(no polarity) | |
| Power Consumption (at 12VDC input) | 50mA | 70mA |

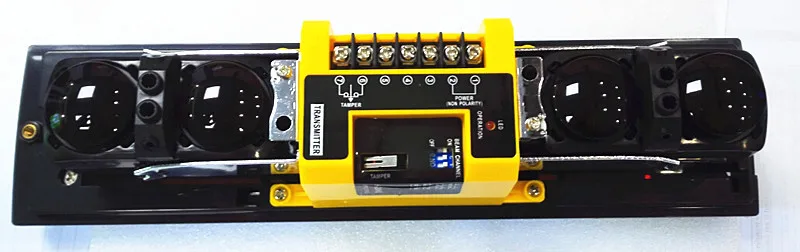

| Indication LED | Power LED: green LED (transmitter) Alarm LED: red LED (receiver) Beam alignment level LED: 3 red LED (receiver) | |
| Alarm duration | 1 ± 0.5 Sec (norminal) | |
| Relay output | From C relay, dry contact 1A/120VAC, 2A/24VDC(resistor load) | |
| Tamper | Opens when cover is removed (1A/120VAC) | |
| IP rating | IP66 | |
| Alignment angle | Vertical 20° (±10°), Horizontal 180° (±90°) | |
| Operation Tamperature | -25℃ ~+55℃ | |
Certifications
Packaging & Shipping
1) Payment: Western Union, T/T, Money Cash
2) Shipping: DHL, UPS, EMS, and other courier available as required.
3) Delivery time: 7-15 days after your full payment.
Our Services
Company Information

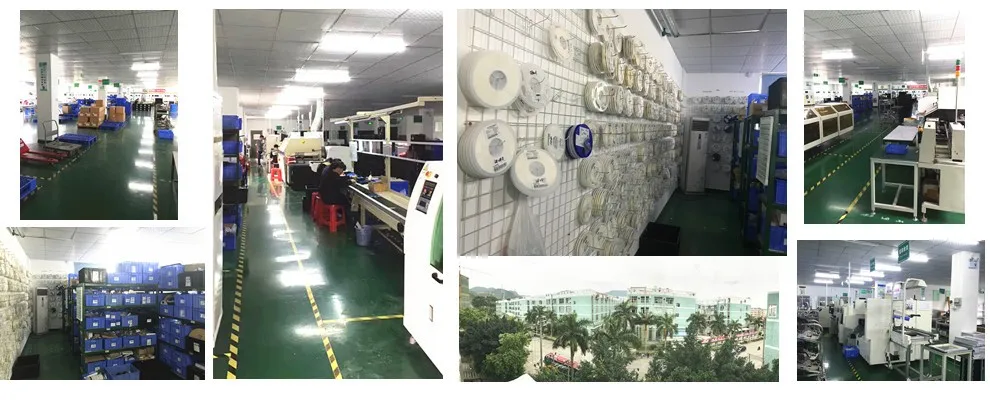

Factory View
FAQ
1. About Price:
The price is negotiable. It can be changed according to your quantity or package.
When you are making an inquiry, please let us know the quantity you want.
2. About Sample:
Sample is Free, but the air freight is collect or you pay us the cost in advance.
3. About MOQ:
The MOQ is subject to the items ;Please refer to the items description .
For some products we have in stock, the MOQ is thousands pcs.
4. About OEM:
Welcome, you can send your own design of product and LOGO, we can open new
mold and print or emboss any LOGO for you.
5. About warranty:
We are very confident in our products, and we pack them very well, so usually you will
Receive Your Order In Good condition. Any quality issue, we will deal with it immediately.
6. About Payment or other question:
Pls email me or chat with me on Trade Manager directly.
