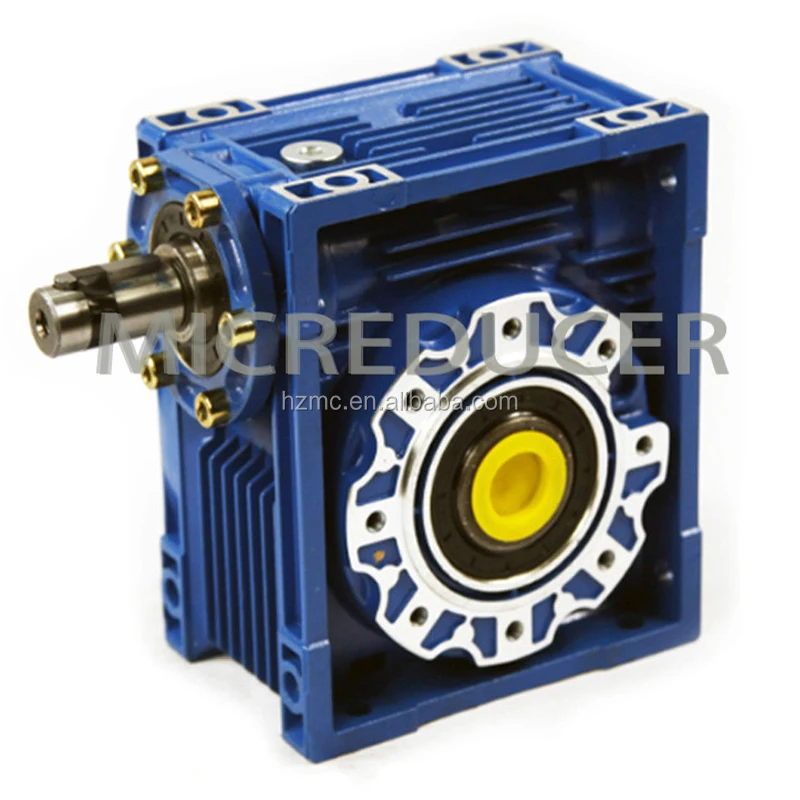

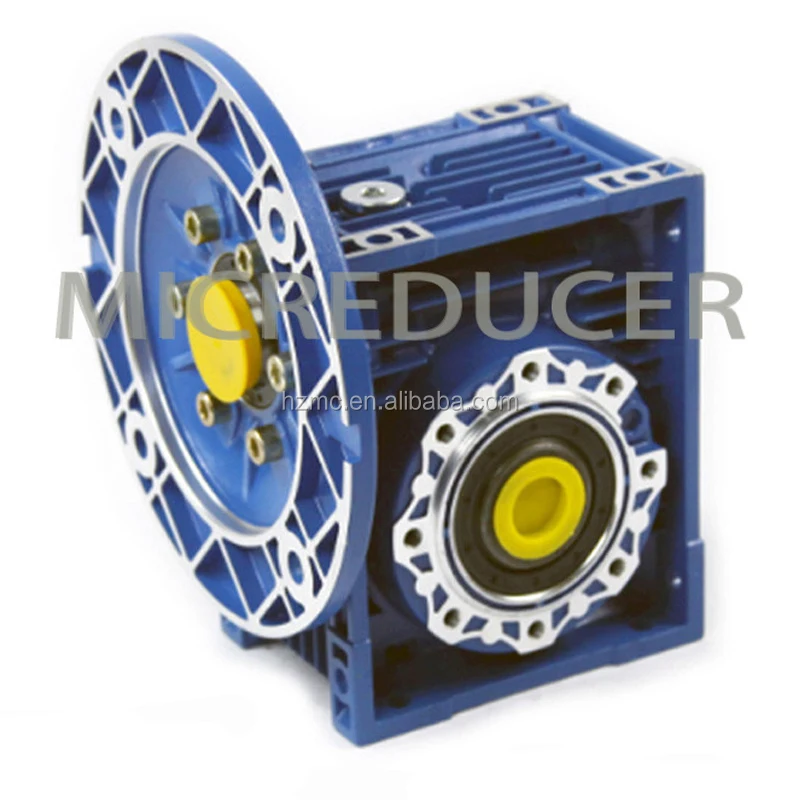

NRV050 90 Degree Transmission Gear Box

Product Overview

Description

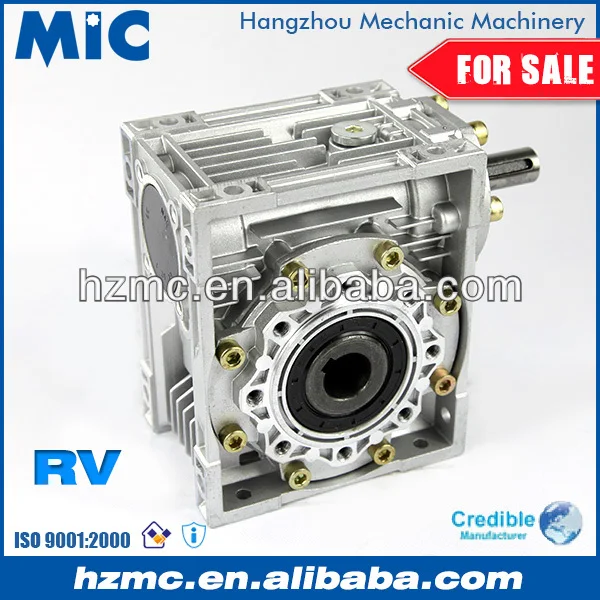

NRV050 90 Degree Transmission Gear Box







Specification



Type:	Worm Gearbox
Model:	NRV050
Ratio:	1:5,7.5,10,15,20,25,30,40,50,60,80,100
Color:	Blue/Silver or on customer request
Housing:	Aluminium Alloy
Packing:	Carton Case

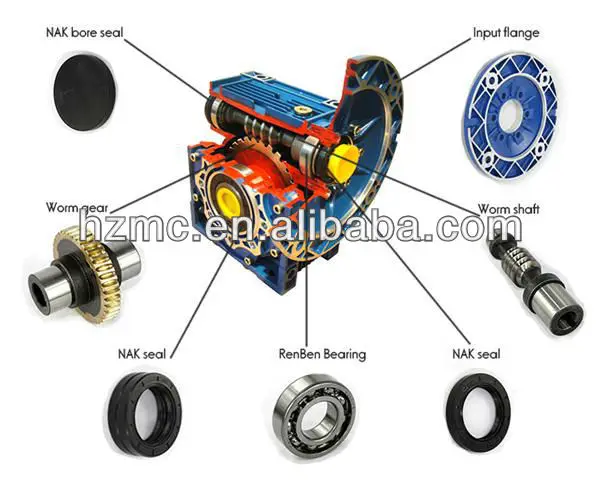

Bearing:	C&U Bearing
Seal:	NAK,SKF
Warranty:	1 Year
Input power:	0.2-1.6kw
Usages:	Industrial Machine:Food Stuff,Ceramics,Chemical,Packing,Dyeing,Wooding working,Glass
Lubricant:	Synthetic

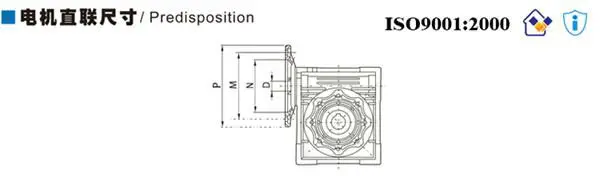

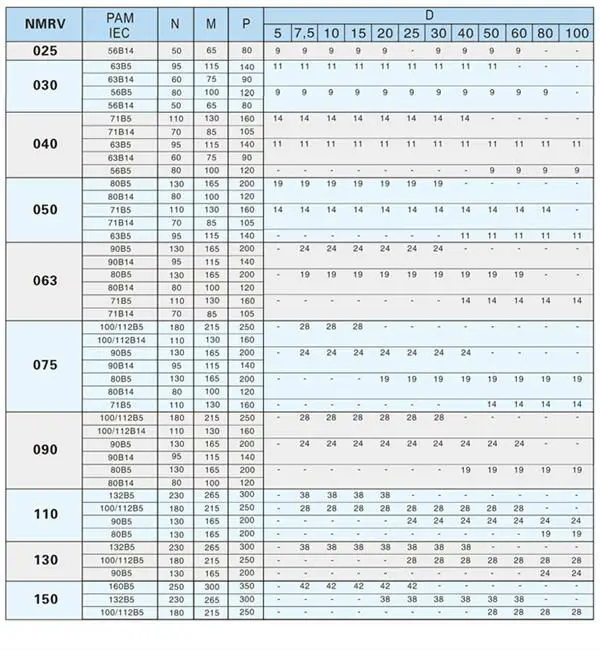

Predisposition

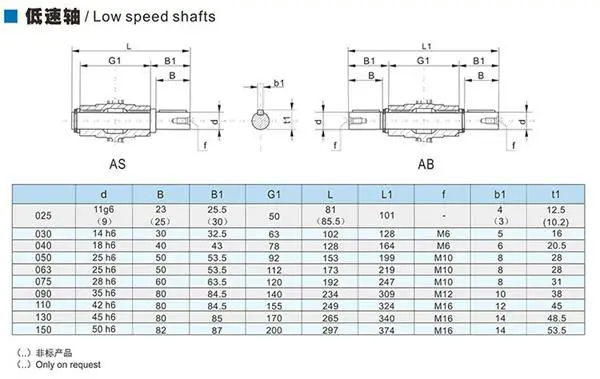

Low Speed Shaft's size

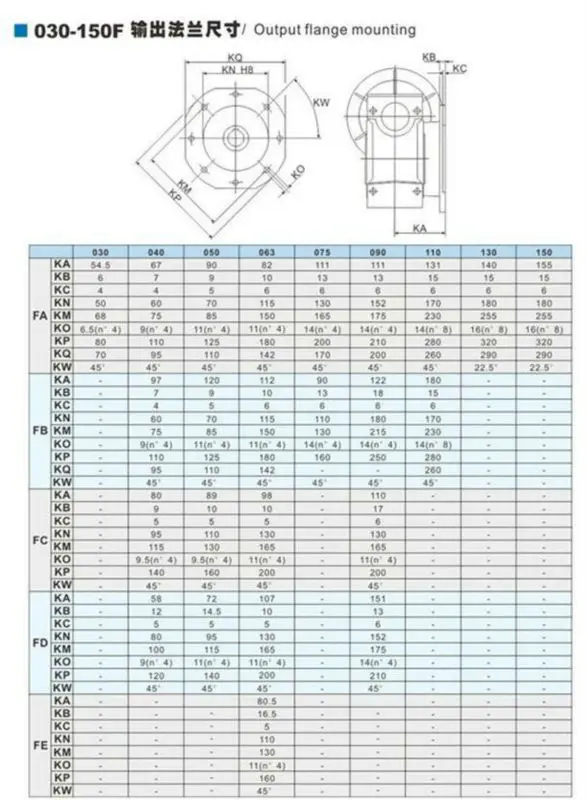

Output Flange Mounting

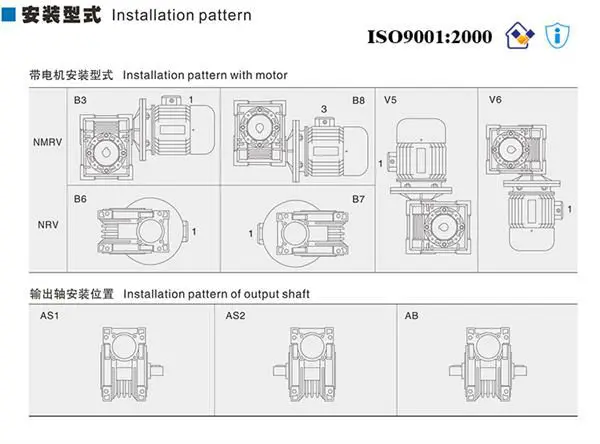

Installation Pattern

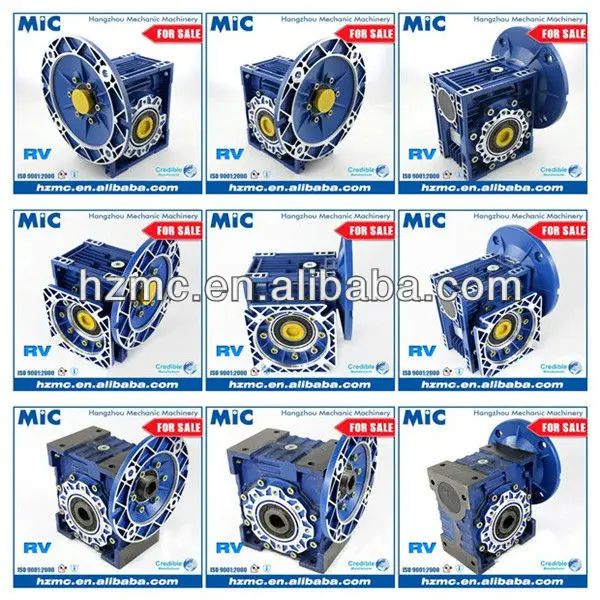

Our Other Related Products









Our Delivery

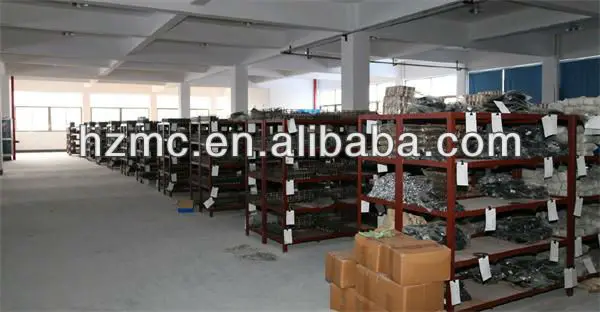

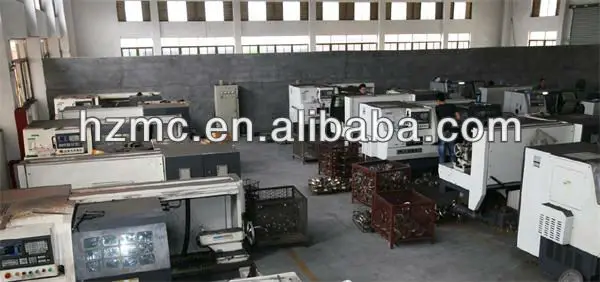

Our Factory









Order Tips







1.Please confirm which model NRV you needed.



2.Standard packing is wooden case.



3.Delivery:By sea, by air or others.



















Our Strength:





1. Delivery On Time.



2.Professional Service: Customer needs is our first priority.



3. Good Quality:  ISO 2001:2008 Certificated.



4. Fast and Low Cost Deliver:  Long-term cooperated shipping forwarders.























 Welcome To Visit Our Factory - Located in the tourism city - Hangzhou -West Lake.







                                                Any question can contact us.
