buzzer alert car reversing radar for renault koleos(EB01 4 TF0)
- Category: >>>
- Supplier: Shenzhen Elitek Electronics Co. Ltd.
Share on (1465984164):
Product Overview
Description
Product Description
buzzer alert car reversing radar for renault koleos
Trade Terms:
| Sensor Type: | Ultrasonic parking sensor |
| MOQ: | 200 sets |
| Gurantee | 1 year |
| Price Term | EXW |
| Payment Terms: | Paypal, Western Union, TT 30% in advance before production, balance before shipment. |
| Lead Time: | 5-10 working days after 30% deposit received |
| Package: | 45.5*27.5*33 CM Carton |
| Shipping: | 1.UPS, Fedex, DHL, EMS for sample; |
| 2.by sea or air avail |
Our Services
1. Professional parking sensor manufacturer with CE, FCC, RoHS and ISO9001,E-MARK certification
2. Strict product quality control from IQC to PQC and FQC
3. Automatically engages as soon as you place your car into reverse.
4. 1 year aftersales warranty
5. Replaceable sensor design optional
6. Sample available
Technical Specification:
Description | Min | Type | Max | Unit |
Power voltage for S series | 10 | 24 | 35 | V DC |
Power voltage for H&E series | 9.6 | 12 | 15 | V DC |
Operating current |
|
| 150 | mA |
Operating temperature | -20 |
| 80 | °C |
Operating frequency | 39.3 | 40 | 40.7 | KHz |
Horizontal detection angle |
| 120 |
| ° |
Vertical detection angle |
| 60 |
| ° |
Distance detection accuracy |
| 1 |
| cm |
Detection range | 0.05 | 0.9 | 2.5 | m |
Buzzer sound volume | 75 |
| 105 | dB |
RF Frequency |
| 433 |
| MHz |

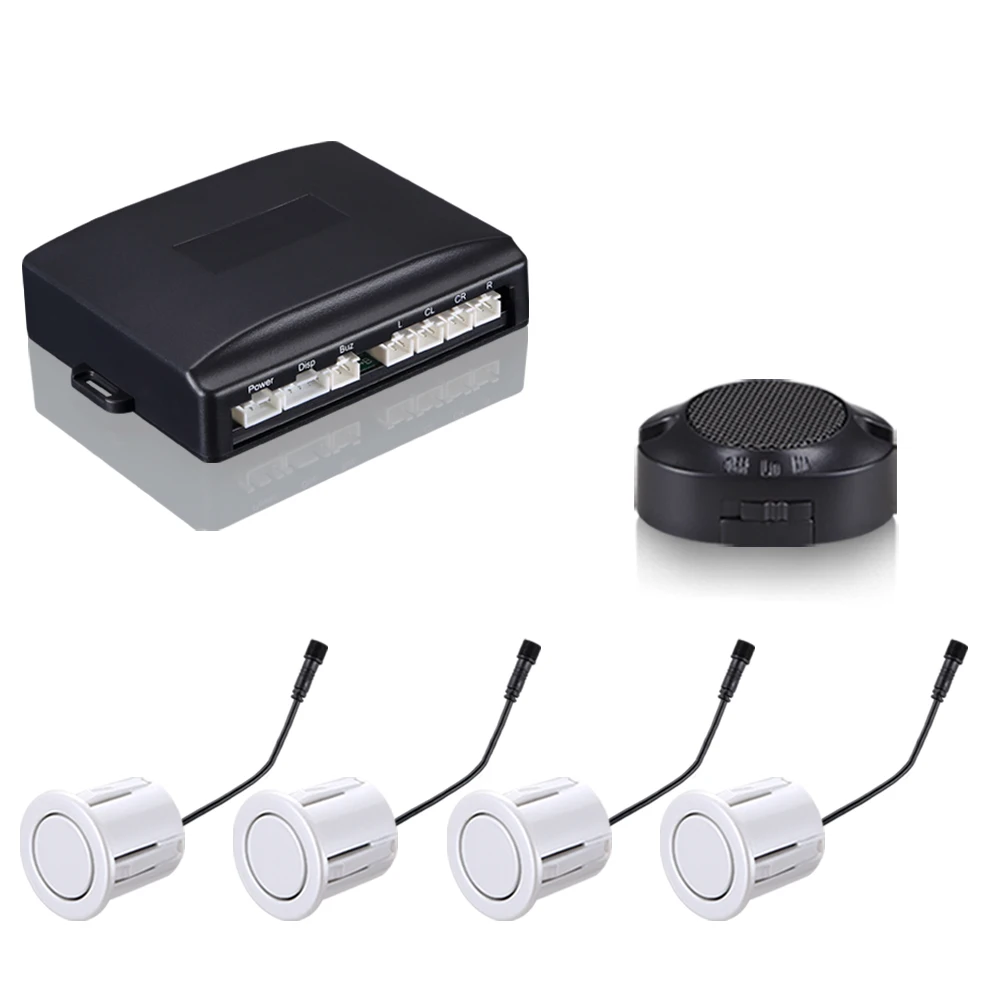

Model No.: EB01-4-TF0
1) Car Rear 4 Parking Sensor System, fit for all passenger cars;
2) Sensor detection range: 0cm~2.5m;
3) Buzzer range: 40cm~1.5m;
4) Advanced self-diagnosis with error indication;
5) All weather design, plastic housing;

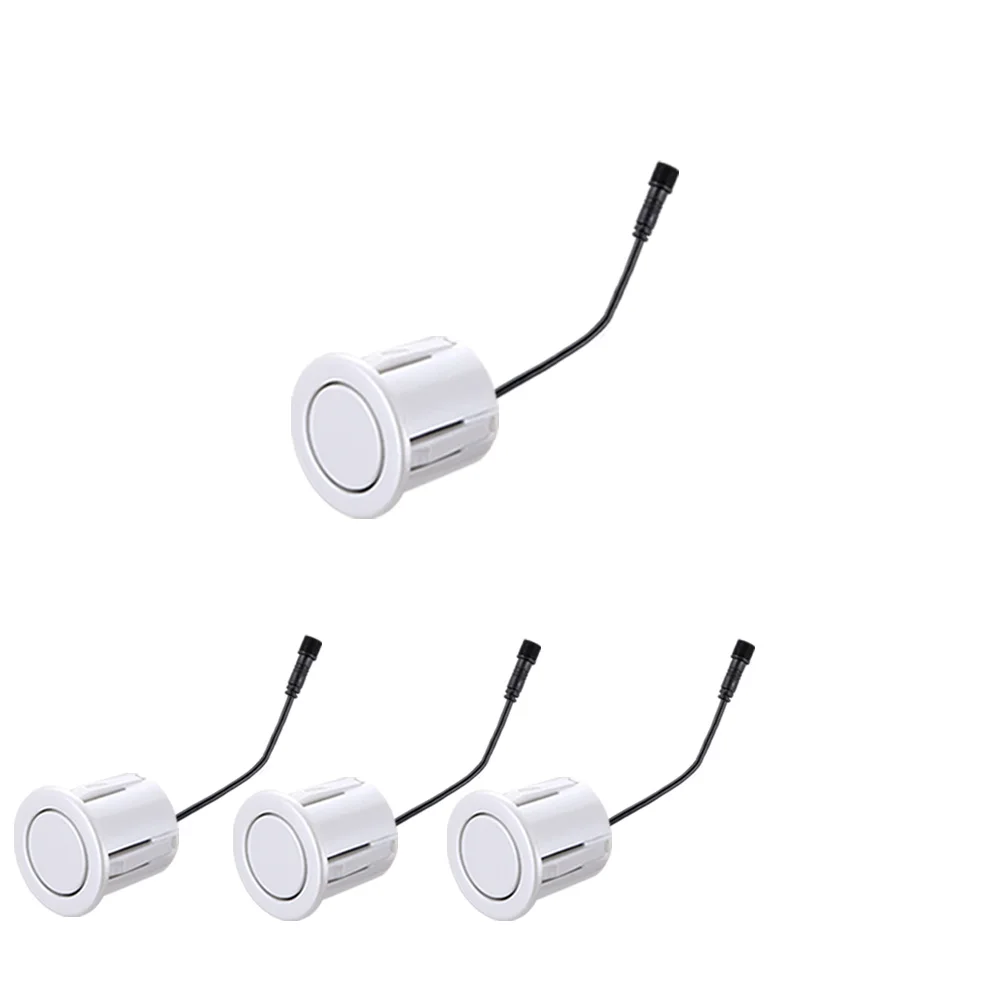

6) 4*TF0 double angle sensor, 18.5mm plastic flat, 2.5m cable with connector;Connectors for sensor cable to control box are with click lock.

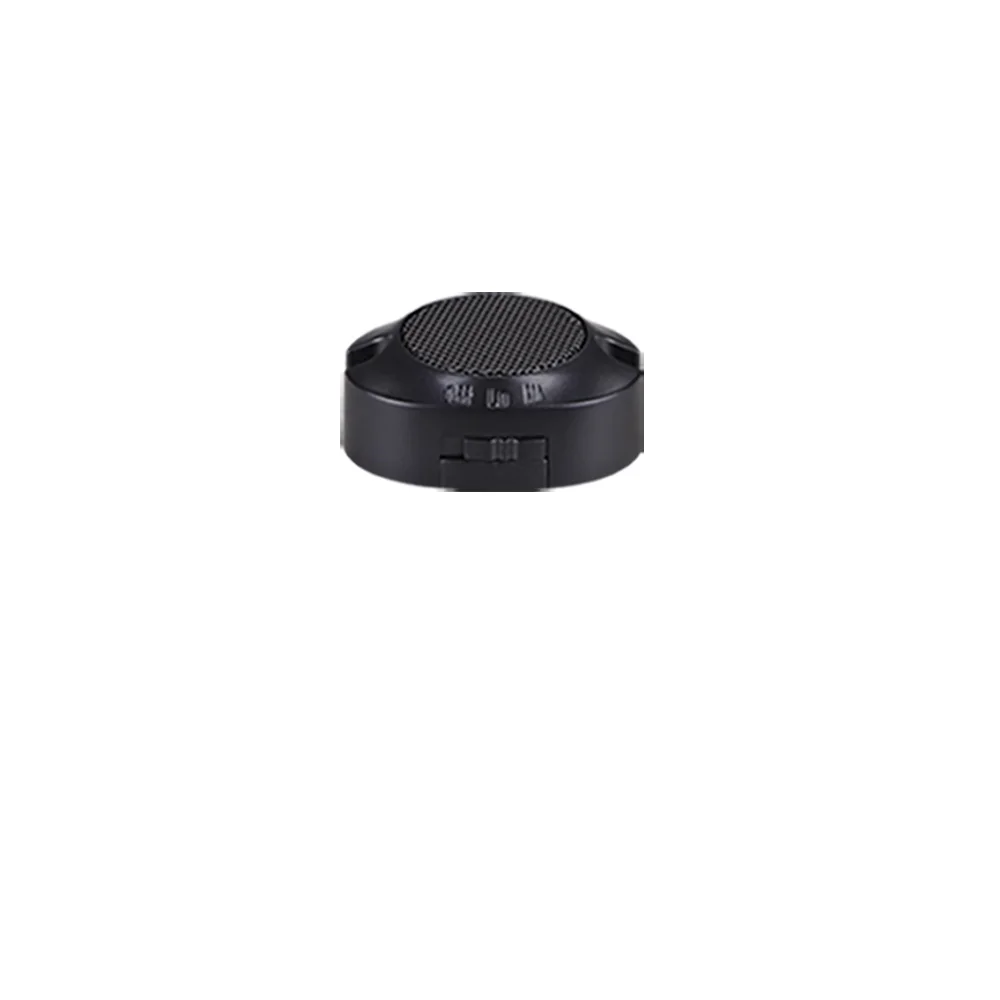

7) BUZ01, "hi-low-off" switch option;
8) Power Input: 9.6~15V DC.
Sensor diameter from 18.5mm to 21.5mm.
All sensors are double angle sensor. The horizotal detection is 100°-120°, vertical is 60° to 70°.
Sensor color can be customized.

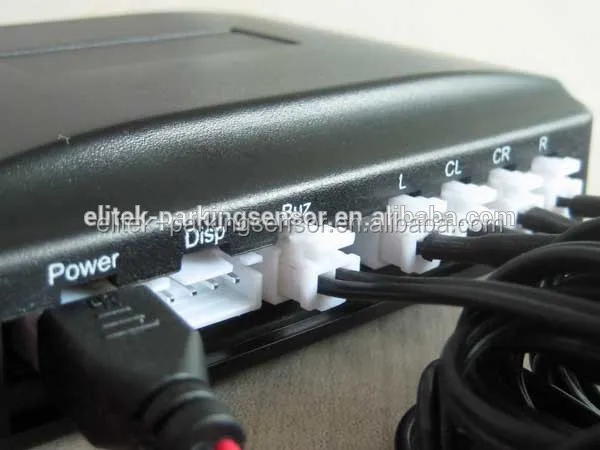

Control box are with click lock to avoid pull off.
Buzzer will begin to beep at 1.5meter.
Packaging & Shipping
Each sets will be packed with a white box and color sleeve.
QTY:20SET
N.W:11.5KG
G.W:12.5KG
MEAS:45.5*27.5*33CM
Company Information
Founded in 2003, Shenzhen Elitek Electronics Co., Ltd. is specialized in the developing, designing and manufacturing of parking sensor system. Our talented engineers & skilled workers have more than 10 years of design & manufacturing experience in transducers, sensors and electronic control unit (E.C.U.) as well as the entire system, which ensures our parking sensors system always in high quality & most reliability.
We hold the belief of "Best quality, Best service" in Elitek. So we try to open our own mould and make out our own components when we choose the best quality components from domestic and aboard to make out credit and rest assured products.
We do carry out ISO9001:2008 requirement in the practice of our manufacturing & quality inspection process, and we do have our own relative CE&ROHS&FCC certificates to offer the best service to our customers sincerely.
Trouble-Shooting Guide
1.System fails to start when the reverse gear is engaged.
---Checked the power lead and connectors to confirm whether wrong connection of power lead or jack connection.
2.Always detects the same distance
---Checked and adjust the vertical sensor angle. Sensor may detect ground.
3.System fails to detect the obstacles
---Checked and reset system. Wrong sensor connection.
4.Faulse alarm
--- Checked and adjust the vertical sensor angle. Sensor may detect ground.
