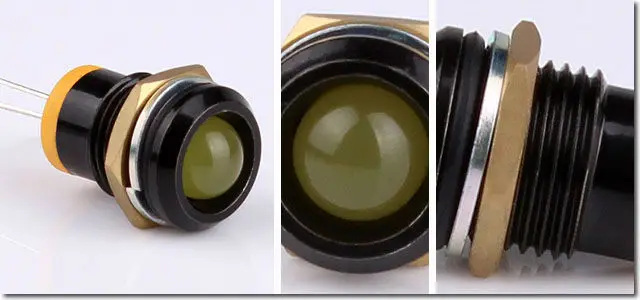

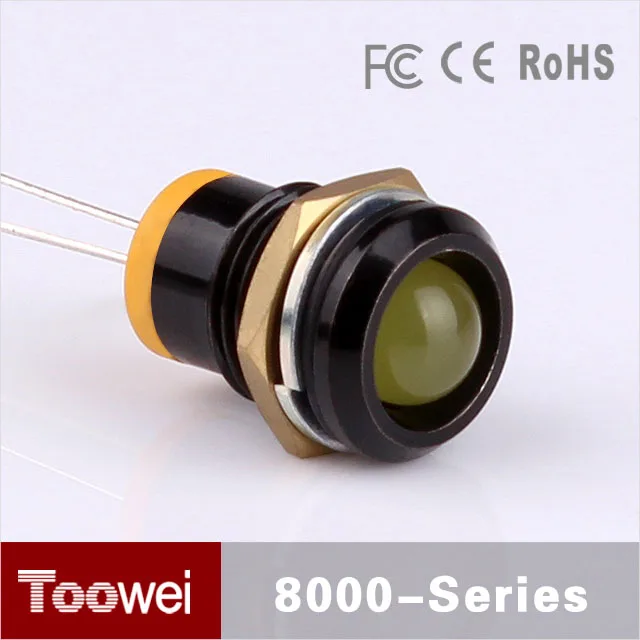

8mm led status indicator lights
Product Description
Product overview
LED indicator light(8000 seires):Panel mount LED indicators with three diameter,6mm 8mm and
12mm. Bright chrome and black chrome bezel finish. Prominent bezel style. voltage: 2.4VDC - 220VAC.

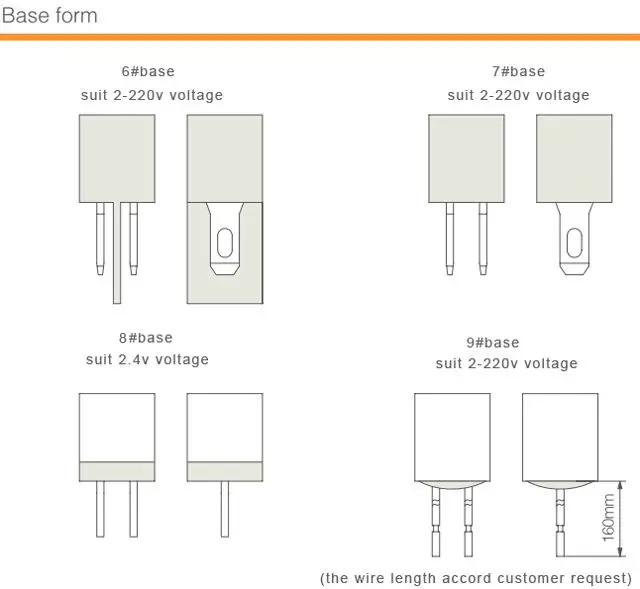

Terminals: solder lug/faston, pins or 200mm long wires. IP67 sealing option. Supplied with fixing nut and
spring washer.
Technical parameters
Rated Current | 20mA |
Rated voltage | 2~220V AC/DC |
Insulation resistance | 100MΩ (minimum) |
Dielectric strength | 1,000V RMS (minimum) |
Base material | plastic base |
Humidity | <85% Rh |
Withstand Voltage | ≥1000V 50/60Hz last for 1min |
Vibration | 10~55Hz 1.5mm Double Amplitude |
Mounting Method | Bushing mount |

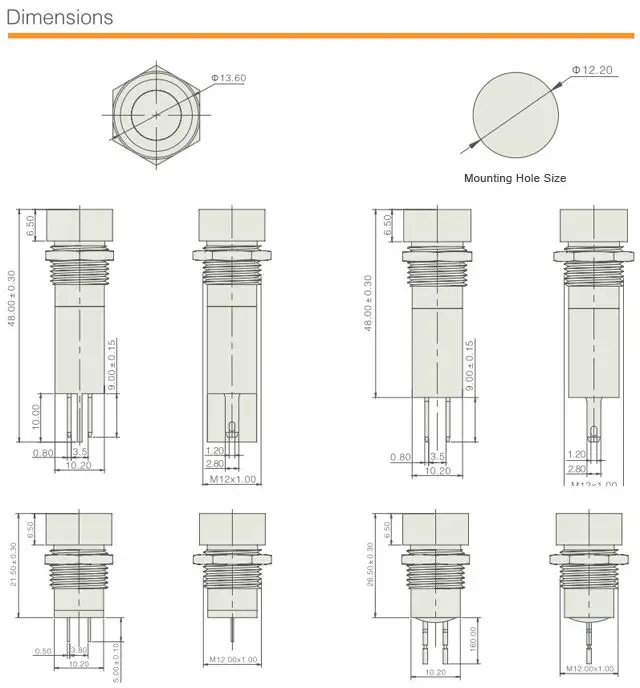

Mounting Dimensions | Diameter:Φ6mm, Φ8mm Φ12mm |
Related Product
Process / Scenarios
Company Information
Packaging & Shipping
FAQ
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 2 days, mass production time needs about 1 weeks , based on quantity.
Q3. Do you have any MOQ limit for order?
A: Low MOQ, 1pc for sample checking is available.Usually MOQ 500pcs
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by EMS ,DHL, UPS, FedEx or TNT. It usually takes 1 week to arrive.Airline and sea shipping also optional.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 30 days warranty to our products.
Q6: How to deal with the faulty ?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. If there is any faulty , if our question , samples is available. We can promise it .
