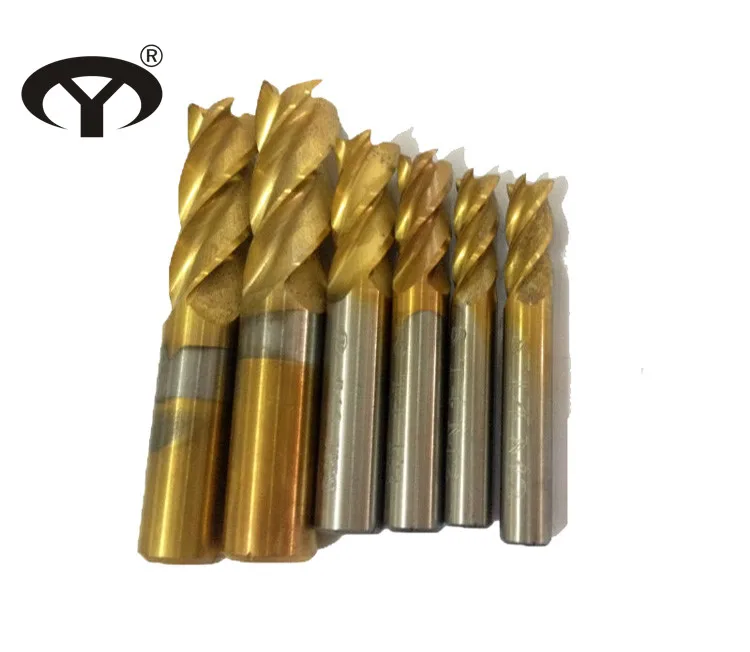

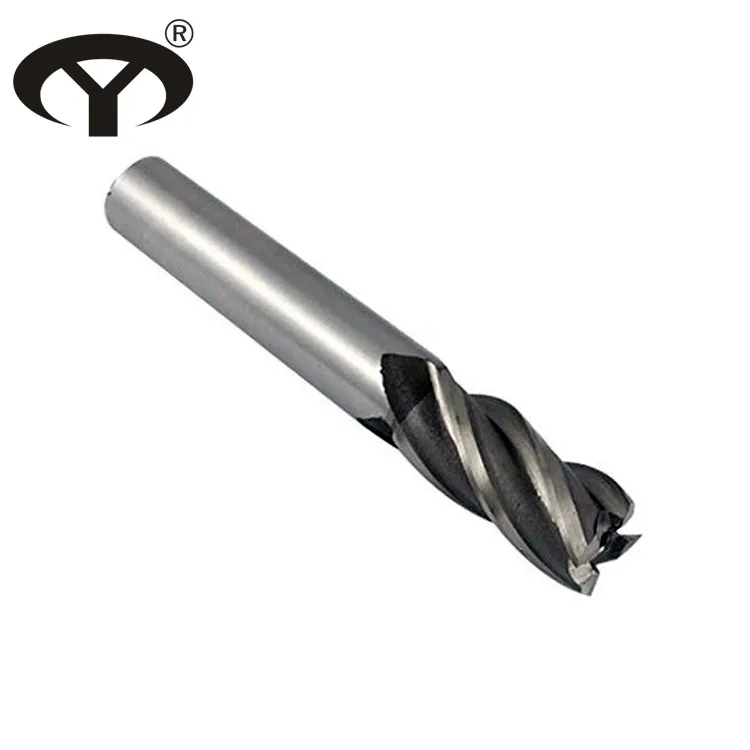

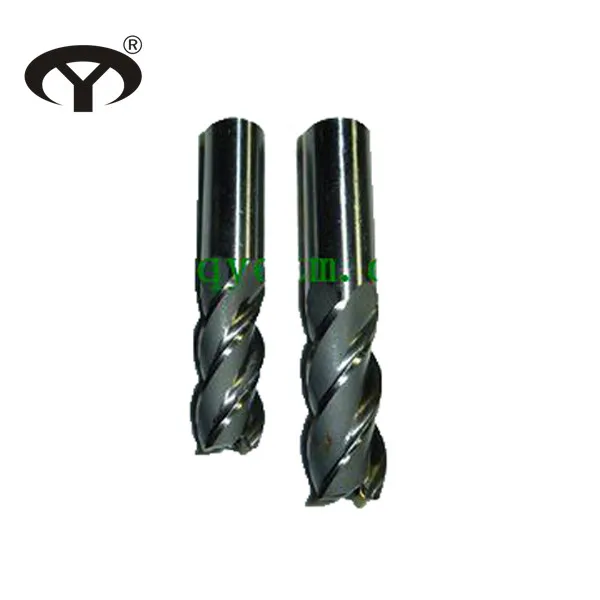

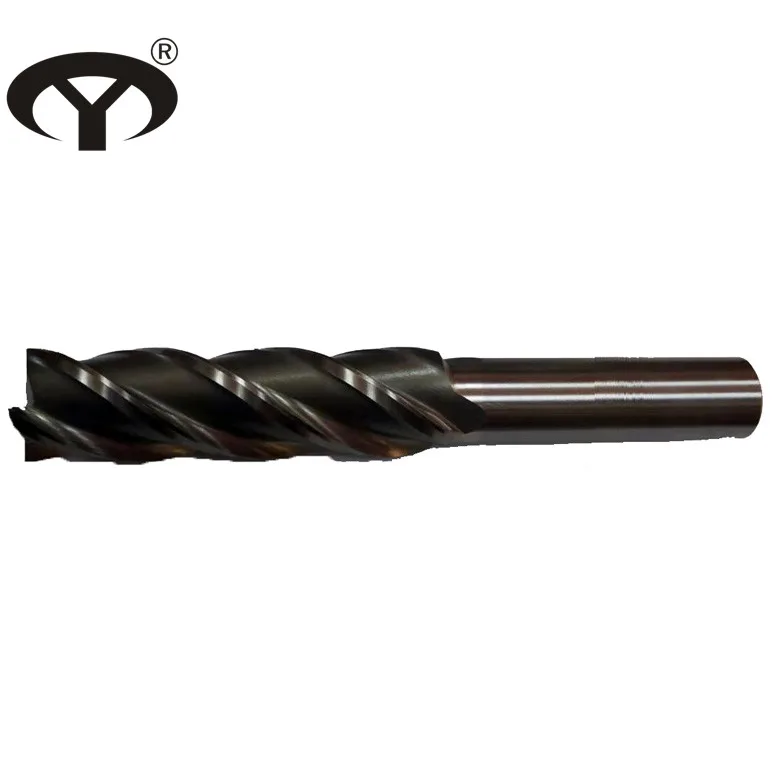

HSS M2/M35 4 flutes straight shank end mills

Product Overview

Description

HSS M2/M35 4 flutes straight shank end mills

End mills used for the rough and finish milling of faces ,recesses and steps .

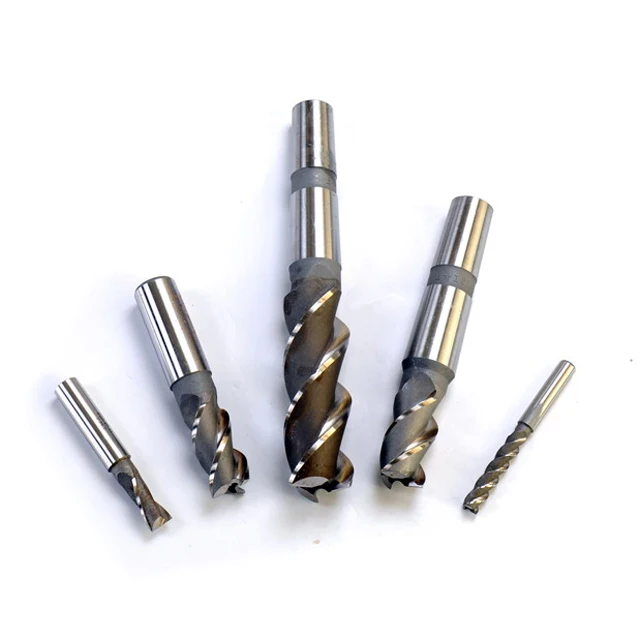

Taper shank are available also



Specification table of straight shank end mills:



Outside Dia.		Overall Length	Flute Length	Number of Teeth
Coarse Tooth	3	36	8	3
	4	40	10	3
	5	45	12	3
	6	50	15	3
	8	55	18	3
	10	60	20	3
	12	65	25	3
	14	70	30	3
	16	80	35	3
	18	90	40	3
	20	100	45	3
Fine Tooth	3	36	8	4
	4	40	10	4
	5	45	12	4
	6	50	15	4
	8	55	18	4
	10	60	20	4
	12	65	25	4
	14	70	30	5
	16	80	35	5
	18	90	40	6
	20	100	45	6

















































































































Milling cutter series :   Shank end mill  , keyway milling cutter , shell end mill , angle milling cutter , cylindrical milling cutter, side and face milling cutter , concave convex milling cutter , rack milling cutter , roller chain sprocket milling cutter, T-slot milling cutter, woodruff keyseat milling cutter and dovetail milling cutter.





The production process of HSS M2 straight shank end mill :





Material Introduction:



A. W6Mo5Cr4V2 (GB)  M2( ASTM), S6-5-2(DIN), SKH51(JIS)
   chemical composition:C 0.85, Si 0.38, Mn 0.35, P≤0.030, S≤0.030,  Cr 4.10, W 6.00, Mo 4.80 V 1.85
   main application:It is widely used for making all kinds of cutters and durability cold-work die



B. W6Mo5Cr4V2Co5 (GB), M35( ASTM), 1.3243(DIN), SKH55(JIS)
   chemical composition: C 0.93, Si 0.38, Mn 0.35, P≤0.030, S≤0.030, Cr 4.10, W 6.30, Mo 4.80 V 1.85, Co 5.00
   main application:It is often used for making blades with  high-speed and great cutting difficulty as it’s good abrasive resistance



W6Mo5Cr4V2(M2),W9Mo3Cr4V(W9),W18Cr4V(W18),W6Mo5Cr4V2Al(M2Al),W6Mo5Cr4V2Co5(M35),W2Mo9Cr4VCo8(M42),W4Mo3Cr4VSi(4341),W4Mo2Cr4VSi(4241)
