* EN 14055 CL 1 - 7 - NL I - VR II * Discharge volume 3/6 L * Appropriate For Dry Wall Installation And Brick Wall Installation * Completely preassembled in the factory * Water tank capacity 10 L max. * Tank depth 80 mm (Overall thickness including frame 100 mm) * Mechanical Dual Flush * Water supply connection top right G 1/2 Male * Acoustic Class (1 st Class) EN 14124 Inlet Valve * Water flow pressure 0.3 MPa (3 bar) / Max Vol : 9.0 dB,Flow rate : 9L/min * Impact Copolymer special PP Body. (High resistance to impact and thermal shock) * Styropor insulation in front of the body for a better acoustic level and to prevent condensation. * Powder coated, tubing profile thick (30 mm x 40 mm) metal frame. * WC hanging rods can bear up to 400 kgs. (Adjustable for 18 or 23 cm axial distance of toilet bowls.)
Product Name

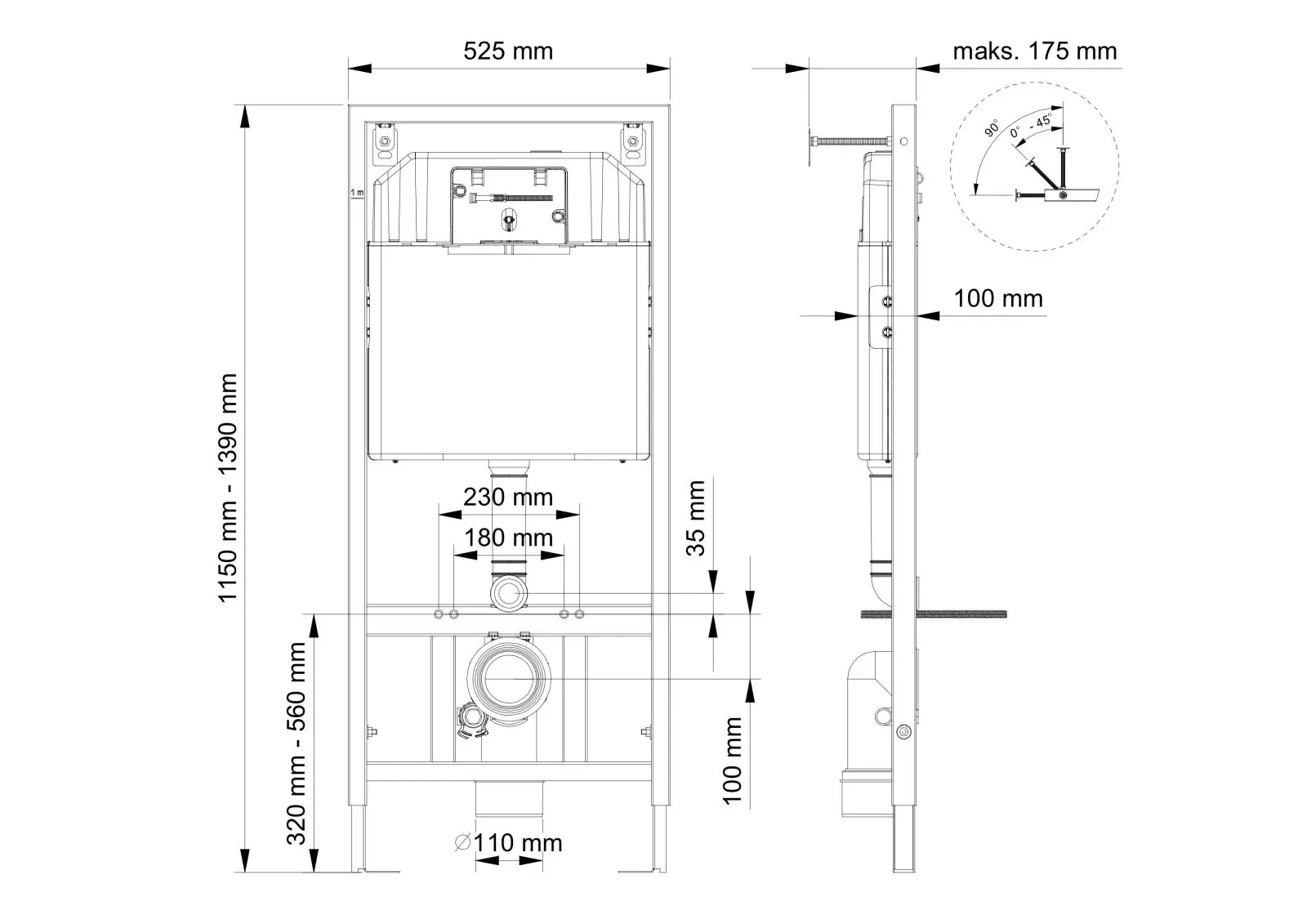

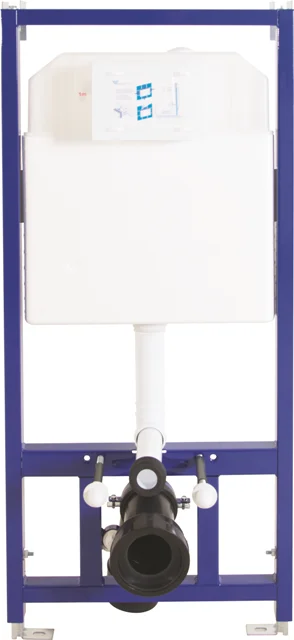

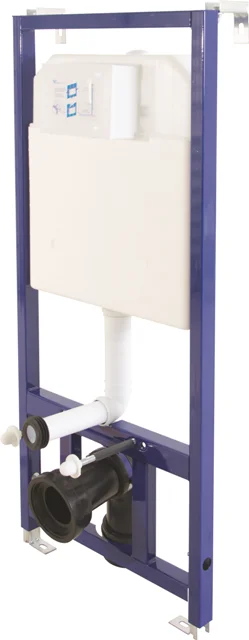

SLIM 80 DUAL FLUSH CONCEALED CISTERN FOR GYPSUM WALLS
Material
Impact Copolymer special PP Body.
(High resistance to impact and thermal shock)
Brand
Visam
Inlet Valve
Acoustic Class (1st Class) EN 14124 Inlet Valve
Tank Capacity
10 L Max.
Place of Product
Izmir, Turkey
Application
Dry Wall Installation And Brick Wall Installation
Packing
Packed carton boxes
Water supply connection
From top right G 1/2 Male
After sale service
Online Technical Support and Spare Parts

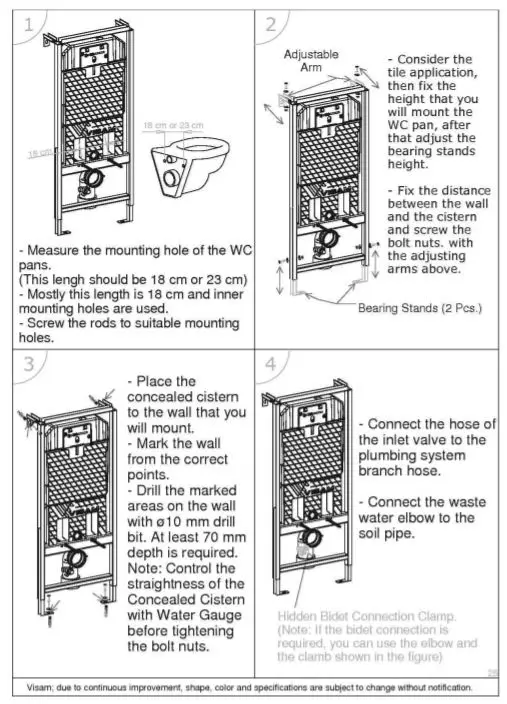

Instructions of Installation
Certificate
TSE Certification of Cisterns
ISO 9001 Certificate
TSE Certification of Inlet Valves

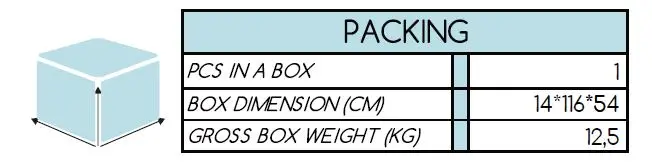

Packing&Shipping
Packing of this product is in carton boxes and on pallets.
There is 1 piece in one carton box.
Company Introduction
Visam, a family business that was founded in 1964, has been continuing to be the pioneer of the industry. For over 50 years; with its unchanging understanding of quality production, transparent sales policy and after sales services, Visam has been proud of being the best brand in Turkey in its sector.
Visam products are completely consumer oriented with their functionality and quality. Our consumer-friendly products are produced with our half a century of knowledge, skills and experience. Our economic price policy, the high quality of our products, unlimited technical service, spare parts that we offer and the aesthetic value we added to bathrooms have brought us success in this market.
As Visam family, we inspiredly strive to become the “Trusted Brand” of the industry with our product range increasing every year, our growing customer portfolio and our developing manufacturing technologies.
Efficient and Environmentally Friendly
As a result of inefficient use and destruction of natural sources, we are now face to face to global climate change .
In order to avoid this situation, the first thing that we can do is, to use our daily water efficiently and not waste any. As Visam, we are conscious that we must use recyclable materials in our products, and we must use energy efficiently during production and avoid wastage. Besides these, we must design products that everybody can contribute this. The most important entry in individual Water Consumption is Toilet Consumption...
Read more on: //www.visam.com.tr/en/efficient-and-environmentally-friendly.htm
FAQ
1. How should I choose my Flushing Cistern? At which points I must be careful? First of all, you should pay attention that your cistern should be approved from necessary authorities (In Turkey TSE is the authority for approving the quality). After that you should inquire for after sales support as spare parts availability, customer support and Warranty periods. Also one of the most important point is water consumption. Your Flushing Cistern should be Efficient and Environmentally friendly.
2. How can my Flushing Cistern contribute water consumption efficiency?
Item (wholepiece) quality is the most important factor to prevent water leaks. Furthermore you can choose Interruptible or Dual-Flush Cisterns in order to save water (Visam products can save water up to 60% ). Also you can adjust the water consumption level of your Flushing Cistern to the minimum level, if more is not necessary.
3. What is the difference between Interruptible and Dual-Flush Cisterns? How do they work?
Interruptible Flushing Cistern, you can interrupt the water flow when you want with the same flushing button. Dual-Flush Flushing Cistern, you can choose 2 levels for water flow. You can choose water saver (less quantity) button, If otherwise is not required. 4. What is Concealed Cistern?
It is the cistern that you can use behind the walls. With this product, you can save space.
5. In case of any repair needed or during maintenance will I need to break the wall to reach to the cistern?
No, if the installation was made properly and there is no tank damage. You only need to remove the cover of the Flushing Plate of Concealed Cistern. Through this gap, you can reach whole parts those need to be replaced or repair.
6. Can Concealed Cistern Flush Plates be replaced?
Yes, you can change the model of your Concealed Cistern Flush plate with suitable models of our range. Most brands, produce their Flushing Plates compatible to their own Concealed Cistern models, so you should choose Visam Flushing Plates for your Visam Concealed Cistern.
7. Does Flush Plate comes in the Concealed Cistern Box?
No, you should buy a model separately from the Concealed Cistern upon your decision.
8. Which Concealed Cistern model should I choose?
As Visam A.S. we are producing suitable models for; - Wall Mounted WC - Dry Walls (Plaster Walls / Gypsium) - Free Standing (easy fix to ground) - Back to Back Application - Squatting WC Pans
9. What can I do If the plumbing system pressure of the building is too high?
You should put a plumbing pressure reducer to your systems input. Thus, you can protect your entire system and what is connected to it.
10. My Flushing Cistern is not inletting the water. What can I do?
Most probably the reason is the contaminated water of your plumbing, occlude the Inlet Valve. For maintenance, only ask for expert plumbers. To prevent this problem, you should install an inlet filter to your systems input.
