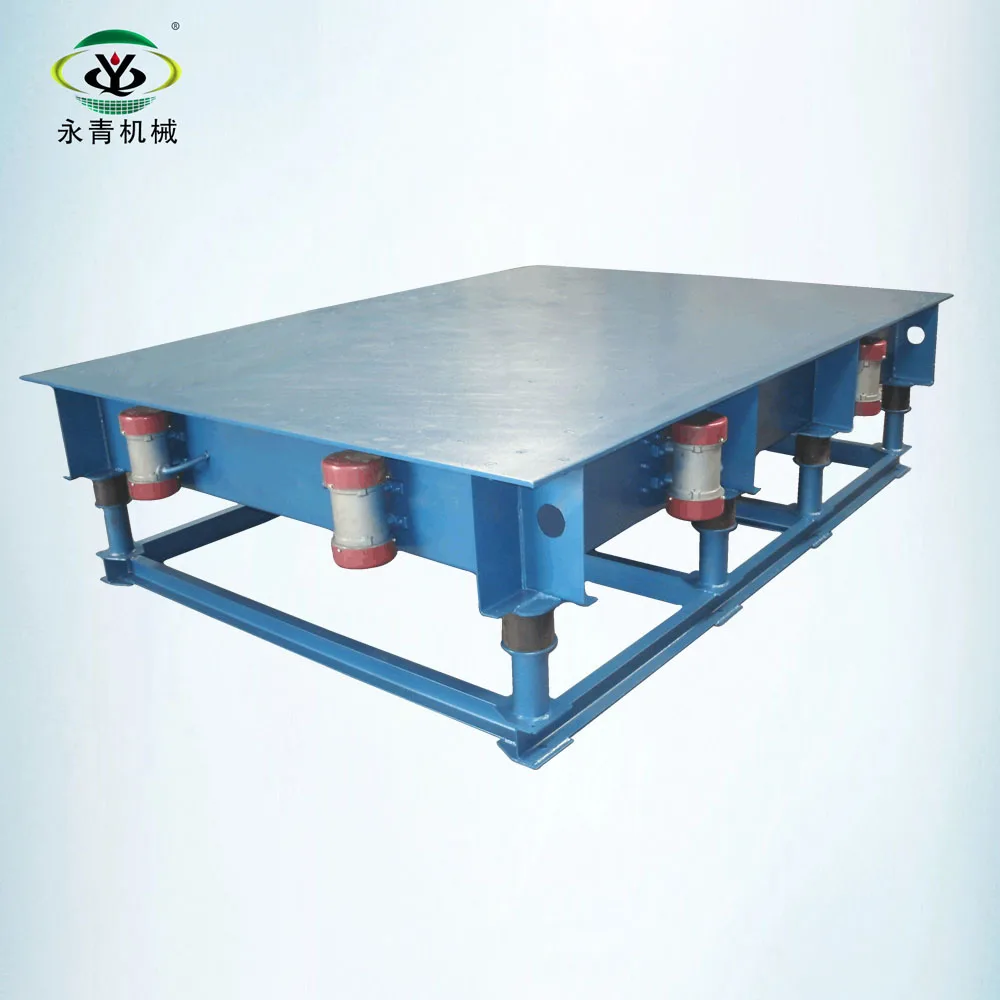

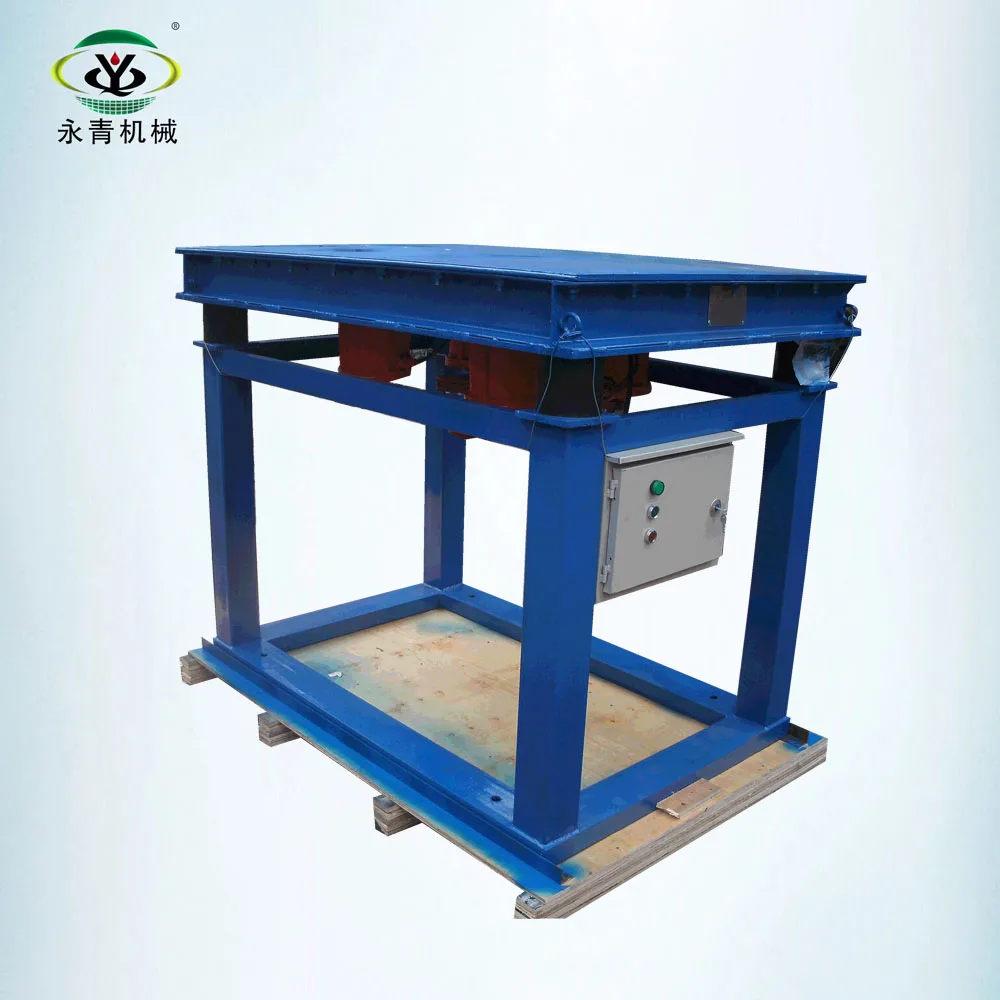

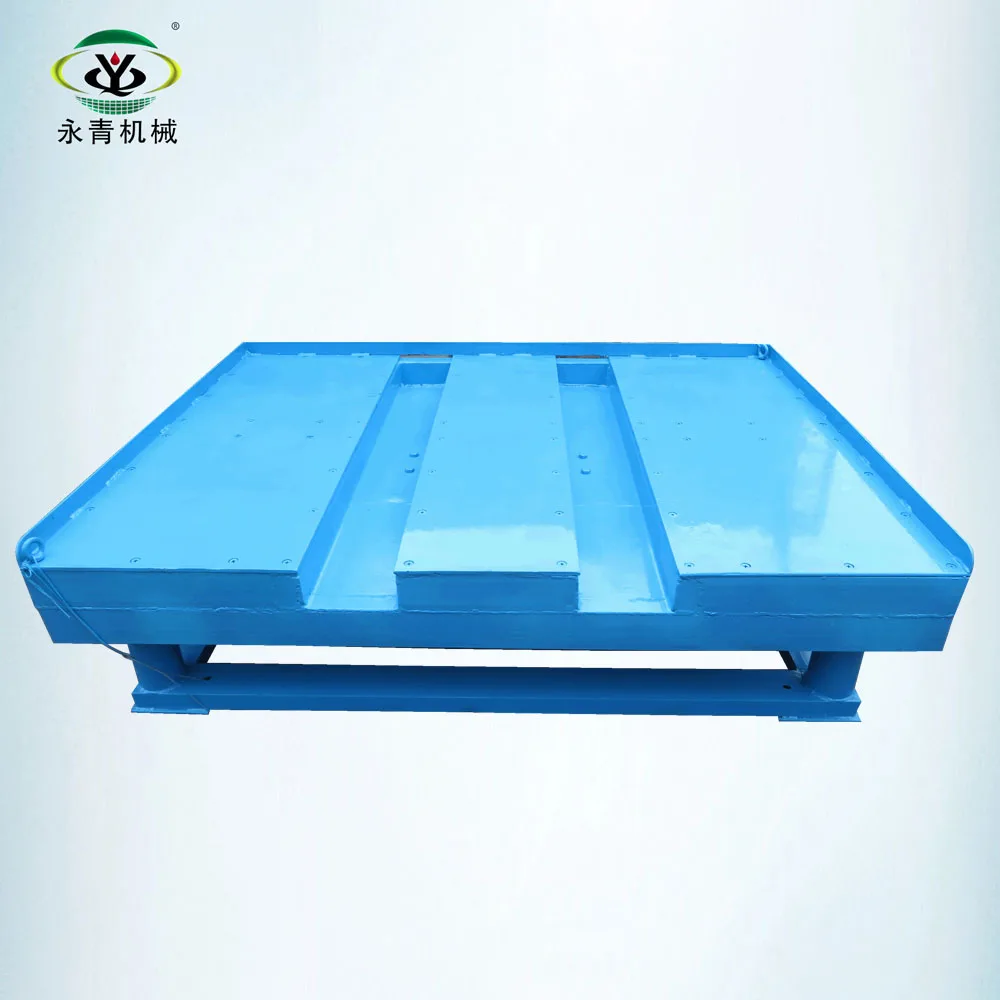

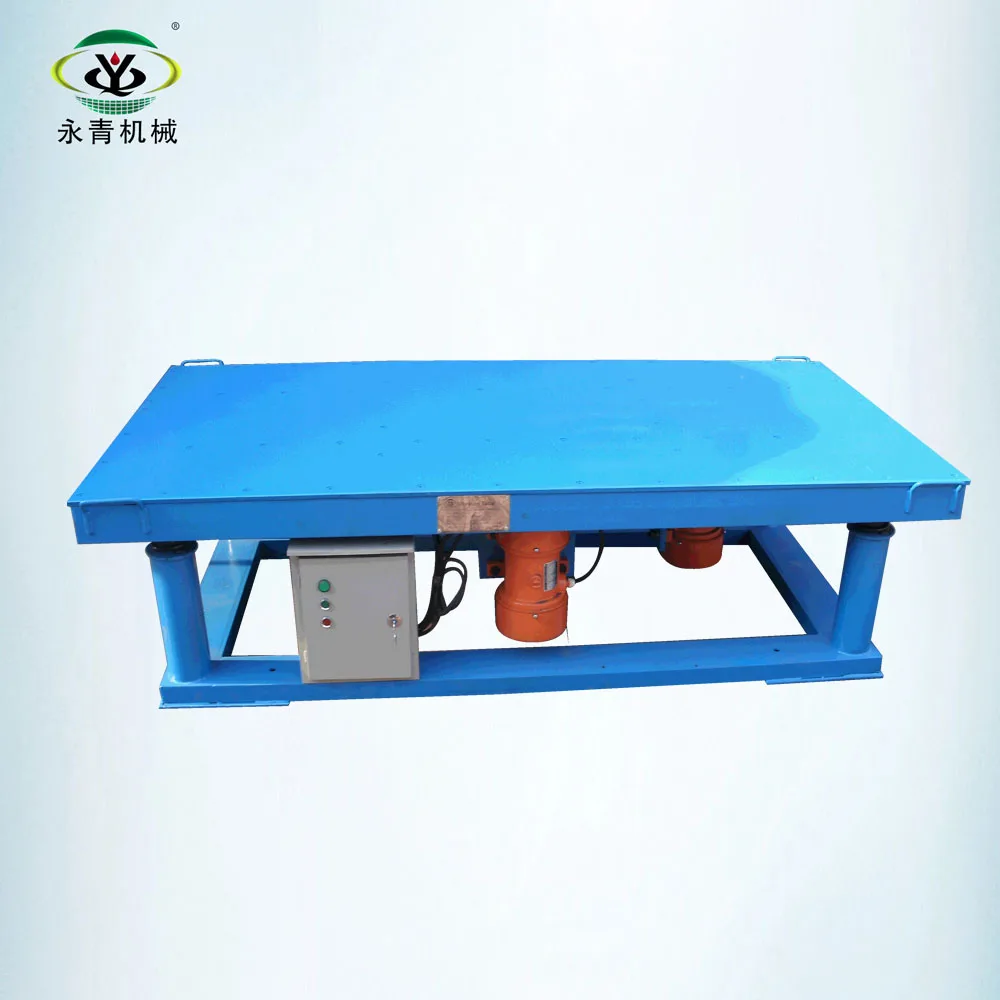

Special design shaker table vibration for mould making with durable structure
- Category: >>>
- Supplier: Xinxiang Yongqing Screen Machine Co. Ltd.
Share on (1469197037):
Product Overview
Description
Special design shaker table vibration for mould making with durable structure
Introduction
2. Widely used in metallurgy, casting, foodstuff, chemistry, construction fields and so on.
3. Used for transforming the granule, powders from bulk to block, from shape to form.
4. Different types of vibrating tables are available according to the production characteristics and requirements.
 | Name: ZDP-500 vibrating table Usage: brick or concrete moulds making Table size: 500*500mm Height: 450mm Max loading weight: 300kg Machine material: carbon steel Deck thickness: 5mm Motor: YZS3-2 (2 sets) Power: 2*0.25kw, 3KN, 2 pole, 3000RPM Voltage: 380V, 50Hz, 3 phase Amplitude: 2-5mm Weight: 90kg Delivery: 5 workdays after deposit |

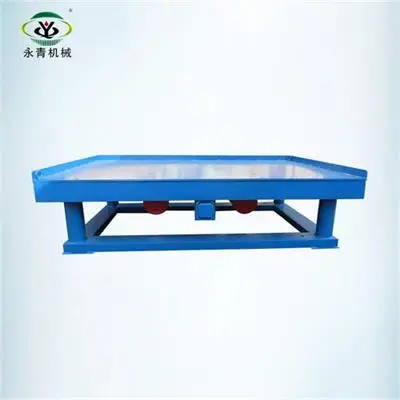

 | Name: ZDP-1000 vibrating table Usage: brick or concrete moulds making Table size: 1000*1000mm Height: 500mm Max loading weight: 1000kg Machine material: carbon steel Deck thickness: 10mm Motor: YZS10-2 (2 sets) Power: 2*0.75kw, 10KN, 2 pole,3000RPM Voltage: 380V, 50Hz, 3 phase Amplitude: 2-5mm Weight: 250kg Delivery: 5 workdays after deposit |
 | Name: ZDP-2000 vibrating table Usage: brick or concrete moulds making Table size: 2000*2000mm Height: 600mm Max loading weight: 2500kg Machine material: carbon steel Deck thickness: 15mm Motor: YZS15-2 (4 sets) Power: 2*1.1kw, 15KN, 2 pole,3000RPM Voltage: 380V, 50Hz, 3 phase Amplitude: 2-5mm Weight: 600kg Delivery: 7 workdays after deposit |
Applications
1. The vibration platform is widely used in metallurgy, mold, food, chemical, building materials and other industries.
2. Vibration table used in the production process to the granules, powder material shift from bulk to block, shape and form.
Specifications

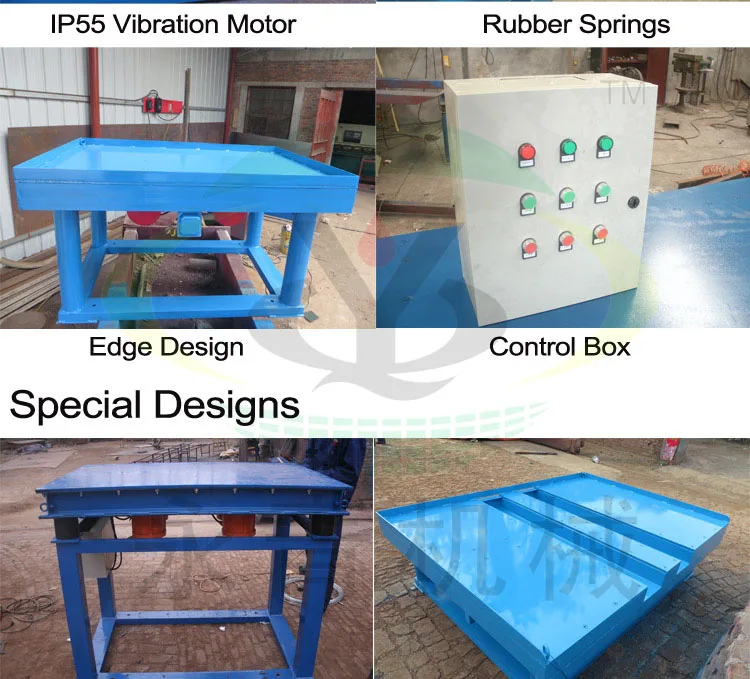

More features
1. During use, by adjusting the size of vibration motor excitation force to make the material on the platform to achieve the desired form.
2. Use vibration motor as vibration source, low noise, low power consumption, easy maintenance.
3. ZDP series vibrating table structure is simple, eliable operation, light weight, small size, easy to install.
4. Vibration platform can be divided into upper and lower vibration, spiral vibration and three-dimensional vibration of three modes of vibration.
Parameters
Model | Table Size(mm) | Power(kw) | Amplitude (mm) | Max Loading Capacity(kg) |
ZDP-500 | 500*500 | 2*0.25 | 2-5 | 300 |
ZDP-800 | 800*800 | 2*0.4 | 2-5 | 500 |
ZDP-1000 | 1000*1000 | 2*0.75 | 2-5 | 1000 |
ZDP-1200 | 1200*1200 | 2*3 | 2-5 | 1200 |
ZDP-1500 | 1500*1500 | 2*3 | 2-5 | 2000 |
ZDP-2000 | 2000*2000 | 4*1.1 | 2-5 | 2500 |
ZDP-3000 | 3000*3000 | 6*1.5 | 2-5 | 3000 |
Remarks: The customization is available. | ||||

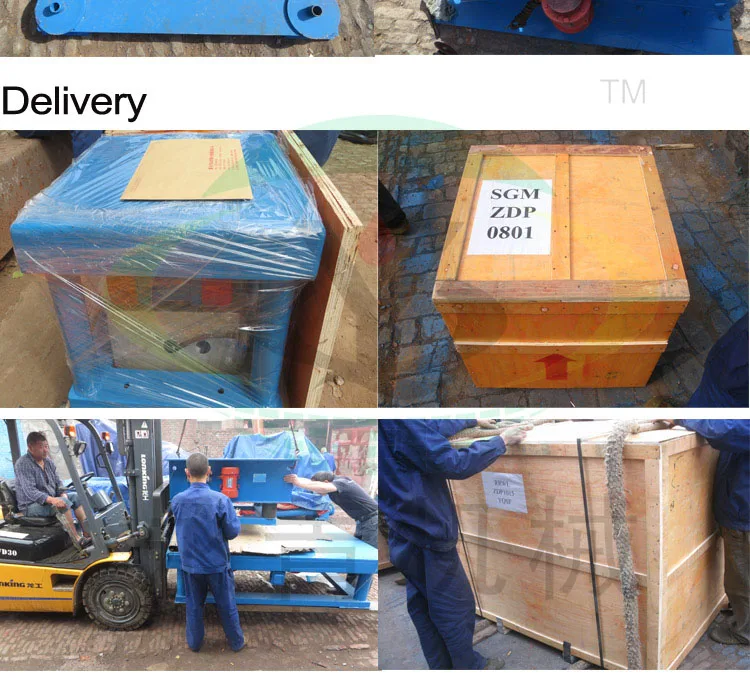

Delivery
Company Information
Establishing time | 2006 |
Company nature | China 0EM, factory. |
Quality certificate | CCC, ISO9001-2008, CE 32-year industry experience 12-year china manufacturer 9-year Alibaba golden supplier 4 field patents |
Main products | Vibration screen, Conveyor system, Vibration motor, Vibration feeder, lab test sieve, Vibration table, etc. |
Exporting countries | More than 80 countries |
Certificates
Customers Visit

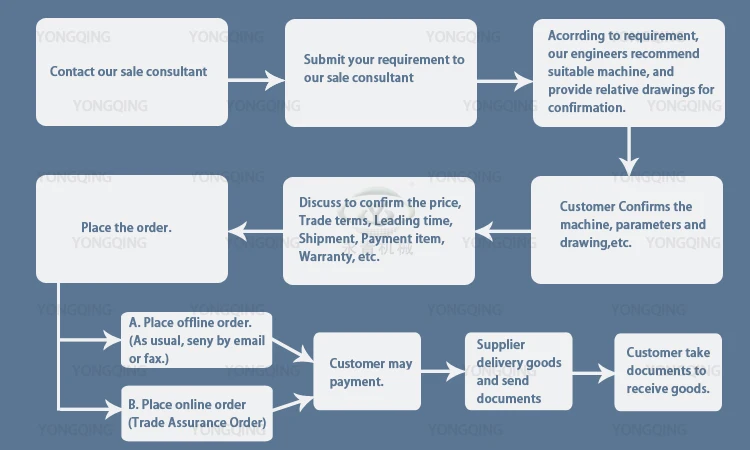

Ordering Process
If you are interested in our products, please kindly provide the below:
1. Applications;
2. Table size (L*W*H);
3. Vibration weight (total weight of component and mould);
4. The voltage, frequency, power, exciting force and protective grade of motor;
