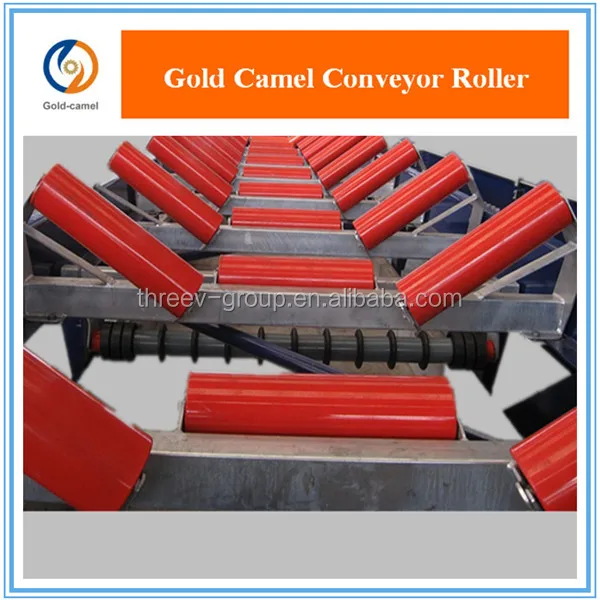

Heavy Lifting Rollers for conveying material

Product Overview

Description

Heavy Lifting Rollers

1. Application:
. The idlers are playing a important part in the belt conveyor system.
. They consist in the entire transport process to support the belt and move the materials loaded on the belt.



2. Features:
. Fine welding tube ensure the rollers with low vibration and noise;
. Special design and particular labyrinthine seal style prevent the corrosion by impurity, water and air etc.;



3. Working life: 30,000 - 50,000 hours.

Specification Availability:

Carrier Roller	Belt Width	Dimension(mm)								Brg Number	Weight @(kg)
		D1	h	H1	I-1	m	A	n-1	b-1
CS-40	400	89	125	247	145	640	690	140	190	6204	10.80
CS-45	450			256	165	690	740				11.50
CS-50	500			268	180	740	790				12.50
CS-60	600		140	304	210	840	890	150	220		14.00
CS-65	650			314	230	890	940				14.50
CS-75	750	114	150	341	265	1040	1090	160	210		22.00
CS-90	900			366	315	1190	1240				25.00
CS-100	1000			384	345	1290	1340				28.00
CS-105	1050	139	180	435	370	1340	1390	180	230	6205	40.00
CS-120	1200			464	420	1490	1540				43.00
CS-140	1400	165	250	589	500	1730	1795	280	340	6206	91.00
CS-160	1600			629	580	1930	1995				110.00
CS-180	1800		280	693	650	2220	2285	330	390	6207	150.00
CS-200	2000			734	730	2420	2485				163.00
