Rotational Plastic Compression Molding Machine for the production of bottle caps

Product Overview

Description

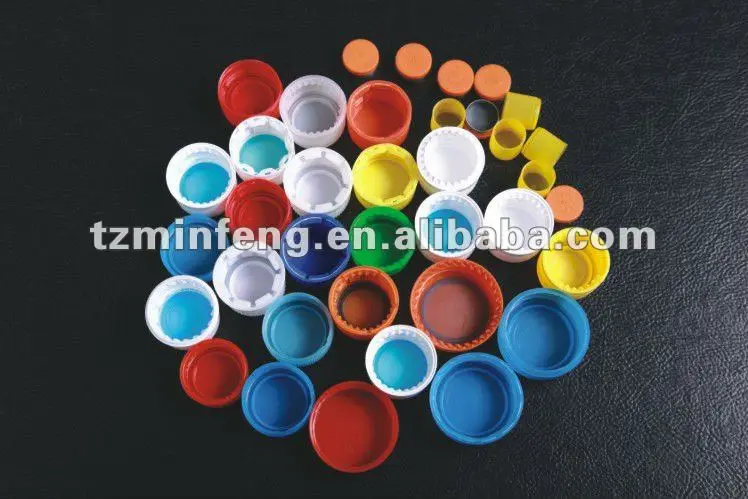

16-Cavity Plastic Bottle Cap Making Machine



This machine is specially designed to produce different kinds of bottle caps, meet the need of the business line of the medicine, cosmetics and beverage. We can provide 16 to 48 cavities according to your different productivity. All the machine are certificated by European Community and acquired the CE certification.







Advantage:





(1) Fully automatic, runnerless, reducing your costs of labor and power up to 30~60%
(2) 2~3 times faster than equivalent cavitation of injection molding
(3) Driven by hydraulic system, wearing of parts reduced to the minimum level
(4) Key components easy to be assembled and disassembled
(5) Stable grammage and wall thickness, consistent output
(6) Standard components resulting in flexible interchangeability
(7) Optimized design, user-friendly control panel, speed of production adjustable.
(8) 1 operator able to operate multiple machines simultaneously

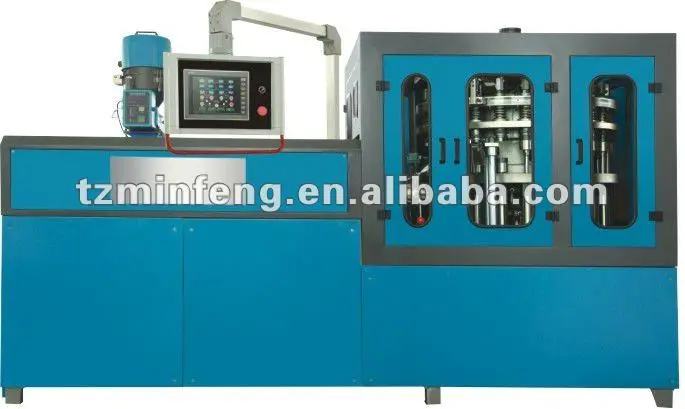

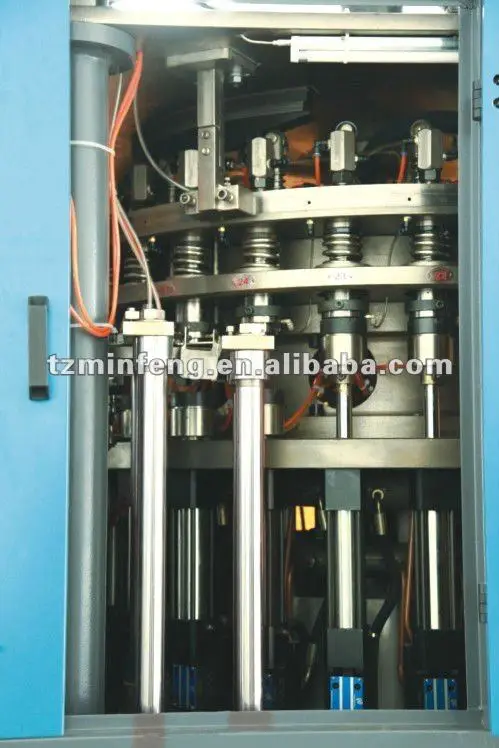

(1)  The High-Quality Cap Moulding Machine (Key Part)









(2)  The Extruder Heating Ring of Our Cap Moulding Machine

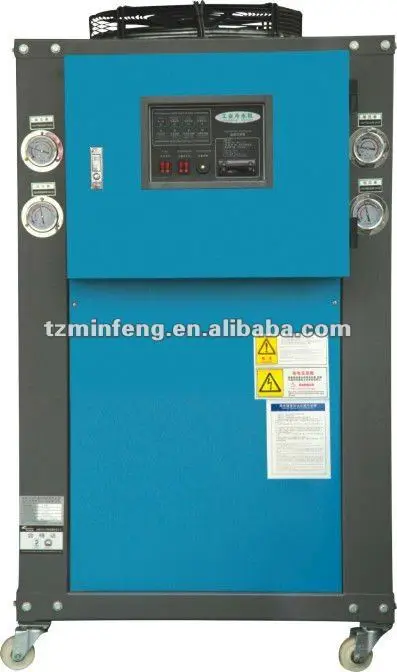

(3)  The Chiller of Our Cap Moulding Machine

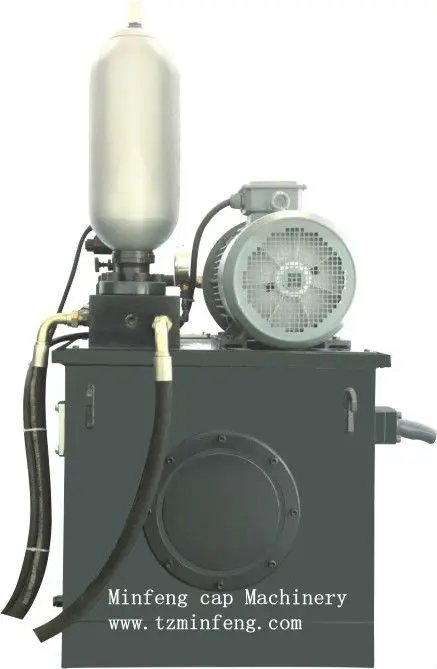

(4)  The Oil Pump of Our Cap Moulding Machine











(5)  The Whole Appearance of Our Cap Moulding Machine













Reference Feature:

1.	Cap Diameter	15-60  mm
2.	Cap Height	7-30    mm
3.	Productivity (about 20*30mm)	8000-10000 pcs/h
4.	The Power of the Extruder Heating Ring	9     KW
5.	The Power of the Extruder Electro-motor	7.5  KW
6.	The Power of the Electro-motor of the Molding Pression Machine	4     KW
7.	Installed Electrical Power	30   KW  (50Hz)
8.	Consumed Electrical Power	21   KW
9.	Color	blue
10.	Size	3700(L)X1500(L)X1900(H) mm









      Hydraulic Cap Making Machine are available from 16 cavities to maximum 48 cavities to meet your expected production capacity. If you're interested in this product, please include your business email address in the inquiry message, so we're able to send you the detailed specification and quotation soonest.
