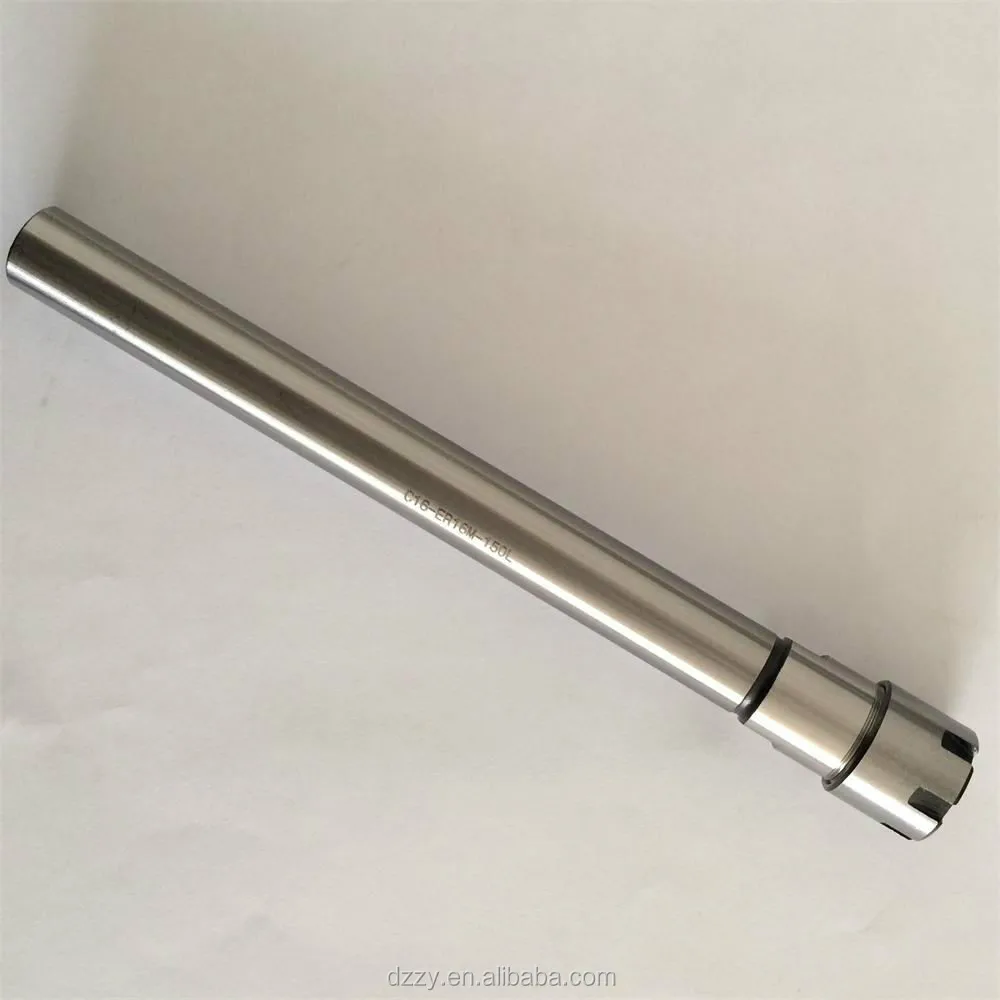

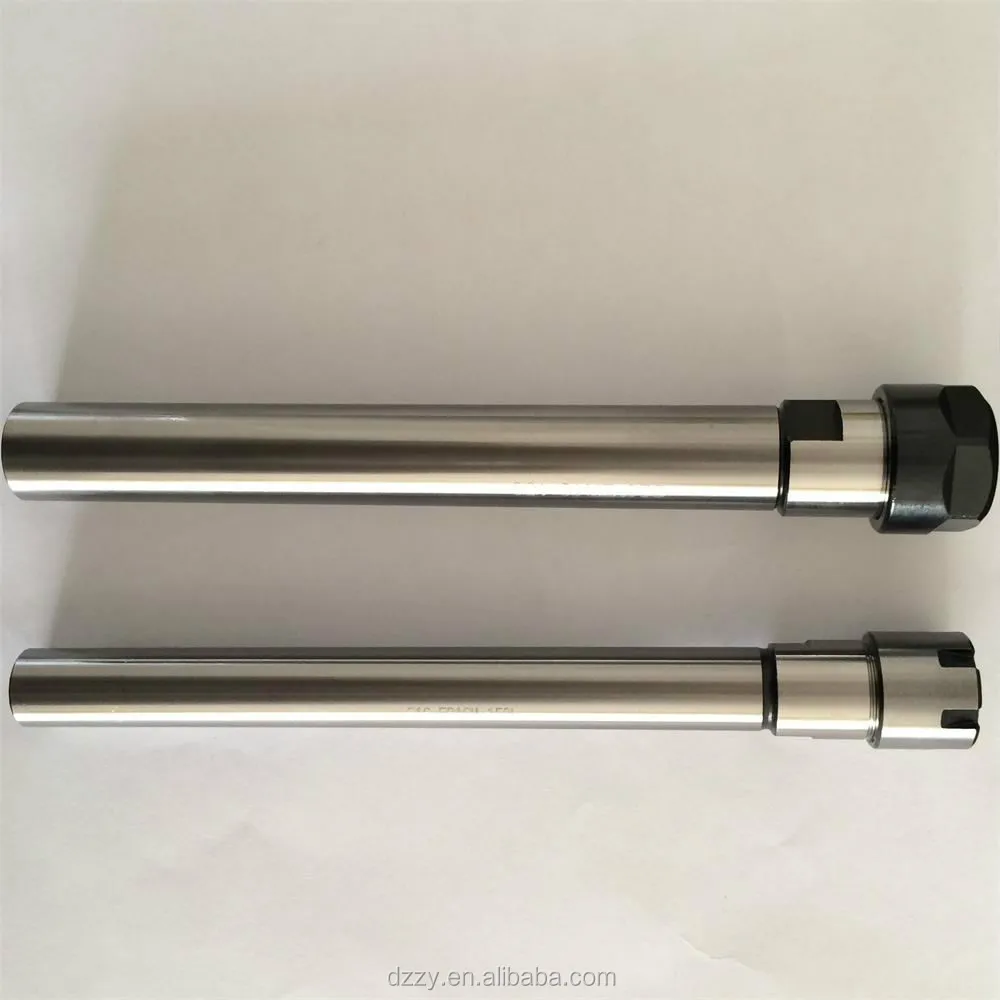

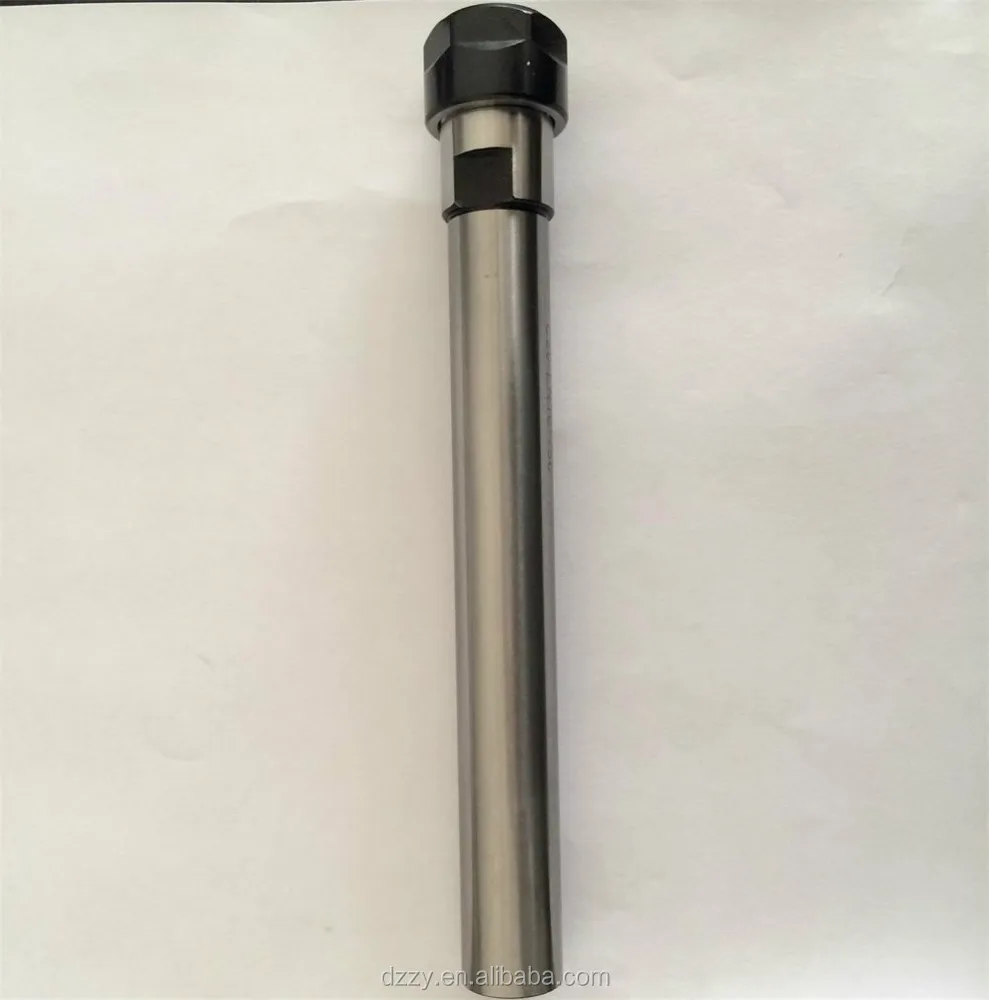

baby collet chuck adaptor

Product Overview

Description

Baby collet chuck adaptor:

1.ER8M-10x95-17,ER8M-10x120-17,ER11M-12x95-28 etc
2.with ER collet:ER11-Er25

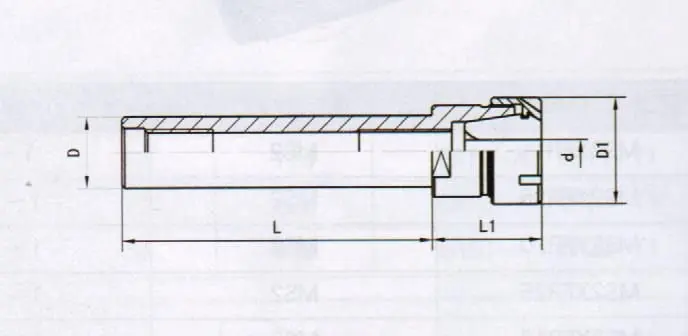

model no.	d	D	D1	L	L1
ER8M-10x95-17	1-5	10	12	95	17
ER8M-10x120-17	1-5	10	12	120	17
ER8M-16x100-17	1-5	16	12	100	17
ER11M-12x95-28	1-7	12	16	95	28
ER11M-12x150-30	1-7	12	16	150	30
ER11M-16x100-19	1-7	16	16	100	19
ER11M-16x150-19	1-7	16	16	150	19
ER16M-12x50-36	1-10	12	22	50	36
ER16M-12x100-40	1-10	12	22	100	40
ER16M-16x80-37	1-10	16	22	80	37
ER16M-16x150-40	1-10	16	22	150	40
ER16M-20x50-35	1-10	20	22	50	35
ER16M-20x100-25	1-10	20	22	100	25
ER16M-20x150-25	1-10	20	22	150	25
ER20M-16x60-40	1-13	16	28	60	40
ER20M-16x100-40	1-13	16	28	100	40
ER20M-16x150-40	1-13	16	28	150	40
ER20M-20x80-40	1-13	20	28	80	40
ER20M-20x100-40	1-13	20	28	100	40







packaging way:Inner packing is by plastic box.The outer packing is by cartons.Pallet is available upon the customer's request.



Quality: Each product are inspected durding the production.And then rendomly are selceted for inspection by quality-person.We have exported our goods to around the world and get good feebacks.



Shipment way: We can send the goods by sea,air or couirer(DHL,TNT,Fedex etc) according to the customer's requirement.



Our Services and reputation: we have been the supplier at Alibaba for 15(fifteen) years.

 We always keep our promise and are responsible for the problems if occured after sales.Pls be assured.
