High Speed Numerical Control Pipe End Beveling Machine
- Category: >>>
- Supplier: Shanghai Qianshan Piping Technology Co. Ltd.
Share on (1473006488):
Product Overview
Description
Product Description
Title goes here.
Fixed-type High Speed Numerical Control Pipe End Beveling Machine
Model: FPEBM-16Ca/24Ca/32Ca;FPEBM-24Cb/32Cb
Performance features
On-line Performance: Good(Designed as per the on-line equipment of the production line)
Beveling Speed: ≤5Min /pipe bevel (DN200 SCH40)
Bevel cutting: cutting a pipe with other equipment such as band saw and then machining each bevel.
Bevel quality: very good
Application: for machining the U or V shape bevels for numbers of pipes with heavy wall thickness
Technical parameters
Pipe diameter applicable: DN50-400(φ57-426)/ DN100-600(φ114-610)/ DN200-800(φ219-813);DN100-600 DN200-800(φ219-813)
Pipe wall thickness applicable: 4-90mm; 6-180MM
Materials applicable: carbon steel, alloy steel, stainless steel and cryogenic steel, ect.
Bevel shape: U, X, V and Double V
Cutting direction: radial automatic differential cutting feed or axial semi-automatic motor cutting feed(Inlet frequency);
radial NC motor cutting feed or axial NC motor cutting feed
Retracting direction: radial automatic motor retracting or axial automatic motor retracting(Inlet frequency); radial NC motor
retracting or axial NC motor retracting
Driven by: motor
Clamping system: work piece is clamped by hydraulic cylinder & centering automatically
Bracket system: screw lifting adjustable
Rev of the principal axis: stepless speed control & variable frequency
Axial displacement: 80mm(principle axis) 100mm(machine head); 150mm(principal axis), 300mm (machine head)
Bevel angle of tool rest: 0°~45°
Widthwise displacement: ±50MM; ±100MM
Control system: PLC Controlling;
Automatic aligning: At the end of beveling machine conveying system equipped with lifting device could be provided if necessary
to adjust automatically the center elevation of the pipe, so as to bevel the pipes with different diameter
Conveying system: End beveling VF conveying systems driven by motor are equipped at front and rear sides of the beveling machine
if necessary.
Model: FPEBM-16Ca/24Ca/32Ca;FPEBM-24Cb/32Cb
Performance features
On-line Performance: Good(Designed as per the on-line equipment of the production line)
Beveling Speed: ≤5Min /pipe bevel (DN200 SCH40)
Bevel cutting: cutting a pipe with other equipment such as band saw and then machining each bevel.
Bevel quality: very good
Application: for machining the U or V shape bevels for numbers of pipes with heavy wall thickness
Technical parameters
Pipe diameter applicable: DN50-400(φ57-426)/ DN100-600(φ114-610)/ DN200-800(φ219-813);DN100-600 DN200-800(φ219-813)
Pipe wall thickness applicable: 4-90mm; 6-180MM
Materials applicable: carbon steel, alloy steel, stainless steel and cryogenic steel, ect.
Bevel shape: U, X, V and Double V
Cutting direction: radial automatic differential cutting feed or axial semi-automatic motor cutting feed(Inlet frequency);
radial NC motor cutting feed or axial NC motor cutting feed
Retracting direction: radial automatic motor retracting or axial automatic motor retracting(Inlet frequency); radial NC motor
retracting or axial NC motor retracting
Driven by: motor
Clamping system: work piece is clamped by hydraulic cylinder & centering automatically
Bracket system: screw lifting adjustable
Rev of the principal axis: stepless speed control & variable frequency
Axial displacement: 80mm(principle axis) 100mm(machine head); 150mm(principal axis), 300mm (machine head)
Bevel angle of tool rest: 0°~45°
Widthwise displacement: ±50MM; ±100MM
Control system: PLC Controlling;
Automatic aligning: At the end of beveling machine conveying system equipped with lifting device could be provided if necessary
to adjust automatically the center elevation of the pipe, so as to bevel the pipes with different diameter
Conveying system: End beveling VF conveying systems driven by motor are equipped at front and rear sides of the beveling machine
if necessary.

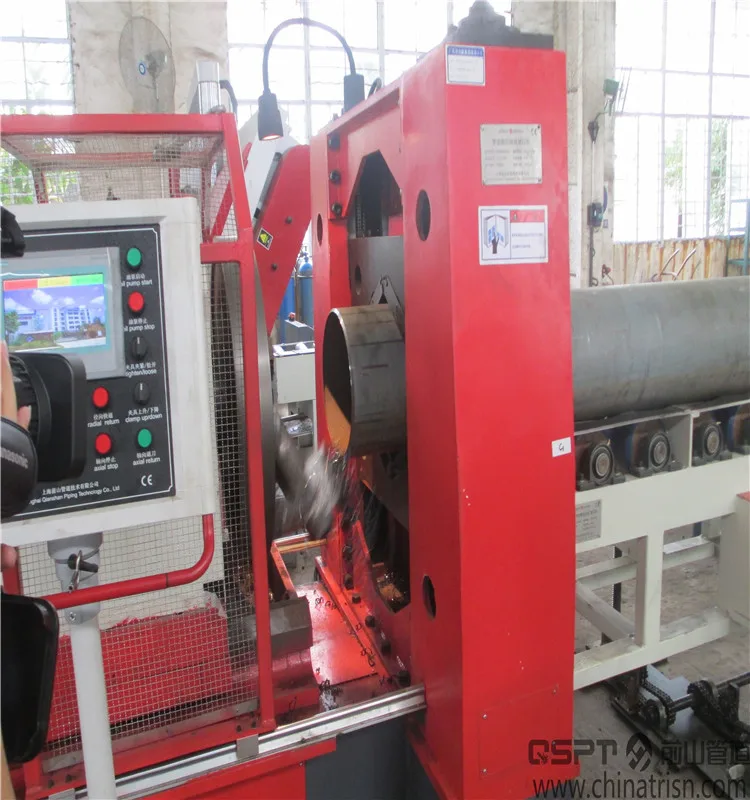

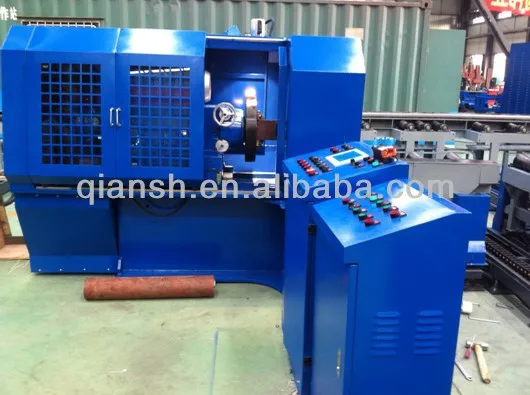

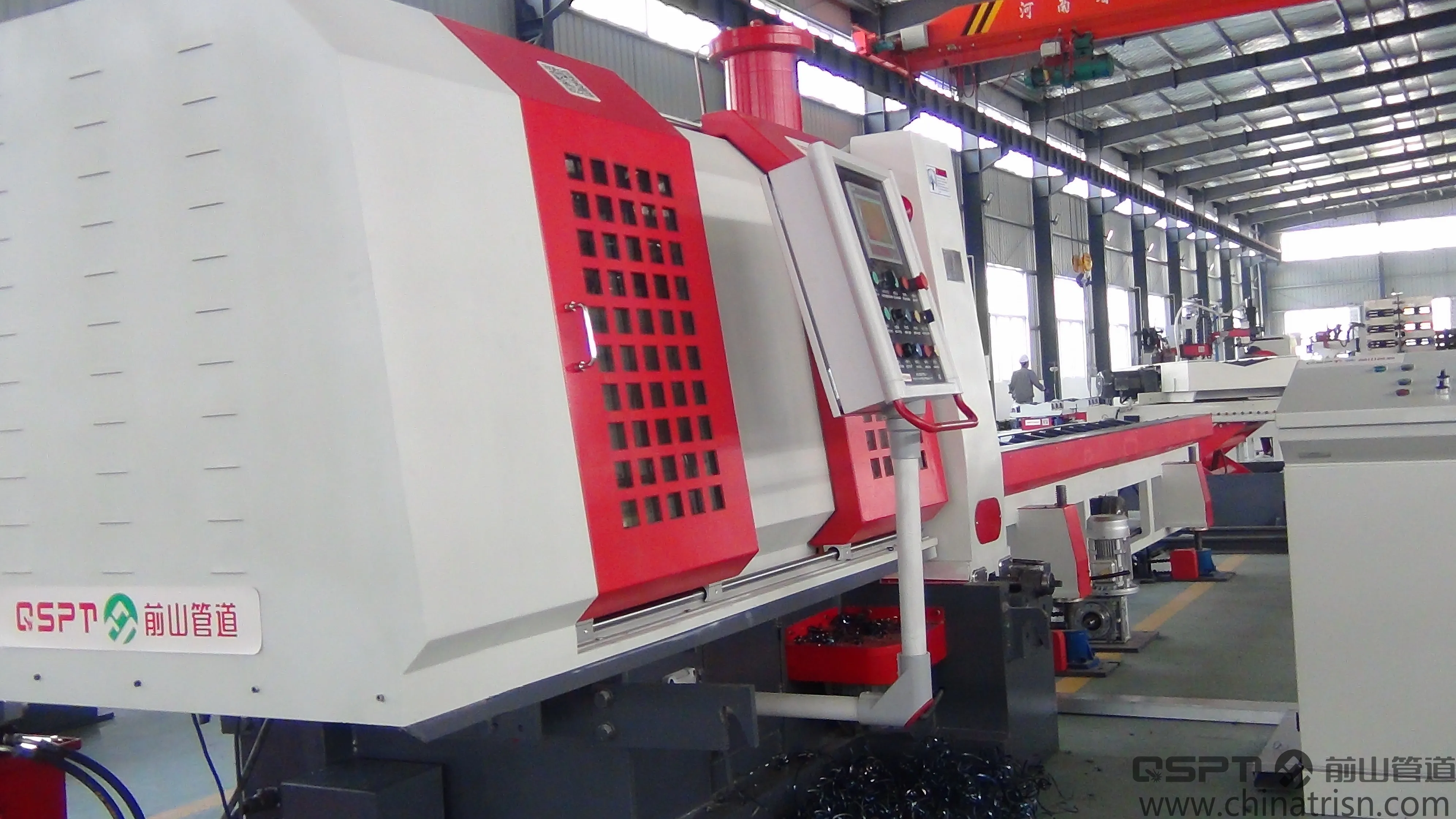

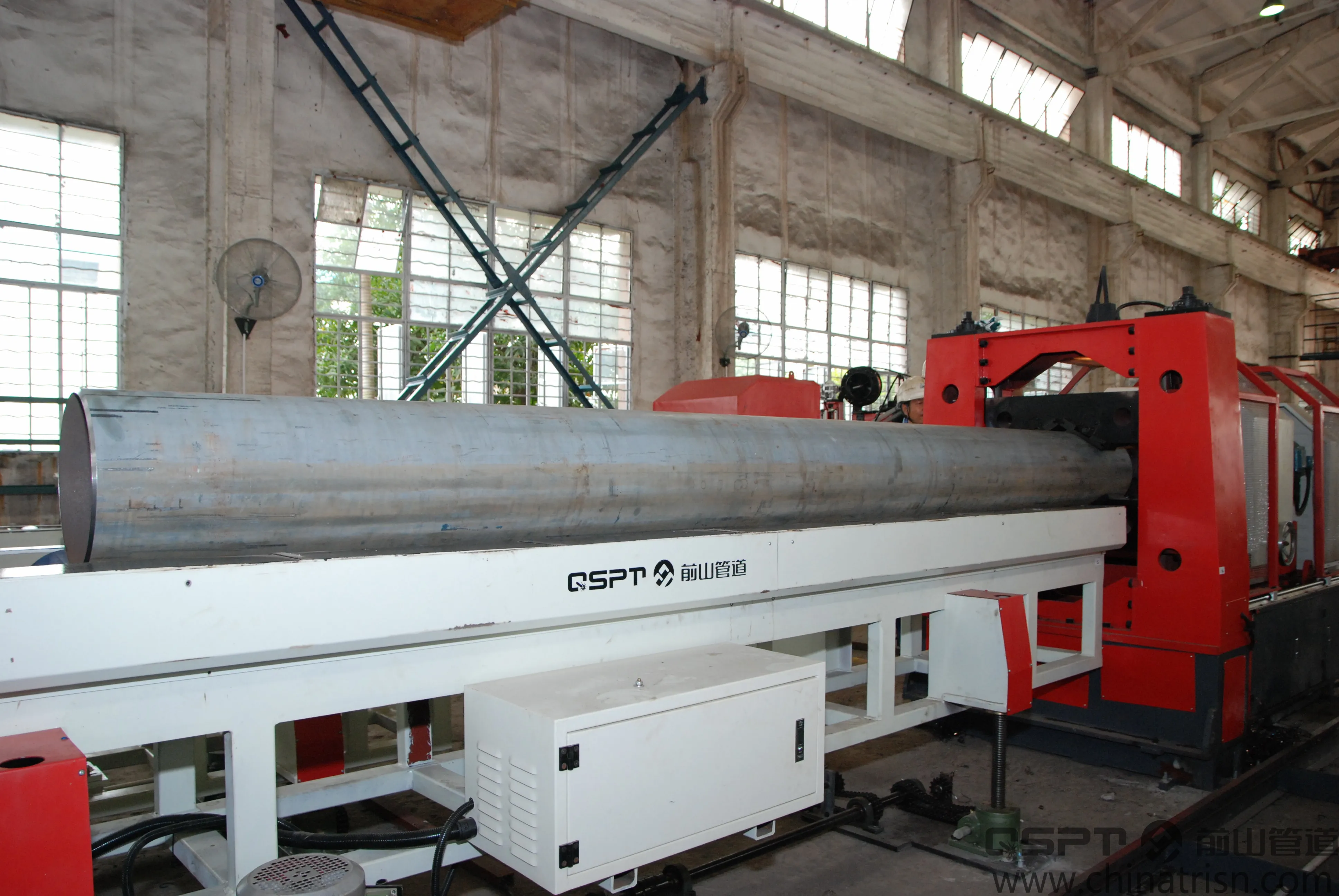

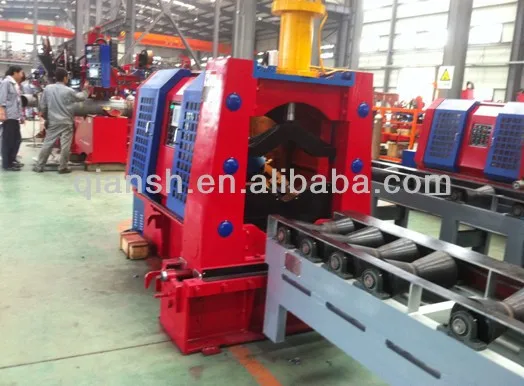

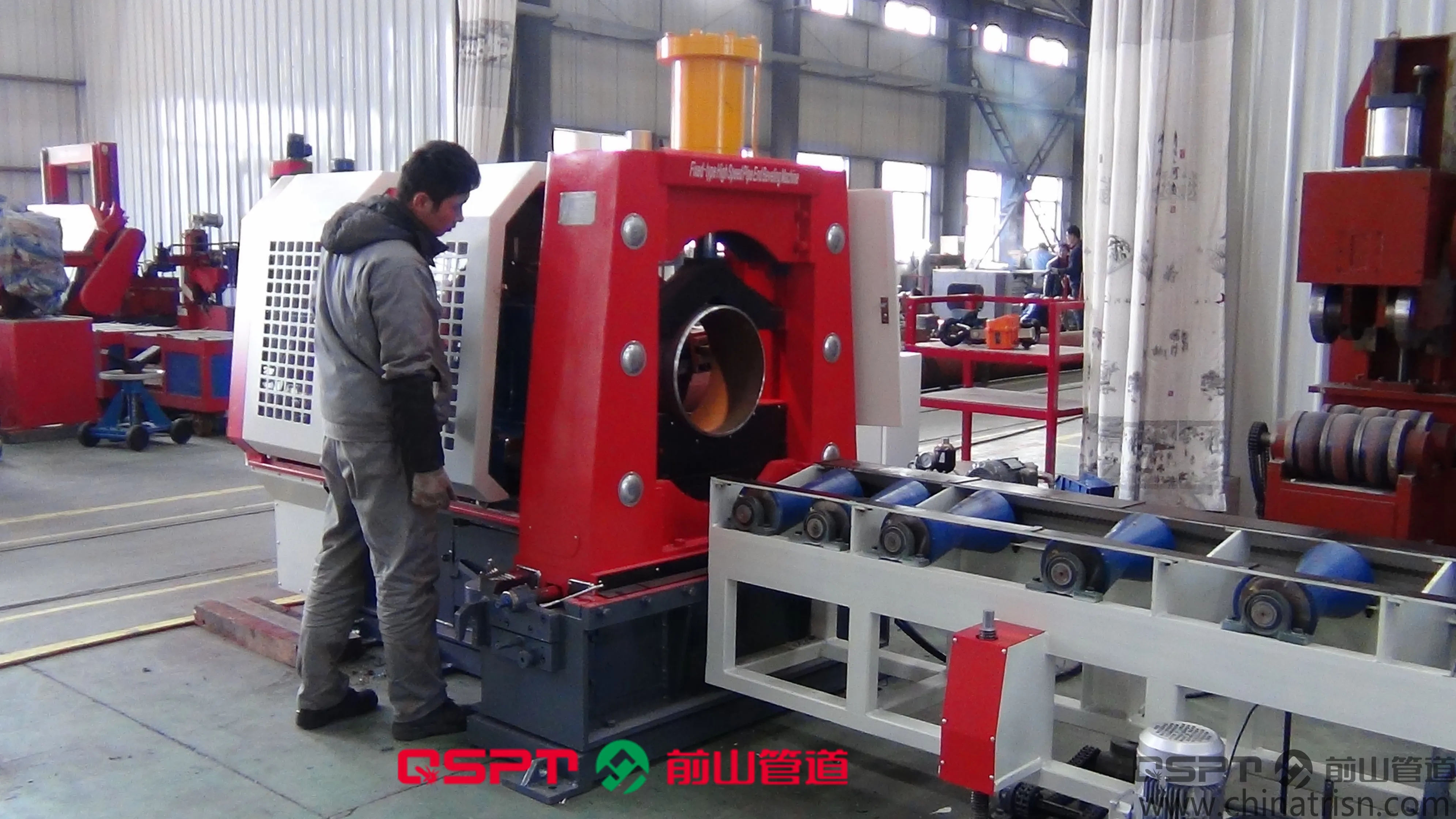

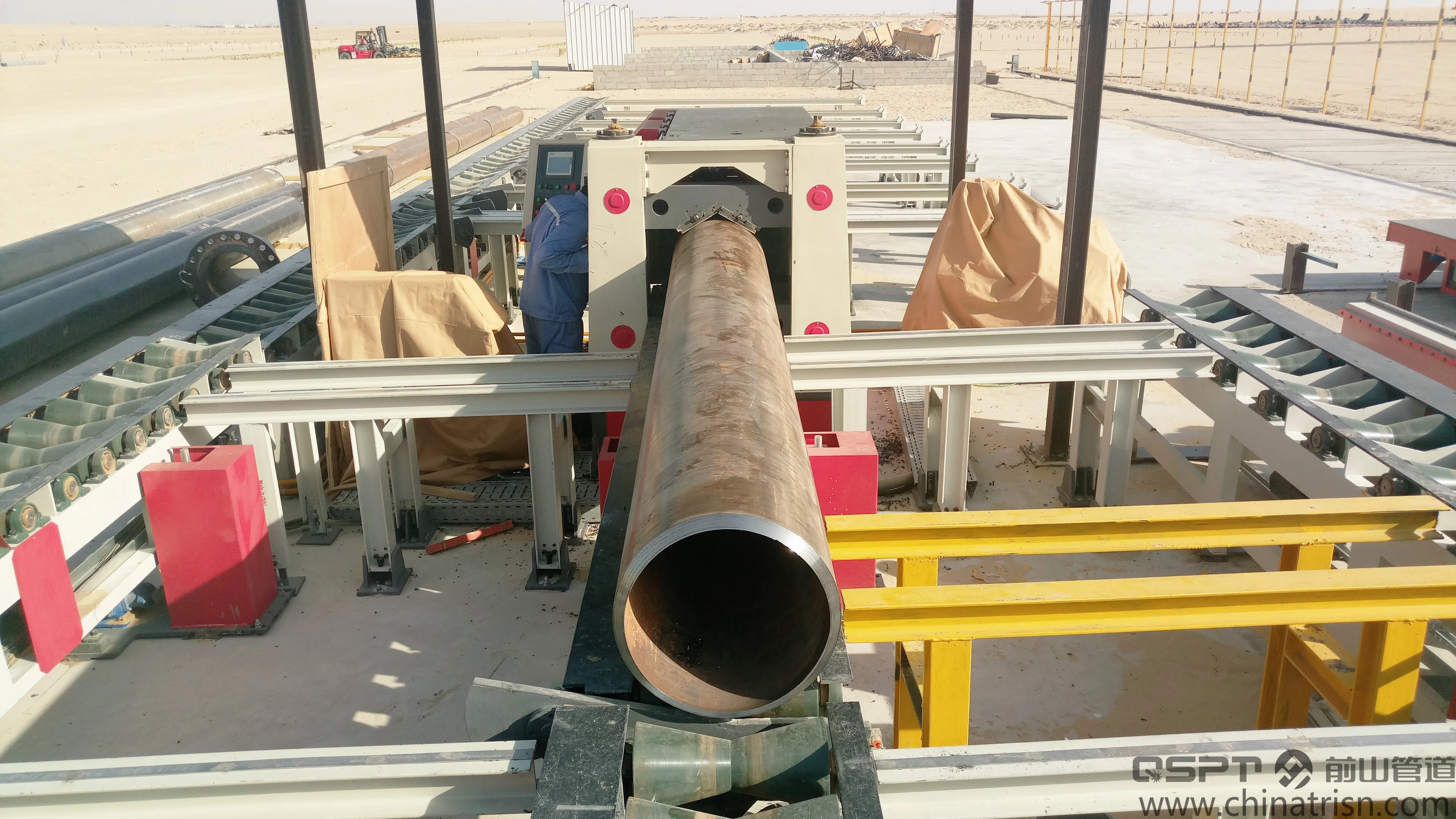

Detailed Images
Company Profile
Shanghai Qianshan Piping Technology Co,.Ltd
Shanghai QianShan Piping Technology Co., Ltd (Q. S. P. T) was established in 2005, is the most innovation ability provider of integrated solutions for piping fabrication, also is the unique provider of professional piping plant design software & management software system and piping equipments in China which included pipe spool fabrication line, cutting equipments, bevelling equipments, fitting up equipments, handling equipments, welding equipments, as well as offer the commercialize piping fabrication service, training & guidence management service for automation pipe spool fabrication engineering project of Oil & Gas,Petrochemical, Petroleum, Chemical Industry, Power Plant,Offshore & Marine Engineering, Shipbuilding Industry, Aerospace,
Electromechanical, Energy Engineering, Cement Plant, Boiler, Pressure Vessel, Heavy Industry, Heat Exchanger, Pipework
Construction and Erection Fields etc.
Electromechanical, Energy Engineering, Cement Plant, Boiler, Pressure Vessel, Heavy Industry, Heat Exchanger, Pipework
Construction and Erection Fields etc.
Certifications
Our Service
1.Classic solution for pipe shopfabrication
2.Customized solution for pipe shop fabrication
3.Intelligent solution for pipeshop fabrication
4.Total solution for pipe shop fabrication
Why Choose Us
Aim of after-sales service: standing in the customers' shoes
Team of after-sales service: Client satisfaction is lowest standard
Site of after-sales service: professional, comprehensive,detailed
promise of after-sales service: to quickly and efficiently resolve all after-sales issues raised by clients without being limited by conditions of costs.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory based trading company
Q: How long is your delivery time?
A: Generally it is 30-40 days if the goods are in stock. or it is 60-80 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 40% T/T in advance ,balance before shippment.
