Manufacturer Name | | |

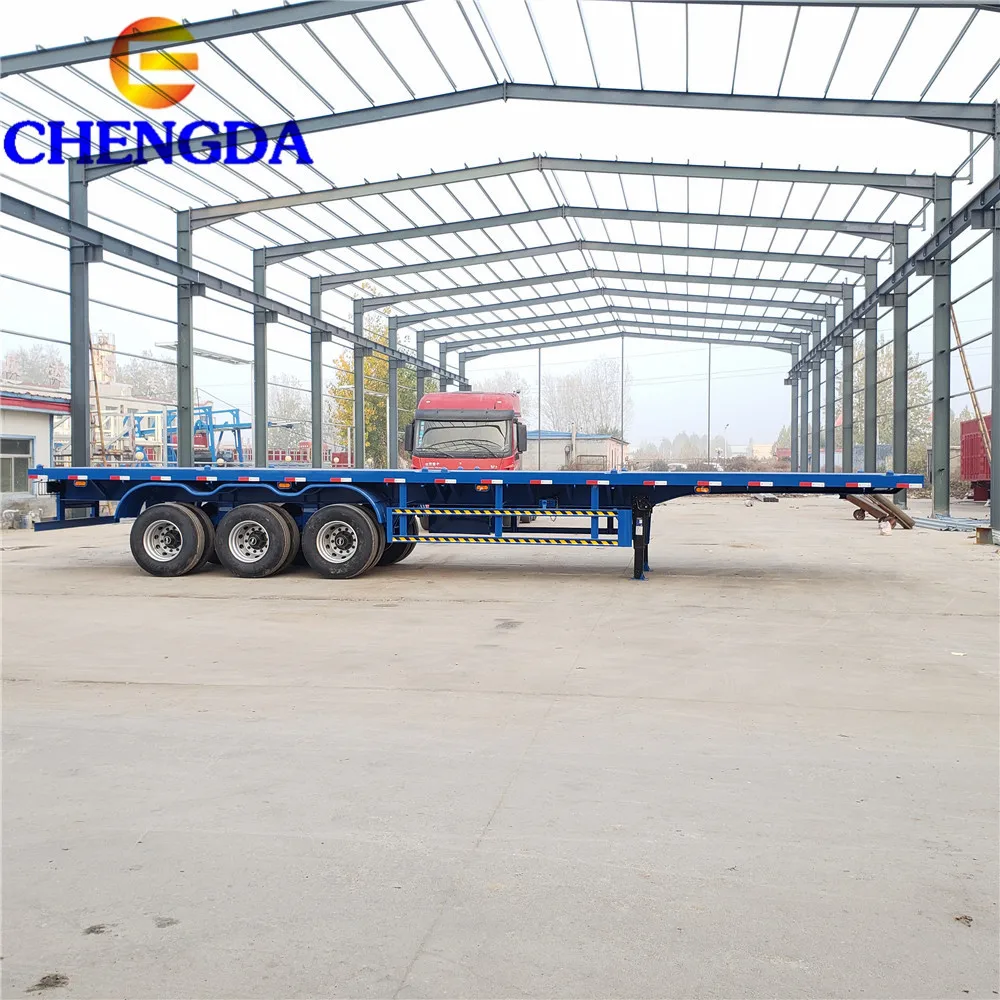

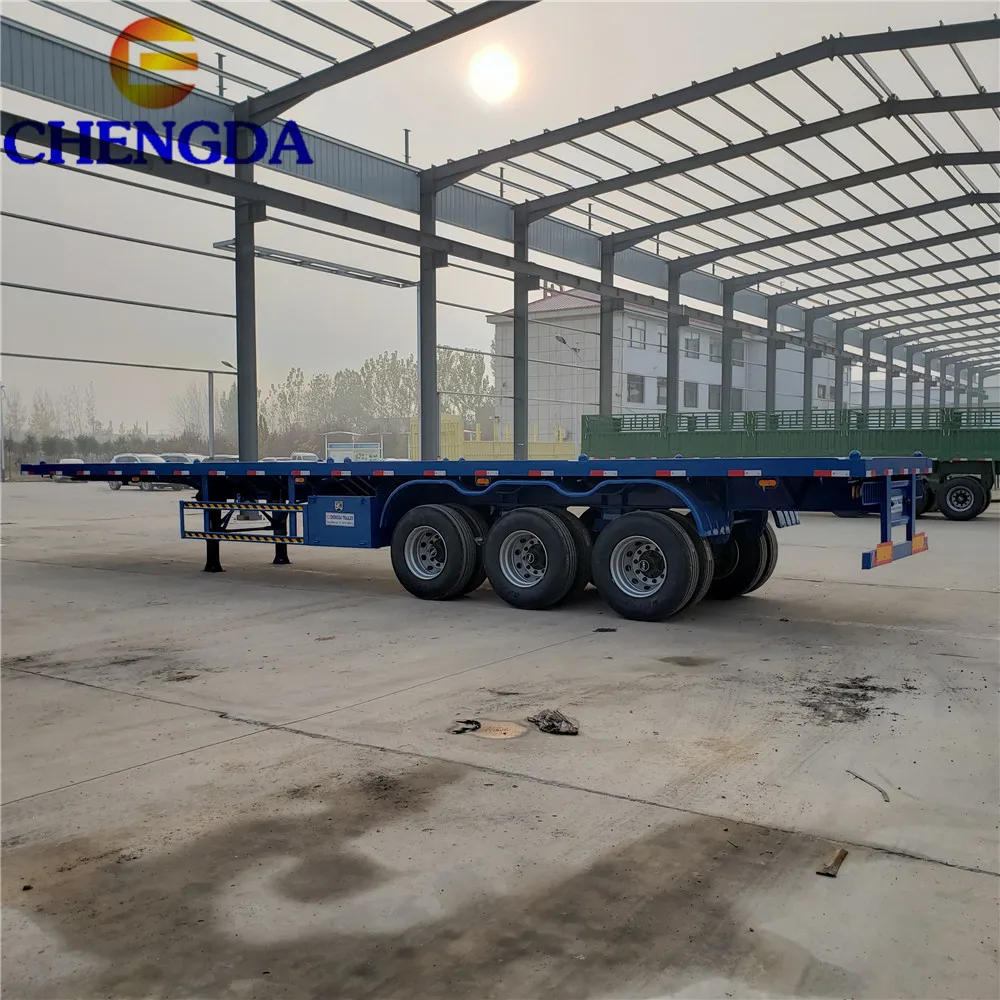

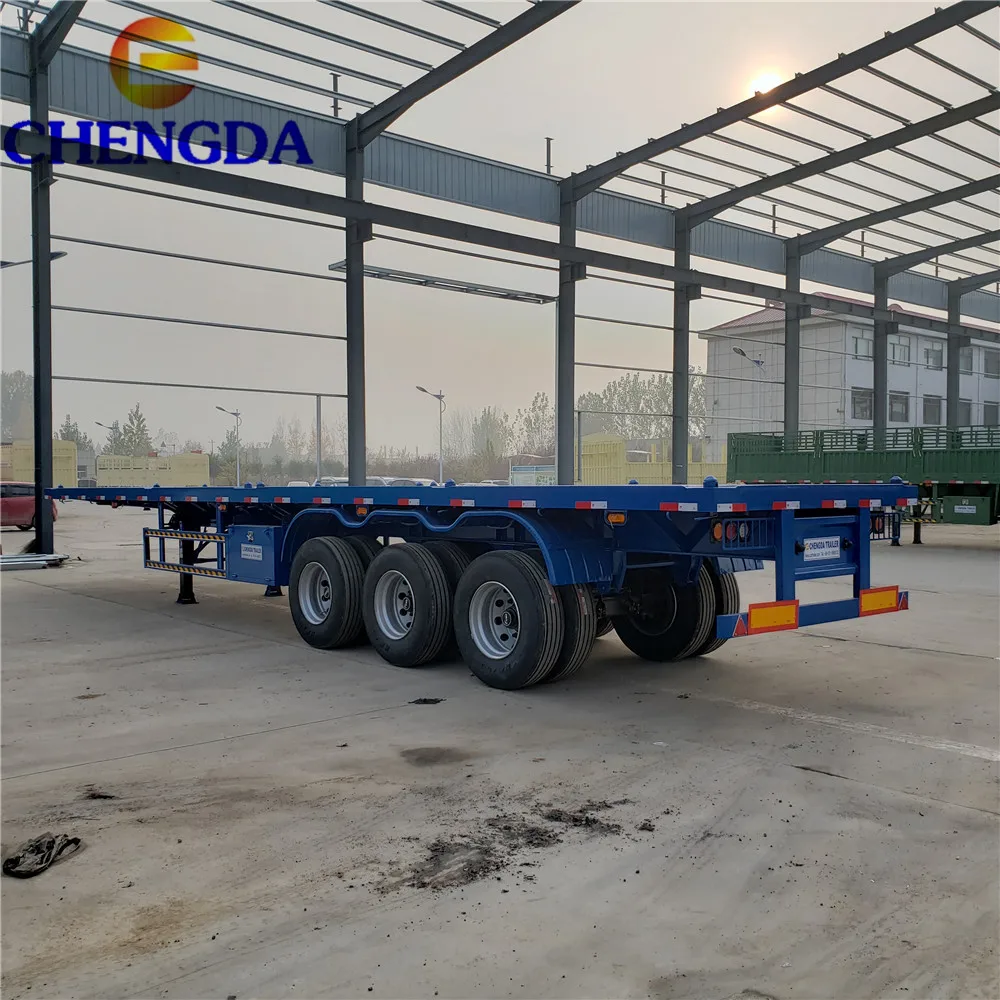

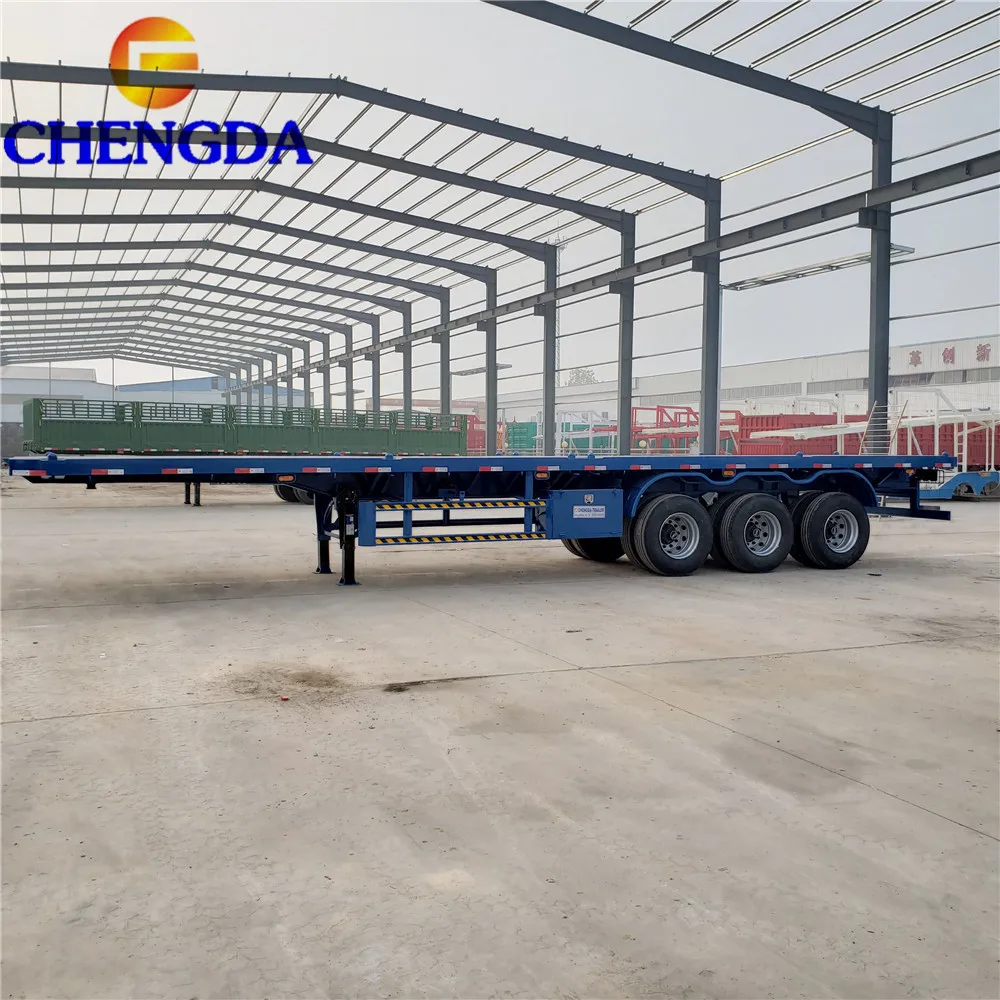

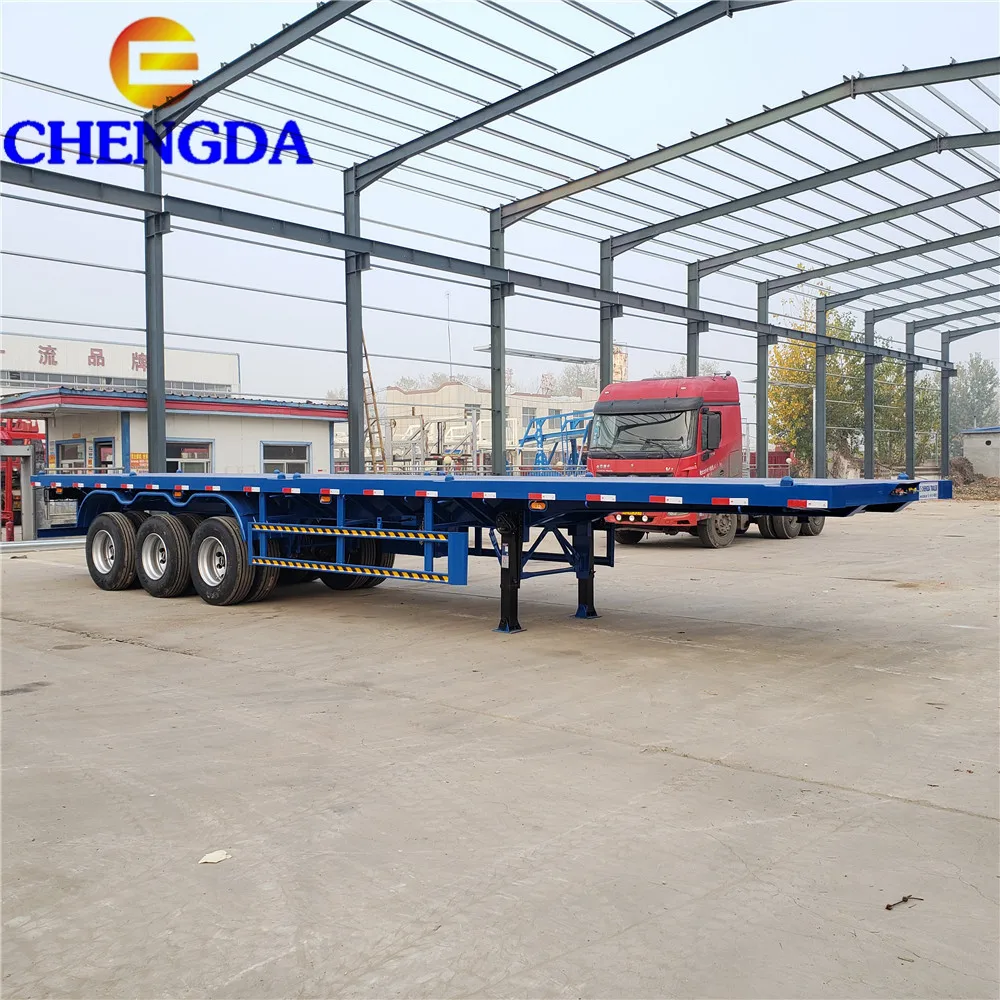

Trailer Model | Container chassis flatbed trucks trailer with twist lock | |
Function | 1x40ft container or 2x20ft container. Or carry other stuff. | |
Overall Dimension mm | 12500*2500*1550mm | |
Delivery time | 15 days after receiving 30% Deposit | |
Weight: |
| |
| Tare Weight (KG) | 6350 |
| Loading Weight (KG) | 50000 |
| Total Weight (KG) | 50000kg |
Specification: |
| |
Axle Brand | FUWA Brand 13TON Axle, Optional BPW | |
| Axle number | three |
| Wheelbase(mm) | 6260+1310+1310 |
| Suspension system | Mechanical Suspension |
| Steel Spring | 10/10/10 leaf spring suspension |
| Container Twist Locks | 12pieces |
| Traction Pin | 90mm/50mm |
Tire: |
| |
| Tire specs. | 12R22.5 12units |
| Number of Tire | 13 pieces |
| Spare Wheel Bracket | 2 piece |
Frame: (specs. And materials) | Main beam height is 500mm | |
| Frame Beam | Upper plate is 14mm, down plate is 16mm, middle plate is 8 mm. |
| Platform bed | 3mm diamond steel plate |
| Landing Gear | Chinese brand 28 ton |
Brake: |
| |
| Brake system | Dual Line braking system , optional ABS. |
| Brake Chamber | Four double and two single chamber, optional WABCO |
Electrical system: |
| |
Cable | One set 6-core standard Cable. | |
| Voltage | 24V |
| Receptacle | 7 ways(7 wire harness) |
Light: | Tail lamp with turn signal, brake light & reflector, side lamp etc. | |
Miscellaneous: |
| |
| Painting | According to the requirement of the buyer |
| Marking | According to the requirement of the buyer |
| Side Guard | According to the requirement of the buyer |
| Tools box | 1 pieces |
Packing | polish with wax before shipping | |
Delivery way | Transfer to Tianjin/Shanghai/Qingdao | |
Note: | Price validity is 30 workdays | |

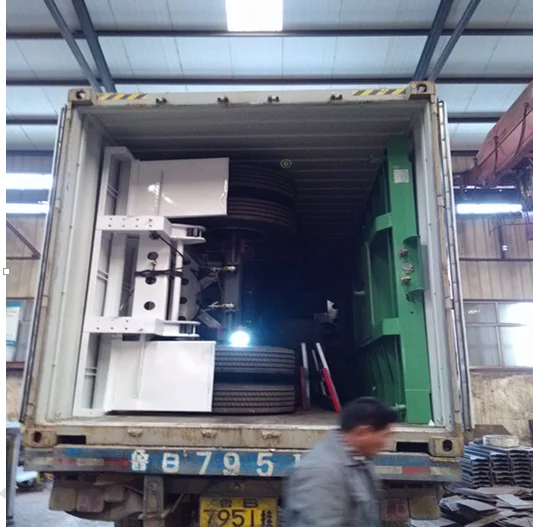

Nude and wax, shipped in Container ,by Bulk Cargo Ship or Ro-ro ship.
We always use the best packaging solution to decrease transportation cost and give your the very
competitive price.

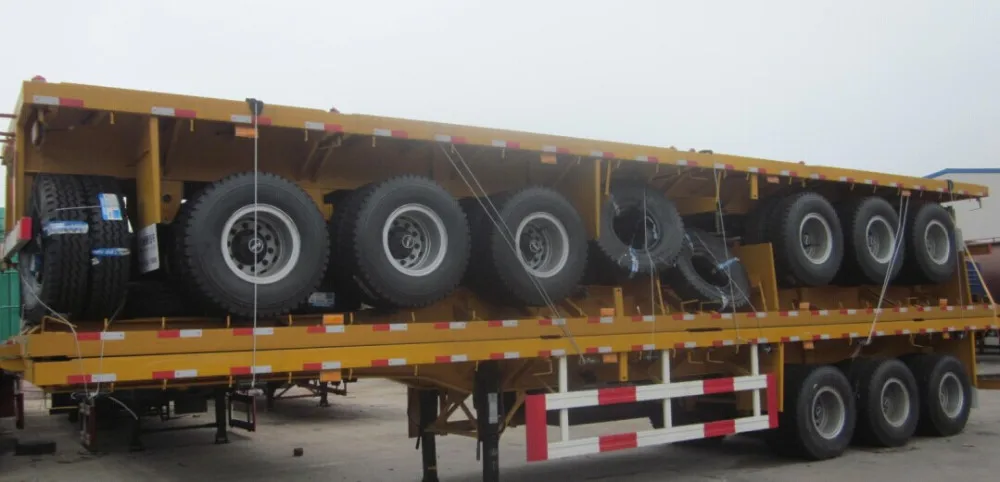

1.3units semi trailer shipped together

2.2 units semi trailer shipped by 40HQ container
