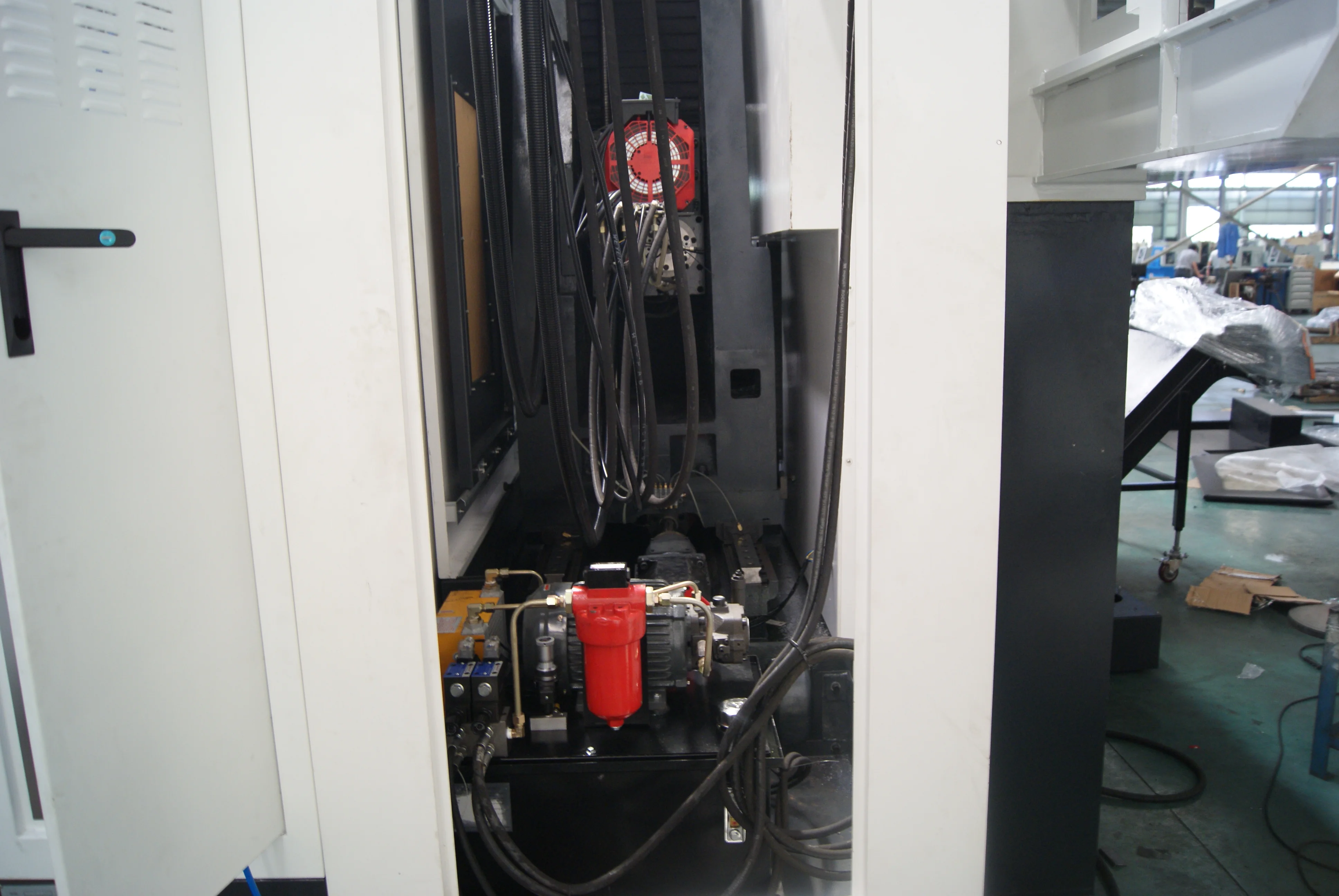

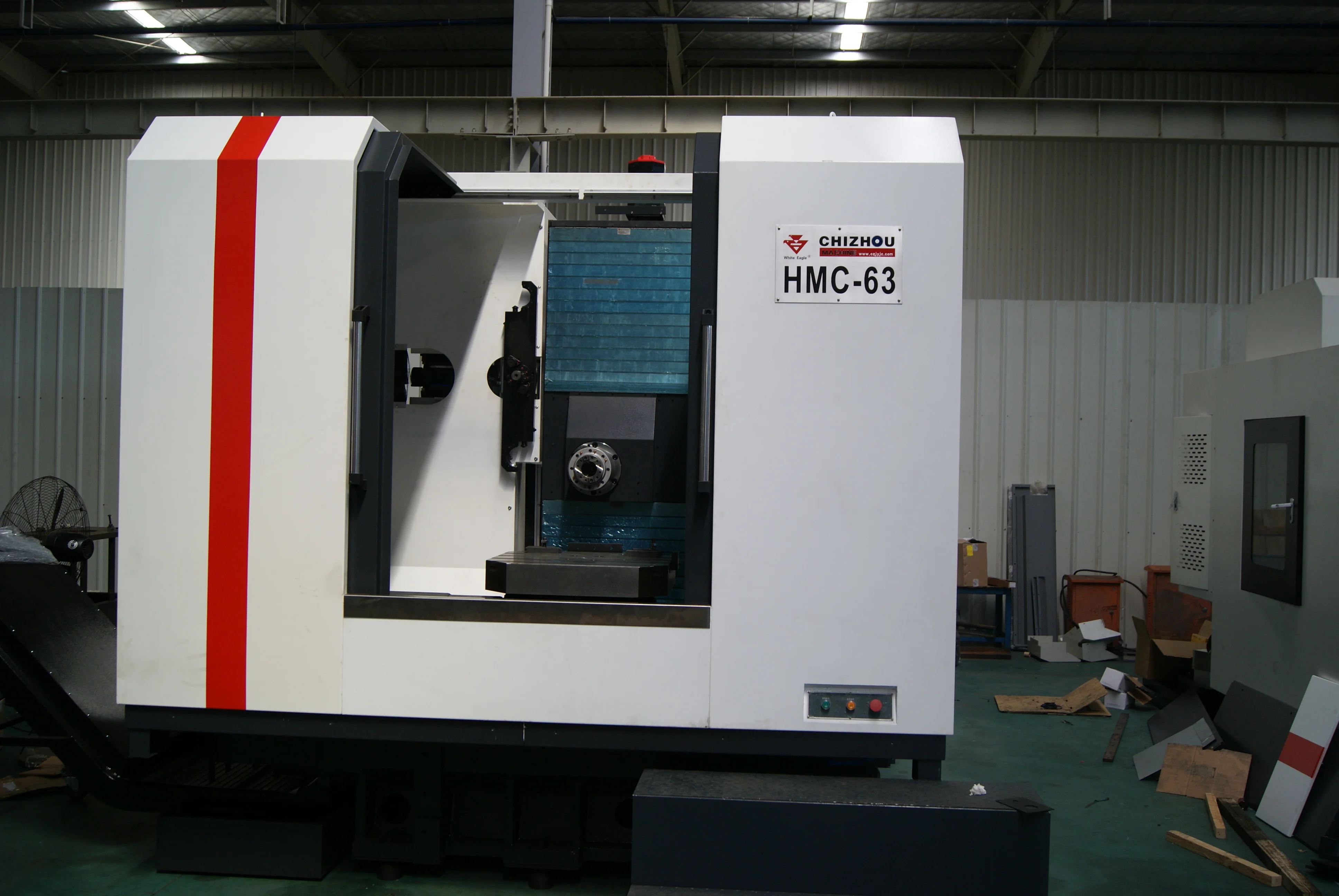

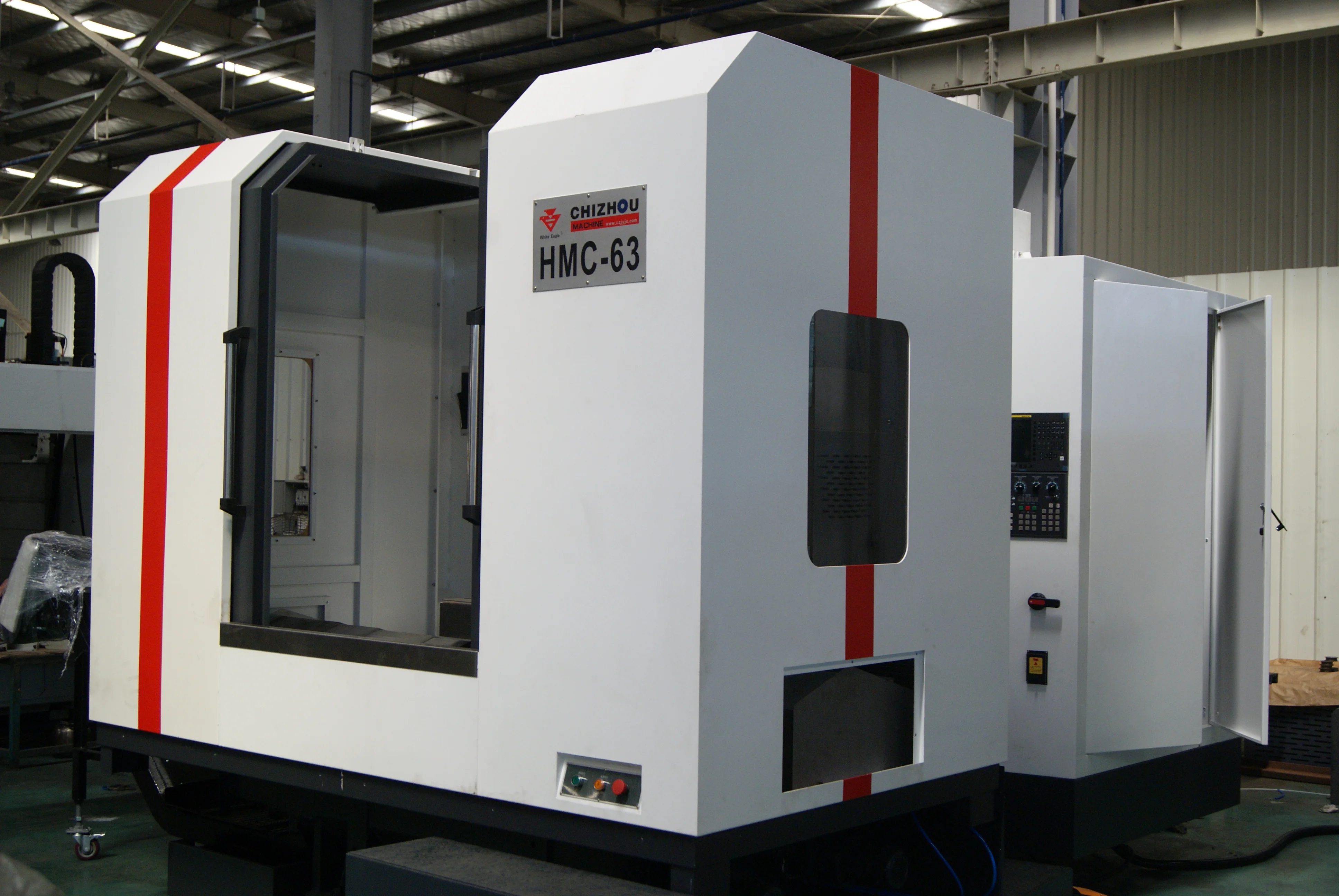

HMC 63/HMC 50 CNC HORIZONTAL MACHINE CENTER
- Category: >>>
- Supplier: Anhui Chizhou Household Machine Tool Co. Ltd.
Share on (1475859083):
Product Overview
Description
Product Description
1.A prevalent inverted ”V“ shaped layout is in the base frame,which is high in rigidity of the integral structure and is not creative of any overturning during the full stroke.
2.The base frame manufacture by 5-sided machines high-precisely machine,finish most work in one chucking.
3.A grouped 60° angular contact ball-bearing is adopted in the bed lead-screw,which is doubly supported,so as to increase the machining precision.

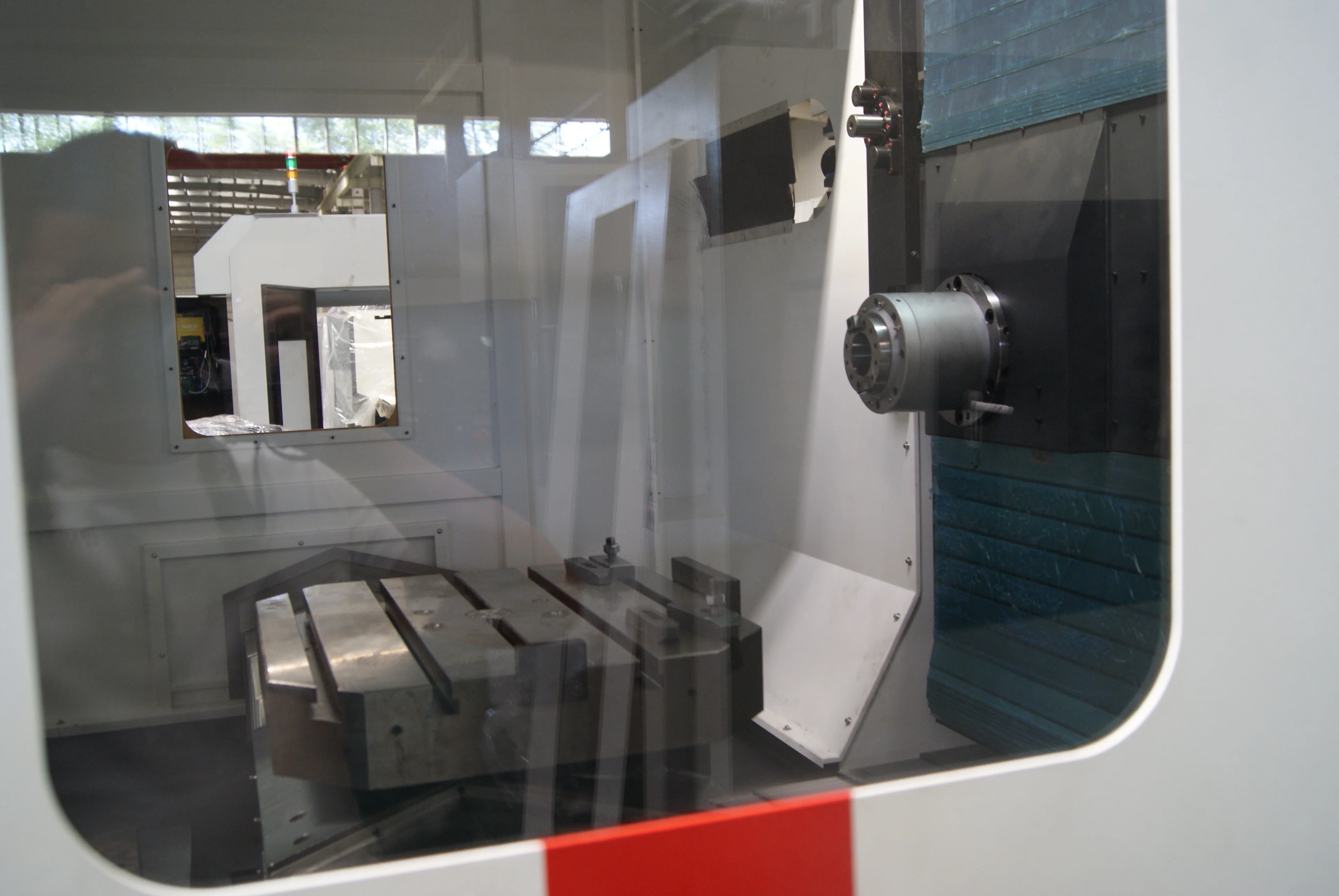

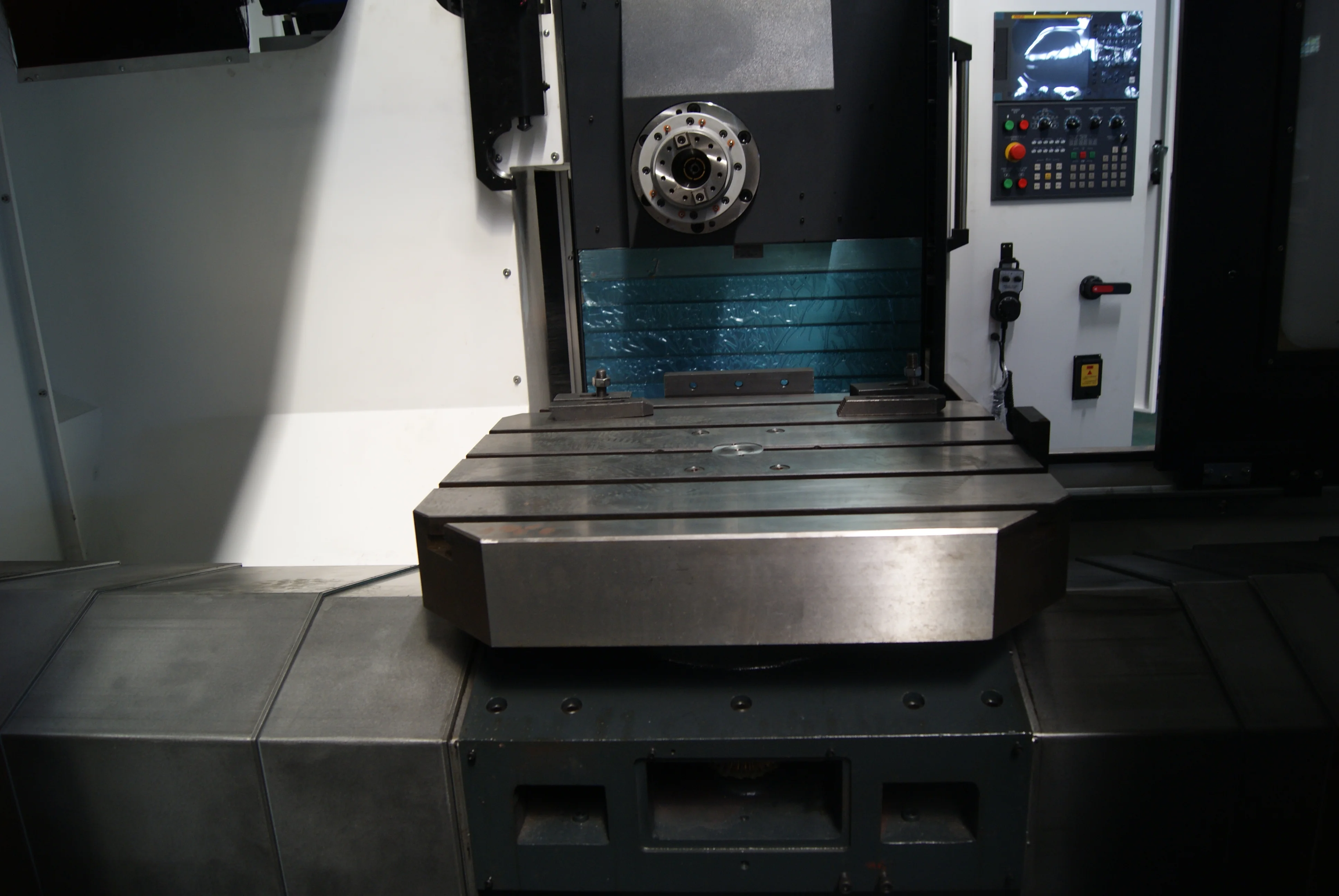

Model | HMC-50 | HMC-63 | |
Worktable dimensions(L*W)(mm) | 500*500 | 630*630 | |
Number of worktable | 1/2 | 1/2 | |
Worktable indexing(°） | 1*360/0.001 | 1*360/0.001 | |
T shaped solt(number of slot *width of slot*interval)(mm） | 5*18*100 | 5*22*125 | |
Max.load capacity of worktable(kg) | 500 | 1000 | |
X axis travel(mm) | 650 | 950 | |
Z axis travel(mm) | 550 | 830 | |
Y axis travel(mm) | 550 | 750 | |
Distance from center of spindle to worktable(mm) | 120~670 | 100~1000 | |
Distance from spindle nose to center of worktable(mm) | 180~730 | 170~1000 | |
Spindle taper | BT40 | BT50 | |
Max.spindle speed(r.p.m) | 8000 | 6000 | |
Rapid traveling(X,Y and Z)(m/min) | 15 | 24 | |
Max.speed of table(r/min) | 10 | 10 | |
G.W.(kg) | 12000 | 14000 | |
Position precision(300mm) | ±0.005 | ||
Repeated positon prcision(300mm) | ±0.003 | ||
Model | HQ500 | |||||
Turning | Swing over bed | φ420mm | ||||
Distance between centers | φ500mm | |||||
Max.longitudinal travel | 400mm | |||||
Max.cross travel | 195mm | |||||
Taper of spindle | M.T.4 | |||||
Spindle hole | φ28mm | |||||
Step of spindle speed | 7 | |||||
Range of spindle speed | 160~1360r.p.m | |||||
Metric thread range | 0.6~6mm | |||||
Inch thread range | 4~120T.P.J | |||||
Drilling&Milling | Max.drilling capacity | φ22mm | ||||
Worktable size(L*W) | 475*160mm | |||||
Max.end mill | φ28mm | |||||
Max.face mill | φ80mm | |||||
Distance between spindle center and column | 285mm | |||||
Distance between spindle and worktable | 306mm | |||||
Headstock travel of up and down | 110mm | |||||
Spindle taper | M.T.3 | |||||
Step of spindle speed | 16 | |||||
Rangle of spindle speed | 120~3000r.p.m | |||||
Swivel degree of headstock | ±360° | |||||
Motor | Motor power | 0.55kw | ||||
Packing size | 1130*580*1100mm | |||||
N.weigh/G.weigh | 245kgs/280kgs | |||||
Features
1.High-frequency hardened slide rails or heavy-load high precision roller guide-ways,which have an excellent property of shock absorption and can bear heavy load cutting.
2.Taiwan precision spindle, 6000rpm and with air film protection device.
3.CNC rotary table,indexing table,Exchange table for optional.
Stadard Accs
1.Rigid tapping

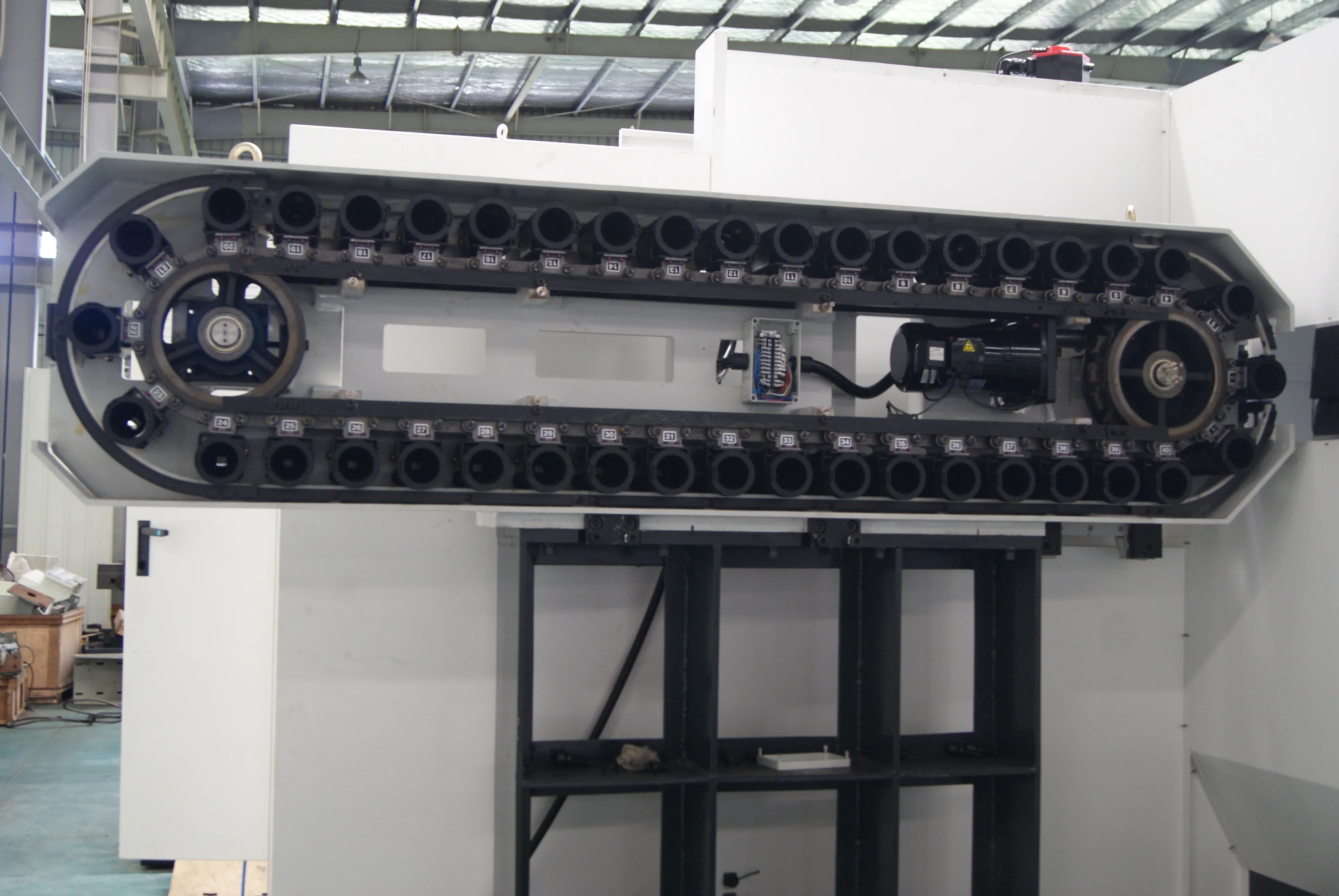

2.Cam manipulator tool magazine:24
3.Full colsed cover
4.Lighting equipment
5.Electronic handwheel
6.Double helix chip cleaner
7.Auto lubrication system
8.Spindle tool coolant system toolbox
9.RS232 interface
10.Manual air gun
11.Spindle taper cleaner
12.Tool bos
