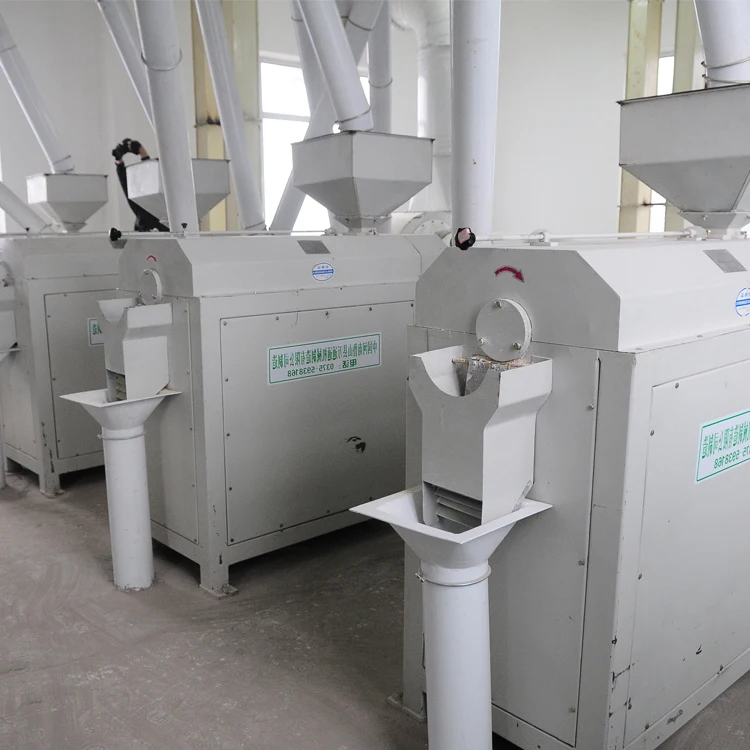

20 100t/d Corn/Maize Milling Machine Manufacturer

Product Overview

Description

20-100t/d Maize Milling Machine complete set



Model:6FYDCT





FEATURES:

1. The Maize Flour Milling Machine line use dry milling technologies. Compare with wet milling and semidry milling, the products do not need to be bake out, which reduce the cost for desiccation, e.g.: area, equipment, fuel, human resources etc., consequently reduce a major invest for our clients;

2. The line has simple structure, high adjustability for the field area and the workshop, no special requirements. Effectively cut down the fixed investment;

3. Simple installation, fast construct progress, short construction period, allow our clients to meet the benefits in the shortest possible time;

4. The device specific, unlike the flour lines and rice lines, the core devices are all designed and invented by our company for the specific device, to make sure the product has high quality;

5. The flexible technics have high adaptability to the raw grains, design corresponding process depend on variously regions and quality of raw grains;

6. The line adopt the most advanced technology, with the logical power equip, make this product more effected and saving more energy, the core devices also achieved the Chinese National Patent. This will be the perfect choice for corn flour producer;

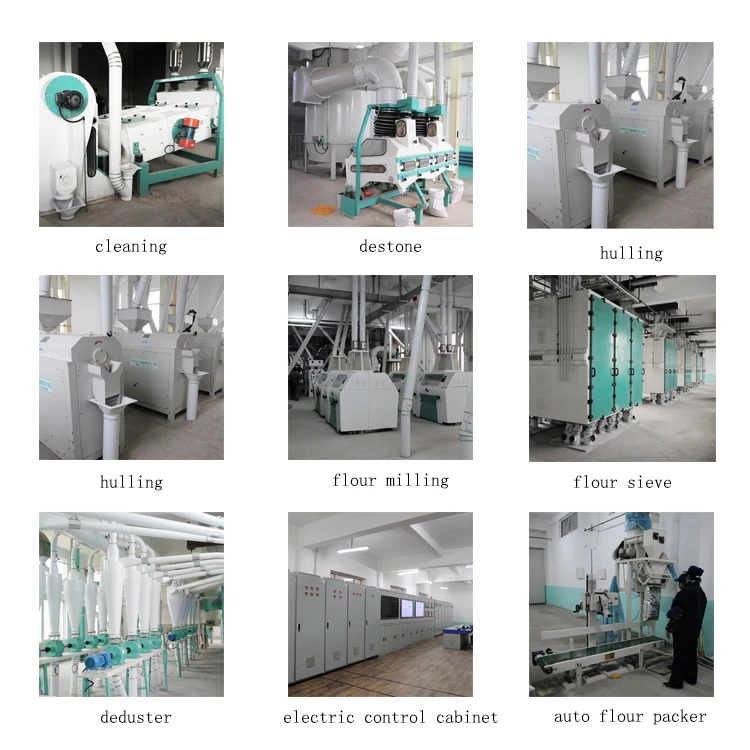

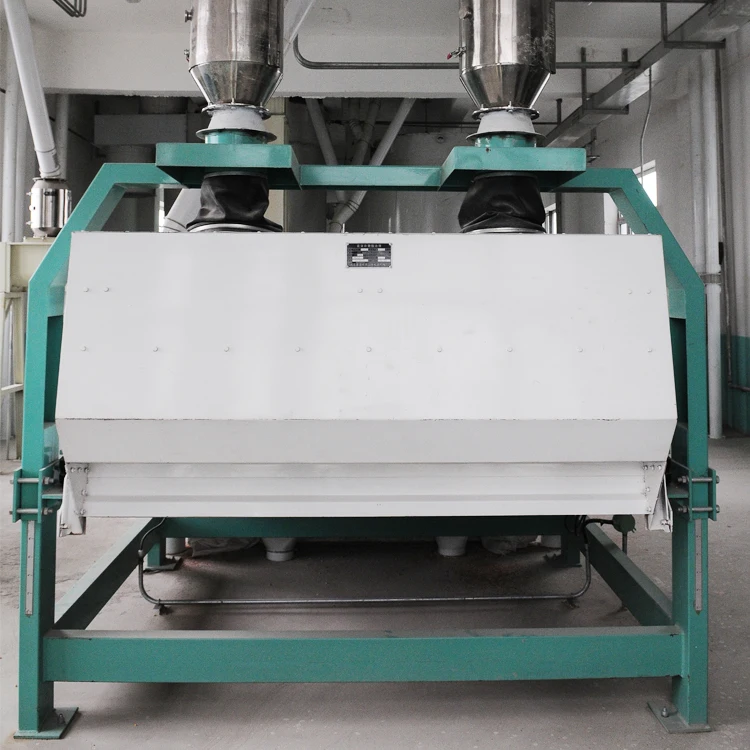

This series of Maize Flour Milling Machine line build up with: corn process equipments (e.g.: corn huller, corn polisher, germ extractor, new super fine corn grits machine etc.) and foodstuff process general equipment (e.g.: hoist, density corn destoner, plansifter, miller, flour cleaner). The quality of finished products: corn flour and fine feed up to 80-120 mesh.

The complete system line has: advanced technology, excellent equipment, strong specific usage, logical constructer display, low energy cost, high yield rate, and high quality product etc. significance points.

This Maize Flour Milling Machine is suitable for food companies, starch sugar companies, and breweries companies.



TYPE	POWER(KW)	POWER COST(KW/H)	OUTPUT (T/24H)	SIZE REQUIREMENT (L×W×H m)
20t	72	58-60	20	16×5×6 (steel frame construction) 20×5×5(line construction)
30t	108	58-60	30	24×5×6 (steel frame construction) 30×5×5(line construction)
50t	172	56-58	50	35×5×7 (steel frame construction)
100t	346	56-58	100	40×7×8 (steel frame construction)
