2020 China Road Marking Paint Equipment

Product Overview

Description

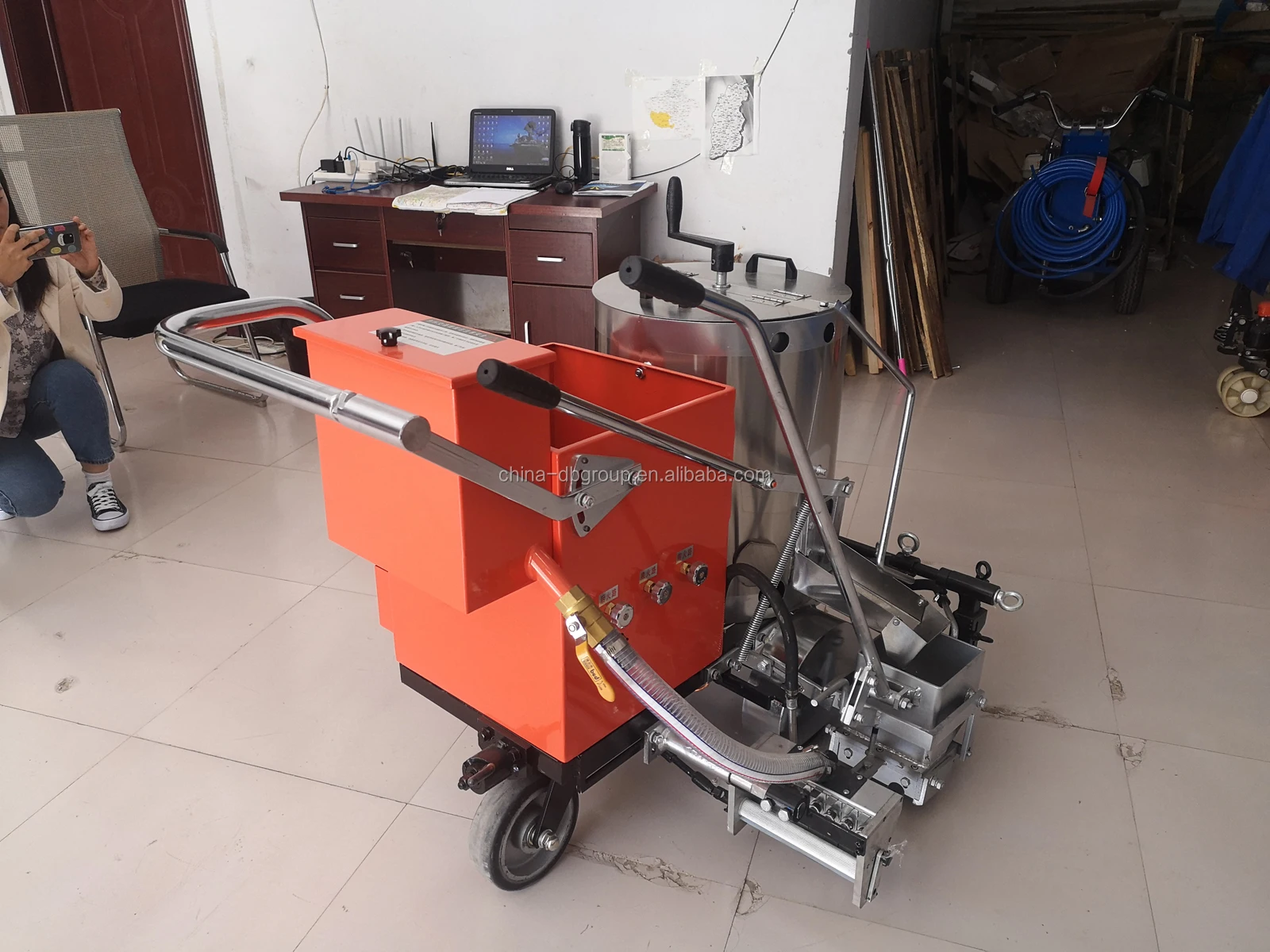

2020 China Road Marking Paint Equipment





Introduction

1. Paint barrels: double stainless steel heating insulation barrels, capacity 100 kg, plug-in manually mixer devices, removable devices.

2. Glass Bead storage box: 10 kg / box.

3. Glass beads beads sow browser: synchronous clutch spread with speed gearshift device.

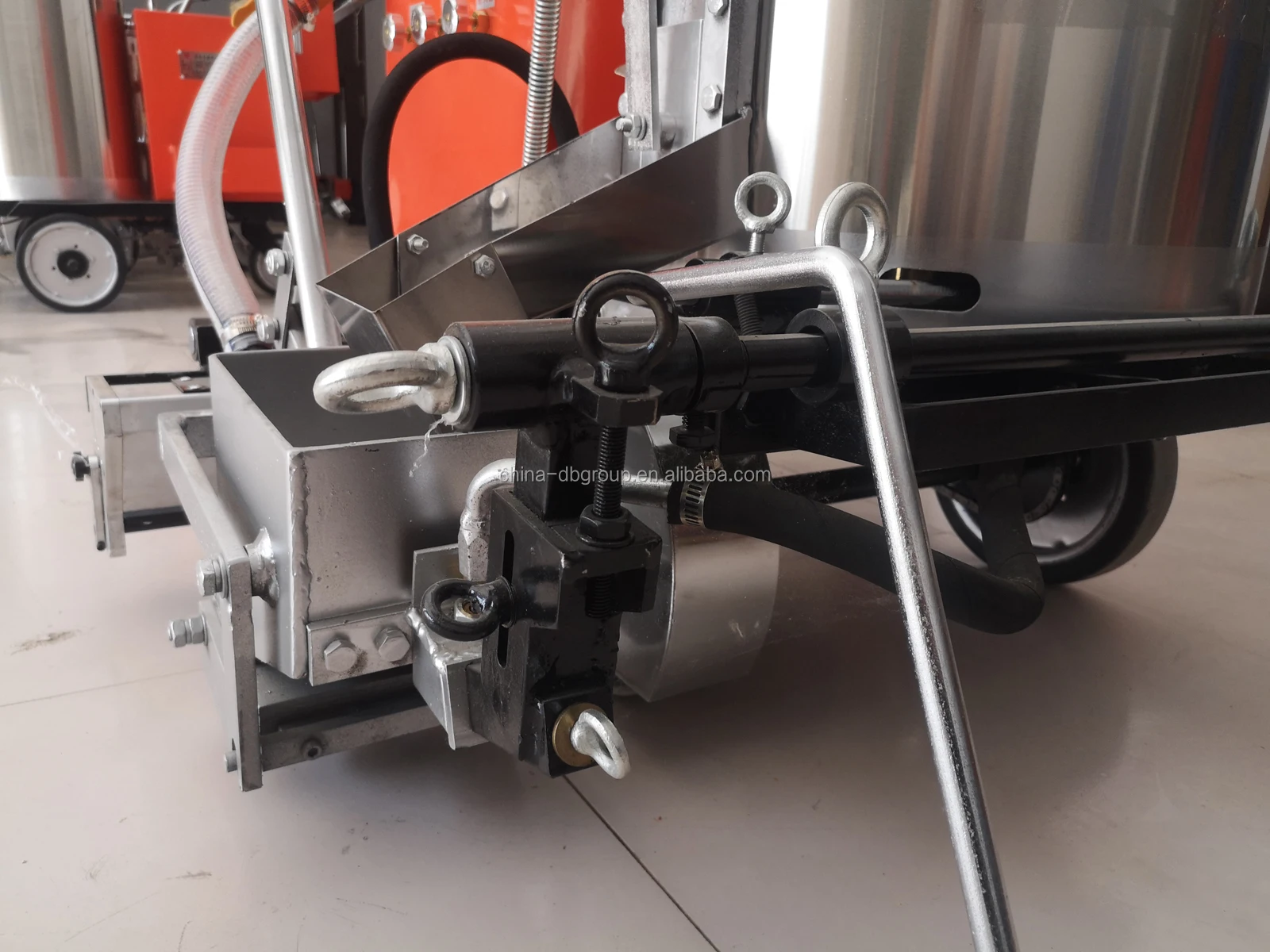

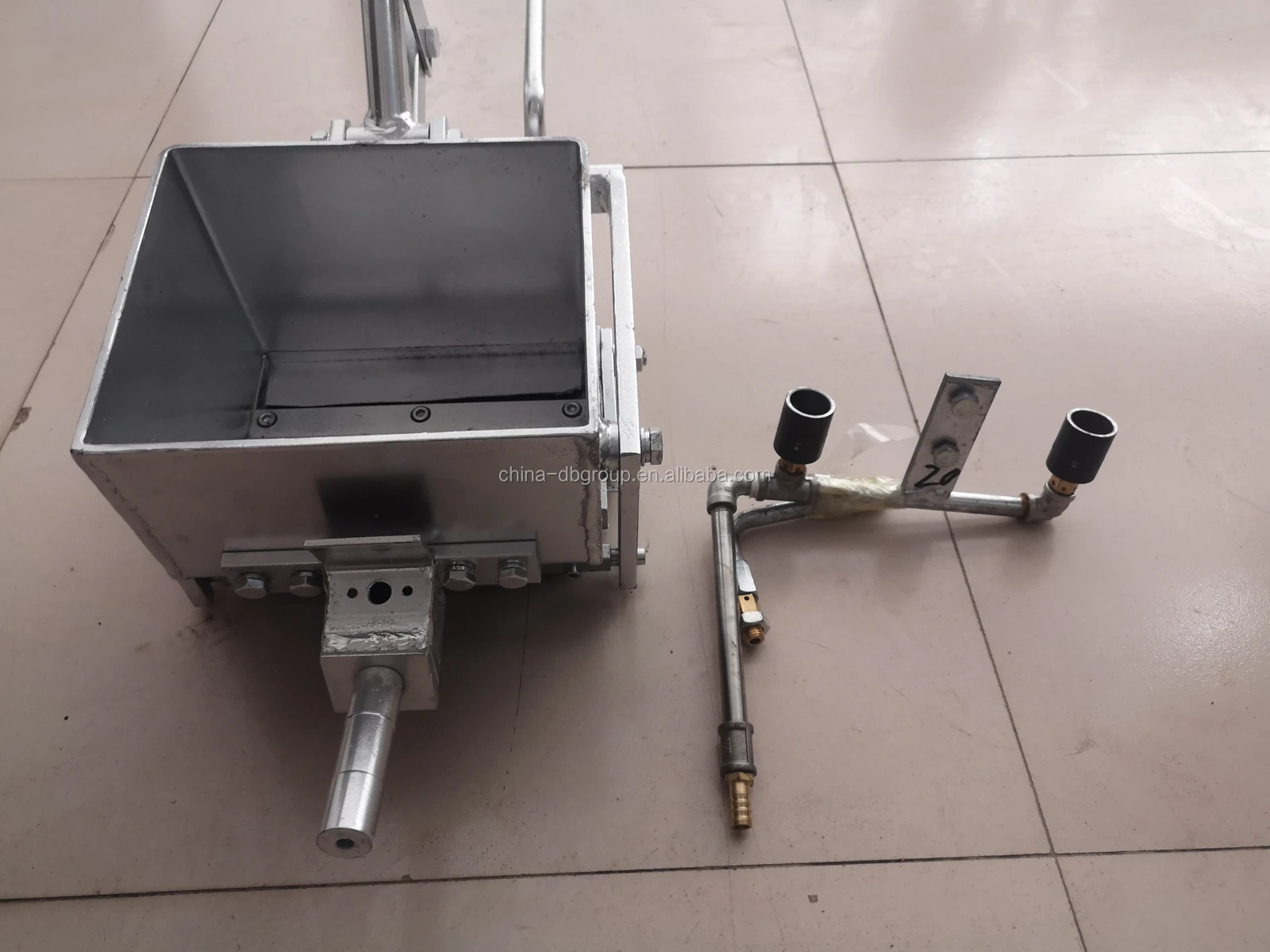

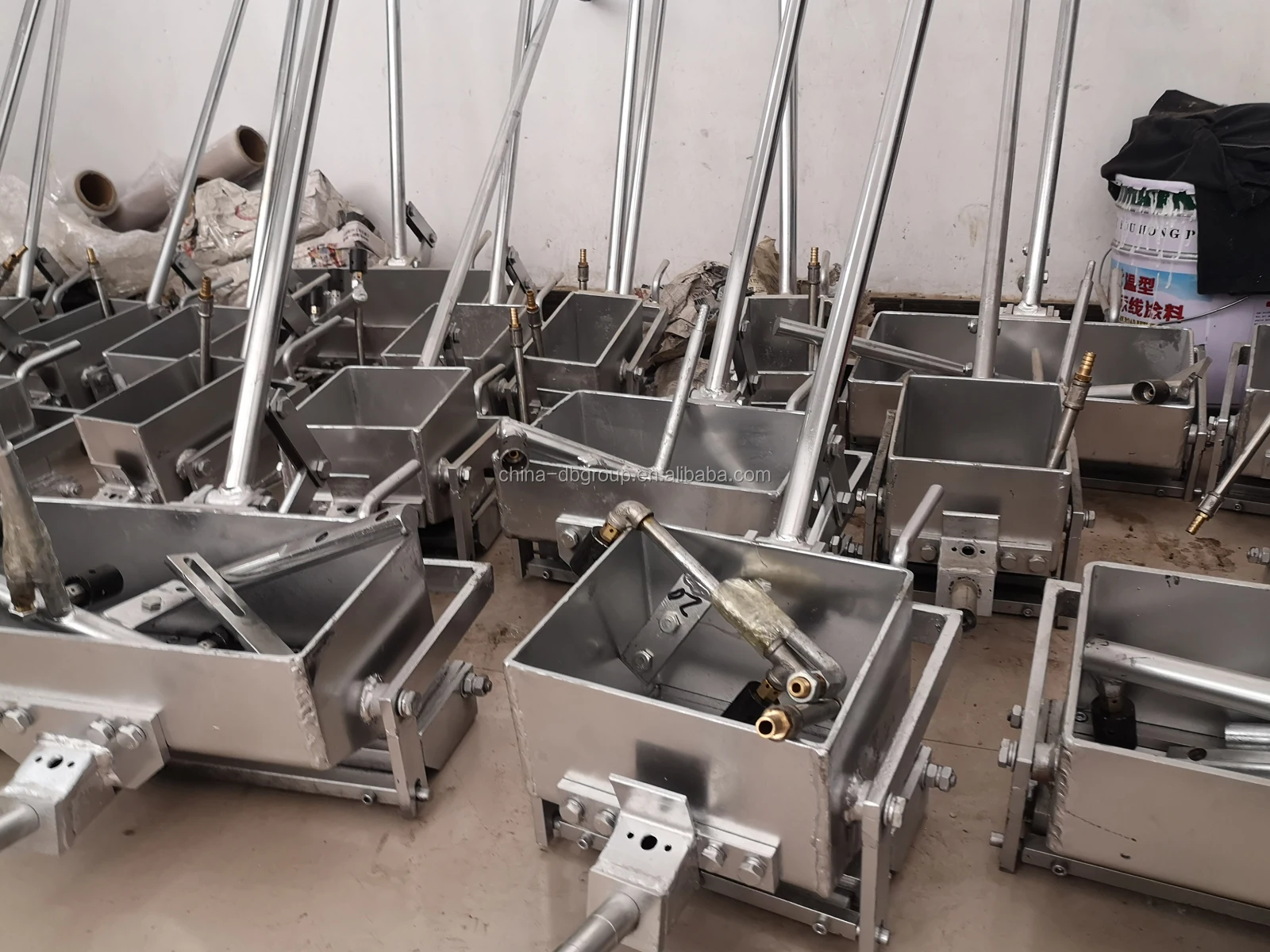

4. Crossed Doo: High-precision ultra-thin material manufacturing, scraper-type structure, the standard configuration of 150 mm.Be exchangeable.

5. Landing knife: Carbide, with eccentric sleeve device can adjust the thickness of the scope marking :1-2.5 mm.

6. Tire: Alloy Wheel Unit, a special heat-resistant rubber, after the last round with positioning devices for the body along a straight line direction.

7. Heating method: liquefied petroleum gas.

8. Subscript Line Width: engineering requirements in accordance with the replacement of different specifications crossed hopper.



1.Technical data

Item No.	DB-THP-I
Paint tank	55L
Glass beads bin	12L
Heating mode	Liquefied gas fue, infrared propone
Marking equipment	Manual screeding marking shoe,pressure casting, standard configuration150mm
Knife underframe material	carbon steel material
Marking width	100mm,200mm,250mm,300mm (at customers’option)
Marking thickness	1.8-3.0mm(adjustable)
Dimensions (L*W*H)	1210*890*970mm
Weight	165kg





2.Main features

*More stable:

Through gravity adjustment, widened front wheel, the Marking Machine is more

stable than traditional ones when marking 450mm zebra crossing.

*Lighter:

Through repeatedly gravity test, rechoose new shaft, the marking machine is much lighter,

reduced operator’s working intensity. So the marking works is easier and more effectively.

*Easy to operate

Marking hopper’s operating range minimized from 300mm to 200mm, more accurately ,

easier to control, therefore such problems as slow hopper withdrawal and uneven finishing

mark edge are solved.

3.Availabe paint: Thermoplastic road marking paint

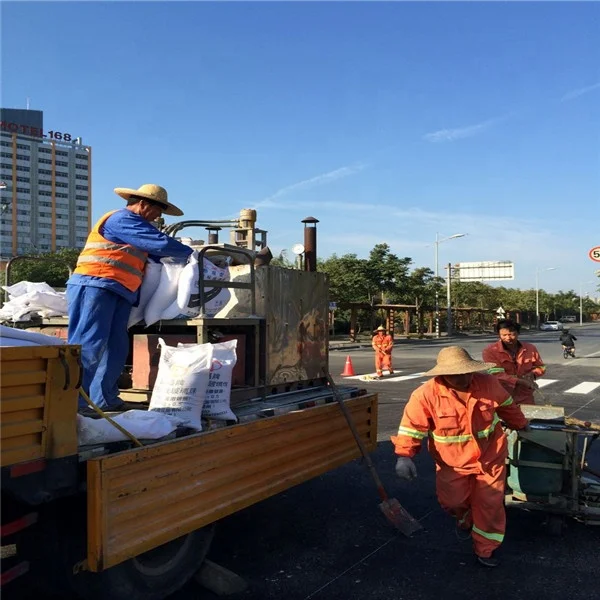

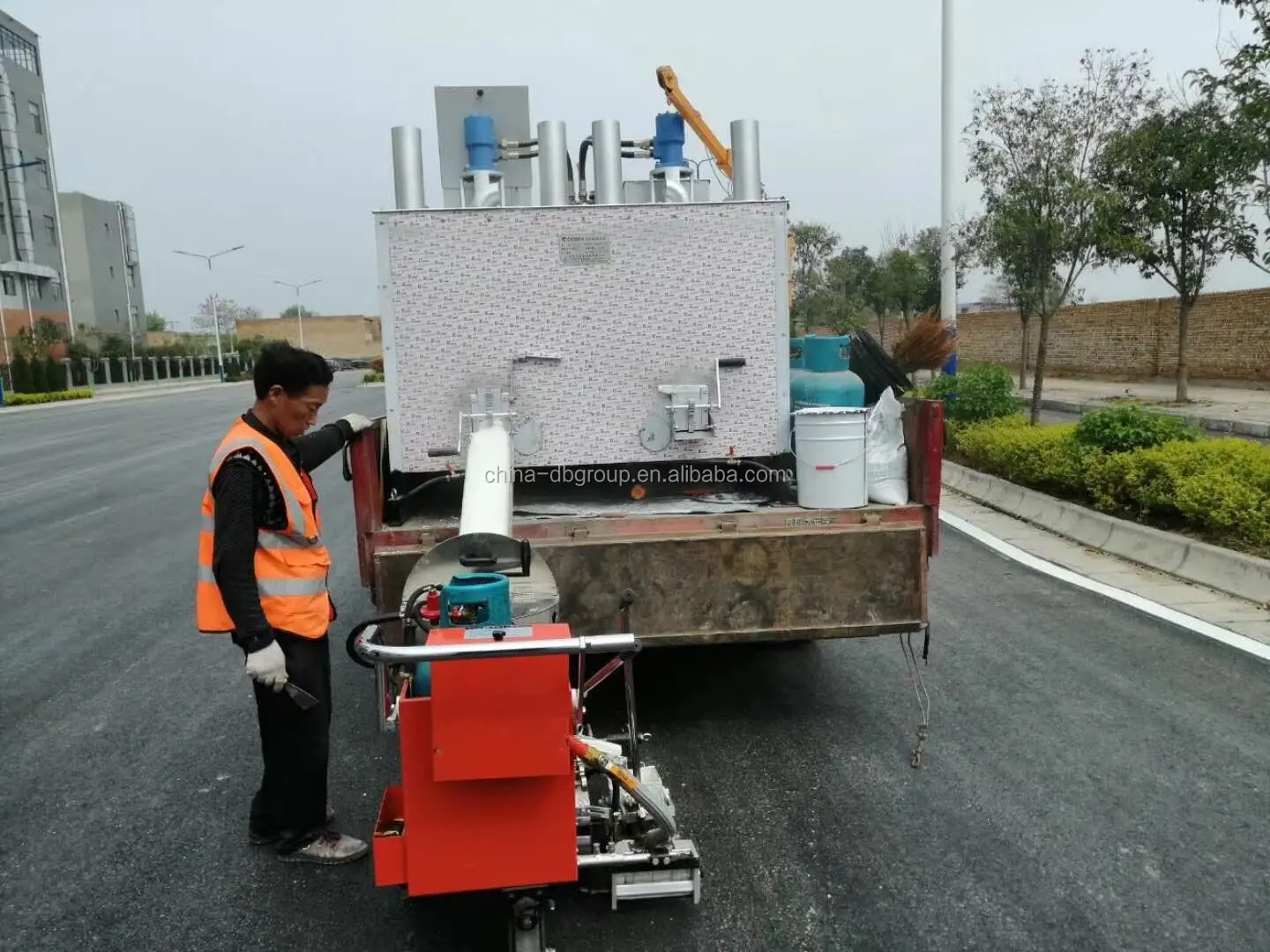

4.Equipped with thermoplastic road marking machine---pre heater

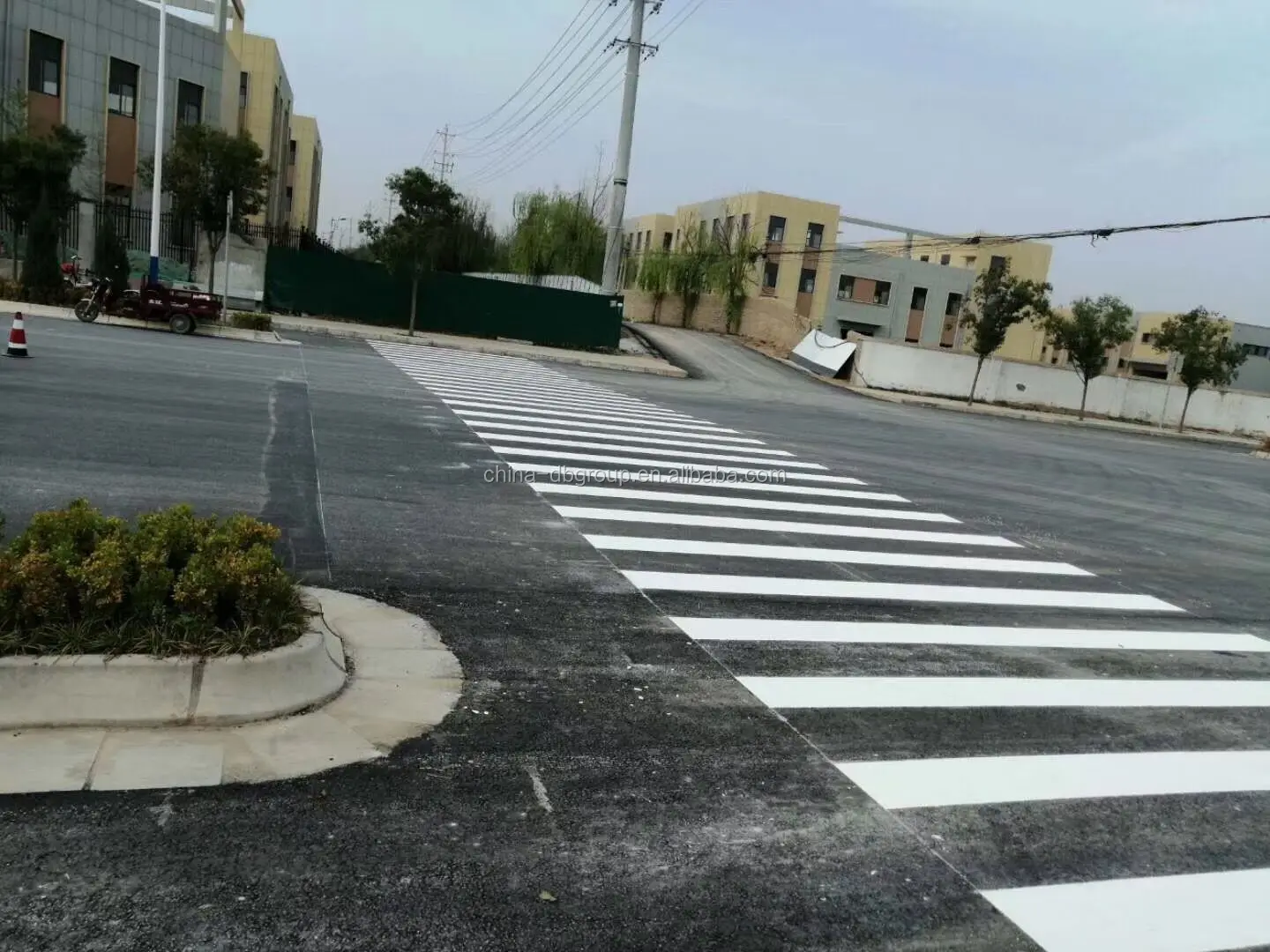

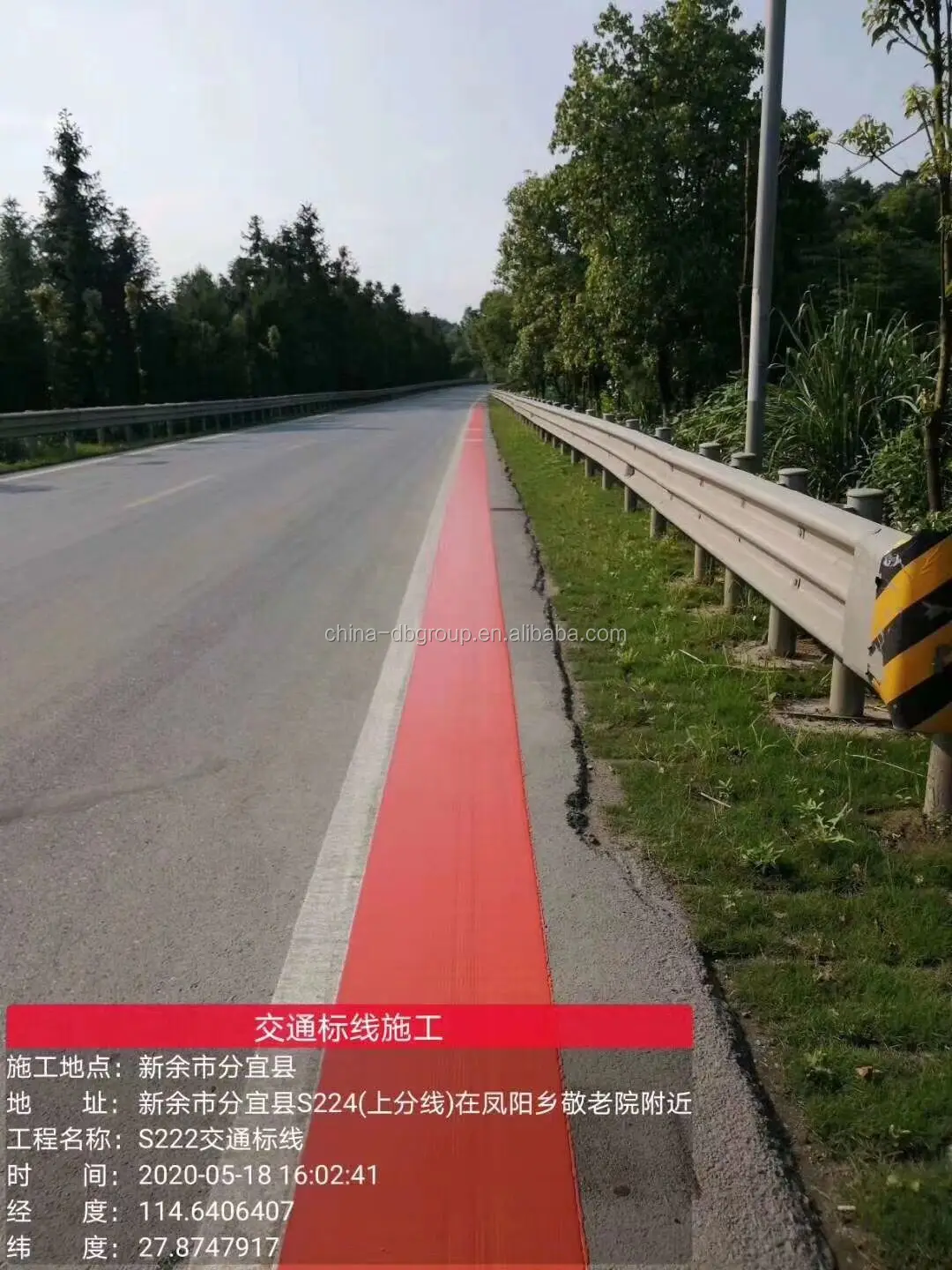

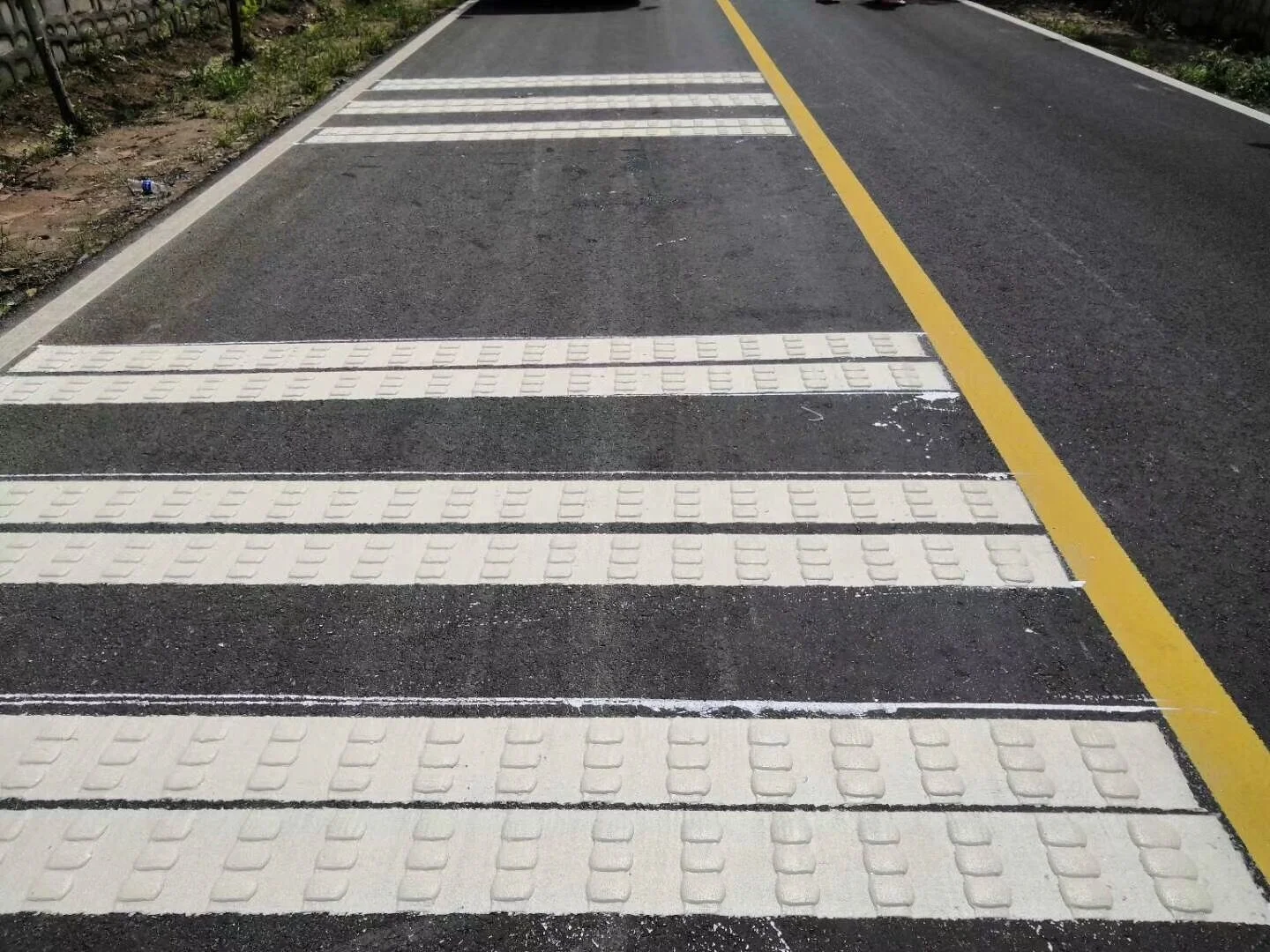

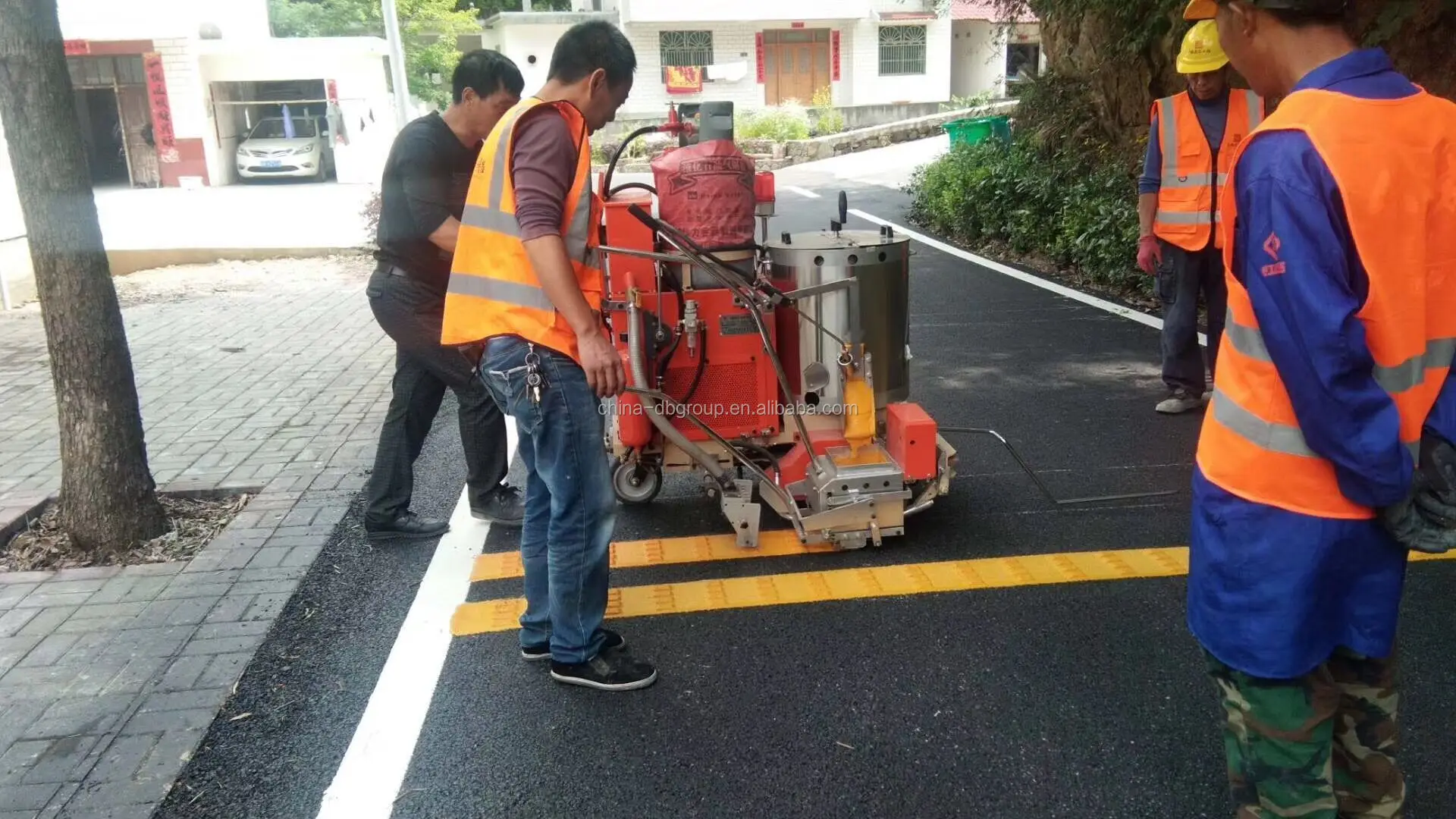

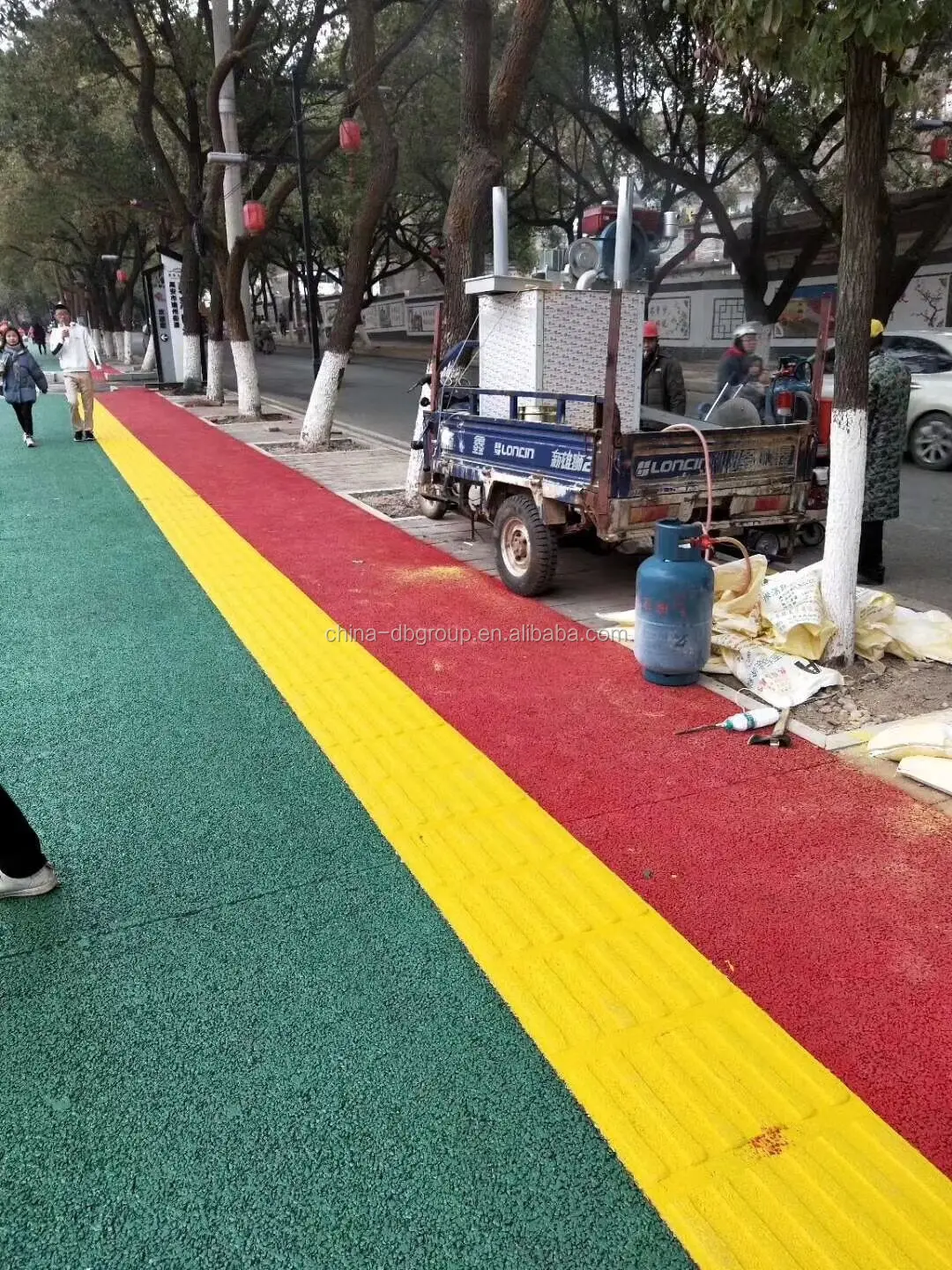

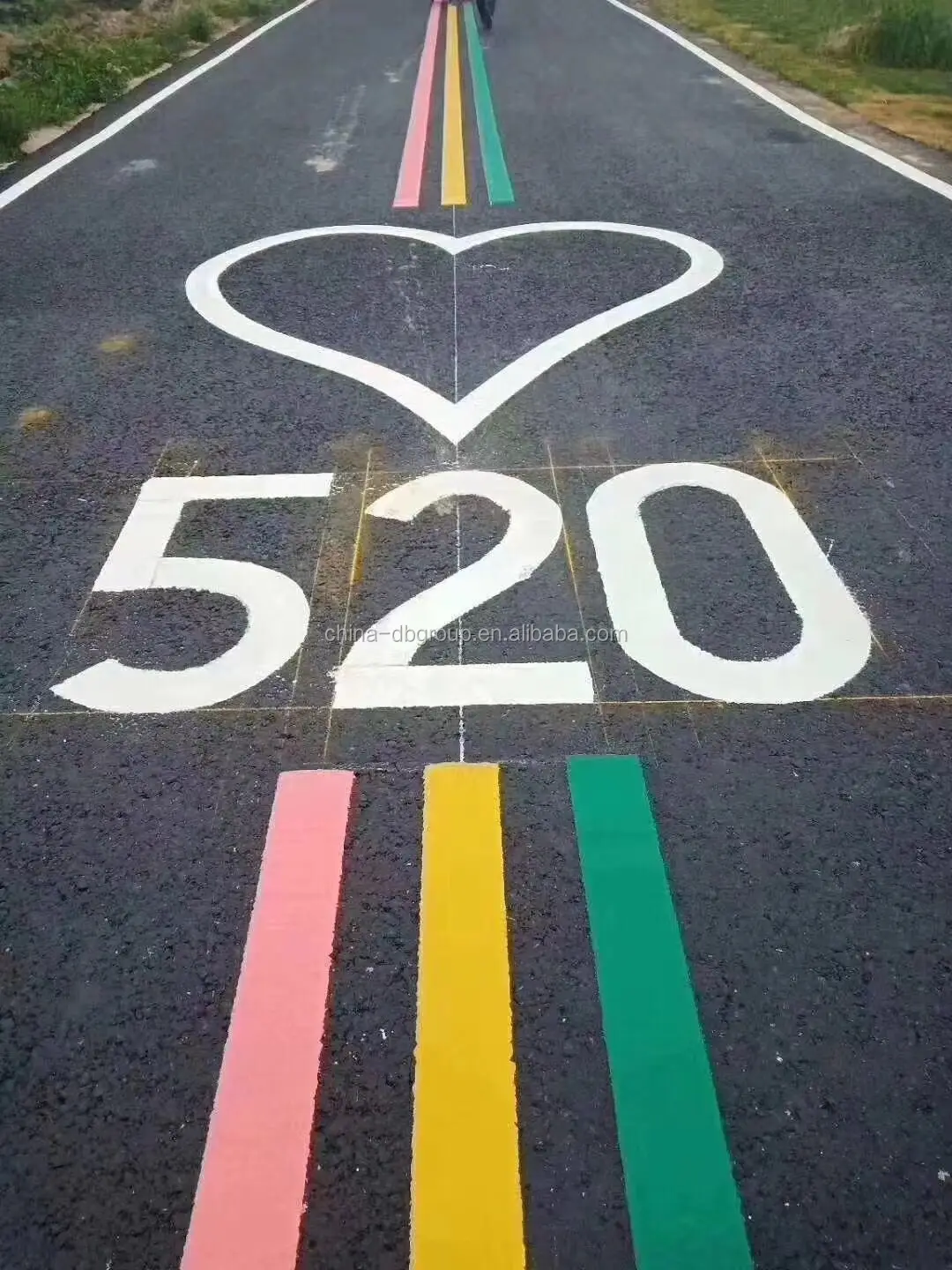

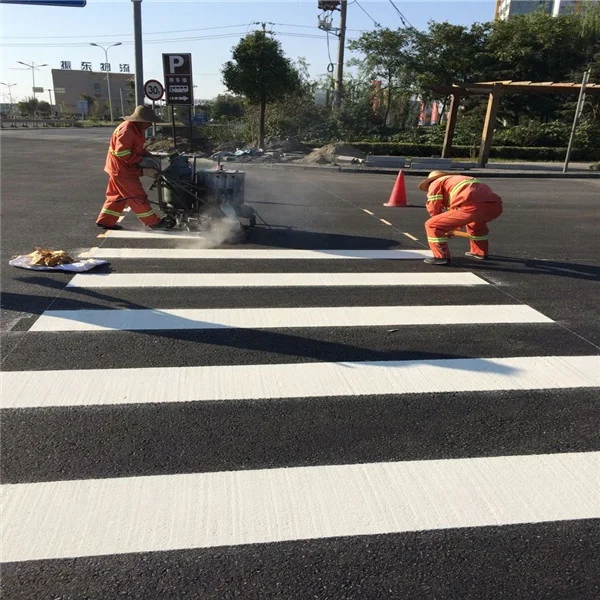

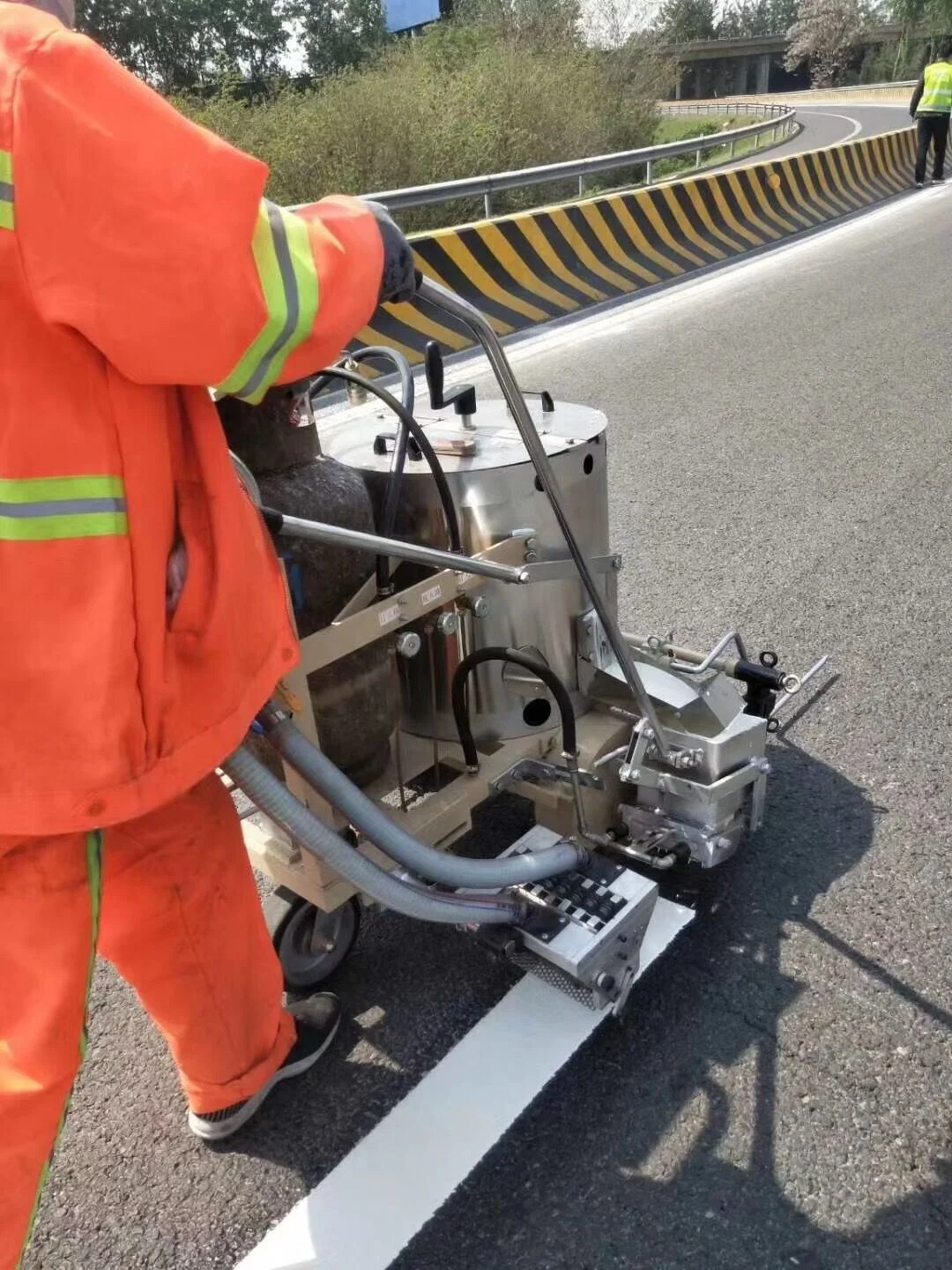

Road marking by our machines
