Big 16x1 lcd display module 1601 Character LCD Display



Product Description







Product information:














































































Module No.:



HSM1601B



Display Type:



16 Characters x 1 Line



Encapsulation:



COB



Outline Size:



122 x 33 x13.3 mm



Viewing Area:



99 x 13 mm



Screen Color:



Yellow-Green/Blue/Gray



Backlight Color:



Yellow-Green/Green/White/Blue/Orange/Red



Backlight::



Side LED



Driver IC:



AIP31066



Connector:



Conductive Silicon Rubber



Pin Number:



16



Interface:



8-bit MPU interface



Driver Condition:



1/16 Duty,1/5 Bias



Viewing Direction:



6 O’Clock



Operating Voltage:



5V/3.3V



Operating Temperature:



-20~+70℃



Storage Temperature:



-30~+80℃







Product description:





Character LCD 16x1 (5 x 8 dots)
 STN-YG / STN-Blue / STN-Gray /FSTN-Gray


 +3.3V / +5.0V power supply
 Viewing Direction: 6H / 12H
 Backlight (Side LED): Yellow-Green / Green / White / Blue / Orange / Red / Amber / RGB
 Fonts: English-Japanese / English-European / English-Cyrillic (Russian)





Mechanical Diagram:


 HSM1601B

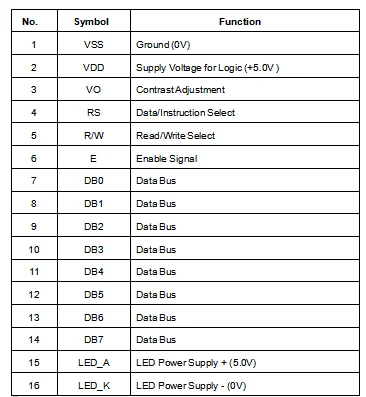

Interface Pin Description:




Details Images

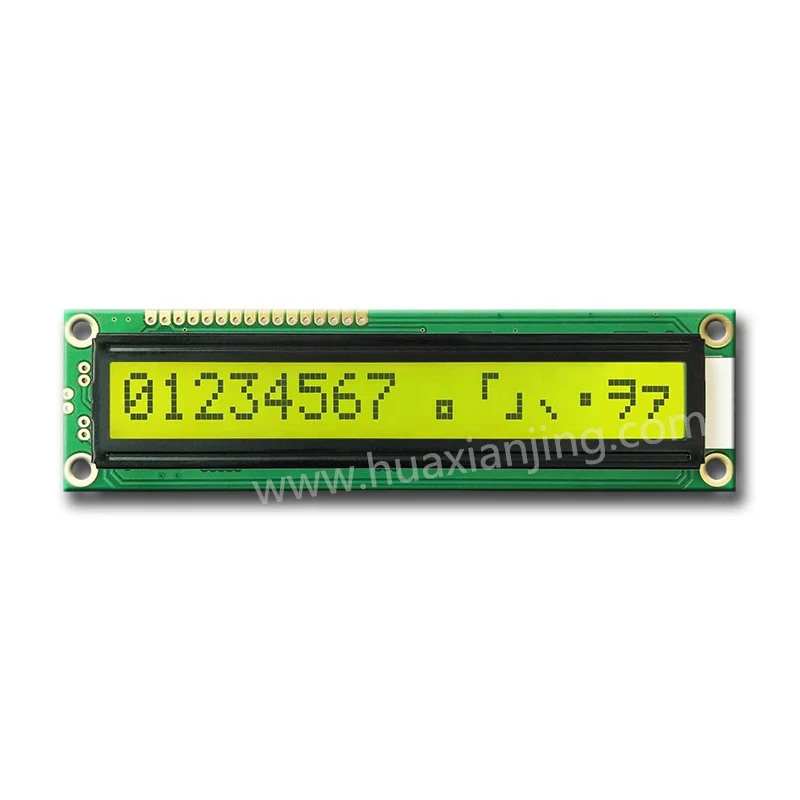

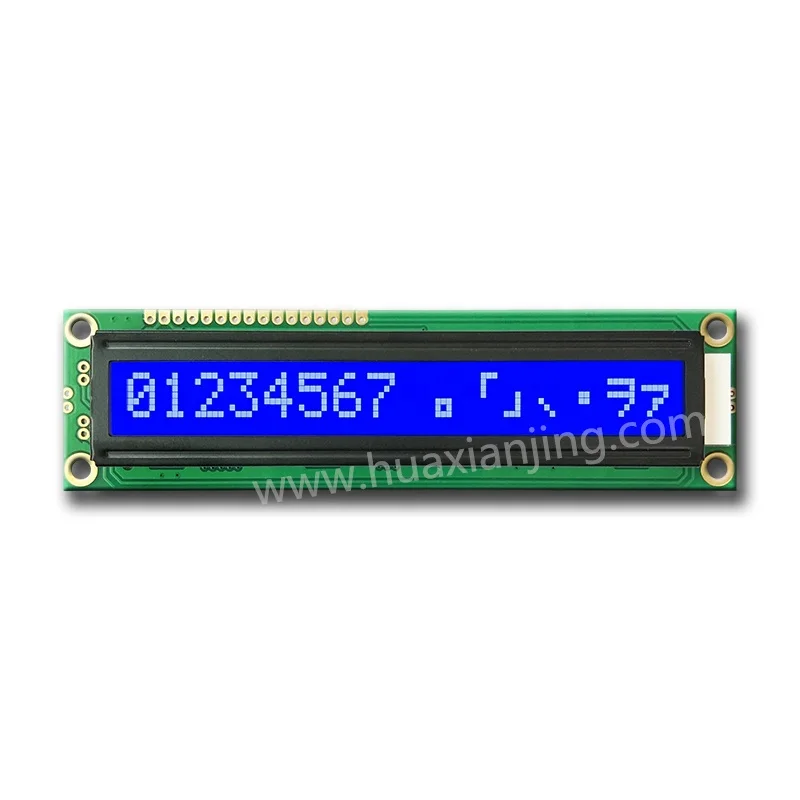

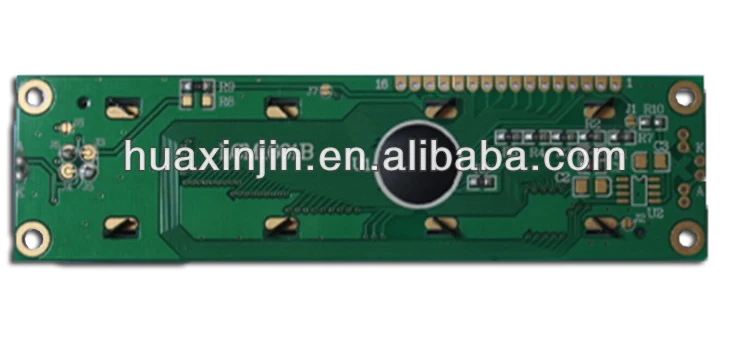

 1601B-Y-1.jpg1601B-B-1.jpg1601b
