8K 13k 18k elevator guide rail

Product Overview

Description

ELEVATOR PARTS

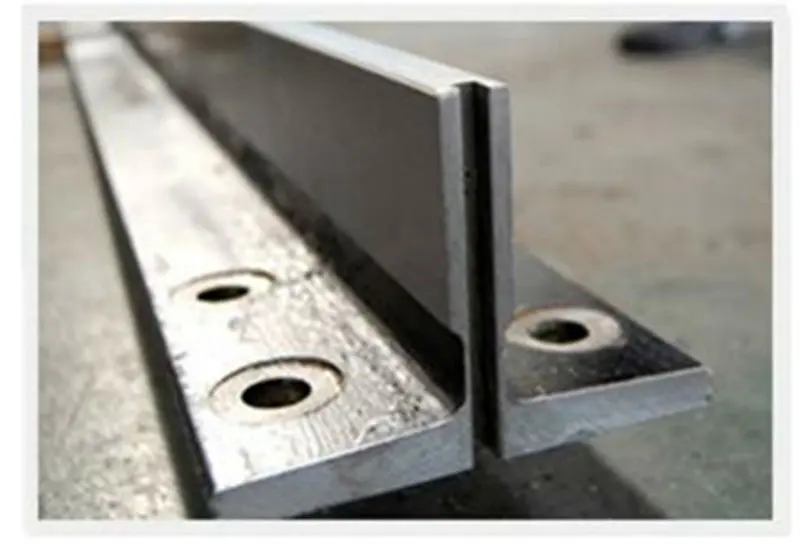

Elevator guide rail T89/B is one of our main products,Most of them are sold to our China market, India market and Africa market.



Remark:

1.  All our material quality according to Q235A

2.  We're producing our elevator guide rail under international standard ISO 7465.

3. The dimension for T89/B: 89mm*62mm*16mm

4. We can produce many types of elevator guide rails:

T45/A            45mm*45mm*5mm

T50/A            50mm*50mm*5mm

T70-1/B         70mm*65mm*9mm

T75-3/B         75mm*62mm*10mm

T89/B            89mm*62mm*16mm

T90/B            90mm*75mm*16mm

T114/B          114mm*89mm*16mm

T127-2/B       127mm*89mm*16mm









Bitmap Zhangjiagang Xinlin Machinery Co.,Ltd
Size & Tolerance of Guide rail(mm)				Size & Toerance of Guide rail fishplate(mm)
Type/Tolerance	b1	h1	k	Type/Tolerance	L1	b2	V
T45/A	45	45	5	T45/A	160	50	8
T50/A	50	50	5	T50/A	200	50	8
T70-1/B	70	65	9	T70-1/B	250	70	10
T75-3/B	75	62	10	T75-3/B	250	70	10
T78/B	78	56	10	T78/B	250	70	10
T89/B	89	62	16	T82/B	216	80	10
T90/B	90	75	16	T89/B	305	90	13
T114/B	114	89	16	T90/B	305	90	13
T127-2/B	127	89	16	T127-2/B	305	130	18
TH3	75	55	10	TH3	220	72	2.5
TH5	87	60	16.4	TH5	350	87	4
TH3A	78	60	16.4	TH3A	200	78	4
TH5A	78	60	16.4	TH5A	200	78	4
Remark:
All our material quality according to Q235A
We produce our elevator guide rail under international standard ISO7465
All price are according to current raw materail price
Our payment Terms are T/T & L/C, Our ability is 1500 Tons per month







We will try our best to satisfy your meets.Welcome your enquiry.
