1mm Deep Metal Fiber Laser Engraving Machine / 50W /100W IPG Laser Marker

Product Overview

Description

1mm Deep Metal Fiber Laser Engraving Machine / 50W /100W  IPG Laser Marker

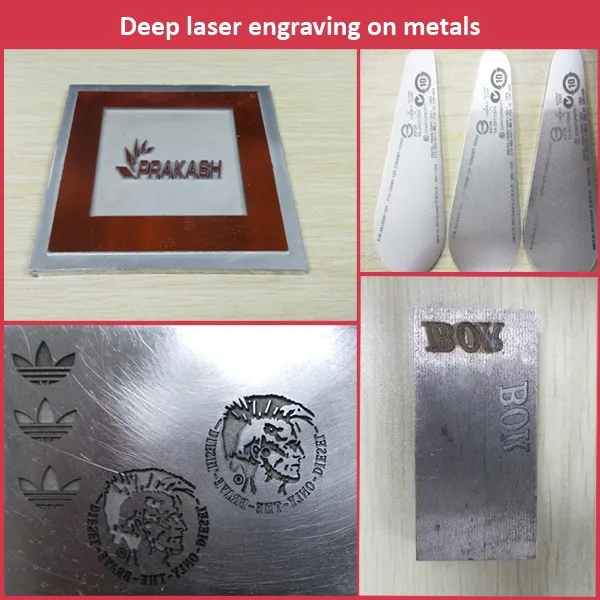

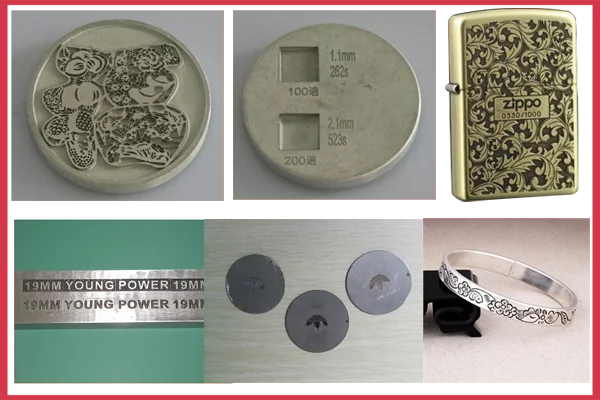

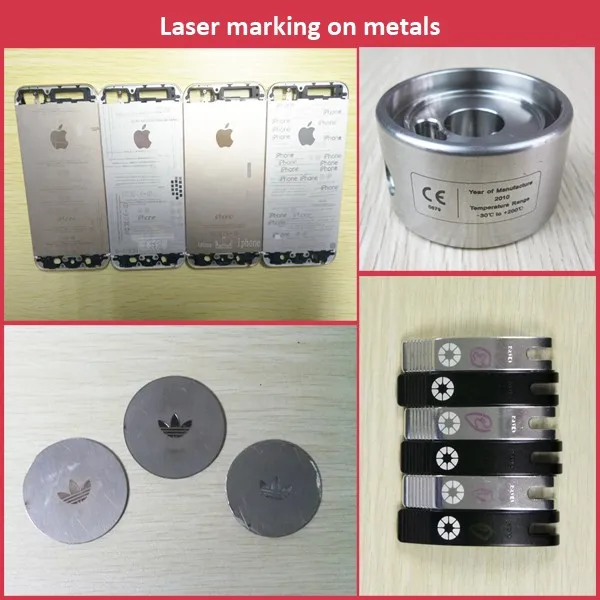

Samples for Referece:

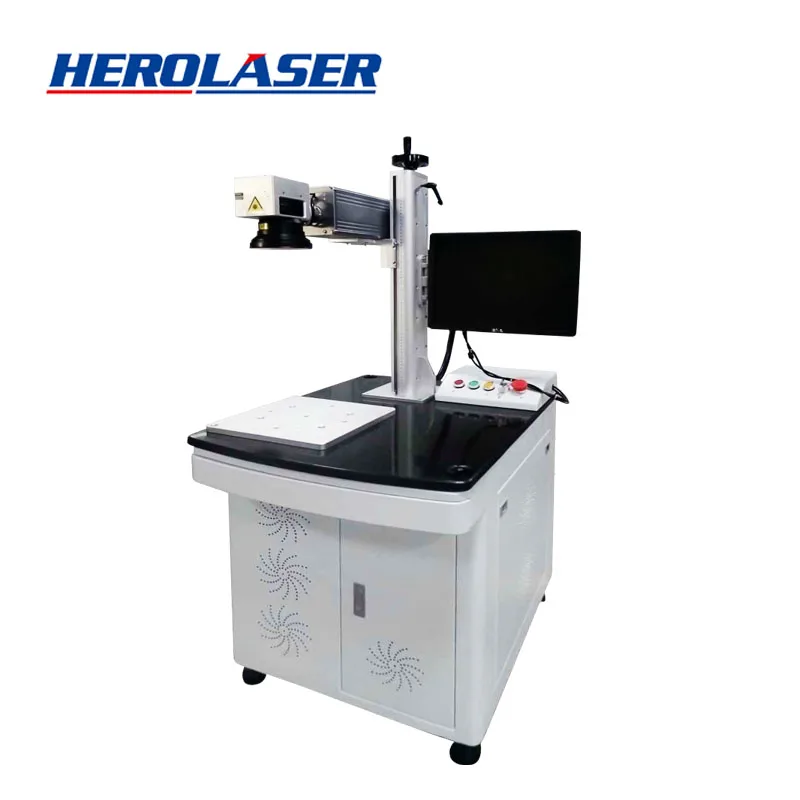

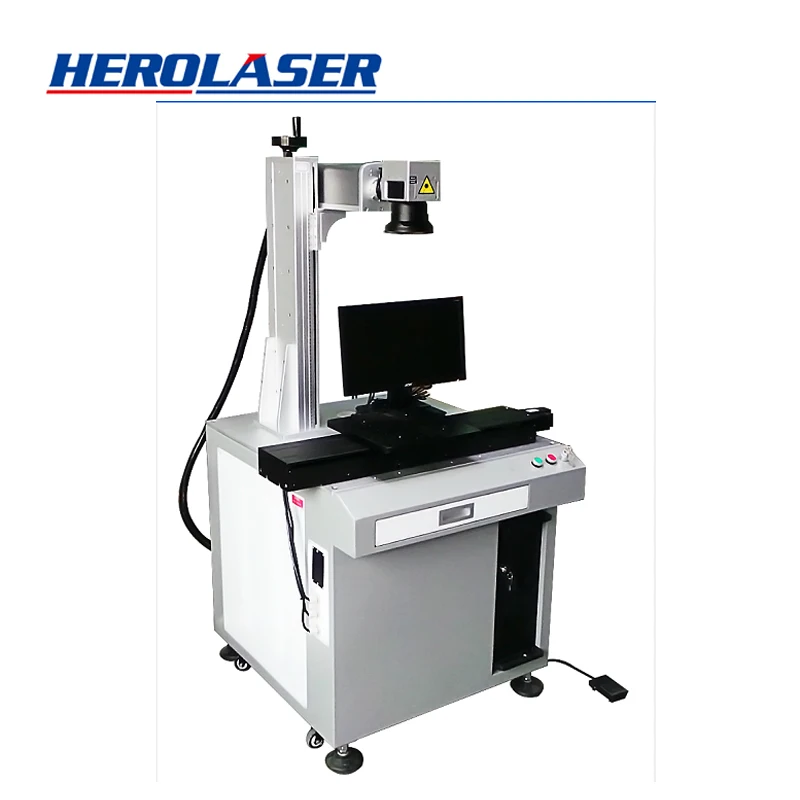

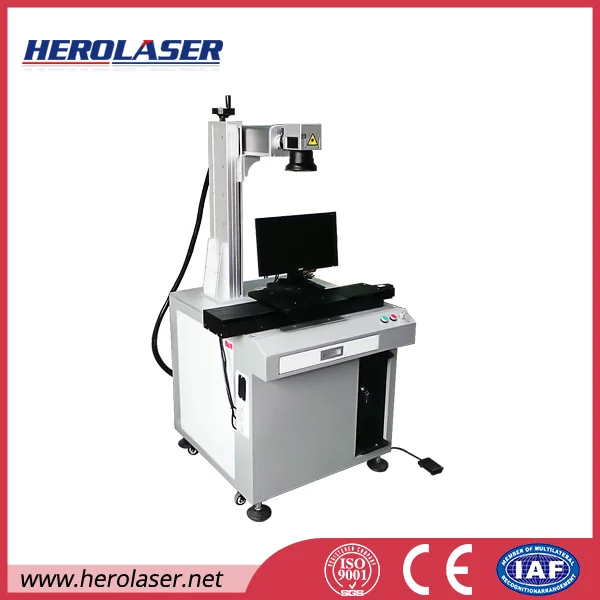

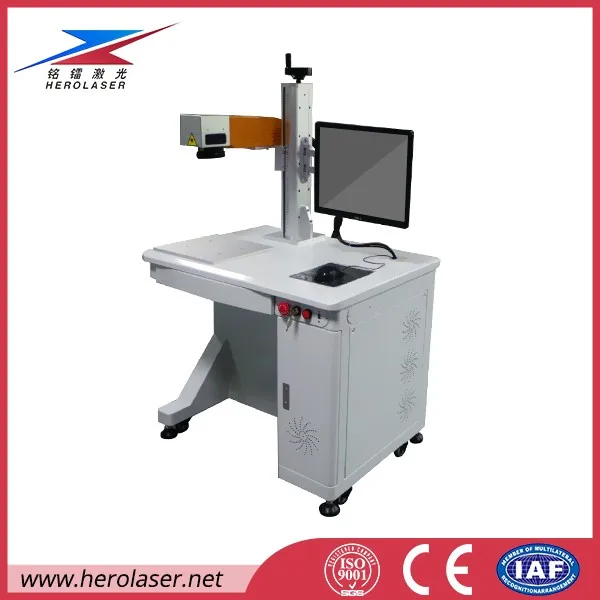

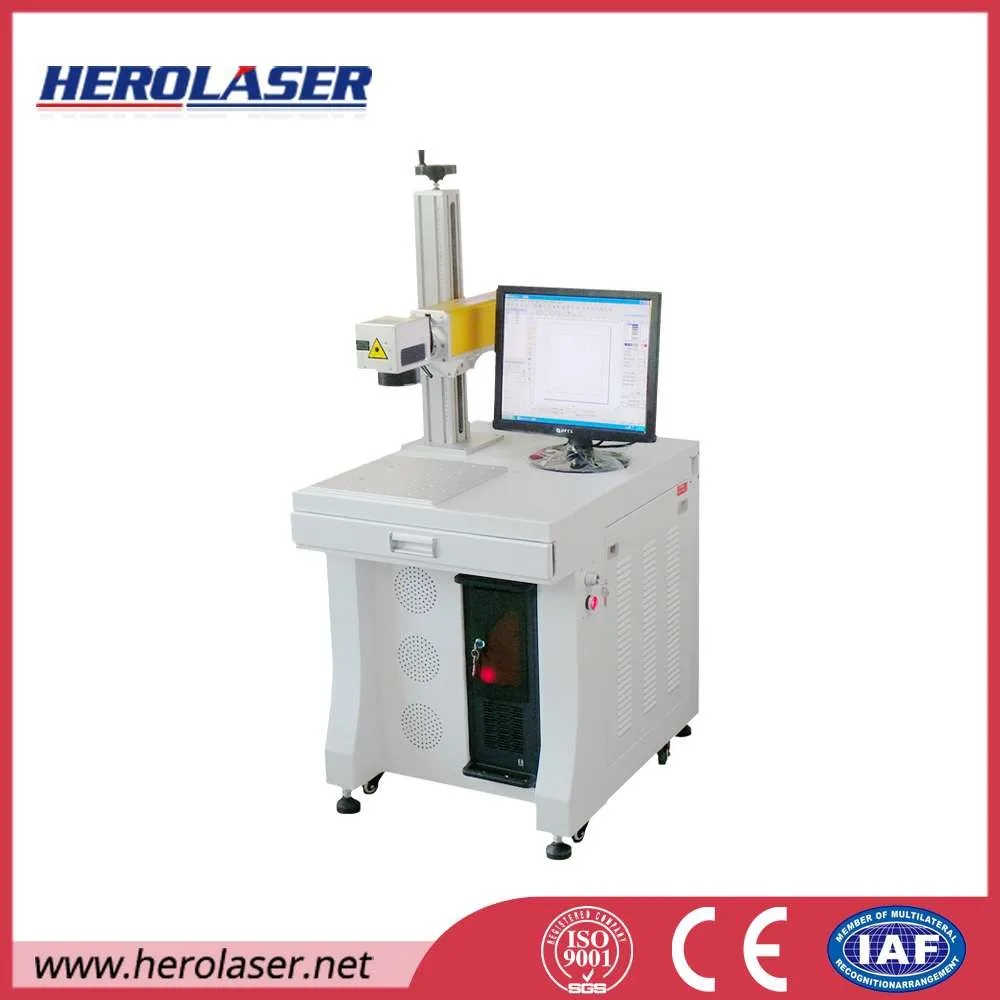

Machine Images:



Model Introduction:

Fiber laser deep engraving machine adopts low frequency, high pulsed energy, high peak power fiber laser source ( Germany IPG-30W/ 50W/ 100W), through precision beam shaping and proprietary technology focusing, form a perfect, high-speed laser beam and special spot, the German high-speed digital scanning galvanometer to enable fast deep engraving, with flat carved bottom, little taper, small heated-affected zone and high speed characteristics.

Model Features:

1. Material’s absorption of laser, engraving time and other factors are lead to engraving depth.

2. High precision. Good reliability, specially for complex graphics processing.

3. Can greatly improve production efficiency and processing depth.

4. Using high digital scanning galvanometer, the speed has obvious advantages in engraving depth than conventional laser equipment.

5. Low maintenance costs, free maintenance for laser source, depending on power output of normal production and other factors, no need to adjust laser source and clean optical devices, no warn-up time and consumables.

6. Low operating cost, low power consumption, with air cooling system inside.



Application:

1. Suitable for all metallic materials, can mark high resolution, very beautiful text and graphics on electroplating materials, coating materials, coating materials, plastics, rubber, resin, ceramic and other materials.

2. Widely used for automobile, motorcycle parts, aerospace components, industrial bearings, seals, mold, electrical appliances components, electrical communications, precision hardware, gifts jewelry, medical equipment, glasses and clocks, instruments and sanitary ware industries. etc.



Technical specifications:

Model	ML-MF-W30/ 50/ 100
Laser Power	30/ 50/ 100W
Laser wavelength	1064nm
Repeating Frequency	20-200KHZ
Beam Quality	M<2
Marking Range	100mm x 100mm(Optional)
Marking Depth	0.1-3 mm(depend on material and marking time)
Marking Speed	≤10000mm/s
Min.line Width	0.01mm
Min.Character	0.15mm
Repeatability Accuracy	±0.002
Power Supply	220V±10% / 50-60Hz
Power Consumption	≤3000W
Weight	≤150kg
Operating System	Win98/Win2000/WinXP/Win 7
Cooling Way	Built-in air cooling
Control Interface	Standard USB
File Format	All character styles from character store of OS
Laser Type	Pulse
