Factory supply wash resistance Silicone foam rubber sheets with holes

Product Overview

Description

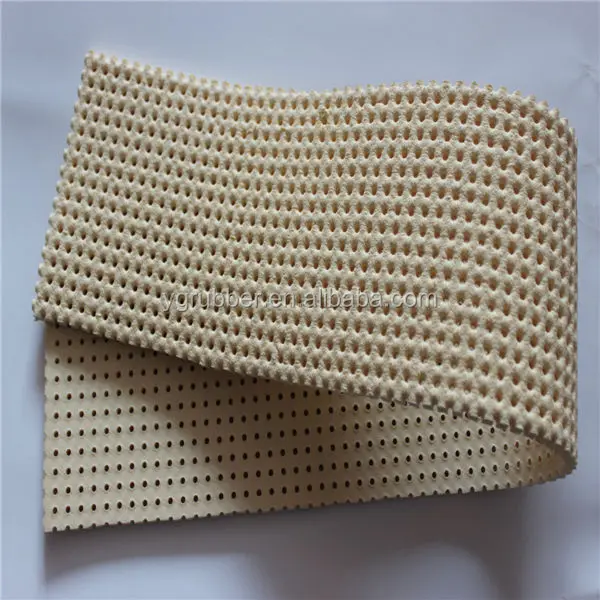

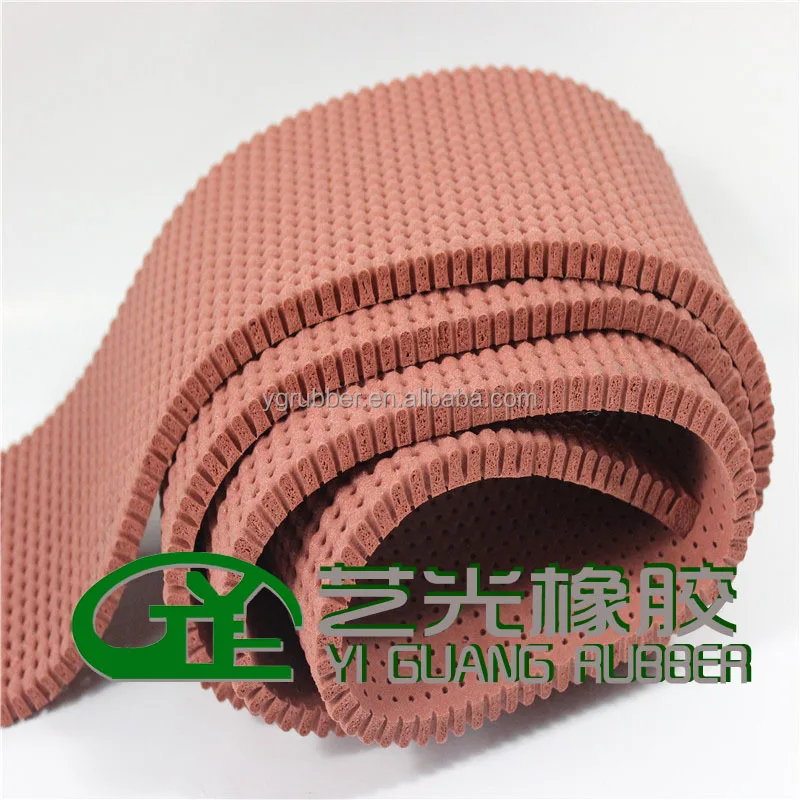

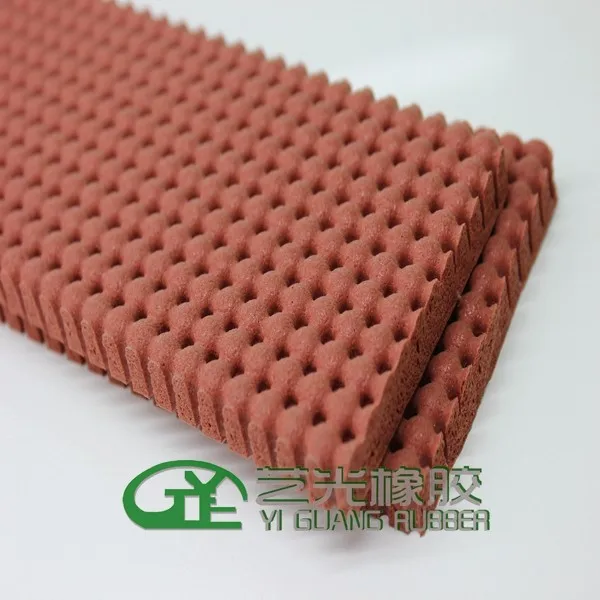

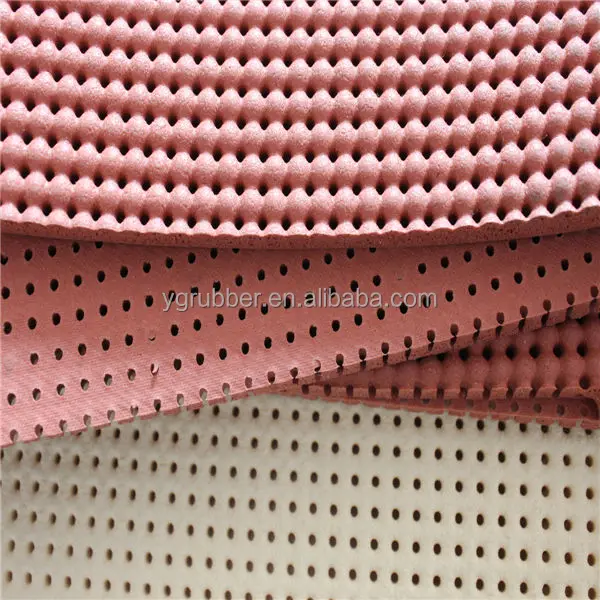

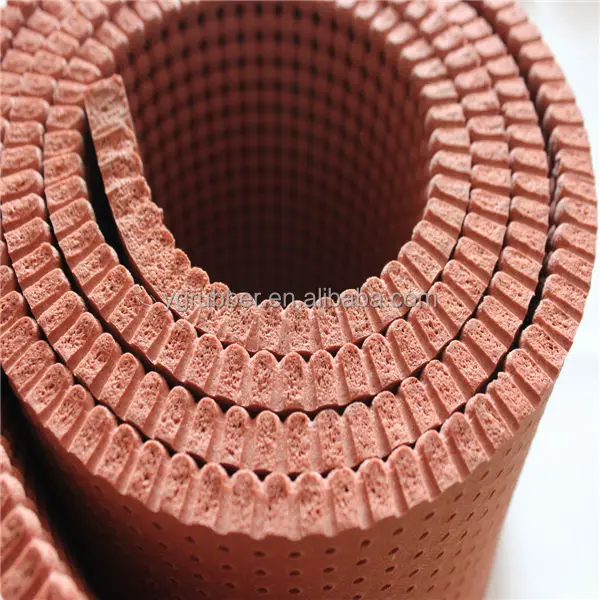

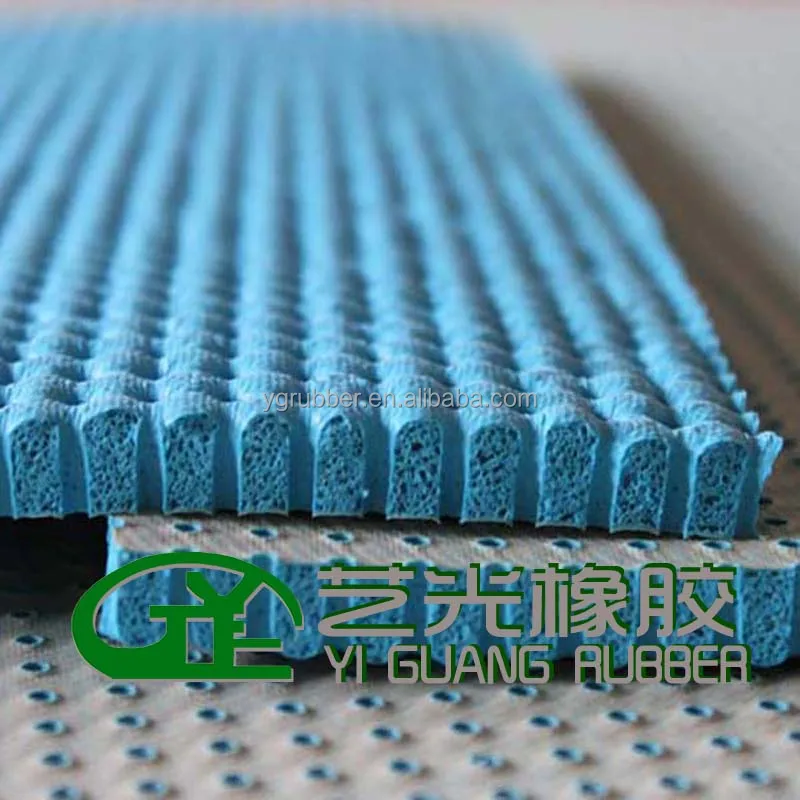

Perforated Silicone foam rubber sheets with Environmental Function



[Feature]



1) Insulating                              Electronic & Electrical Industry

2) Flame Retardant                  Anti-Burning Agents

3) Anti-oil & Waterproof           Gasket, Sealing Parts

4) Weather Resistance            Outdoor use material

5) Perfect Heat-Resistance       Printing Industry---heat transfer machine

6) Soft and Elastic                     Architecture Industry & Machinery Industry

Technical Data

Performance	Parameter	Test Standard
Tensile Strength	3.0 M pa	ASTM D412
Breaking Strength	25 K n/m	ASTM D1458
Elongation	450%	ASTM D412
Hardness	20±5 Shore A	ASTM 2240
Temperature Range	-40~250 C	En344
Density	0.4~0.95 g/cm3	ASTM D792
Thermal Conductivity	0.06w/m*k	ASTM D5470
Breakdown Voltage	25 K V	ASTM D149

   Notes: 0.6~0.9 g/cm3 = 0.0216~0.0325 Lb/in3            -60°C~260°C= -140°F ~500°F





[Size Specification (mm)]

 Min Length: Unlimited      Max Length: Unlimited

Min Width: Unlimited        Max Width: 1500

Min Height: 0.8mm           Max Height: 30mm

[Standard Size (mm)]

290*380*(5-15)         380*380*(5-15)    400*600*(5-15)    500*500*(2-30)

500*600*(5-15)        600*800*(5-15)     1000*1000(5-12)  1000*1200*(5-12)

1000*1500*(3~15)  1500*1500*(3~15);



[ Standard Roll Size]

 1m wide * 10m length * (0.8-15mm)

 1.2m wide * 10m length * (0.8-15mm)



[Color]

 Grey, Red, Black, White, Others can be customize on demand



[Advantages]

1. Excellent resistance to oil, heat, low temperature, atmospheric oxidation

2. Good insulation, electrical conductivity, fire-retardant performance

3. Abrasion, acid, water, shock, aging resistance etc



Packing and Shipping

1)Inner plastic film, outer CTN, Woven Bags, etc., can meet your requirement.

2)International express such as:FedEx,DHL,UPS,TNT;Or sea shipments as customers' required.



Shanghai Yiguang Special Rubber Products Co., Ltd(Shanghai and Hefei factories). established in 2006, mainly engaged in the study of silicone rubber foam sponge and polymer materials,

and we have technical cooperation with many schools and research institutes.

Currently,our production technology and production equipment has reached the leading level in domestic. The total area is 23,100 square meters.

The main products can be divided into 6 series: silicone foam series, silicone sponge series, silicone extrusion strip&tube series, silicone sheet series, silicone die-cut parts series, high-temperature silicone seal gasket series.

Our products is complementary products of aerospace,railway and high-speed rail, automotive, home appliance industry, electrical and electronics, medical and food fields, printing equipment, textile, clothing and equipment and other fields.

The company has passed ISO9001: 2000,ISO14001 environmental management system certification, DFA,UL and GS.
