 NDS356X DVB-S2 IRD with BISS



Product Description

DVB-C, T/(T), S/S2 RF to CVBS






Demodulation Module = 2*RF/Loop out + 2*CAM + 2*Smartcard








Key Features

n  2 Tuner inputs (DVB-C, T/(T), ISDBT, S/S2/S2X Optional)

n  1 ASI & 1 IP (UDP) input for re-mux

n  Separate 2*CVBS(4*CVBS optional) video output

n  IP (1 MPTS & 8 SPTS) over UDP and RTP/RTSP output; ASI out

n  Demodulation + descrambler + decoder modules in one box

n  One CAM can decrypt multiple programs from Tuners/ASI/IP

n  Support maximum 128 PID mapping per input

n  Support BISS descrambling(each BISS module supports up to 60Mbps)

n  Pluggable and changeable demodulator and decoder modules

n  LCD display, Remote control and Firmware, web NMS management

n  Updates via web

n  Best quality and breakthrough price





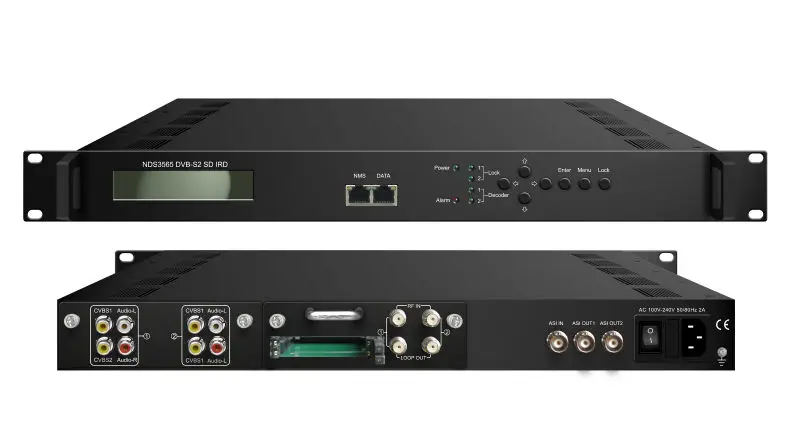

Product Introduction

 NDS356X Series SD IRD is DEXIN’s all-in-one device which integrates demodulation, de-scrambler and decoding (DVB-C, T/(T), ISDBT, S/S2/S2X optional) in one case to convert RF signals into analogue video (CVBS) output.

It is a 1-U case which supports 2 tuner inputs. The two CAMs/CIs accompanied can descramble the programs input from encrypted RF, ASI and IP. The CAM requires NO unsightly external power cords, cables, or additional remote control device.

BISS function is also embedded to descramble programs from any input.

Its pluggable structure design greatly facilitates the change of modules (demodulator or decoder) as needed.

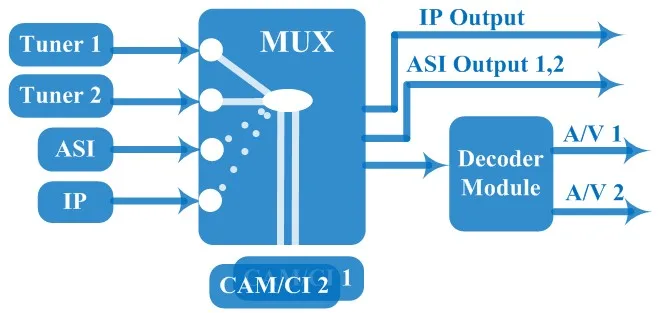

Principle Chart





 356 PC.jpg





Technical Specifications



Input

2 *Tuner(DVB-C, T/(T), ISDBT, S/S2/S2X optional), F type

1*ASI input for re-mux, BNC interface

1*IP input for re-mux (UDP)



Tuner Section

Multi-mode tuners switchable

(New)

DVB-C

Input Frequency

60 ~890 MHz



Standard

J.83A, J.83C

J.83B



Constellation

16/32/64/128/256 QAM

64/256 QAM



DVB-T/(T)

Input Frequency

60 ~890 MHz



Bandwidth

6/7/8 M



ISDB-T

Input Frequency

60 ~890 MHz



Version 1

DVB-S

Input Frequency

950~2150MHz



Symbol rate

1~45 Msps



FEC

1/2, 2/3, 3/4, 5/6, 7/8



Constellation

QPSK



Signal Strength

- 65~-25dBm



Max input bitrate

≤120 Mbps



DVB-S2

Input Frequency

950~2150MHz



Symbol rate

1~45 Msps



FEC

1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10



Constellation

QPSK, 8PSK



Max input bitrate

≤120 Mbps



Version 2

(New)

DVB-S

Input Frequency

950~2150MHz



Symbol rate

0.5~45Msps



Signal Strength

- 65- -25dBm



FEC

1/2, 2/3, 3/4, 5/6, 7/8



Constellation

QPSK



Max input bitrate

≤160 Mbps



DVB-S2

Input Frequency

950~2150MHz



Symbol rate

QPSK/8PSK /16APSK :0.5~45 Msps

32APSK: 0.5~40Msps;



FEC

QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10                                            8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10                                             16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10                                           32APSK: 3/4, 4/5, 5/6, 8/9, 9/10



Constellation

QPSK, 8PSK, 16APSK, 32APSK



Max input bitrate

≤160 Mbps



DVB-S2X

Input Frequency

950~2150MHz



Symbol rate

QPSK/8PSK /16APSK :0.5~45 Msps

8APSK: 0.5~40Msps

32APSK: 0.5~40Msps



FEC

QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20

8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10

8APSK: 5/9-L, 26/45-L

16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36 , 2/3-L, 25/36, 13/18, 7/9, 77/90

32APSK: 3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45, 11/15, 7/9



Constellation

QPSK, 8PSK, 8APSK, 16APSK, 32APSK



Max input bitrate

≤160 Mbps



Descrambling

CAM/CI Quantity

2



BISS Mode

Mode 1, Mode E (up to 120Mbps)



Output

IP (1*MPTS & 8*SPTS) out over UDP, RTP/RTSP.

100Base-T Ethernet interface (unicast / multicast)



2×ASI mirrored out, BNC interface



2*CVBS optional





Decode Out

Video Interface: 2xCVBS (RCA)

Audio Interface: 2xStereo/4xMono (RCA)

Resolution: PAL 576i, NTSC 480i

Video Decode: MPEG-2, MPEG-4 AVC/H.264(optional)

Audio Decode: MPEG 1 Layer II



4*CVBS optional





Decode Out

Video Interface: 4xCVBS (RCA)

Audio Interface: 4xStereo/8xMono (RCA)

Resolution: PAL 576i, NTSC 480i

Video Decode: MPEG-2, MPEG-4 AVC/H.264

Audio Decode: MPEG 1 Layer II



System

Local interface

LCD + control buttons

Remote management

Web-server Management

Language

English

Upgrade

USB, web management

Miscellaneous

Dimension

482*300*44.5mm  (W×L×H)



Approx weight

3.5kg



Environment

0~45℃(work);-20~80℃(Storage)



Power requirements

100~240VAC, 50/60Hz



Power consumption

20W
