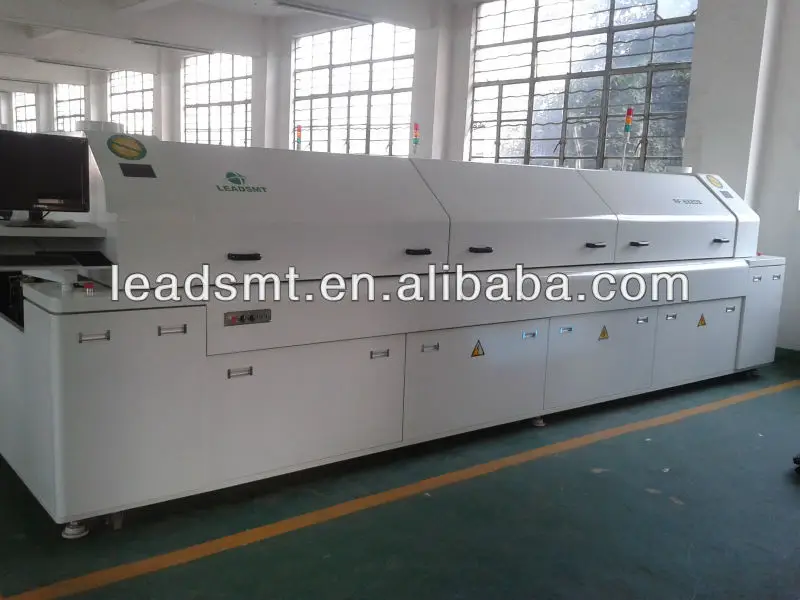

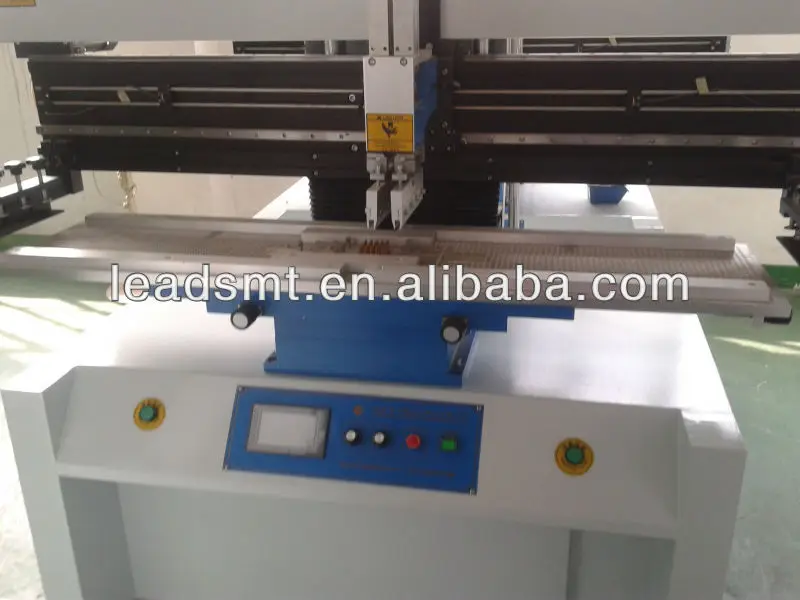

Turn key machine line for led lights factory set up

Model

LEAD-2208

Working Type

Online, Fully automatic

Mounting Heads

8 Pieces

Stable practical Speed

45000cph

Max Speed

58000cph

Position Accuracy

±0.005mm with one big cameras with 3 million pixels .

Placement accuracy

Usually ± 0.1mm, with 8 visual cameras and visual system check option for high precision electronics PCBA .Placement accuracy up to ± 0.05mm if added .

Max moving range(X,Y)

X axis 1220mm, Y axis 430mm

Z axis max moving range

10mm

Position and programming Method

1.Key and mouse input

2.Vision Mark Position realization

3.PCB Gaber file input

Max Mounting PCB size

1200mm*320mm(in One cycle)

Mounting components type

Including and above 0402 smd components like resistors ,ics ,capacitors,all kinds of leds such as 2835,3014,3030,4040,5050,5630,5730,7070 and high powers.

No. of Feeders

14 Pieces feeders maximum can be 20 pieces (made by order)

Feeder sizes available

8mm,12mm,16mm, 24mm ,32mm

Operation System

Windows XP .

Pressure detective system

Negative detective system with digital display

PCB Width adjust

By electrical Button control

Vacuum acceleration and stability system

Equipped with 3 sets of vacuum pumps with air blow acceleration system and stable pressure for pick up .

Weight

Approx 1000kg

Power Supply

Single Phrase ,220V, 50Hz,1.8KW

Dimensions

1930MM(L)*1180MM(W)*1450MM(H)
