Hot ! AC DC plasma cutter inverter CO2 gas shielded ARC pulse TIG MIG MAG MMA IGBT MOSFET welding machine plasma welding machine
- Category: >>>
- Supplier: Andeli Group Co. Ltd.
Share on (1481783009):
Product Overview
Description
Hot ! AC DC plasma cutter inverter CO2 gas shielded ARC pulse TIG MIG MAG MMA IGBT MOSFET welding machine plasma welding machine
| Why choose us? |
1. 20 years - Andeli Group Co.,Ltd is founded in 1993. |
Product Description

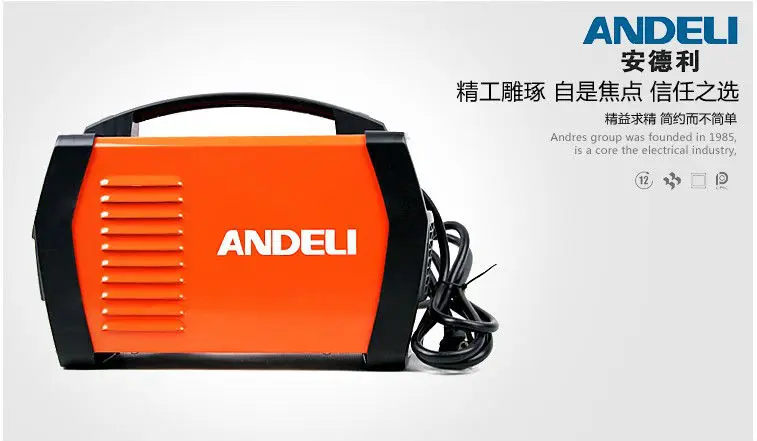

Products Photo Showing:
Name: Inverter IGBT DC ARC MMA Welding Machine
Model:ARC-140G/ARC-160G/ARC-200G
Suitable Base Materials: Aluminium, Al-Mn alloy, Al-Mg alloy, Carbon steel, Stainless steel, Low-alloy steel.
Product Features:
1,The totally 5.5KG, compact and portable, easy and simple to operate.
2,Start arc easily,stable weld arc,deep weld pool and beatiful welding shape.
3,Hot striking arc current is adjustable which can greatly improve the arc starting function.
4,Suitable for welding with different kinds ofacid or basic eletrode.
5,Plastic box with complete accessories is optional: electrode holder ,earth clamp,cable joint.
6,Welding mask and brush.
Parameters Table:
| AC DC plasma cutter inverter CO2 gas shielded ARC pulse TIG MIG MAG MMA IGBT MOSFET welding machine plasma welding machine | |||
| Model | ARC-140G | ARC-160G | TIG-200G |
| Type | IGBT Chip | ||
| Rated input voltage (V) | single phase AC220 ±15% | ||
| Rated frequency (Hz) | 50/60 | ||
| Rated input power (KVA) | 4.5 | 5.3 | 7 |
| Rated input current (A) | 20 | 24 | 32 |
| Rated output | 140A/25.6V | 160A/26.4V | 200A/28V |
| Output current (A) | 20-140 | 20-160 | 20-200 |
| No-load voltage (V) | 56±5 | 56±5 | 62±5 |
| Rated duty cycle (%) | 60 | 60 | 60 |
| Efficiency (%) | 80 | 80 | 80 |
| Power factor | 0.7 | 0.7 | 0.7 |
| Protection grade | IP21 | IP21 | IP21 |
| Insulation grade | F | F | F |
| Net weight (KG) | 5 | 5 | 5.9 |
| Gross weight (KG) | 5.9 | 5.9 | 6.8 |
| Housing of machine | iron | ||
| Dimension of machine (mm) | 330×120×200 | ||
| Packing | carton | ||
| Dimension of packing 1V1 (mm) | 428×206×220 | ||
| Dimension of packing 4V1 (mm) | 442×431×466 | ||
Product Detils :

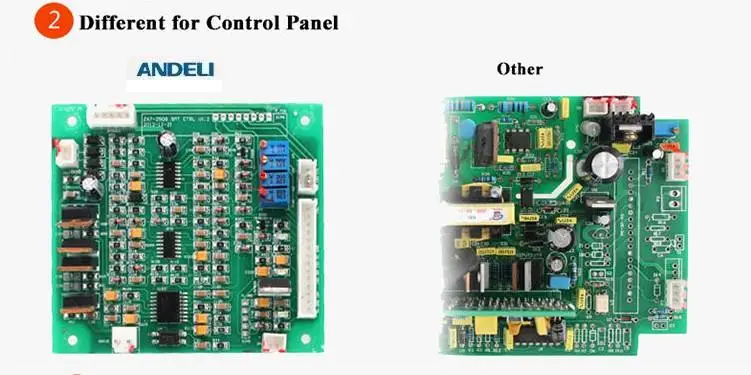

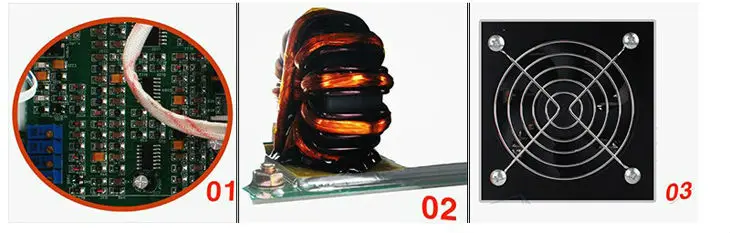

01. 100% seamless, full-chip technology of the control panel,greatly increase the reliability of welding machine, at the same time Saip exclusive using over-current protection system on the control panel , prevent large current shock, prevent the welder secondary damage, even Fried tube.

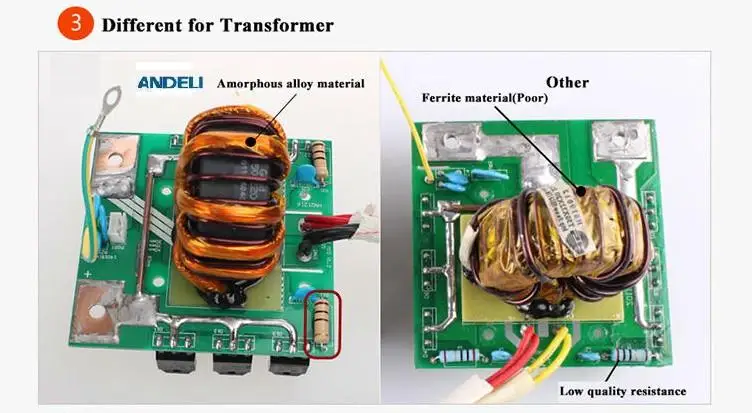

02. ANDELI is the only stick with the most advanced of the amorphous structure transformer 200G models in China, the machine efficiency is over 32%, compared to "ferrite" is extended more than twice the life.
03. Recent wind blowing straight type design, welding machine can work in the high temperature of 60C , load rate of 100%.

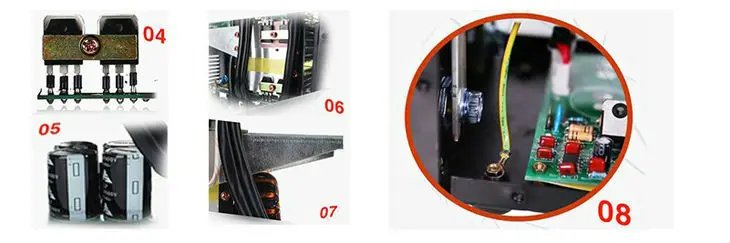

04. From Germany's Siemens technology imported from IGBT single pipe, quality guaranteed.

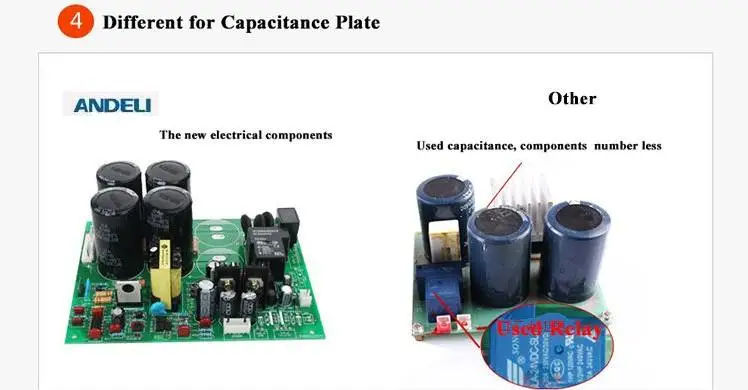

05. Cooperate with industry leading capacitor production enterprises, 4470uf, high quality, to ensure the high-efficiency and stable output of the electric welding machine.

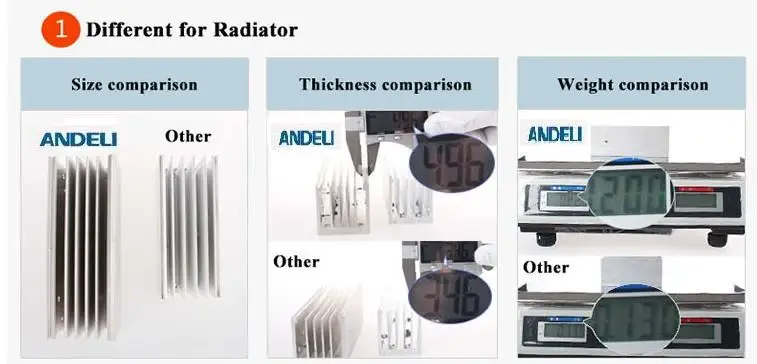

06. Super-size capacity of the radiator,to improve welding efficiency by more than 26%.
07. Interlayer duct patent technology, completely prevent dust into the upper and lower plate, and cause a short circuit to improve the service life of welding machine; All lines adopt insulation layer leather processing, saip want to manufacturing the best welding.
08. ANDELI electric welding machine production in line with international safety standards, each welder has a grounding design.

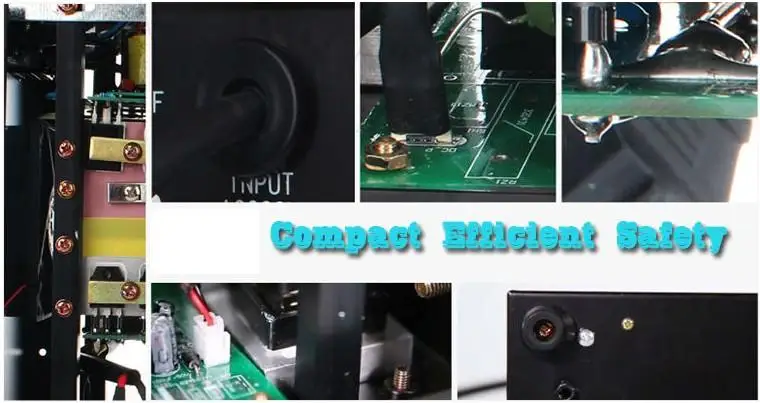

More Display :
Main Components of Different (our welding machine and the other):
Accessorie:
* BUY WITH CONFIDENCE.
* QUALITY MACHINES MANUFACTURED BY ANDELI.
* FULL SERVICE AND PARTS BACK UP.
* 24 MONTHS WARRANTY.
