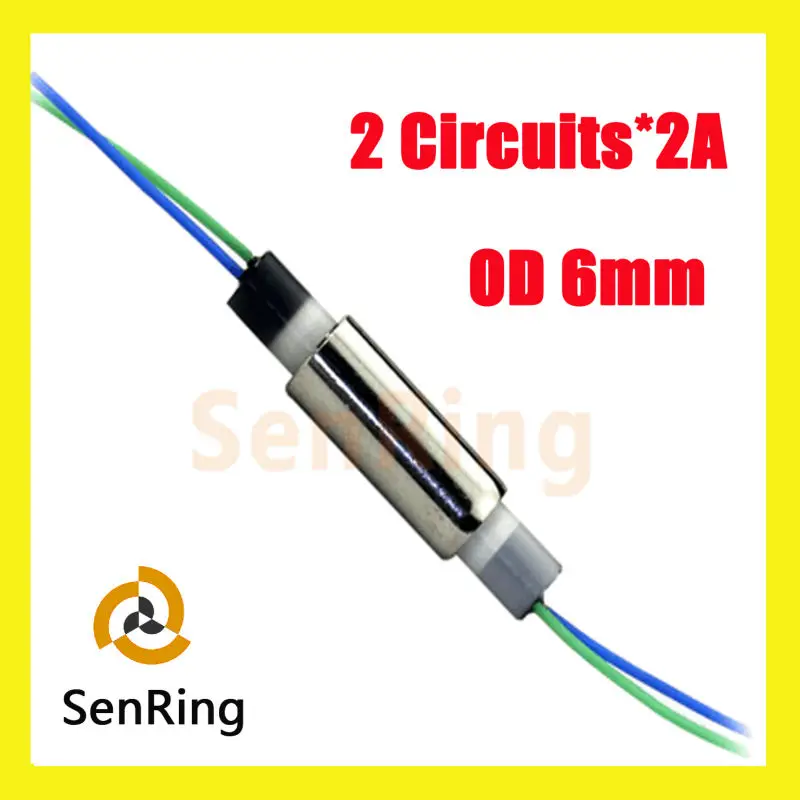

Мини OD 6 мм капсульное скользящее кольцо 2 цепи/провода

Product Overview

Description

The SNM006-2, with 2 wires and compact 6mm body diameter, which we call our “mini”, is our newest design and smallest physical package.uses SenRing's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates



SNM006-2 Dimensions

SNM006-2 Specifications

• Model

  SNM006-2

• Poles

  2

• Current (A)

  0.5

• AC/DC (V)

  DC24V

• MHZ

  1000

• Contact Resistance

  <1mΩ

• Max rpm

  100

• Max/Min °C

  60/-10

• (x10-3Nm)

  35
