Heat Pipe Collector 58*1800 with U Tube Heat Pipe SU 10

Product Overview

Description



Heat Pipe Collector 58*1800 with U Tube Heat Pipe SU-10



U Pipe Collector, Super Conducting Solar Thermal Collector, Thermal Collector, U-pipe Solar Collector, Solar Collector, Solar Thermal Collector, U-pipe Collector

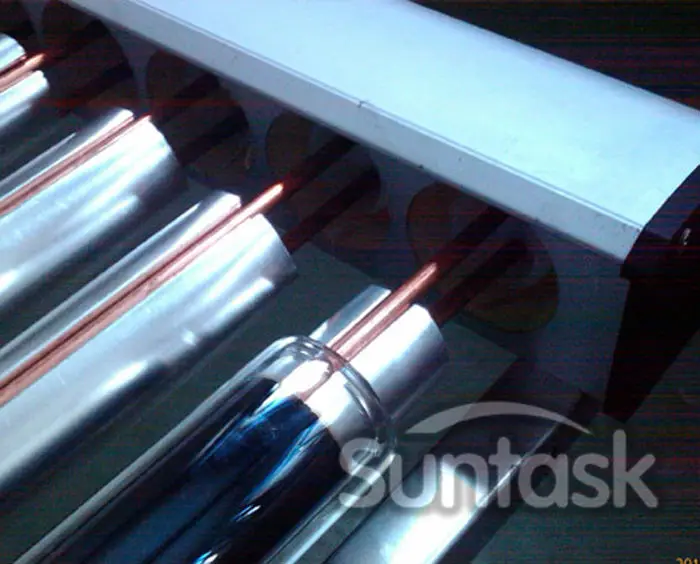

The U type series solar collector are always connected with existing heating supply device, The selective coating on the inner cover of the evacuated tube converts solar energy into heat energy and transfers heat to metal U tube by an aluminum fin. The liquid (usually aglycol water antifreeze mixture) in the metal U tube is heated, and conducts the heat energy to the water inside the storage tank through plate exchanger or internal spiral coils.



1. high energy yield
2.high price/performance ratio
3. easier and faster modular installation
4. long lifetime and stable service.



Solar keymark certificate types:

SCM12-58/1800

SCM15-58/1800

SCM20-58/1800

*************

New Solar Keymark certificate types:

SR10-58/1800

SR15-58/1800

SR20-58/1800

SR30-58/1800



SRCC certificate types:

SR10-58/1800

SR15-58/1800

SR20-58/1800

SR30-58/1800
