The multi-layer compound halftone frame and close-grained oxidation layer on the surface ensures exact dot-reproduction and excellent endurance
♦Hydrophilic Managing Substrate - Excellent Ink-water Balance on Printing
Baotu UV-CTP plates adopt hydrophilic managed substrate to not only ensure the firm combination between sensitive layer and substrate but also improve the balance between water and ink so that it prevent from scum when machine idle and during printing. ♦Excellent Coating Component - High Sensitive Speed
Baotu UV-CTP plates adopt excellent coating component to keep the plate well-proportioned coated, with high sensitive speed, fine dot-reproduction and long run length. These make Baotu CTCP plate fit for top grade commercial printing and newspaper printing.
2. CTCP/UV-CTP Plate Technical Parameter:
Technical Data
Brand
Baotu
Thickness
0.15 - 0.40mm
Sensitive Wavelength
410 nm
Photosensitivity
45-55mj/cm2
Dot Reproduction
2% - 98% at 200 lpi
Degree of surface roughness
0.40-0.60um
Oxide layer of mass per unit area
2.5-3.50g/m2
The photosensitive layer mass per unit area
1.90-2.00g/m2
Run Length
50,000 - 80,000
actual run length may vary according to press, ink and paper condition.
Plate Developing Condition
Recommend Developer
Baotu developer or any other type of positive conventional plate developer
Developer Concentration
powder to liquid =1:4 (automatic)
powder to liquid =1:6 (manual)
Developing Temperature
23 - 25 degree Celsius
Developing Time
30 - 40s
Plate Baking Condition
Baking Temperature
230 - 250 degree Celsius
Baking Time
5 - 8 min
Run Length after Baking
150,000 - 250,000
Detailed Information
Safe Light
yellow
Shelf Life
18 months under recommended storage conditions (10 - 30 degree Celsius, relative humidity: 40% - 60%, stacking height less than 1.5 meters)
Package
0.15mm - 100 sheets per carton
0.30mm - 50 sheets per carton
Notice:This specification is just for reference, any changes are subject to the products.
3.Available sizes:
<1>Width: 120 - 1460mm
<2>Length: 210 - 1600mm
<3>Thickness: 0.15 - 0.40mm
<4>Other sizes available on requests
4.Payment & Shipping Terms:
Products
CTCP/UV-CTP Plate
Minimun Order Quantity
5000 square meters
Delivery Port
Shanghai

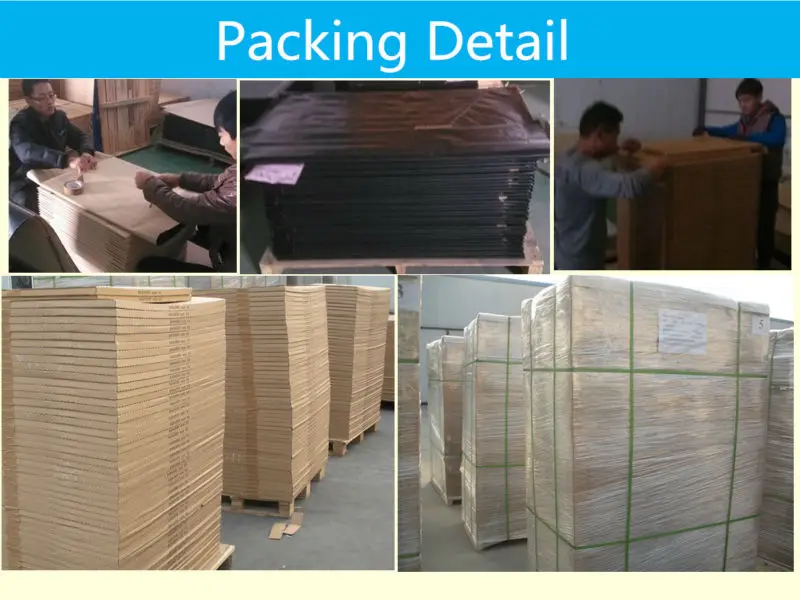

Packing Details
Plates are packed in waterproof and lightproof paper then packed in standard export cartons.The weight & demension of each carton will vary accodring to size and thickness.
Note:Under 24MT can be loaded into 20'GP.We try to use 20 foot container,the sea freight rate is much cheaper than 40 foot container.
5.For Buyer's Information:
♦ All the size can produced as your requirement with the thickness from 0.15mm-0.40mm in short delivery time.
♦ With two internationally advanced prduction line,our output can reach 500,000 square meters per month.
♦ All the plates are used first-grade aluminum substrate.
♦ Factory direct export,the price is more competitive.
♦ When you received the plates,if you have any questions,just contact with us.We support you the operational manual.
6.Why Choose Us?
♦ Our market has spread to most provinces and municipalities in our country and also been sold to overseas market like in South America,Southeast Asia,Africa and Mid East etc.
♦ Passed ISO 9001:2008 and won "Gold Supplier" certified by Bureau Veritas .
♦ Conventional logistic system make the delivery time short.
7.Picture Shows:
We have the seperate Quality Control Center. We have excellent engineers,professional testing equipment . So,we have reason to promise that every product is qualified for the customer. The following pictures are our staffs who is doing experiments and tesing the quality of plate .
Certifications
Contact
If you want to know more information about our printing plate here welcome you in any time .
