TA4 INR Intelligent Temperature, Heating/ Cooling Temperature Transmitter

Share on (1485114982):


Price:

Quantity:


Product Overview

Description

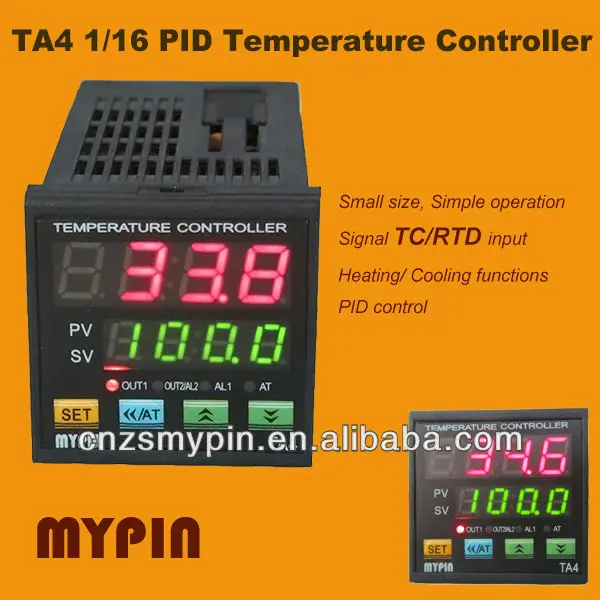

TA4-INR  Intelligent Temperature, Heating/ Cooling Controller Temperature



This is a bid for a dual display universal digital programmable temperature controller that

supports many type of thermocouple sensor. It can be powered by 90-265V AC/DC,

Comsumption: 5VA. DIN 1/16.

3 build-in Auto-Tuning Time proportion PID Algorithms to choose for different

applications or environments to be controlled. (for variety of industries or home projects

heating or cooling applications.)








1, Features

Compact desig;:DIN 1/16, great form-factor to be included/build-in to your product.

One key operation, Auto-tuning PID control.Easy operation,Reliable performance

24V/30mA supply available for standard transmitter)

P, I, d, controlling period, digital filter coefficient, and more… (for control theory experts only)

Current Analog output for any PLC, indicator or Controller, etc.



2, Specifications



Model no.:TA4-INR

Dimensions: 48W×48H×80L mm

Input Signal:TC(K,J,E,S)/PT100

Main output: 4-20mA,

1 no.s of relay output----for control alarm

Power supply:85-265V AC/DC

Weight: about 150g



3, Technical Parameters



Display: Dual display for Fahrenheit(F) and Celsius(C)



Range: -1999 to 9999 (depends on the input signal)



Input: Thermo Resistor: PT100, Cu50



           Thermocouple: J,S,K,E.





Main output: 4-20mA linearity,Work as PID output or as Alarm 3(when P=OFF)



Auto-tuning PID cooling/heating control( can choose normal alarm output by software)





Alarm Output: 1 RELAY: capacity 250V/3A AC, 30V/3A DC





7 different Dual Output modes with: high / low / high deviation / low deviation/ interval / out of interval /breakage alarm



Accuracy: 0.2%



Width switch power: 90-260V AC/DC



Dimension: DIN: 1/16 (48WX48HX80Lmm)



Weight: about 150g



4, Functions for choice



Size: TA6(48W*96H*80Lmm),  TA7(72W*72H*80Lmm)

        TA8(96W*48H*80Lmm),   TA9(96W*96H*80Lmm)

        TA10(160W*80H*100Lmm)

Other main output:RELAY/SSR/SCR/ 0-10V

Input signal: 0-10V / 4-20mA/PT100  or 0-10V / 4-20mA/0-75mV

Control output: SSR/RELAY

Power supply: 12V DC or 18~30V DC

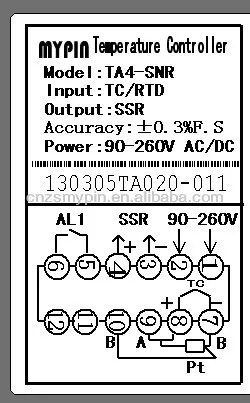

5, Diagram. Example:TA4-SNR

(subject to that in the real item)










6,More choices







 TA 001
