Product Overview

Description

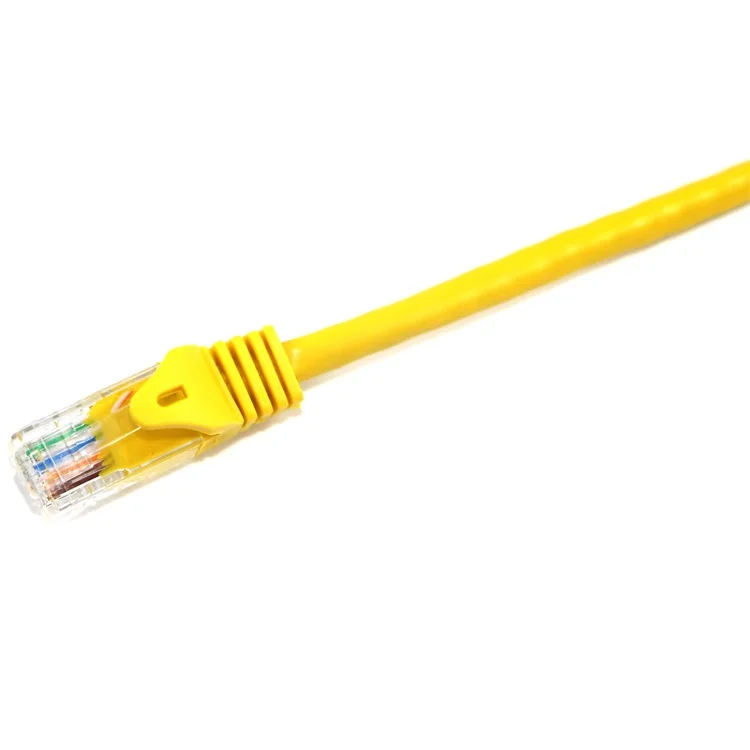

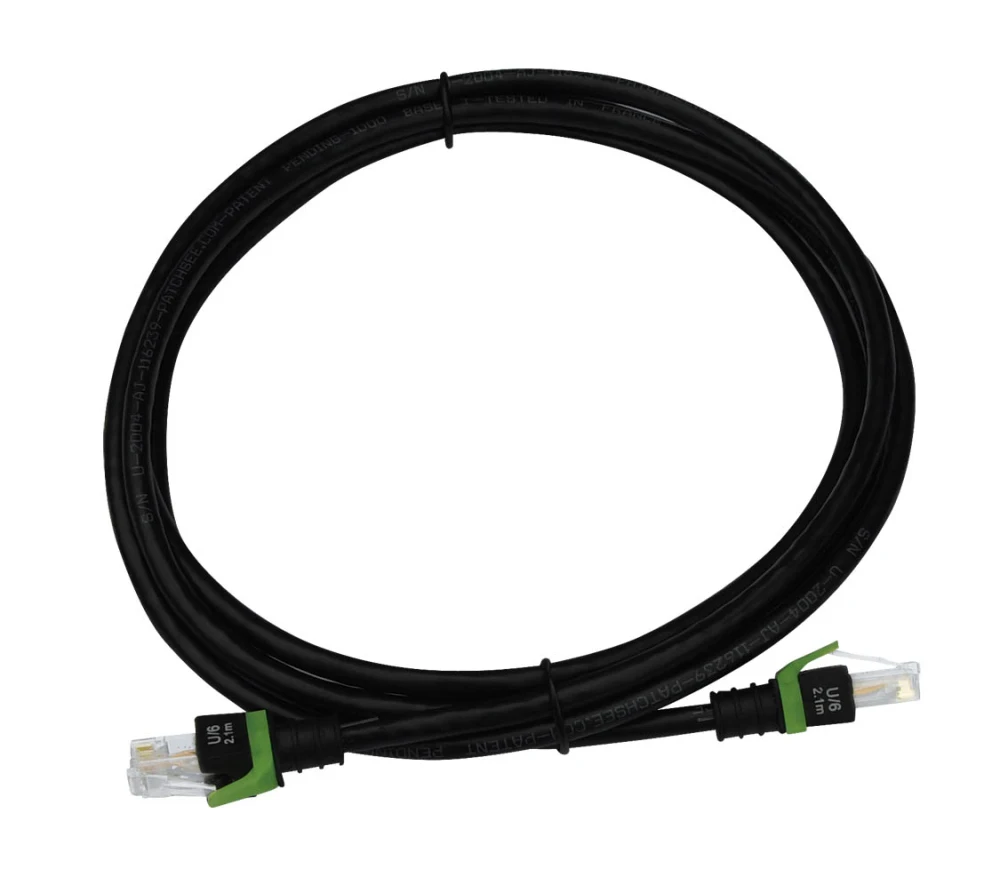

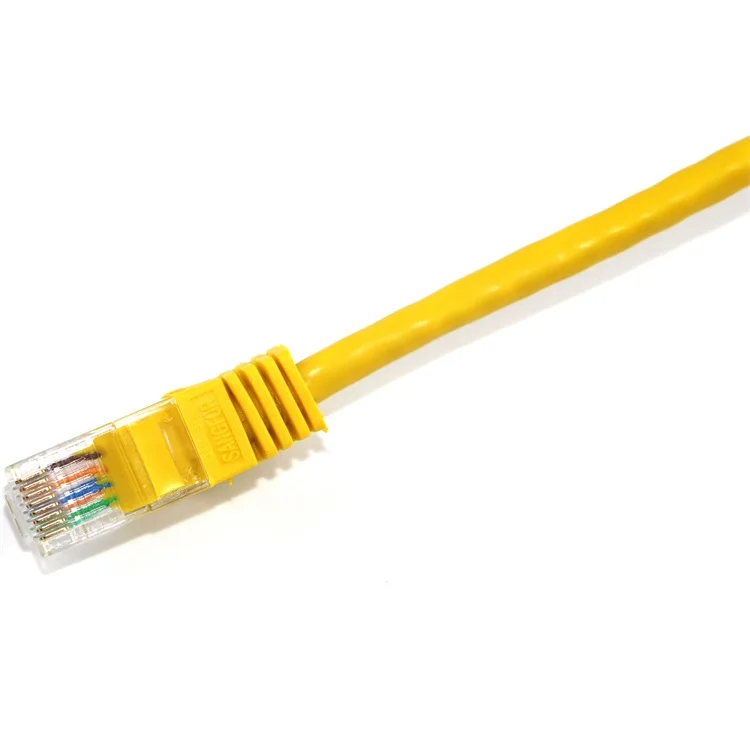

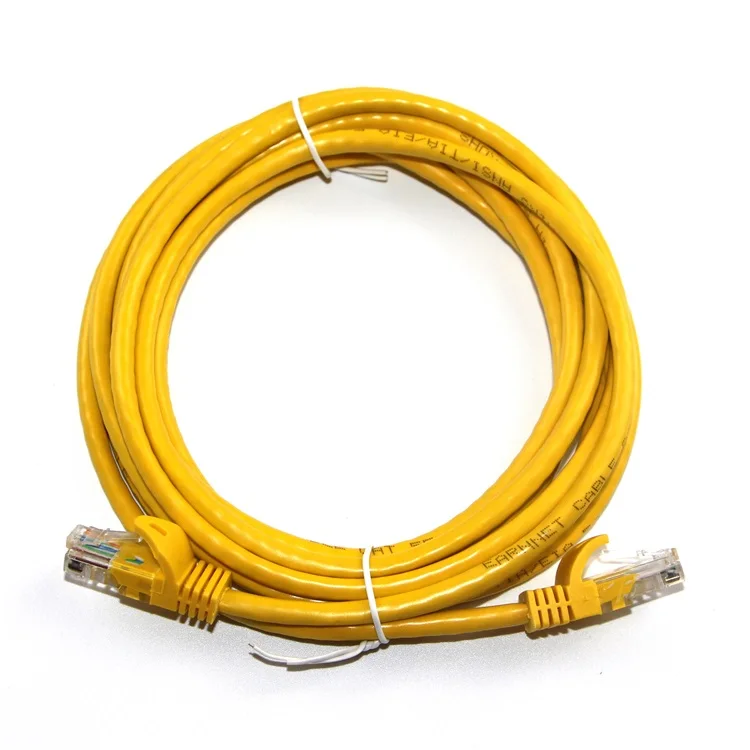

Patch Cord Cat5 Network Cat 5 2 Pair Utp Cat5e Cable

1.Specification: 4P

2.Rated Temperature: -45 °C - 75°C

3.Unshielded twisted pairs:

4.Conductor: 26AWG or 24AWG Stranding or Solid Bare copper

5.Insulation: HD-PE

6.Jacket: PVC or LSNH

7.Impedance:100±15%Ω at 1~100MHz

8.Reference standard: YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA-568B,

9.Print Legend: CM or CMR



Features

1.Fast and Reliable Connection

2.Twisted Pairs with Bright Color for Easy Recognition

3.Ripcord and Footmark for Convenient Use

4.Smooth Jacket for Easy Pulling in Tight Space

5.Color in Light Grey, Dark Grey, Blue, White or as per Your Requirement

Cable Assembly Specification:

Shape	Conductor		Insulation		Core Number	Jacket
	AWG	Specification (mm)	Material	Thickness (NOM.mm)		Material	Thickness (NOM.mm)	OD (NOM.mm)
Circular Cable	26	1/0.404	HD-PE	0.18	4P	PVC or LSNH	0.55	4.8
		7/0.16	HD-PE	0.18	4P	PVC or LSNH	0.55	5.0
	24	1/0.511	HD-PE	0.18	4P	PVC or LSNH	0.55	5.4
		7/0.203	HD-PE	0.18	4P	PVC or LSNH	0.55	5.5
Flat Cable (Non-sign)	30	7/0.10	HD-PE	0.13	4P	PVC	0.30	1.75*6.2
	28	7/0.127	HD-PE	0.13	4P	PVC	0.30	1.90*7.0
	24	7/0.203	HD-PE	0.18	4P	PVC	0.50	3.0*9.0

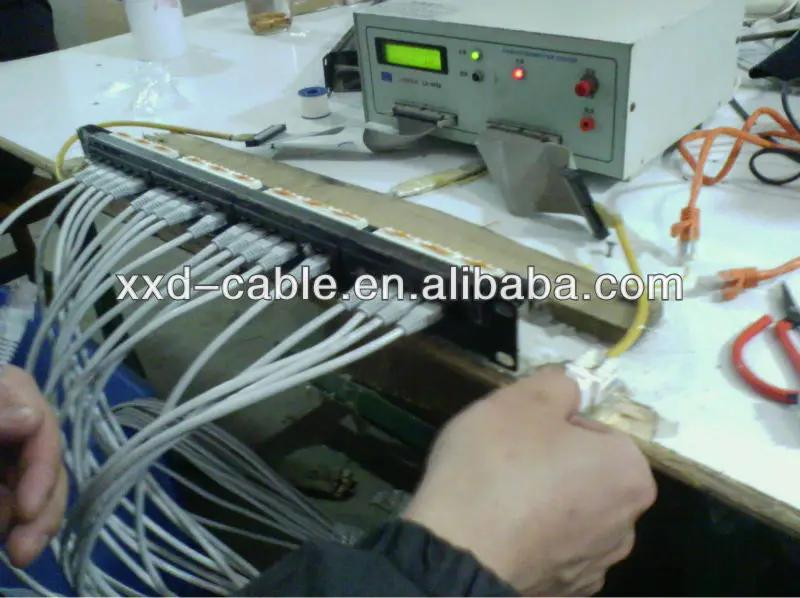

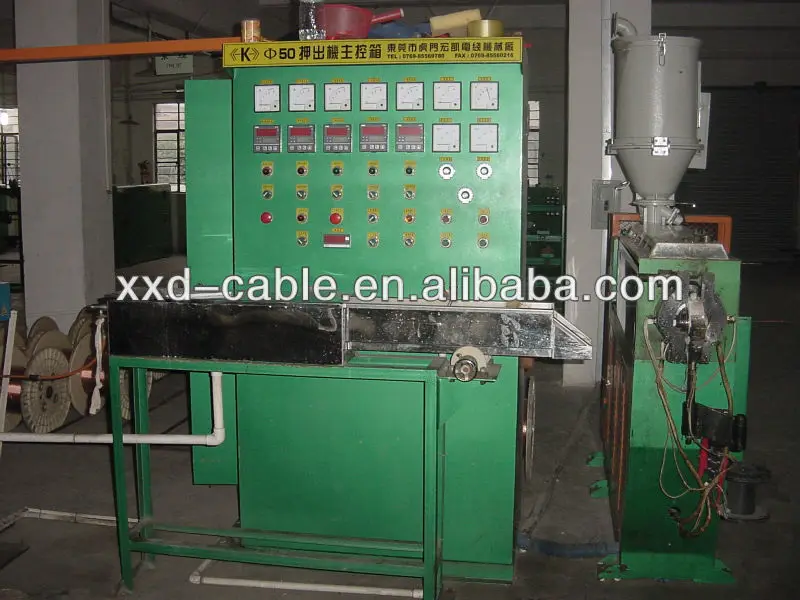

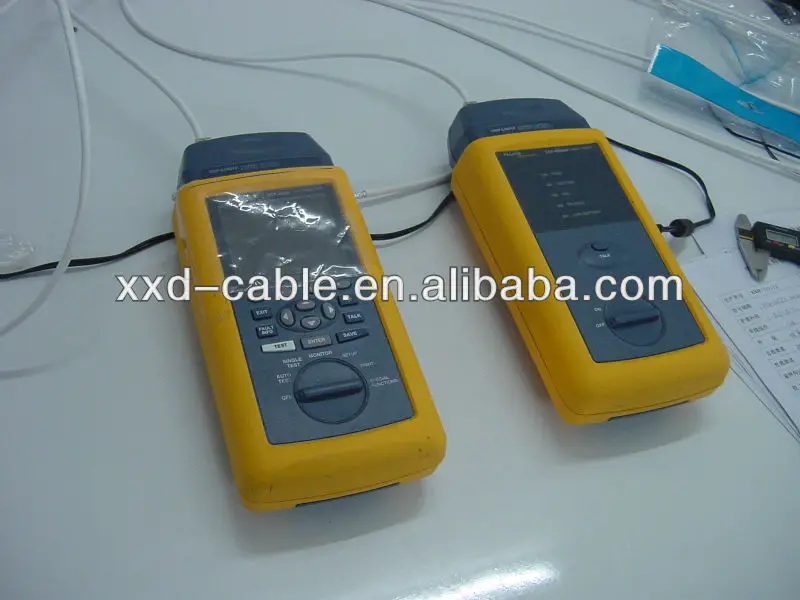

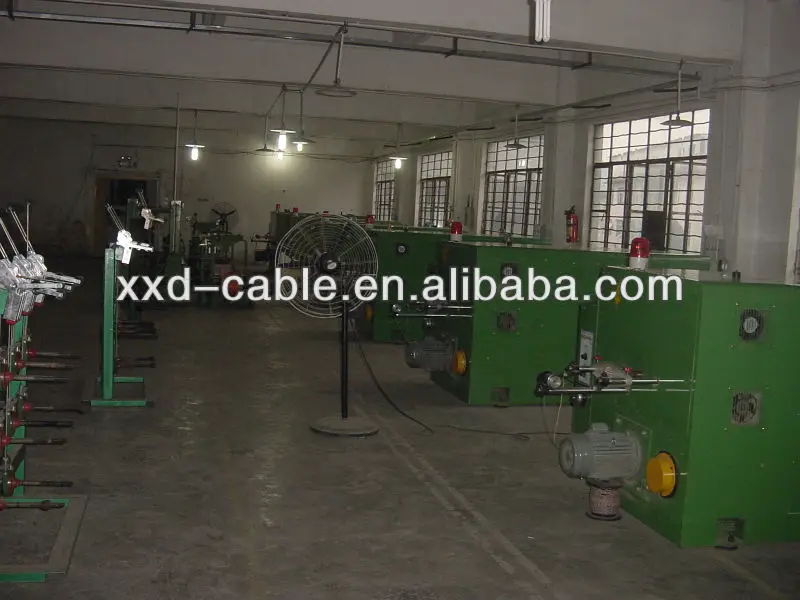

The most advanced equipments for both producing and testing, which imported from Europe and America. All products pass the RoHS Environment Test,CE,Certification.





Click here for more information

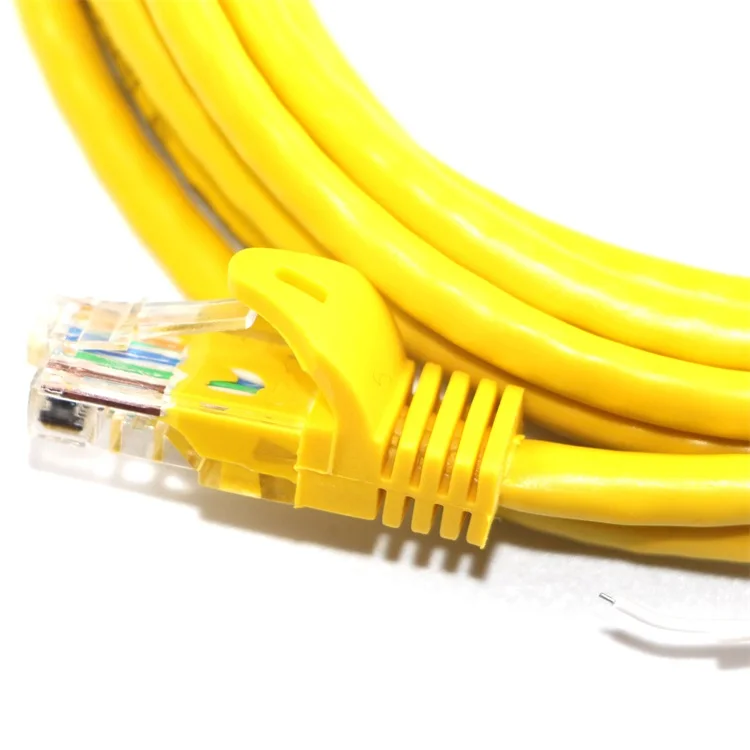

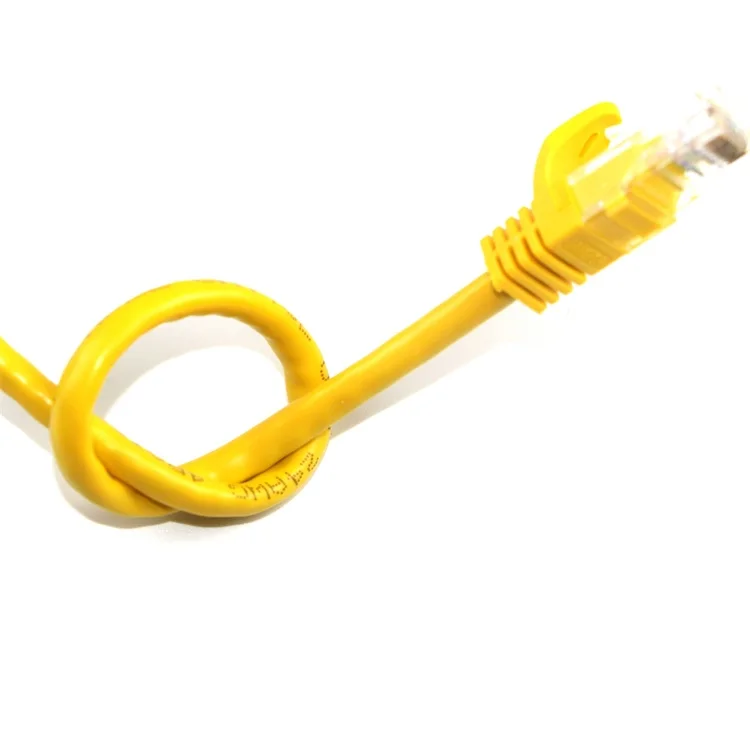

• Category 5 patch cable


•

  RJ45 connectors




•

  Color-matched, snagless boot standard




•

  Colors available: white, gray, orange, red, yellow, blue, black, violet, green




•

  Standard lengths: 3', 5', 7', 10', 14', 20', 25', 30', 40', 50', 60', 75', 100', 125', 150', 175', 200', 225', 250', 275', 300', 328'




•

  Custom lengths made to order in any size from 1" to 328'




•

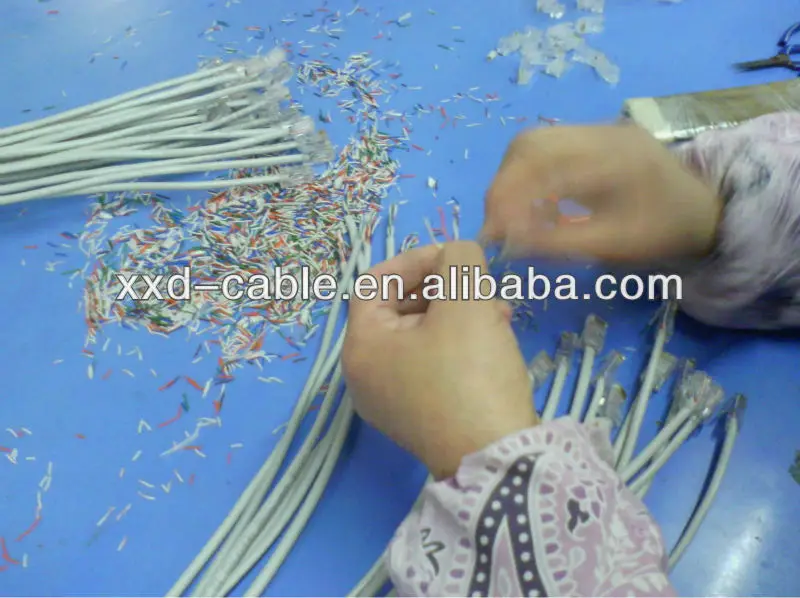

  Hand-Made in China and 100% Quality Control tested
