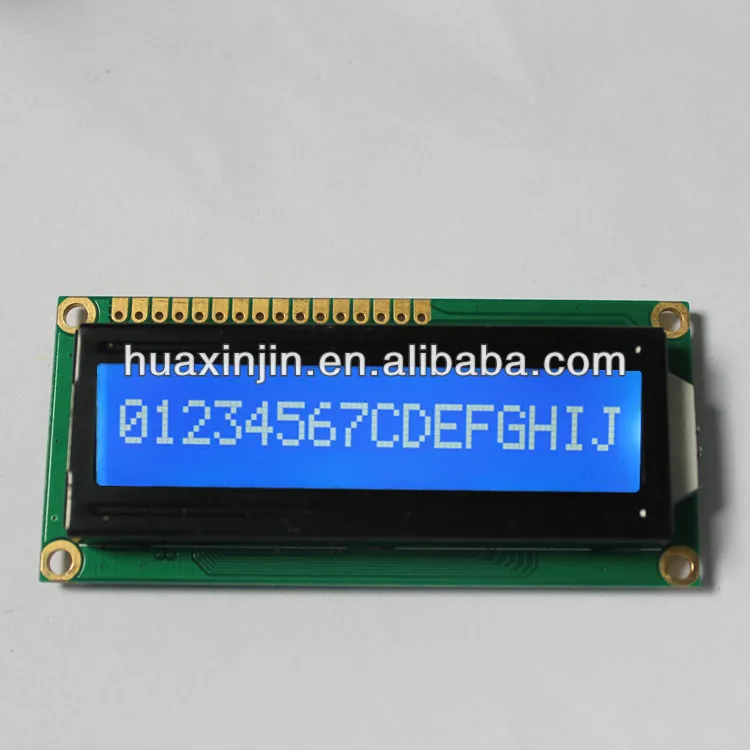

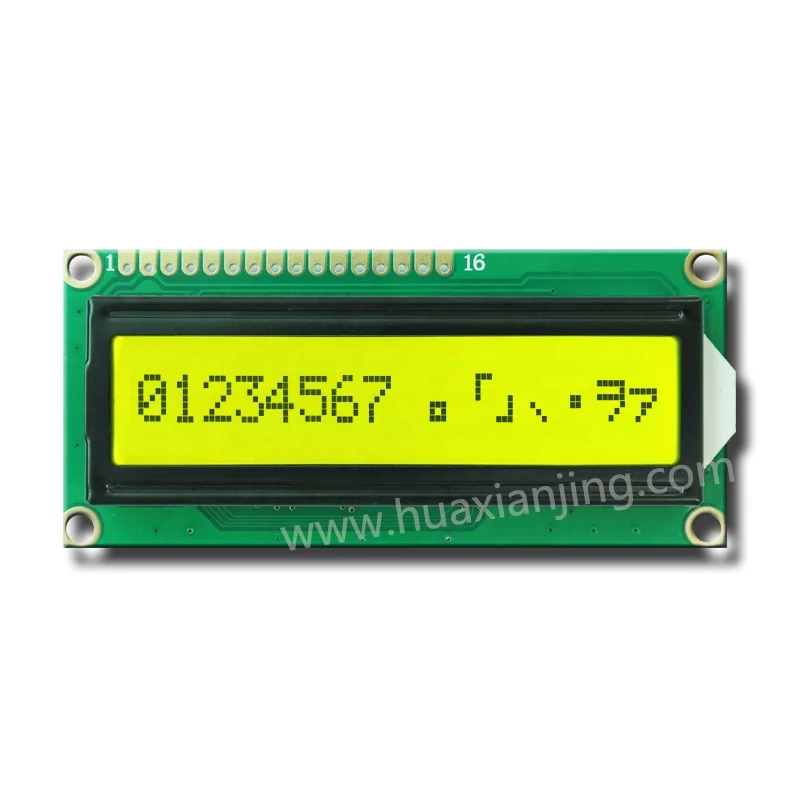

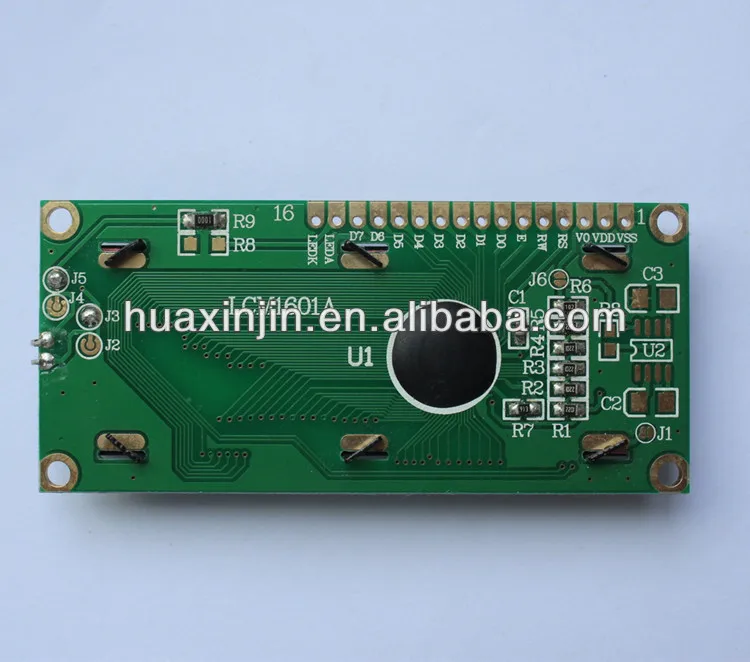

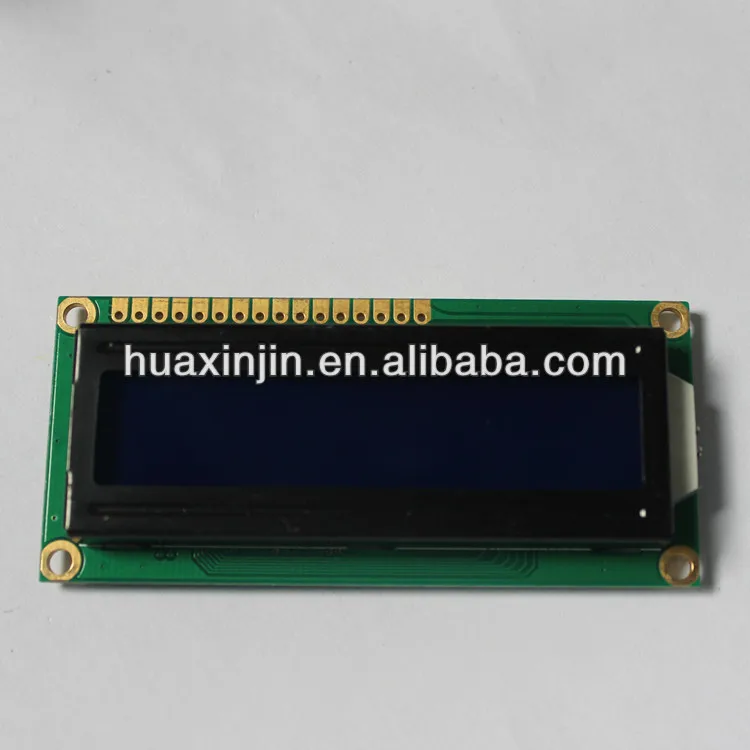

16x1 lcd display module 1601 Character LCD Display

Item

Standard Value

Display Type

                           16characters ´ 1 lines

LCD Type

STN,NEGATIVE(BLUE),TRANSMISSIVE

Driver Condition

LCD Module : 1/16Duty , 1/5Bias

Viewing Direction

6 O’clock

Backlight Type

SIDE WHITE

Interface

8-bit MPU interface

Driver IC

                                                      SPLC780D

Item

Standard Value

Unit

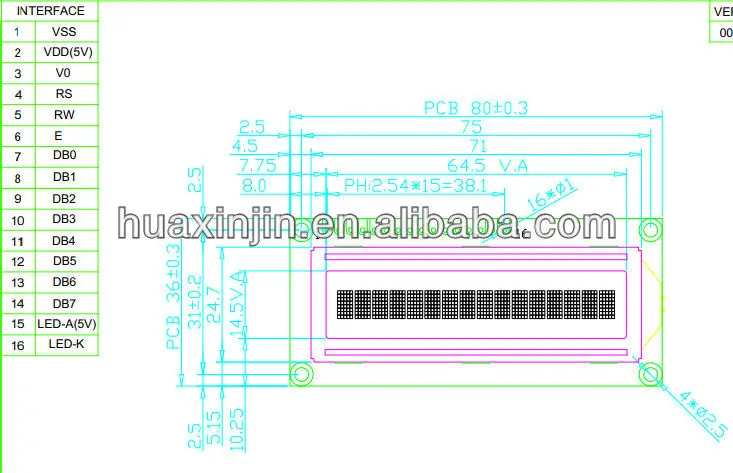

Outline Dimension

80(L) x 36(W) x Max 11.3(T)

mm

Viewing Area

64.5(L) x14.5( W)

mm

Dot size

0.61(W) ´0.71(H)

mm

Dot pitch

0.65(W) ´0.75(H)

mm

Character size

3.21(W) ´5.96(H)

mm
