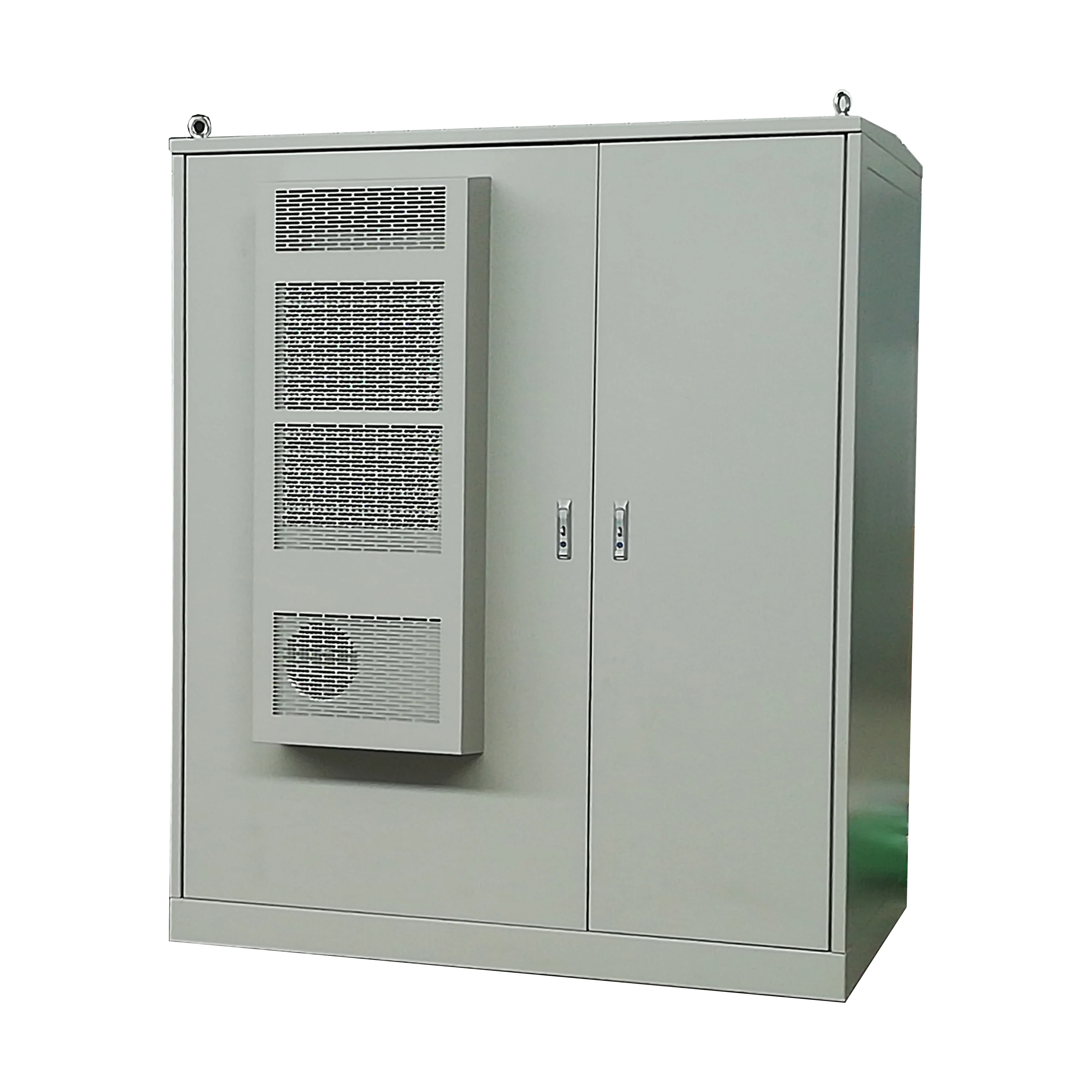

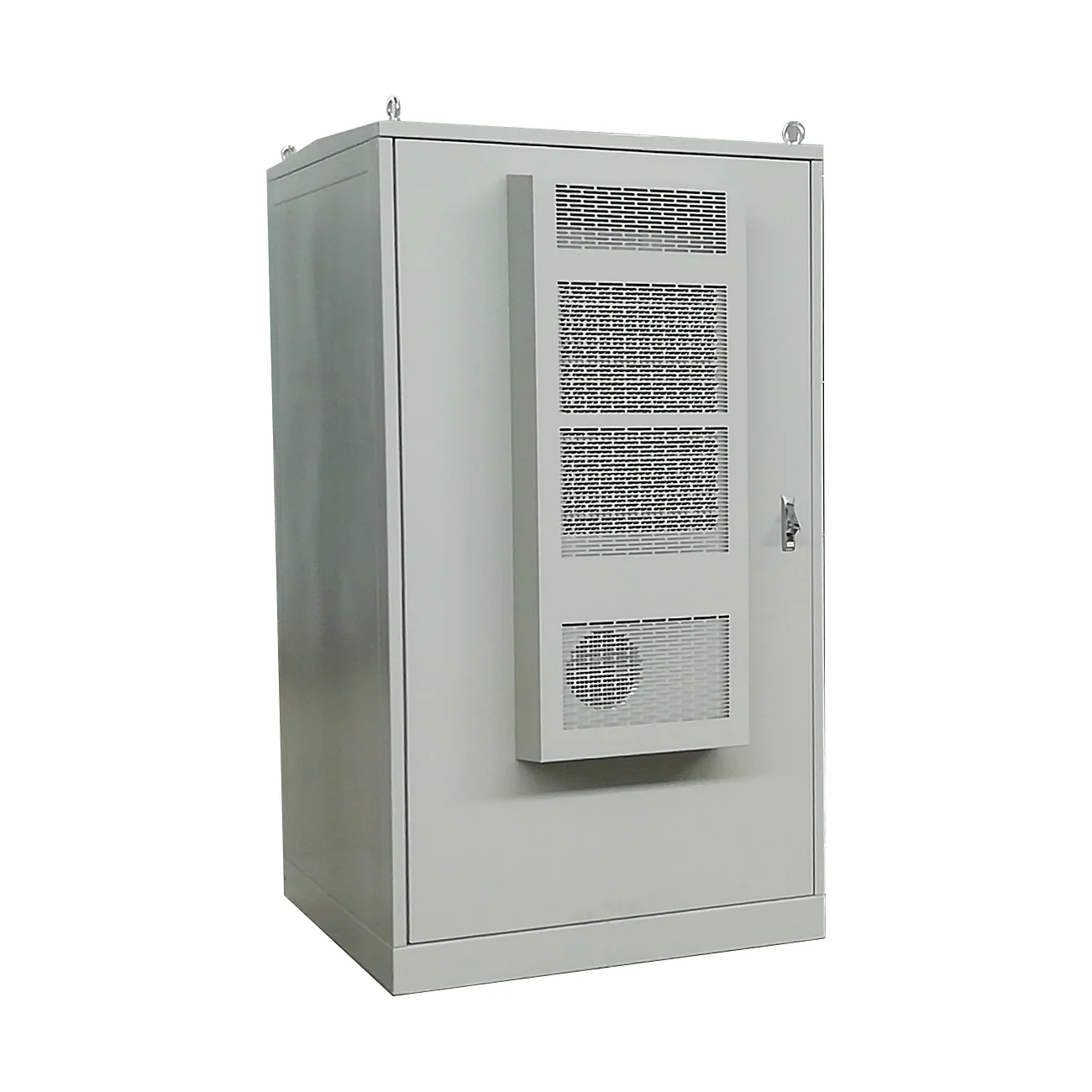

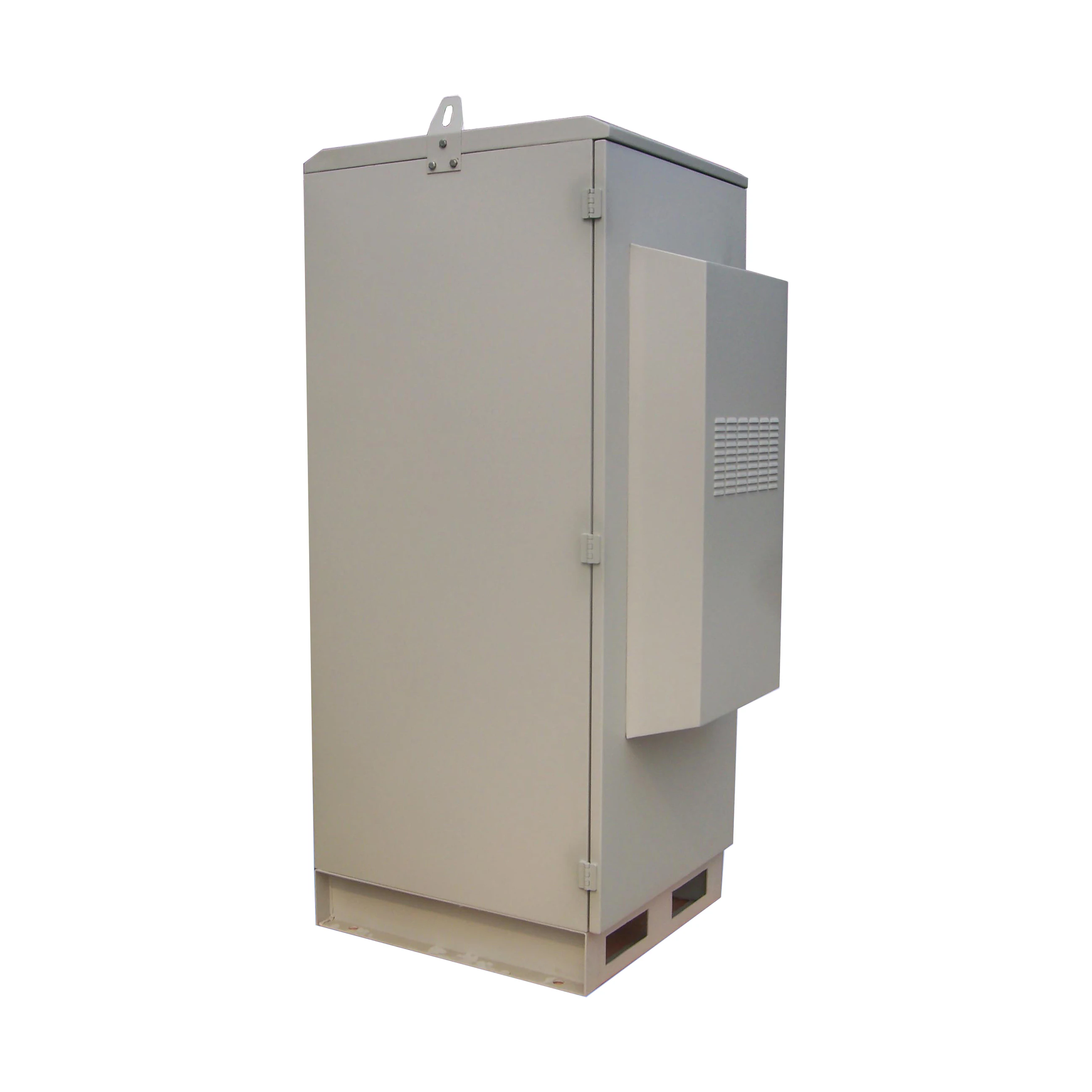

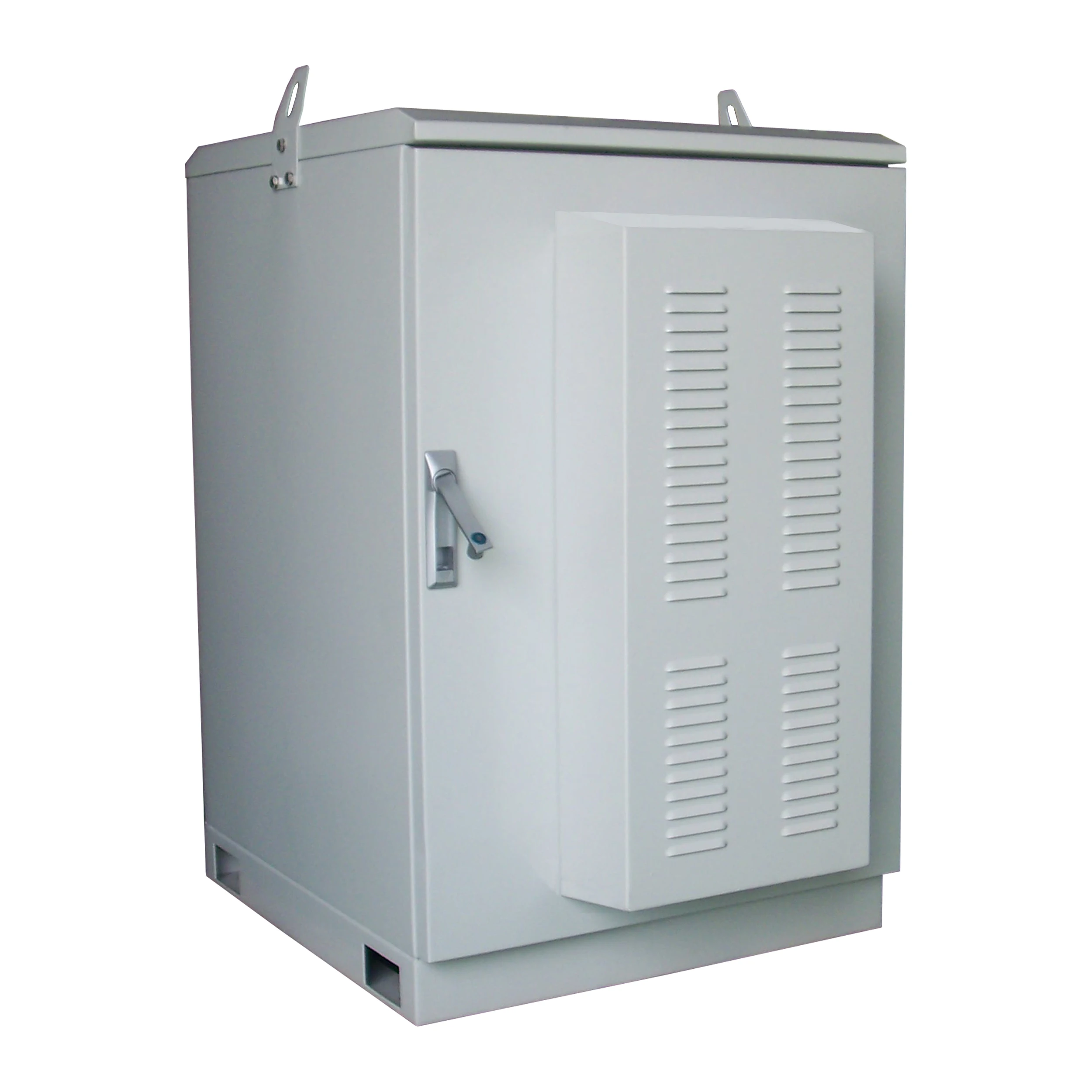

battery enclosure SK 27 for power supply system

Dimensions

H1800*W700*D800(mm), the total depth including the cooling system installed on the door is 980mm

Internal space

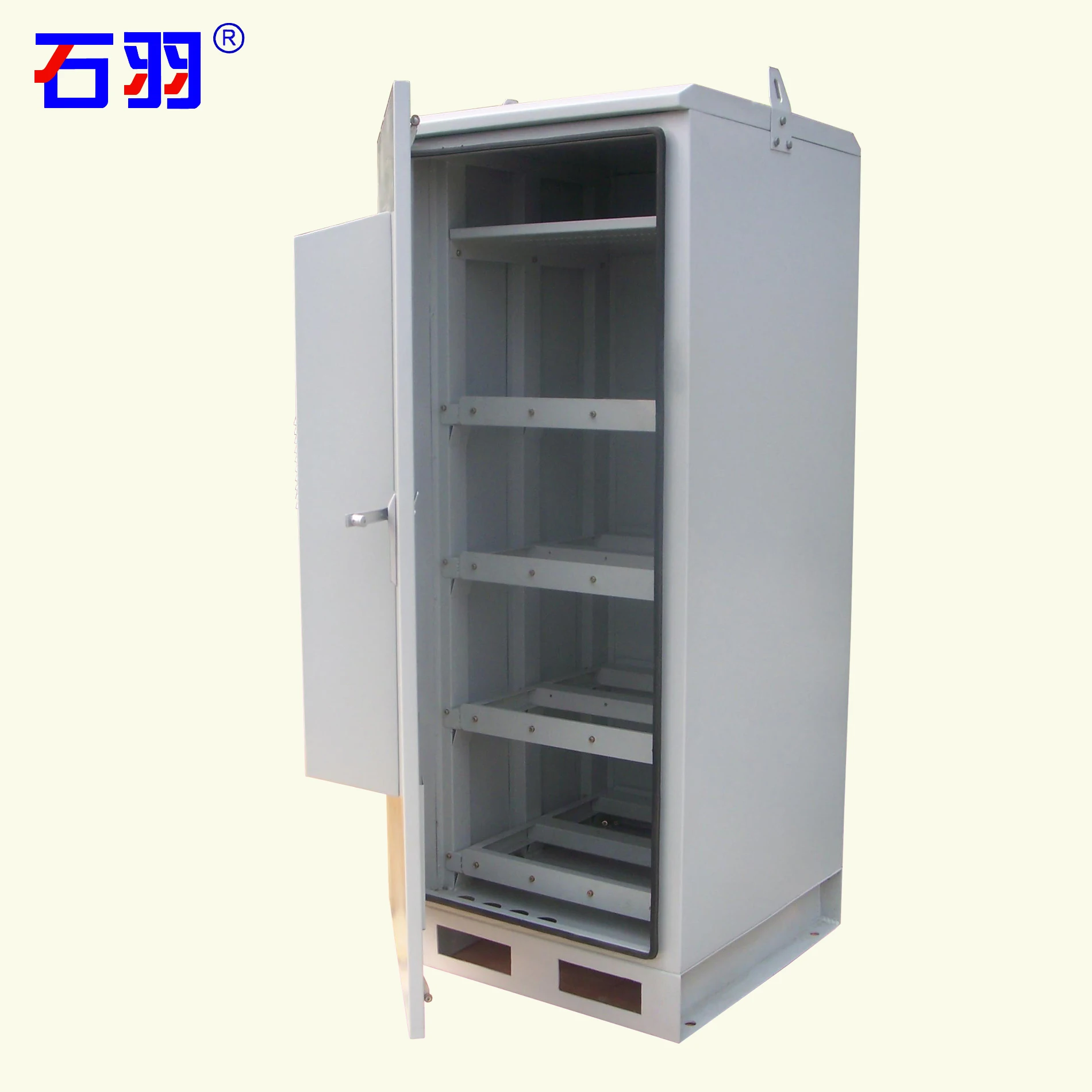

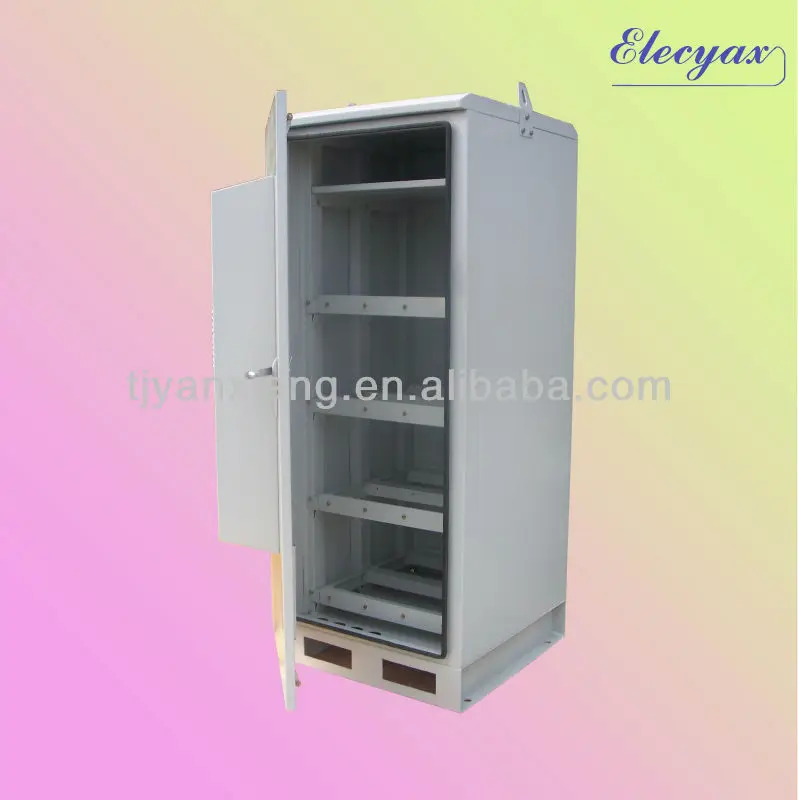

The battery holder has 4 rows, and the upper row has a height of 200mm for equipment use

Cooling system

1500W cold capacity air conditioner (using 220VAC power supply) The air conditioner is installed on the door. Cooling system can be configured according to customer requirements

Hydrogen exhaust function

the battery cabinet is equipped with a hydrogen exhaust fan

Structure

Double-layer thermal insulation structure

Material

galvanized iron. The thickness of galvanized iron plate is 1.5mm to 3.5mm

Protection level

IP55

Installation method

On the ground

Surface treatment

coated with outdoor electrostatic powder

Color

gray (RAL7035) or according to customer requirements

Weight

150kg
