Hot Sale Automatic Pepsi Cola Filling Machine

Share on (1488998893):


Price:RUB 445,962.60 - RUB 3,716,355.00

Quantity:


Product Overview

Description

Hot Sale Automatic Pepsi Cola Filling Machine

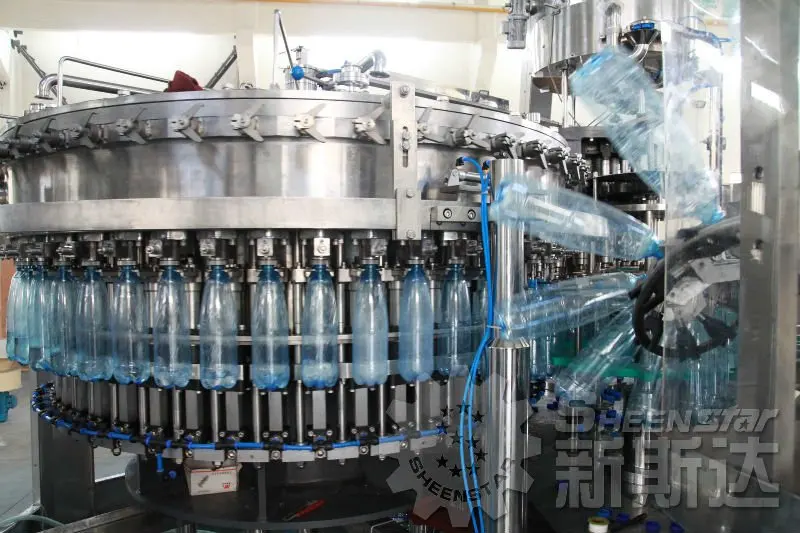

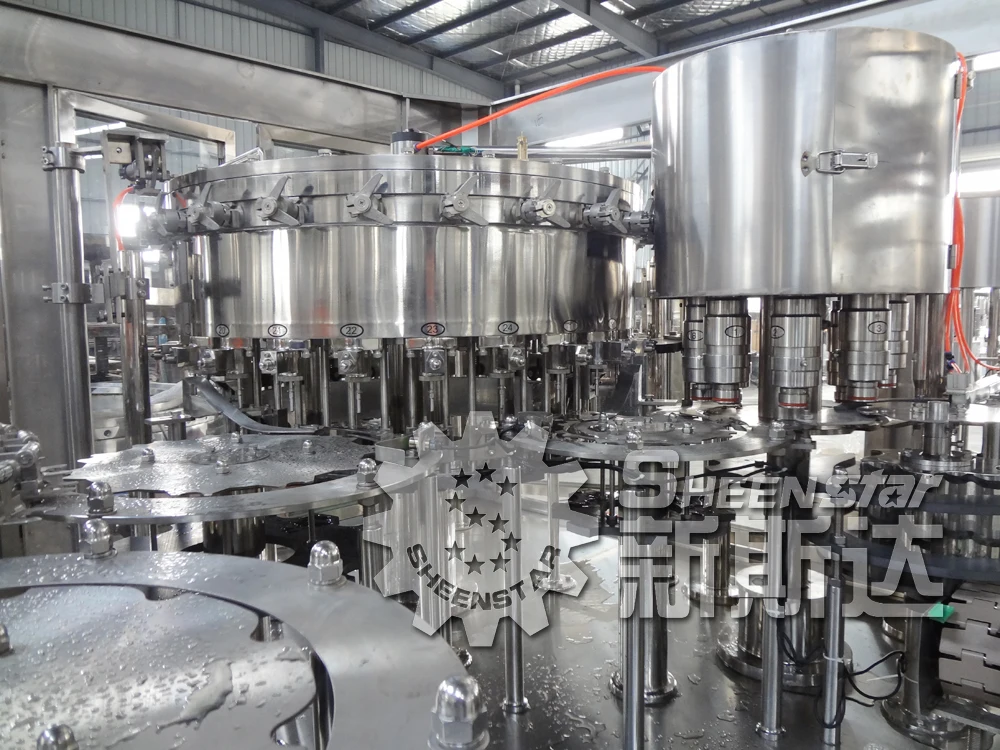

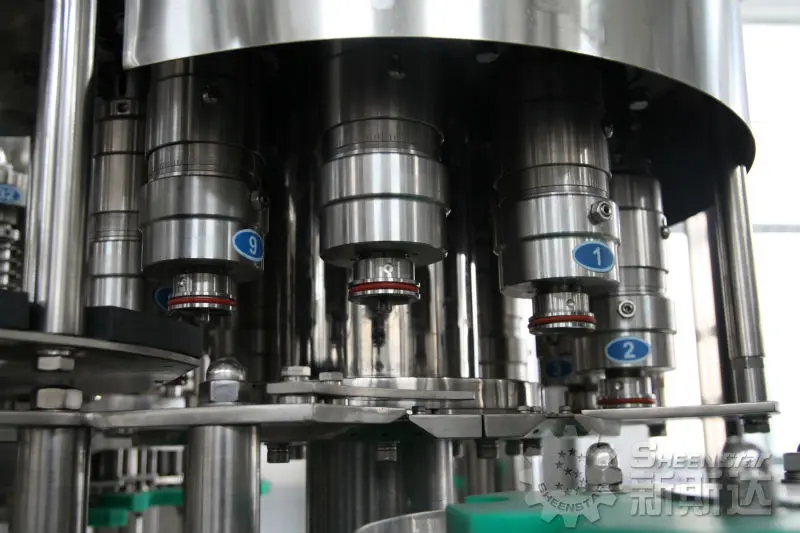

Pepsi Cola Filling Machine-- Images

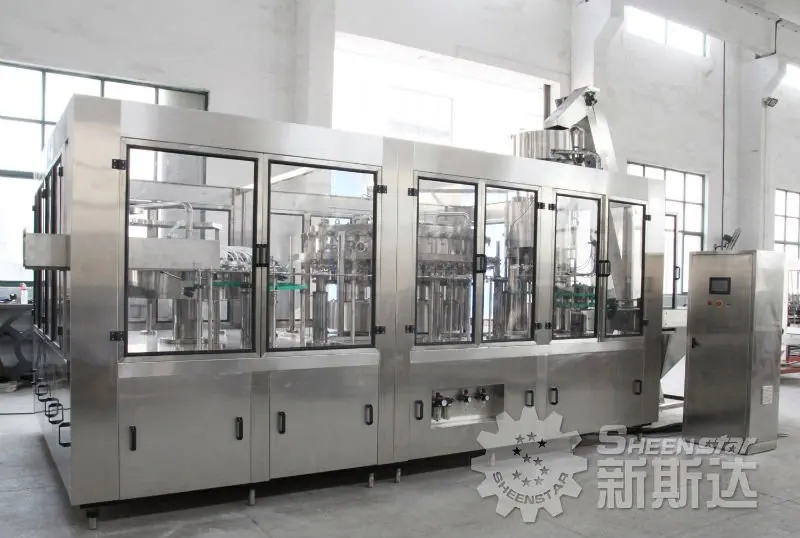

CARBONATED DRINK FILLING MACHINE



filling5



8



Pepsi Cola Filling Machine-- Introductions

Hot sale automatic pepsi cola filling machine is used to fill cola, sprite, soda water and other carbonated beverage.



All the machine part which contact with liquid is high quality stainless steel 304. The relative fittings are from international famous brand.



The automatic pepsi cola filling machine was equipped with suspension type air conveyor and frequency control of motor speed.



This machine is comprised of rinsing, filling and capping system. Rinsing: grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned completely. Filling: counter pressure filling with holding bottle neck. Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.



This machine owns the reasonable, stable and safe design. Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the efficiency a lot.



We are the automatic pepsi cola filling machine manufacturer in China.



Pepsi Cola Filling Machine-- Technical Parameters

Model

DCGF
16-12-6

DCGF
18-18-6

DCGF
24-24-8

DCGF
32-32-8

DCGF
40-40-10

DCGF
48-48-12

DCGF
60-60-15

DCGF
80-80-20

Heads of washing, filling, sealing

16-12-6

18-18-6

24-24-8

32-32-8

40-40-10

48-48-12

60-60-15

80-80-20

Production capacity(bottle/hour)

3000-4000

5000-7000

8000-12000

12000-15000

16000-18000

20000-24000

24000-28000

36000-40000

Suitable bottle height

H=170-320   Φ=50-100 (330-1500ml)

Spraying pressure

0.25-0.3

Total Power

1.5

2.2

3.0

5.5

7.5

11

15

19

Overall dimension(L×W×H)

2300×
1680×
2650

2500×
1760×
2650

3100×
2100×
2650

3800×
2800×
2650

4000×
3300×
3400

4850×
3650×
3300

6500×
5400×
3500

7650×
6400×
2700

Weight

2600

3500

4650

6800

8500

1000

12500

16000
