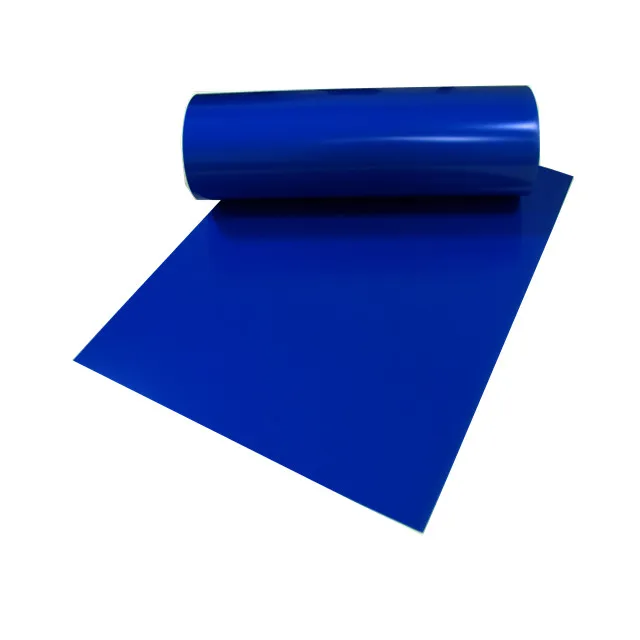

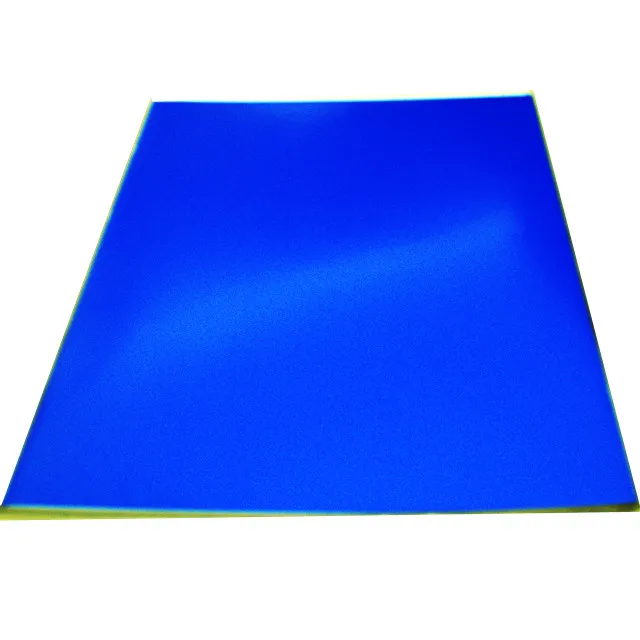

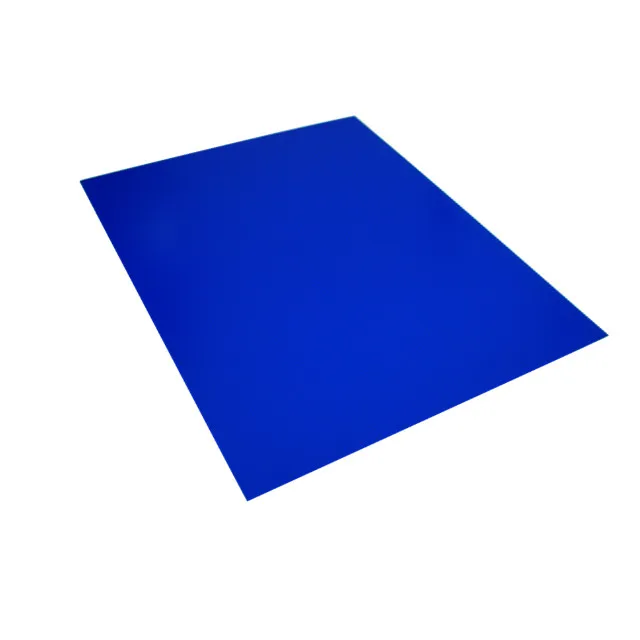

Stable quality blue aluminium printing plate CTP
- Category: >>>
- Supplier: Henan Baotu Printing Material Co. Ltd.
Share on (1489430585):
Product Overview
Description
Stable quality blue aluminium printing CTP plate
Features
Extraordinary Plate Developing Tolerance - User Friendly and Dealer Friendly
Baotu thermal CTP plate has wide plate developing tolerance. So it is suitable for most developer and the different concentration. So it is very good for the user and dealer to do the plate testing or plate using.
High Resolution
Baotu's unique ingredients, together with the optimally distributed formula weight of binding polymers, in the coating of KTP offer fine dots with sharp edges and reproduce images with rich tone. The aluminum matrix of compound grain molybdenum structure technology ensures 1-99% microdot reproduction.
Good Quality of Printing Effect - Excellent Hydrophilicity
Hydrophilic treatment and post anodizing treatment provide excellent water retaining capability at the non-image area and prevent scumming.
Long Run Length - Multi-grains Structure
The multi-grains structure of Baotu CTP plate improves water retaining capability and keeps ink-water balance optimally.
Structure
Technical specification
Technical Data | Brand | Baotu |
Thickness | 0.15 - 0.40 mm | |
Spectral Sensitivity | 830 nm | |
Exposure Energy | 120 - 140 mj/cm2 | |
Resolution | 1% - 99% at 200lpi | |
Degree of surface roughness | 0.40-0.60um | |
Oxide layer of mass | 2.5-3.50g/m2 | |
The photosensitive | 1.60-1.80g/m2 | |
Run Length | 50,000 - 80,000 actual run length may vary according to press, ink and paper condition. | |
Plate Developing Condition | Recommend Developer | Kodak developer, Agfa developer |
Protection Gum | recommended to use 140G protection gum | |
Developing Temperature | 22 - 24 degree Celsius | |
Developing Time | 25 - 35s | |
Plate Baking Condition | Replenishment Rate | 100 ml/sqm |
Baking Preparation | applied any suitable plate baking gum | |
Baking Temperature | stand oven: 220 - 230 degree Celsius for 5 minutes online oven: 240 degree Celsius for 4 minutes | |
Storage Information | Run Length after Baking | 500,000 |
Safe Light | daylight handling | |
Shelf Life | 18 months under recommended storage conditions (10 - 30 degree Celsius, relative humidity: ≤65%, stacking height ≤ 1.5 meter) | |
Package | 0.15mm, 100 sheets per carton 0.30mm, 50 sheets per carton |
Why Choose Us?
- We have more than 7 years' experience.So the plate quality is more stable.
- Our market has spread to most provinces and municipalities in our country and also been sold to overseas market like in Southeast Asia,Africa and Mid East etc.
- Passed ISO 9001:2008 and won "Gold Supplier" certified by Bureau Veritas .
- Conventional logistic system make the delivery time short.
For Clients' Information
- All the size can produced as your requirement with the thickness from 0.15mm-0.40mm in short delivery time.
- With two internationally advanced prduction line,our output can reach 500,000 square meters per month.
- All the plates are used first-grade aluminum substrate.
- Factory direct export,the price is more competitive.
- When you received the plates,if you have any questions,just contact with us.We support you the operational manual.
If you want to know more informatio about our printing plate here welcome you in any time.
