scaffolding pipe support telescopic steel props for sale

Product Overview

Description

scaffolding pipe support telescopic steel props for sale

 (formwork prop,scaffolding prop, adjustable prop, telescopic prop,shoring prop)





product mechnical properties:





1) Material: Carbon steel Q235



2) Adjustable range: 1.8-3.1m/2.0-3.6m/2.2-4.0m/2.5-4.0m/3.0-4.8m (customizable)



3) Inner&outer pipe specs:       OD48*2mm/OD48*2.5mm/OD48*3mm/OD60*2mm/OD60*2mm/ OD60*2.5mm/OD60*3mm (customizable)



4) Top/base plate: 120*120*3mm/120*120*3.5mm/120*120*4mm/120*120*5mm



5) Thread specs:customizable



6) Pressure load (breaking load):based on specs,e.g.

       fully closed:120KN



       intermediate:98KN



          fully extended:94KN

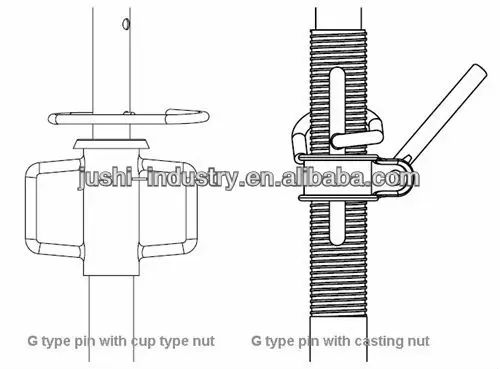

7) Screw design:

8) Surface finish: painted/electro galvanized/hot dip galvanized/powder coated



9) Packing: in pallet or as required



10) Payment: 30% in advance, balance against the B/L copy







Our products cover a wide range formwork acccessories,shoring props,adjustable screw jacks,systerm scaffolding and a variety of scaffolding and formork parts.







Welcome to contact us for detailed information,and we will give you our favourable price.
