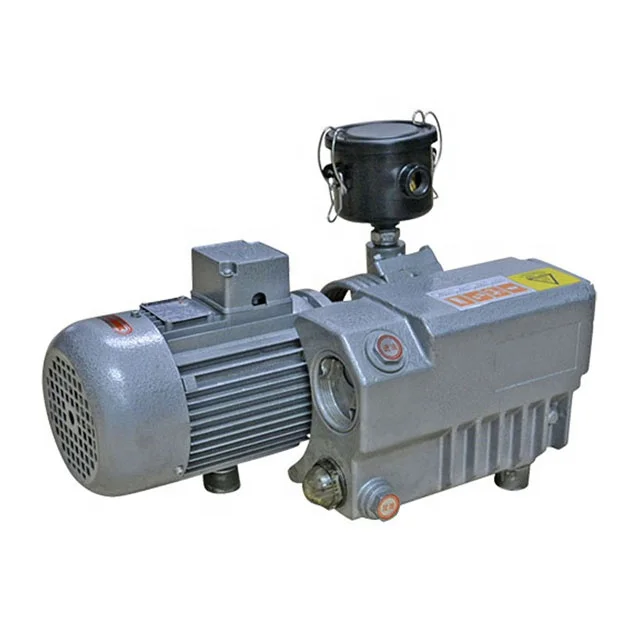

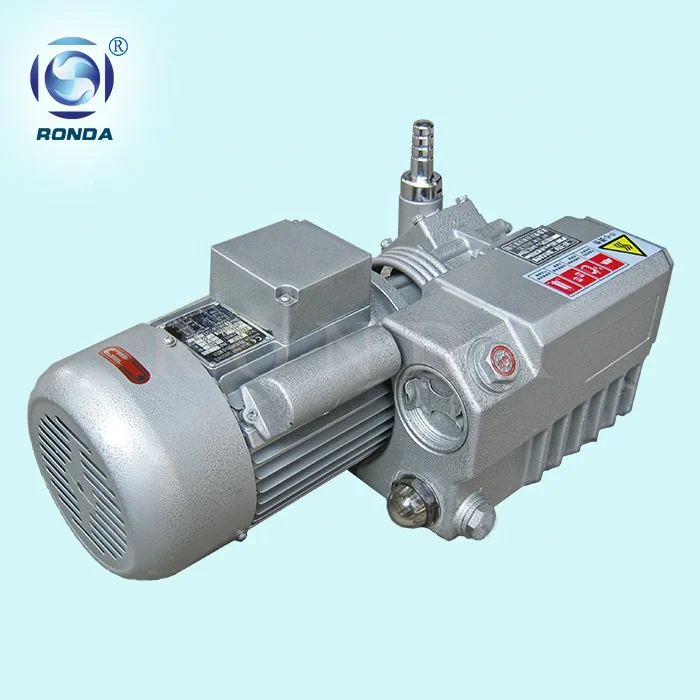

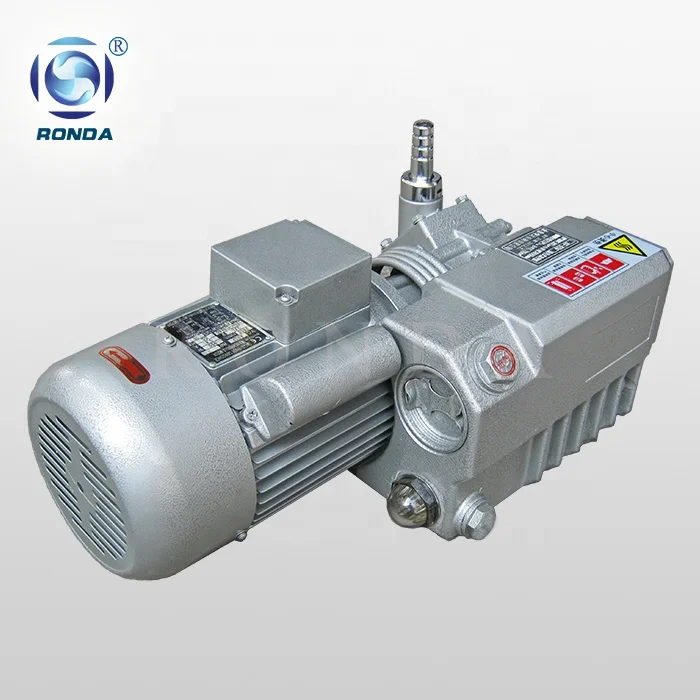

XD oil sealed rotary single stage vacuum pump

Product Overview

Description

XD oil sealed rotary single stage vacuum pump



Introduction:

1. XD oil sealed rotary single stage vacuum pump can be cooled by air.

2. It is applicable for air or any other gas which is non-corrosive, insoluble in water and without solids. Air or gas contains a small amount of liquid is allowed.

3. With oil-return resistant structure, the pump oil is kept from returning to the sucking system.

4. A gas-draining filter fixed in the pump, which operates stable with small vibration can effectively eliminate the oil mist, and can operate under any pressure.

5. It is applied to several sectors such as food vacuum packing, pharmaceutical, paper, printing machines, glass, vacuum clamps, industrial conveyor, drying industry and other unit.



Product details:

Working Principle:	Vane, oil seal, etc
Main applications:	Air & Gas
Driver:	Electric motor
Power Specs:	220/380/415V 3phase; 110/220/240V 1phase; 50hz/60hz
Max.permissible fluid temperature:	50°C(122°F)
Type of connection:	Barb
Installation position:	Horizontal
Casing/Inner parts material:	Cast iron
Shaft seal type:	Oil seal
Free passage:	0mm
Limited vacuum:	200pa(2×10-3bar)
Maximum drive rating:	7.5KW(10HP)
Maximum caliber:	G2 1/2"mm
Flow rate range:	10-250m3/h(5.88-147.1CFM)

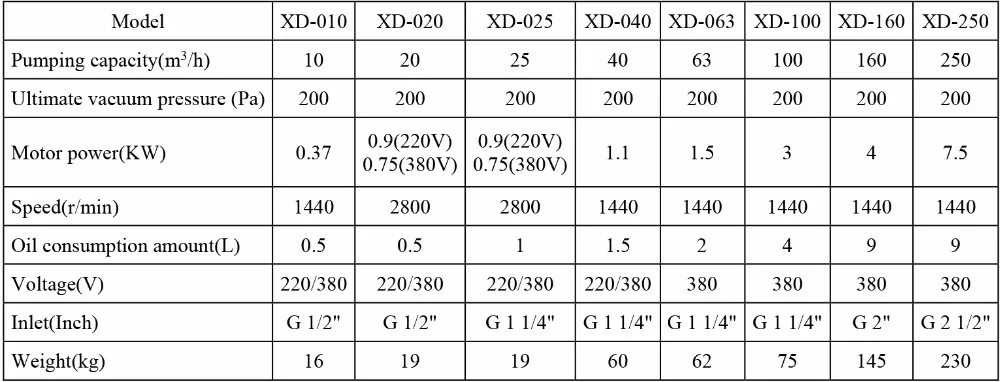

Performance data:

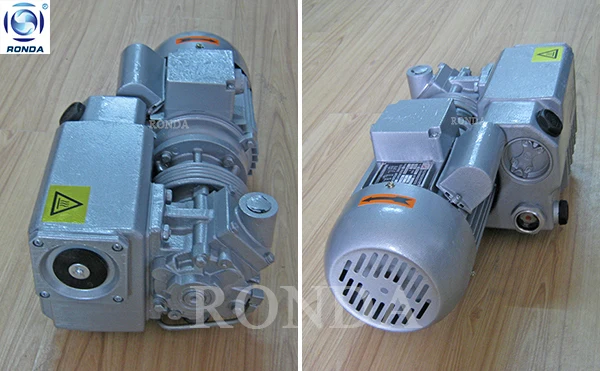

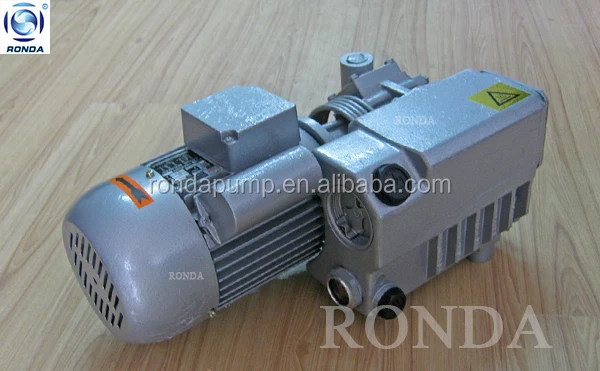

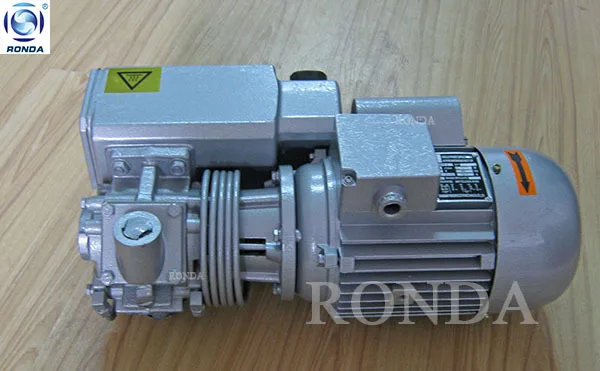

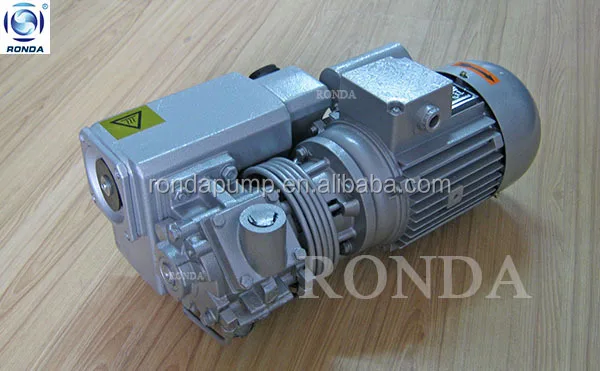

Pictures:

 Excellent product made of carefully selected high-quality materials:
