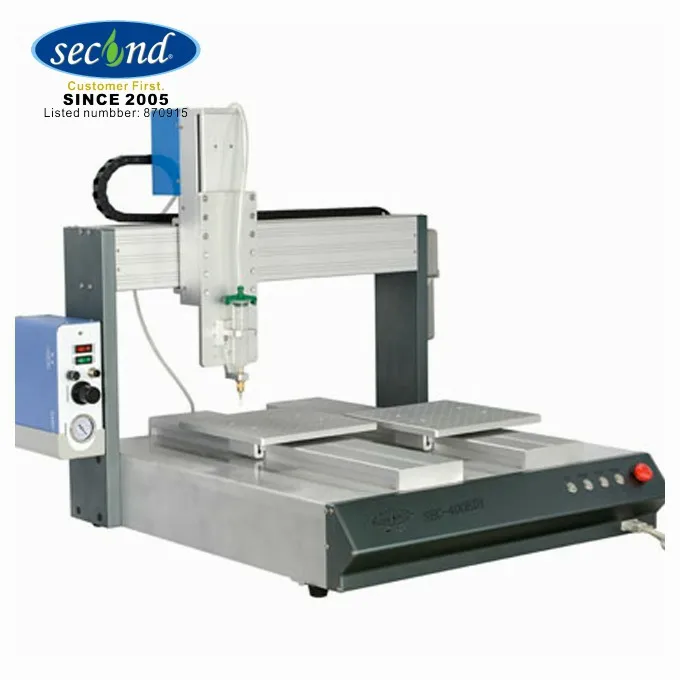

Servo Motor CE Certified XYZ SMD SMT Assembly Epoxy Silicone Glue Dispensing Robot Machine
- Category: >>>
- Supplier: Shenzhen Second Intelligent Equipment Co. Ltd.
Share on (1491722509):
Product Overview
Description
Product Description
Specifications
1.automatic XYZ dispensing robot
2.Servo motor/ball screw +linear guide rail
3.CE certificate
4.OEM and can be customized
| Model | SEC-300EDS-N | SEC-400EDS-N | SEC-500EDS-N |
| Work Area | 300(X)X300(Y)X100(Z)mm | 400(X)X400(Y)X100(Z)mm | 500(X)X500(Y)X100(Z)mm |
| Size | 490(L)*528(W)*679(H)mm | 590(L)*740(W)*6(H)mm | 690(L)*840(W)*681(H)mm |
| Y/Z(Max load) | 20kg/10kg | ||
| Travel speed | 400mm/sec(XY)/200mm/sec(Z) | ||
| Drive mode | Servo motor/ball screw + linear guide rail | ||
| XYZ(Repeatability ) | ±0.02mm | ||
| Resolution | 0.01mm | ||
| Program capacity | 999 parameter files(65535 points per file | ||
| Operation system | LCD panel /Teaching pendant | ||
| Movement pattern | point to point, continuous line, arc, etc. | ||
| I/O signal ports | 4 inputs/4 outputs | ||
| Power supply | AC220V 50/60HZ 0.7KW | ||
| Work condition | Temperature 0-40℃; relative humidity 20-90% | ||
| Weight | About 40KG | About 50KG | About 60KG |
Configurations:( Servo motor silicone dispensing robot SEC-400/500EDS-N)
Title | Unit | QTY | Remarks |
Motor | kit | 3 | Servo motor |
High-precision dispensing valve | pc | 1 | Optional |
Movement controller | kit | 1 | Second automatic |
Automatic dispensing software | kit | 1 | Second independent R&D |
Precise dispensing controller | kit | 1 | SEC-100T or SEC-200S |
Features:
1.Operation with handheld LCD panel teach box,which is easy to program and learn.
2.Functions of drawing points,lines,surfaces,arc,circle and consecutive complement of irregular curves to realize any 3D non planar trajectory path.
3.Excellent teaching function to support array,graphical browsing,three dimensional elliptic,common graphical library inserting,group editing and so on.
4.MINISD file storage with high speed and 2G capacity can store 999 dispensing process documents.
5.The size of glue,speed of glue spread,dispensing time,time of halting dispensing can be set by parameters.
6.With Second special dispensing controller,glue outflow is quite stable without leaking and dripping.
7.The function of automatic gel prevention can effectively prevent glue curing from jamming needle head.
8. Powerful PC compatibility with the Logoshop software can import mainstream design software(such as Auto CAD,Coral Draw,etc.) to generate a variative of file formats(such as,.NC,.AI,.DXF,.JPG,.BMP,scanner,etc.)
9.It is applied to fluid dispensing, such as, UV glue, AB glue,COB(black glue), white glue, EMI conductive
glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste,
transparent paint, screw fixative and so on.
Click here to get our catalogue
Packaging & Shipping

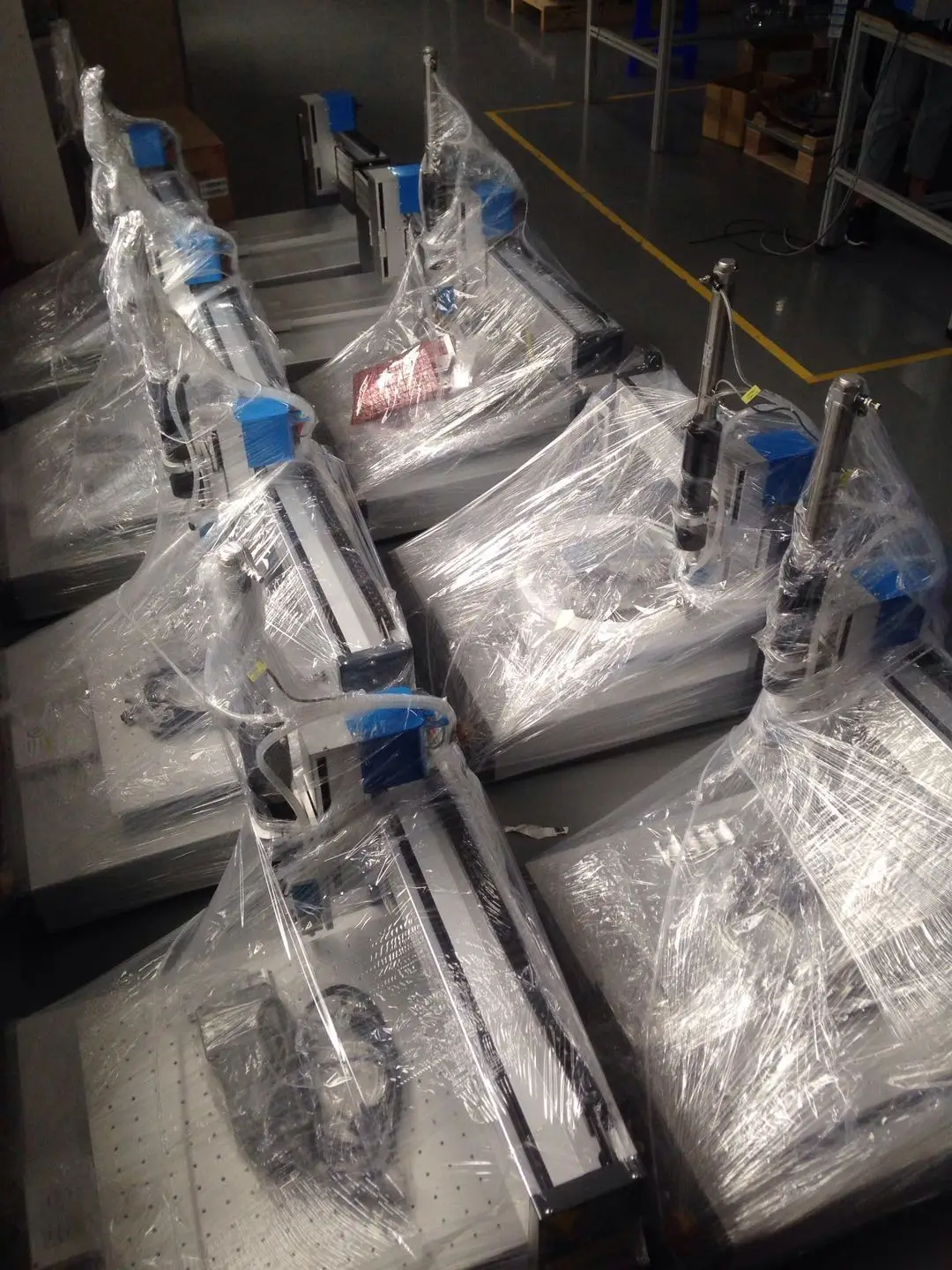

Package : wooden box
Shipping mode: FOB Shenzhen
Delivery time: Within 15 working days after receiving the advance payment.
Click here to get our catalogue
Company Information

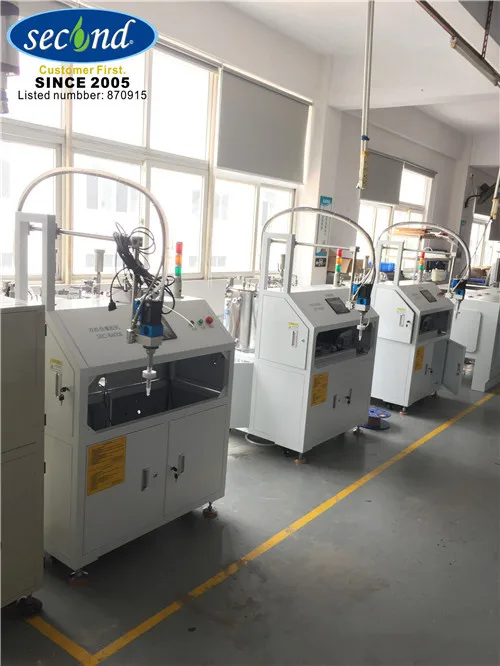

Located in Shenzhen City, China, we are professional manufacturer of automatic dispensing machine, double-liquid potting machine,screw locking machine, RO filter production machine seriess on basis of ten years of technical accumulation and innovation.

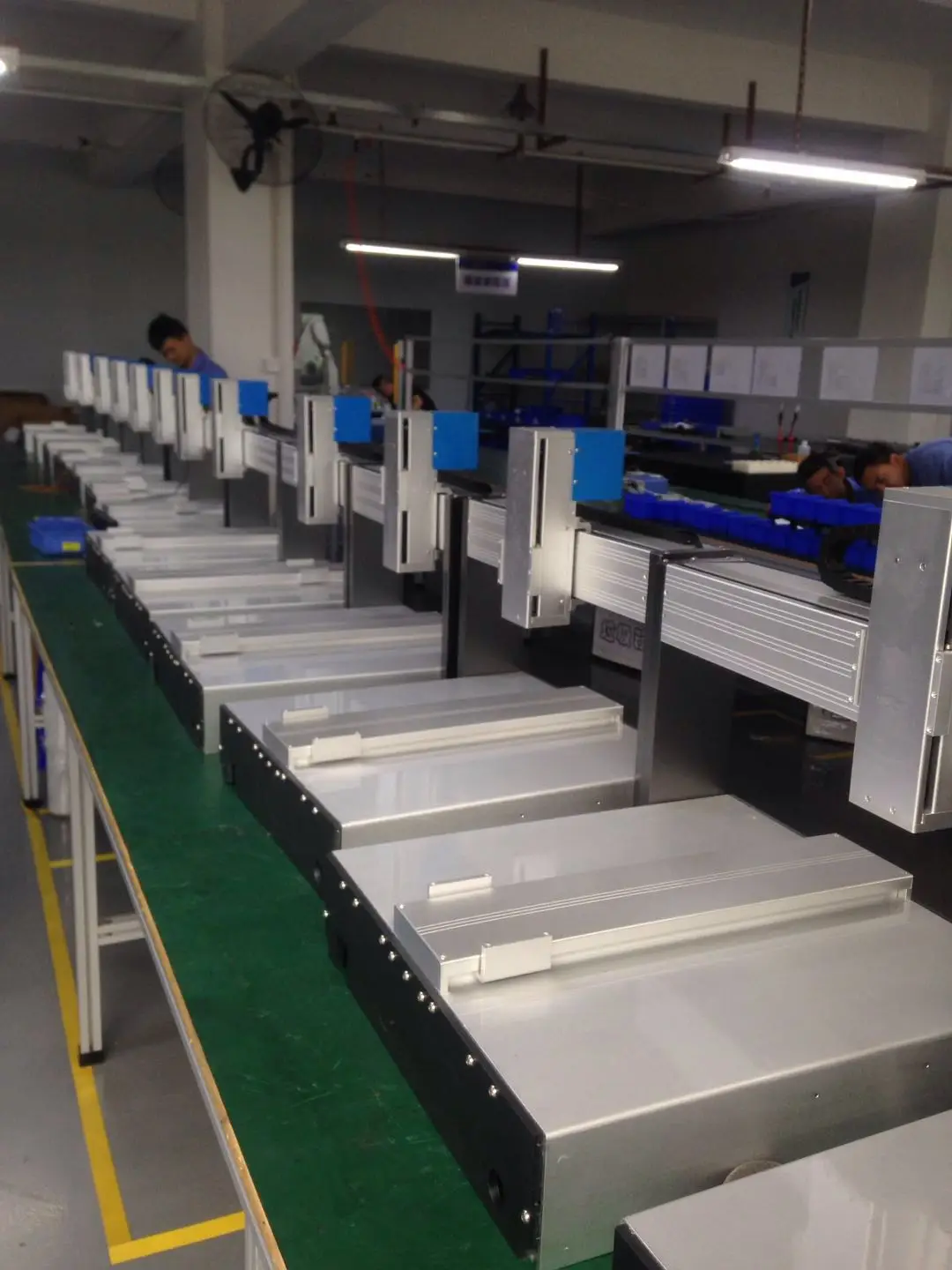

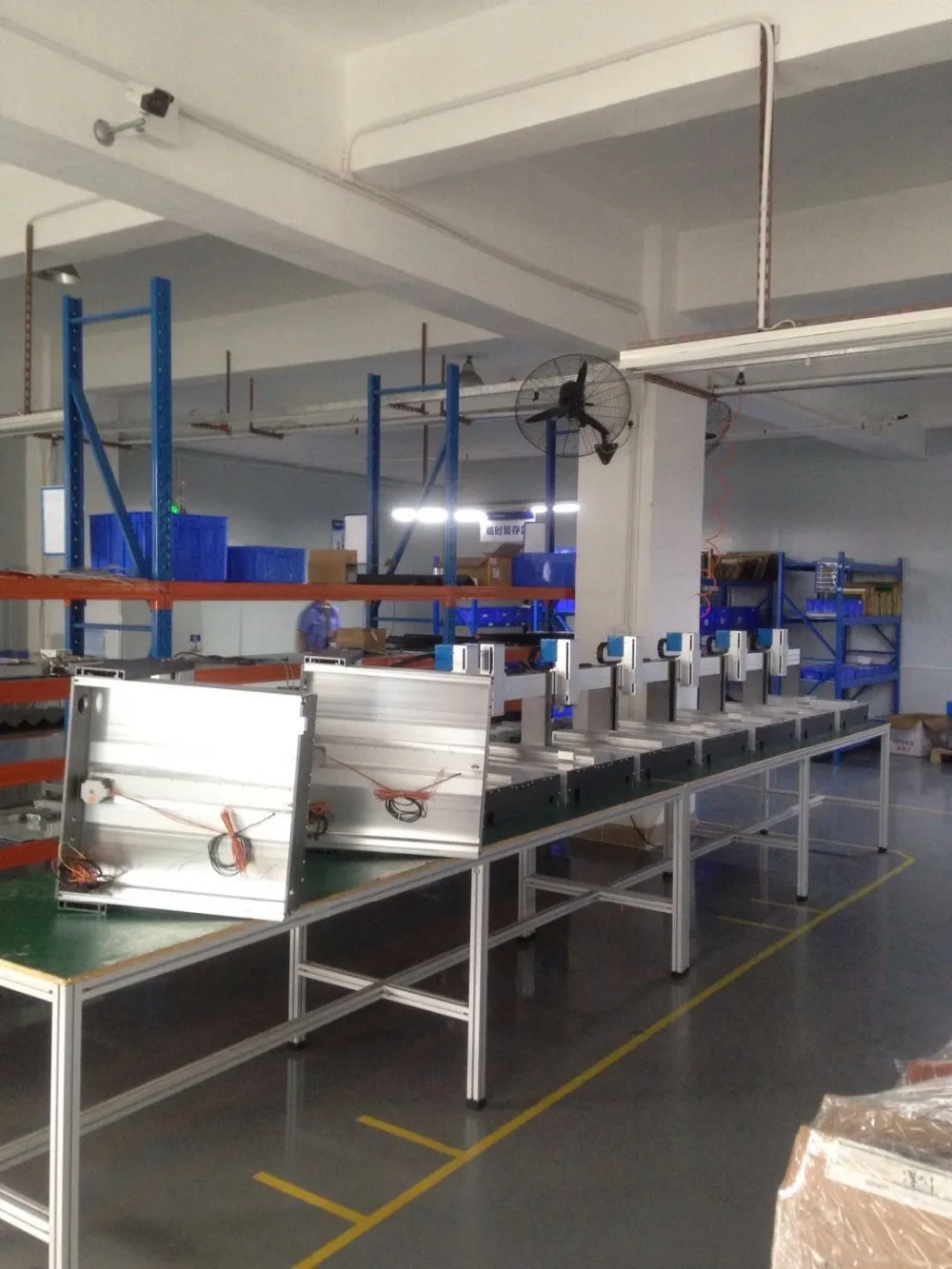

With 6000 square meters of production center in Shenzhen and more than 300 employees across China, we are capable of manufacuring machines of high quality in the delivery time expected.

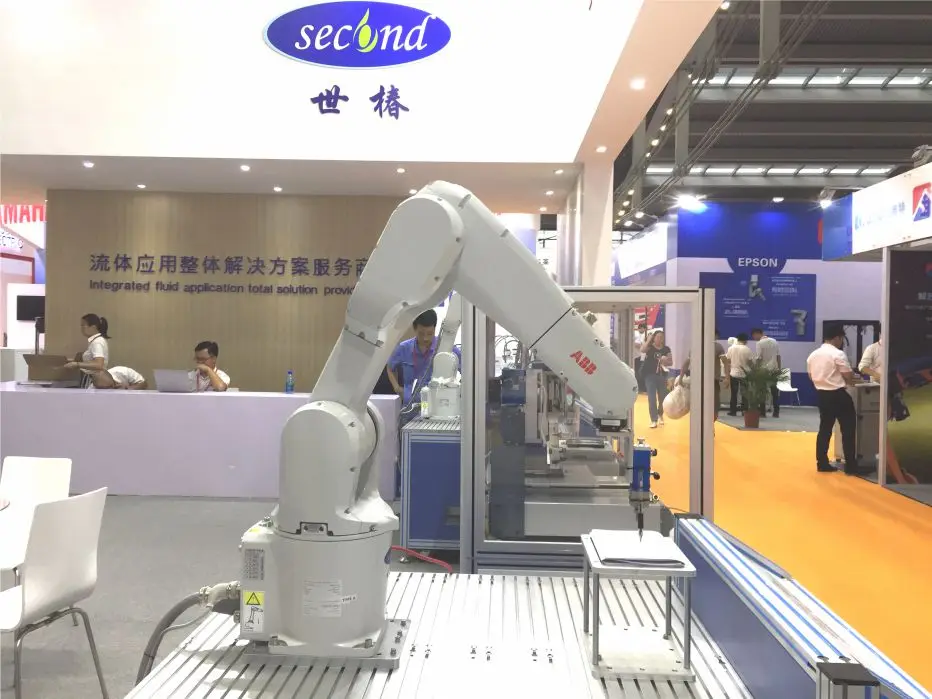

Our latest exhibition in EEIE with our 6 axis robot:
